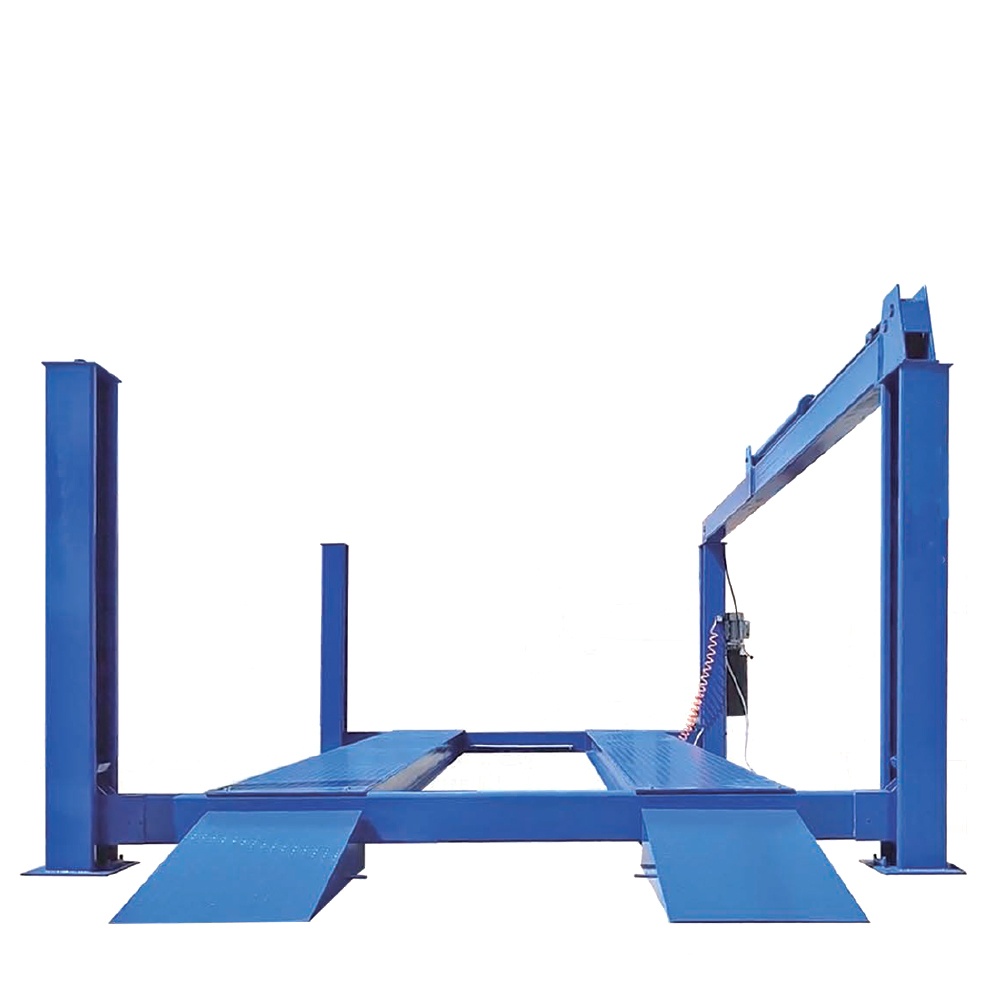

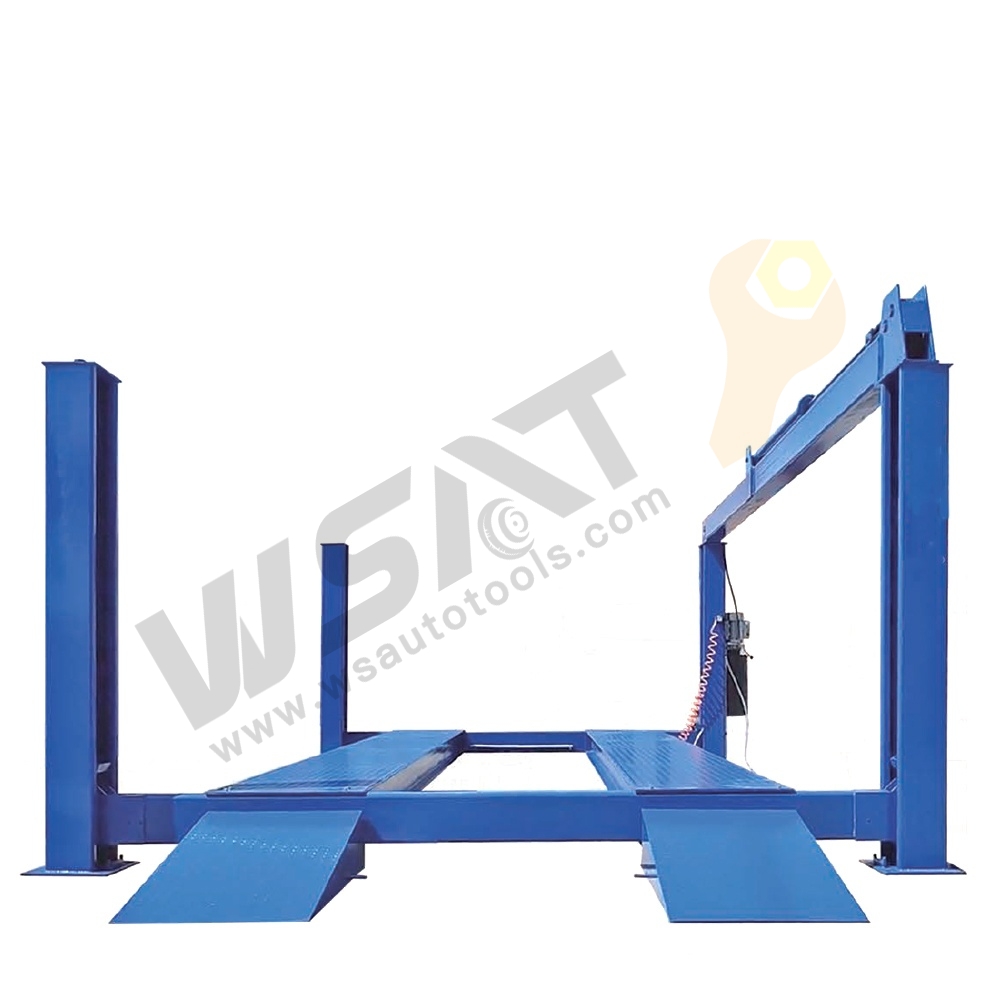

8 Ton /16 Ton Heavy-Duty Four Post Truck Lift
high quality electric-hydraulic pump, powerful, and low failure rate,
pneumatic unlocking system, easy and convenient to operate;
unique and automatic safety locks, safe and reliable;
single piece column construction assures evenly loading and smoothly running;
unique chain-drive-mode, instead of wire-dirve mode, safe and reliable.
Quantity
ltem No.
Description
8 Ton /16 Ton Heavy-Duty Four Post Truck Lift
Features
Single Point manual lock release
Width between two platforms is adjustable to be fit for different vehicle
Mechanical safety lock installed in each column.
Front and rear stop plate well protect the vehicle during repairing.
Center rolling jack as optional.
24V control system as optional for CE standard
Specification
Model | 15106 - 8T | 15106 - 16T |
Lifting Capacity | 8 Ton | 16 Ton |
Max. Lifting Height | 1700mm | 1700mm |
Min. Lifting Height | 215mm | 215mm |
Post Height | 2030mm | 2040mm |
Width of Single Runway | 650mm | 700mm |
Unlocking System | Pneumatic Unlocking | Pneumatic Unlocking |
Hydraulic Pressure | 16Mpa | 16Mpa |
Working Voltage | 380v | 380v |
Working Power | 3kw | 3kw |
