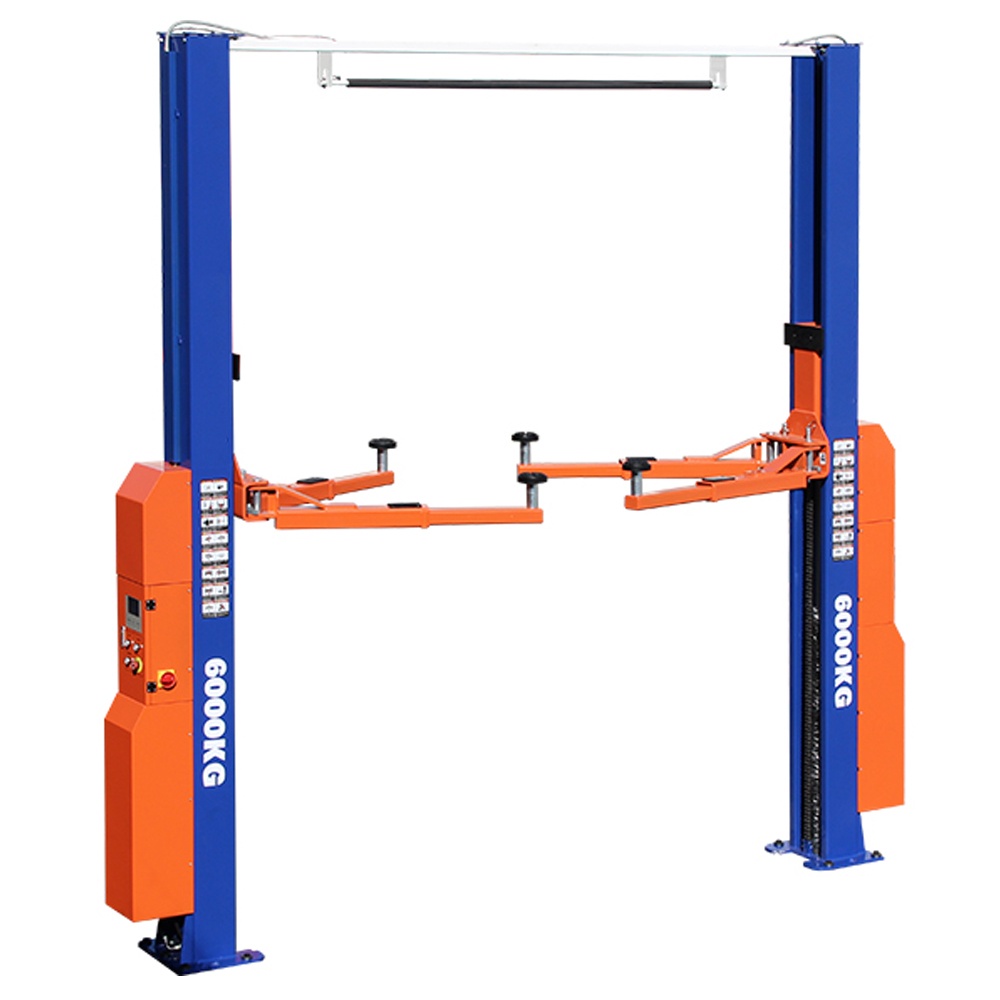

5 Ton Ultrahigh Clear Floor Lift

15027

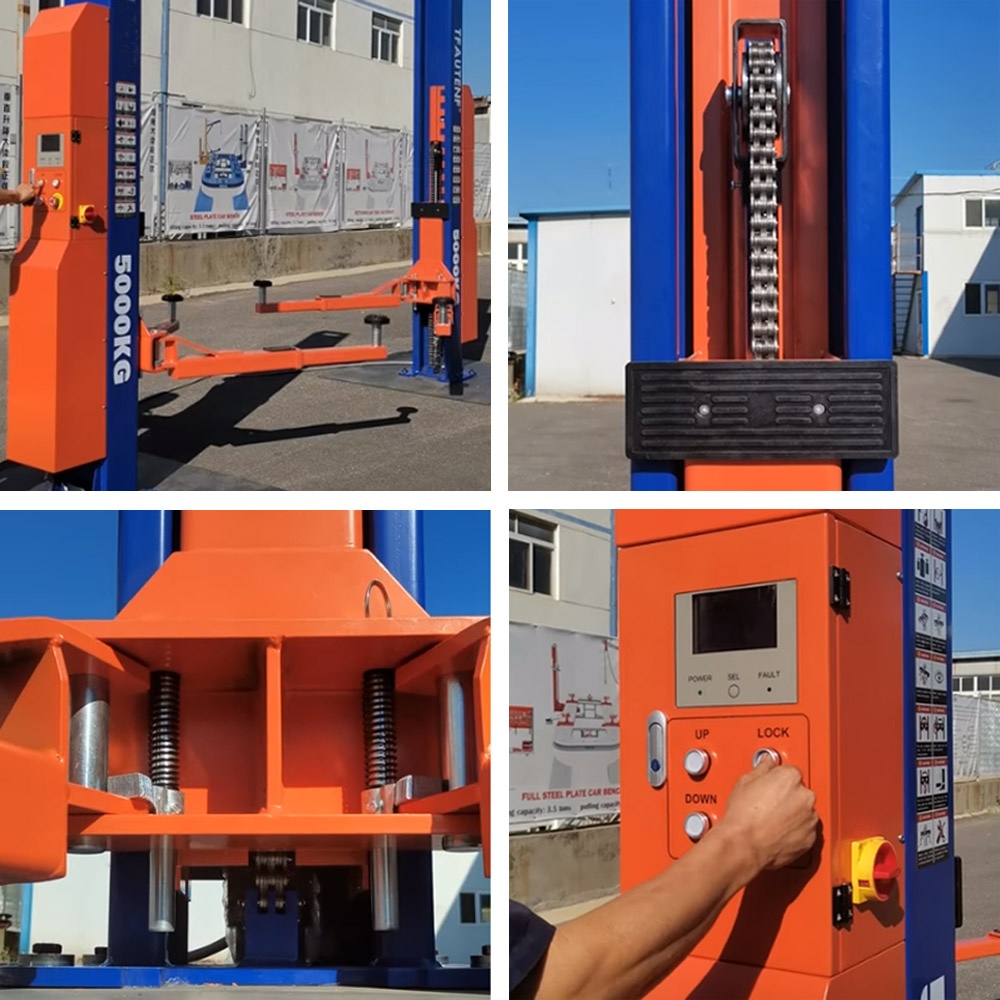

  • Double safety guaranteed by both hydraulic flow control and mechanical locks;

  • SCM technology guarantees synchronization;

  • LCD screen shows the real-time lifting height, fault warnings and troubleshooting;

  • Remote control handle with 5 meters cable available;

  • Recommended for medium size vehicles, e.g. SUV, RV, pickup etc.

Quantity

ltem No.

Description

5 Ton Ultrahigh Clear Floor Lift  offers a 5000 kg capacity with a max lifting height of 1820 mm and baseless design for unobstructed workspace access. Powered by dual 2.2 kW motors (220V/380V), it features electrical unlocking, 700-1100 mm adjustable arms, and a 2515 mm pass width for large vehicles. Precision SCM synchronization and hydraulic-mechanical dual safety ensure stable operation, ideal for high-clearance workshops demanding reliability and efficiency.

Features

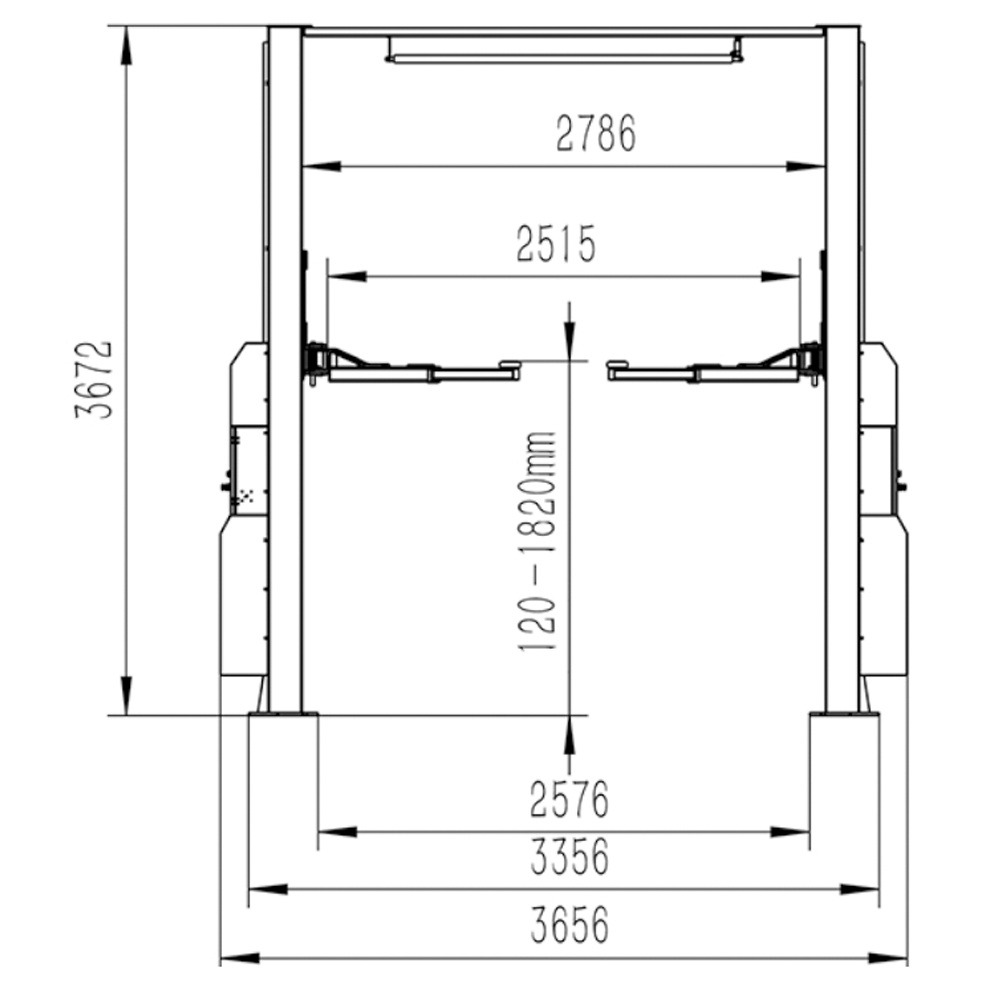

Specification

Lifting capacity

5000 kg

Max. lifting height

1820 mm

Min. lifting height

120mm

Column height

2782mm

Max. Installation Width

3356mm

Pass Width

2515mm

Length of Lifting Arm

700-1100mm

Power supply

220V/380V

Motor power

2 x 2.2 kW

Unlock method

Electrical unlocking

TF-H50E-1



Specification
