15142
15142
High lifting capacity with cable synchronization controls
24V power control box ensures safe operation
Movable, can be used indoors and outdoor use
Door protection pads
Available in 5t/power or 7.5t/post design
Every column is moveable, width between columns adjustable
Dynamic test with 125% of rated capacity and static test with150% of rated capacity
CE certificate
Quantity
ltem No.

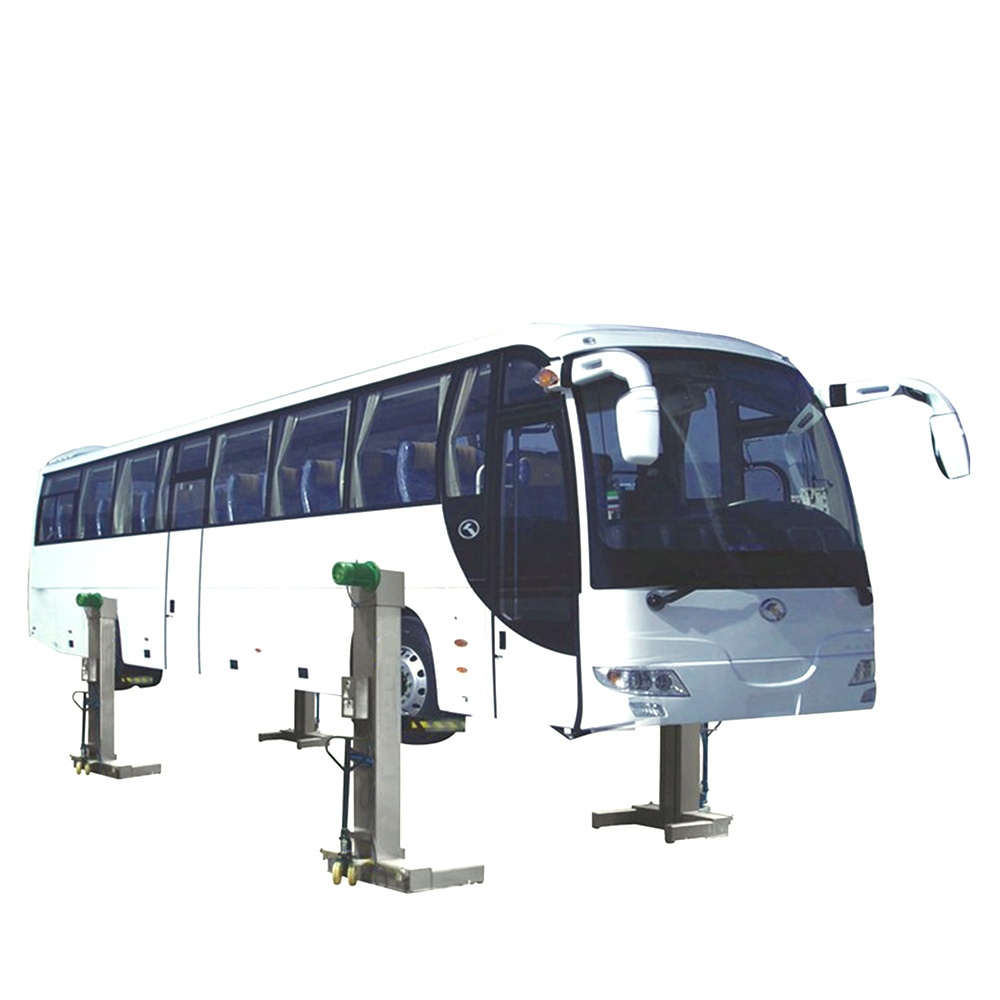

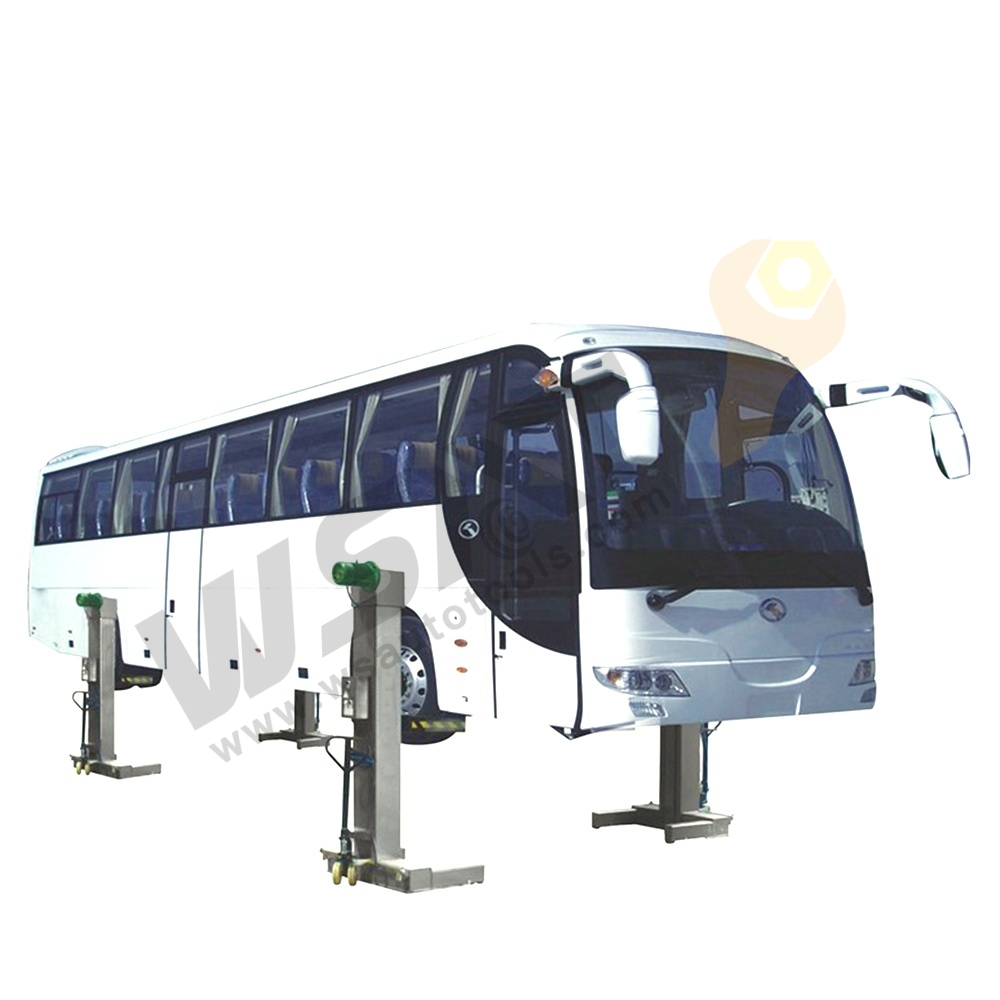

5.5Ton/7.5Ton Heavy Duty Mechanical Column Lift is designed for demanding industrial and automotive applications, this lift combines high capacity with cable synchronized controls for precise operation. Featuring a 24V safety control box, movable columns, and door protection pads, it works seamlessly indoors or outdoors. Rigorously tested at 125% dynamic and 150% static load capacities, it meets CE standards. Ideal for workshops, logistics, or heavy vehicle maintenance, offering flexibility, reliability, and robust safety.
Model | 15142 - 5T | 15142 - 7.5T |
Capacity | 5.5Ton | 7.5Ton |
Lifting Height | 1500mm | 1500mm |
Power of Motor | 3kw | 4kw |
Power Supply | 380V | 380V |

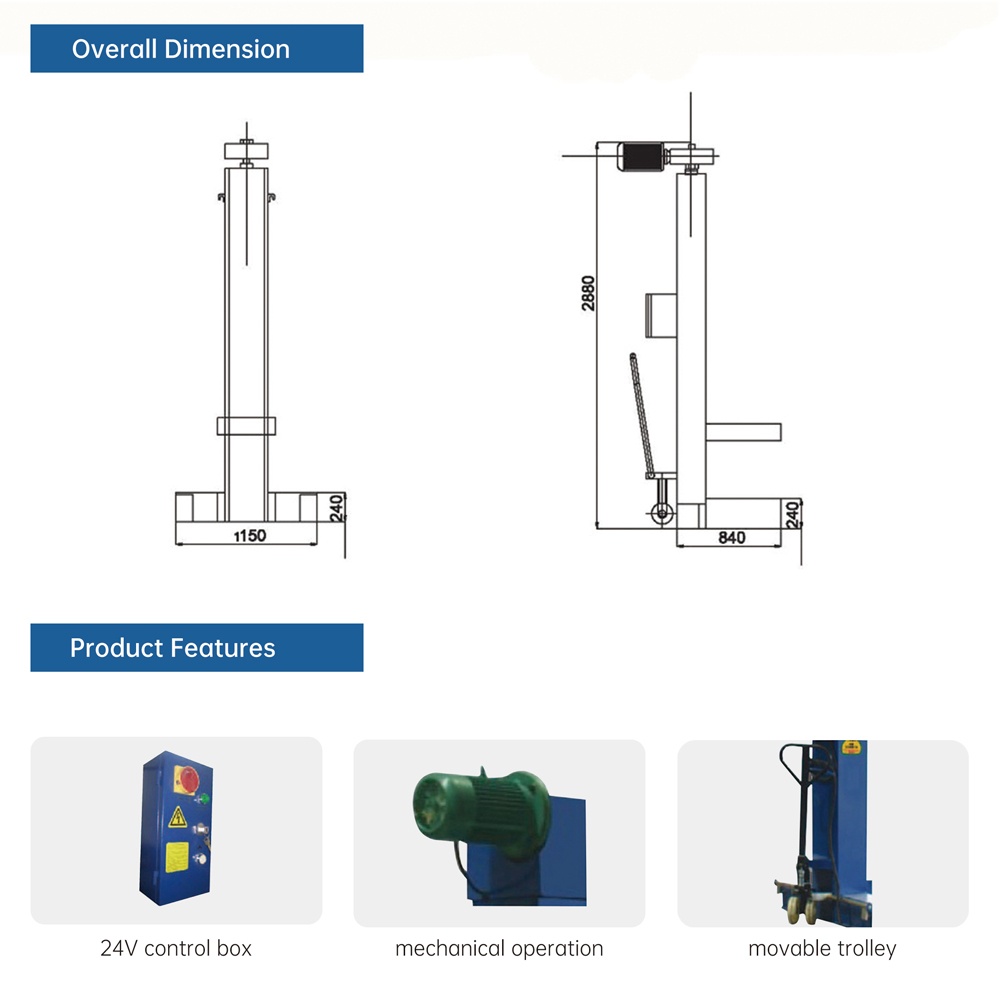

Overall Dimension | 1120x1100x2600mm | 1120x1100x2600mm |
Net Weight | 550kg | 800kg |
