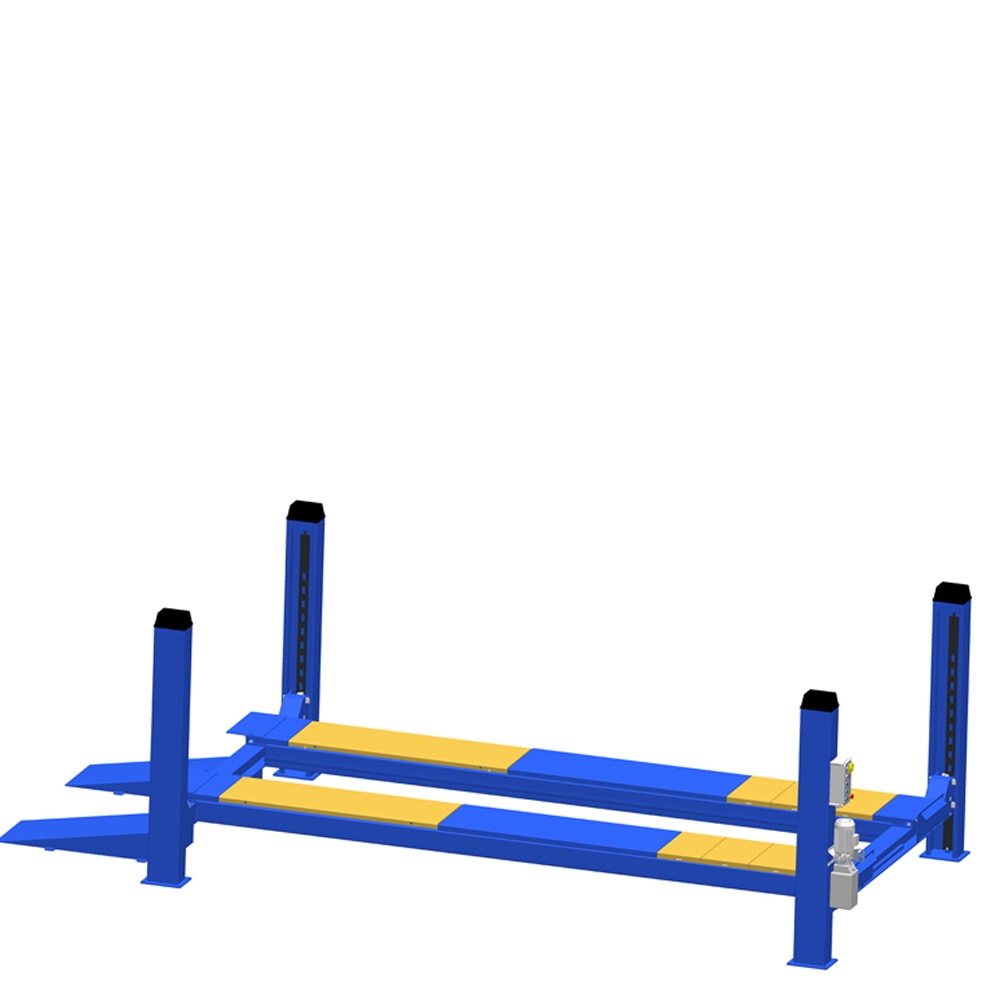

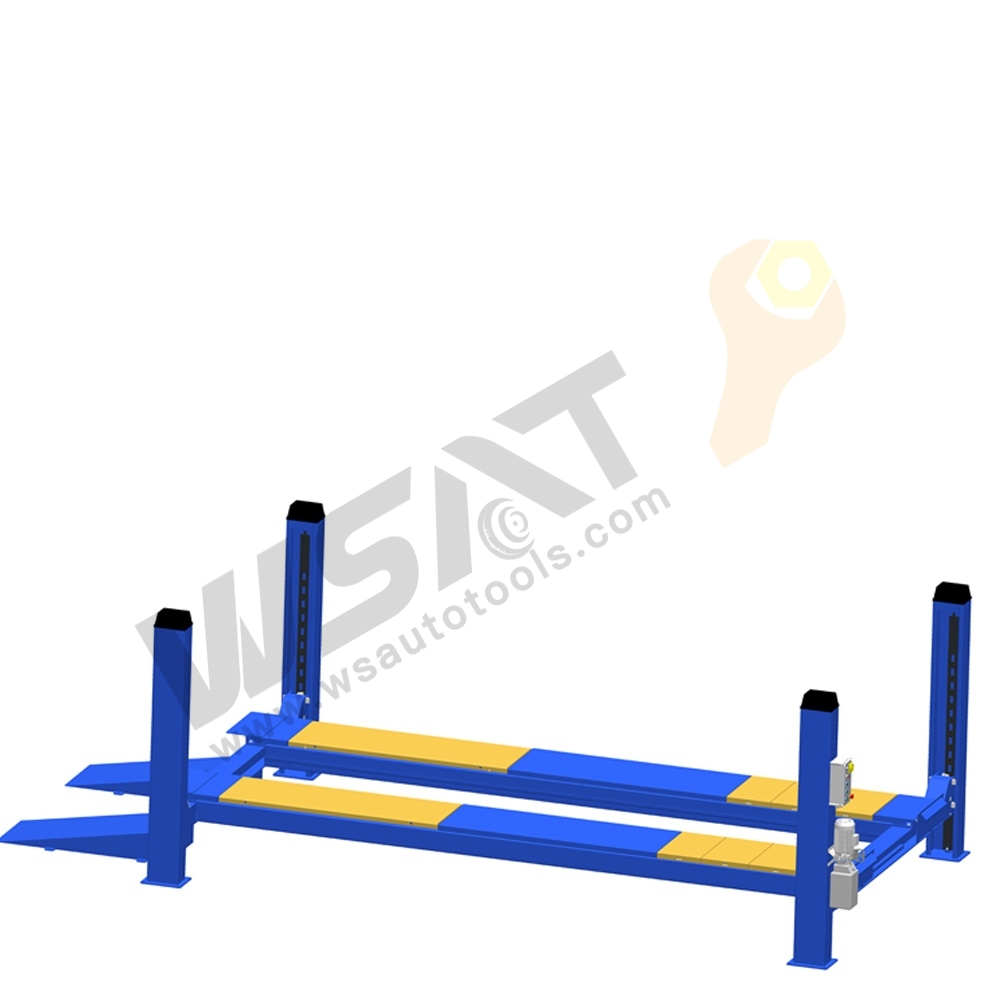

6.5/8/10 Ton Four Post Alignment Lift

15111

  • Heavy duty four post lift for alignment.

  • 24V low voltage control.

  • With mechanical lock and pneumatic relase which needs air supply in 6~8bar.

  • With parachute valve and safety valve.

  • With guide rail as standard, customer can choose the available optional rolling jack in 3.0T/5.0T/7.0T.

  • Easy for tyre mount and dismount and chassis maintenance.

  • The alignment level of the lift can be adjusted in high precision;

  • Position of turntable can be adjusted to suit for various types of vehicles.

Quantity

ltem No.

Description

6.5/8/10 Ton Four Post Alignment Lift is ideal for precision wheel alignment and heavy-duty maintenance, this lift handles 6.5-10 tons with 24V low-voltage control for enhanced safety. Features mechanical locks, pneumatic release (6-8bar air supply), parachute/safety valves, and adjustable turntables for versatile vehicle compatibility. Standard guide rails ensure stability, while optional 3.0T/5.0T/7.0T rolling jacks add flexibility. Built for durability and reliability in professional workshops.

Features

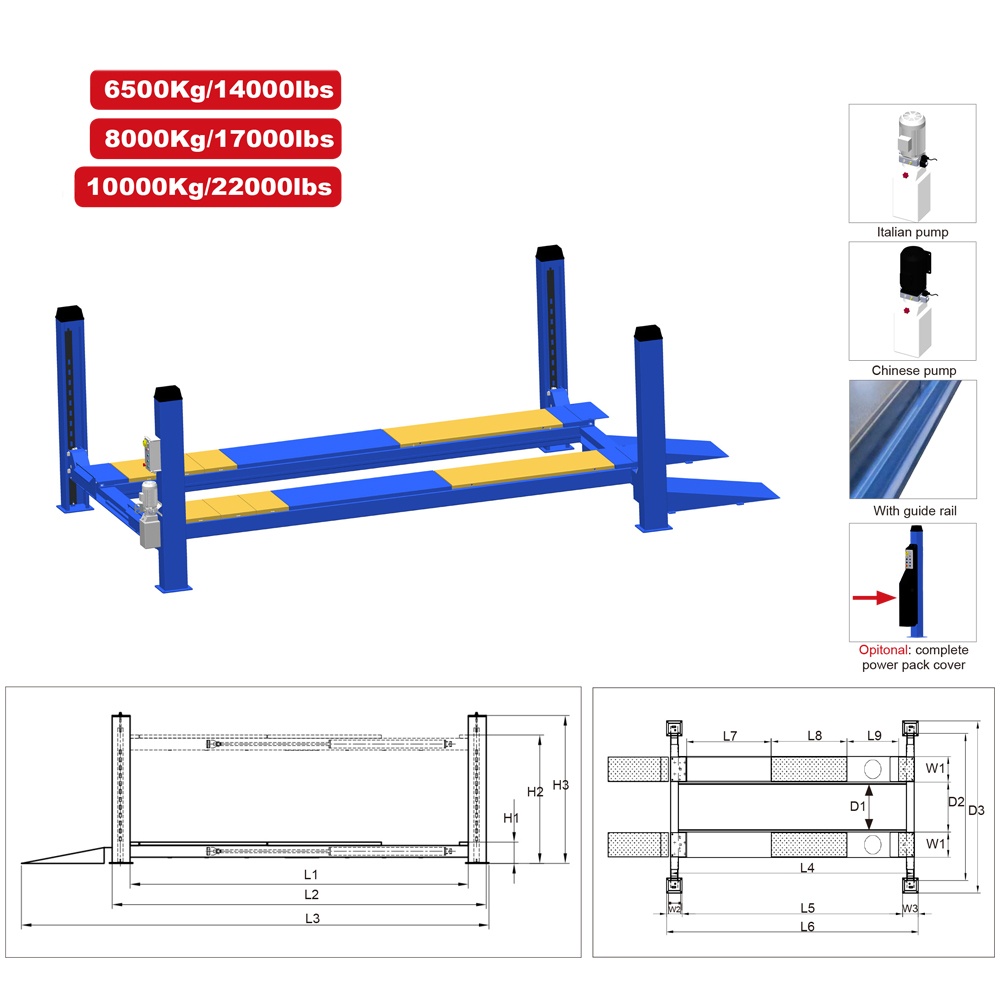

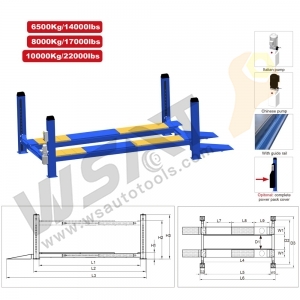

Model

15111 – 6.5T

15111 – 8T

15111 – 10T

Lifting Capacity(ton)

6.5

8

10

Lifting Height(mm)

1845

1845

1845

Runaway Length(mm)

5038

5353

5353

Runaway Width(mm)

510

670

670

Width between Runaway(mm)

916

986

986

Height of Posts(mm)

2208

2208

2208

Total length(mm)

6985

7443

7443


15111

Specification
