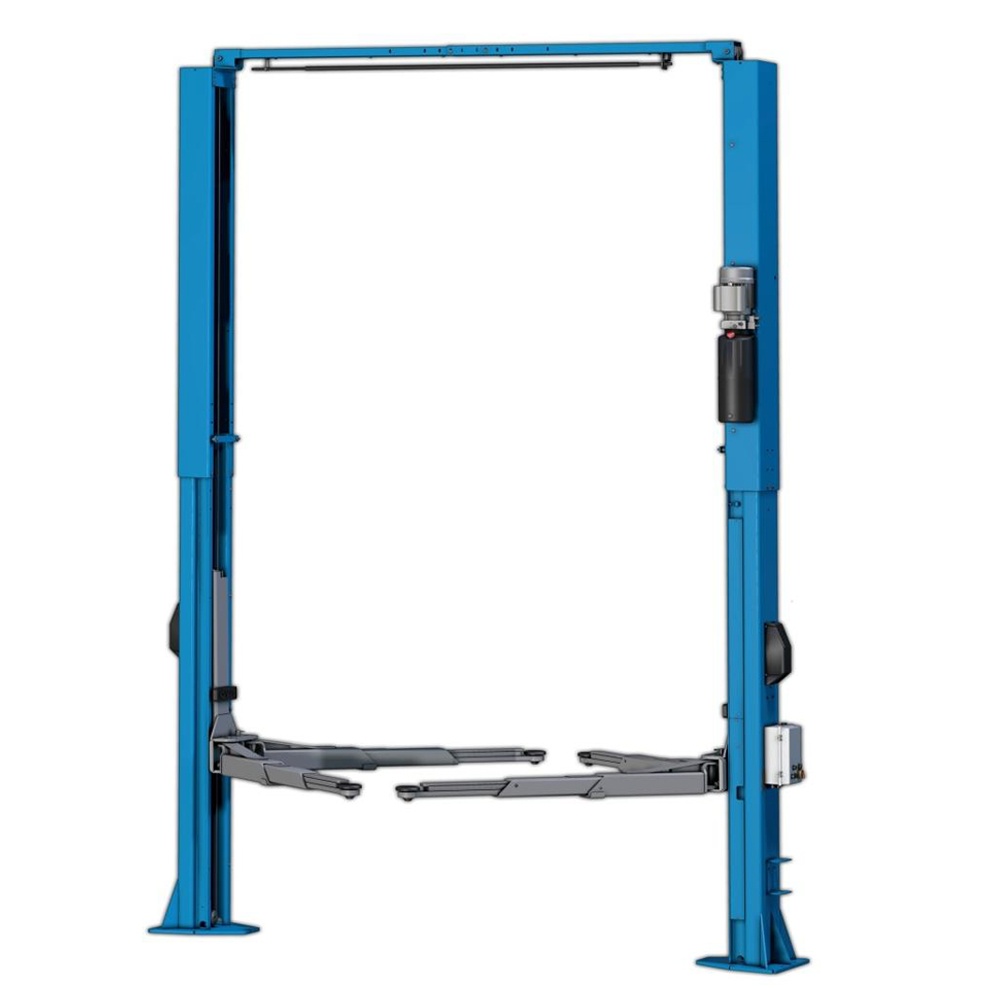

5.5 Ton Ultrahigh Clear Floor Lift

15021

  • Electro-hydraulic driven lift without chain

  • Three taller versions available without having to change extension kits

  • Synchronization of cylinders independent from load distribution with mechanical leveling system

  • Mechanical safeties with automatic engagement and release

  • Full stroke cylinders minimize number of moving parts

  • Double screwed adaptor included as standard

  • Automatic arm safety

  • Pressure overload valve equipped in power unit

  • Voluntary driven control with 24V voltage

  • Anti-crushing protection

Quantity

ltem No.

Description

5.5 Ton Ultrahigh Clear Floor Lift delivers electro-hydraulic, chain-free operation with three adjustable heights for versatile applications. Featuring synchronized cylinders and a mechanical leveling system for load-independent stability, it integrates full-stroke cylinders to minimize components and enhance reliability. Equipped with automatic arm safety, 24V control, pressure overload valves, and anti-crushing protection, this lift ensures secure lifting through auto-engaging mechanical safeties. The standard double screwed adaptor adds convenience, while its robust design meets the demands of high-clearance automotive workshops for precision and safety.

Features

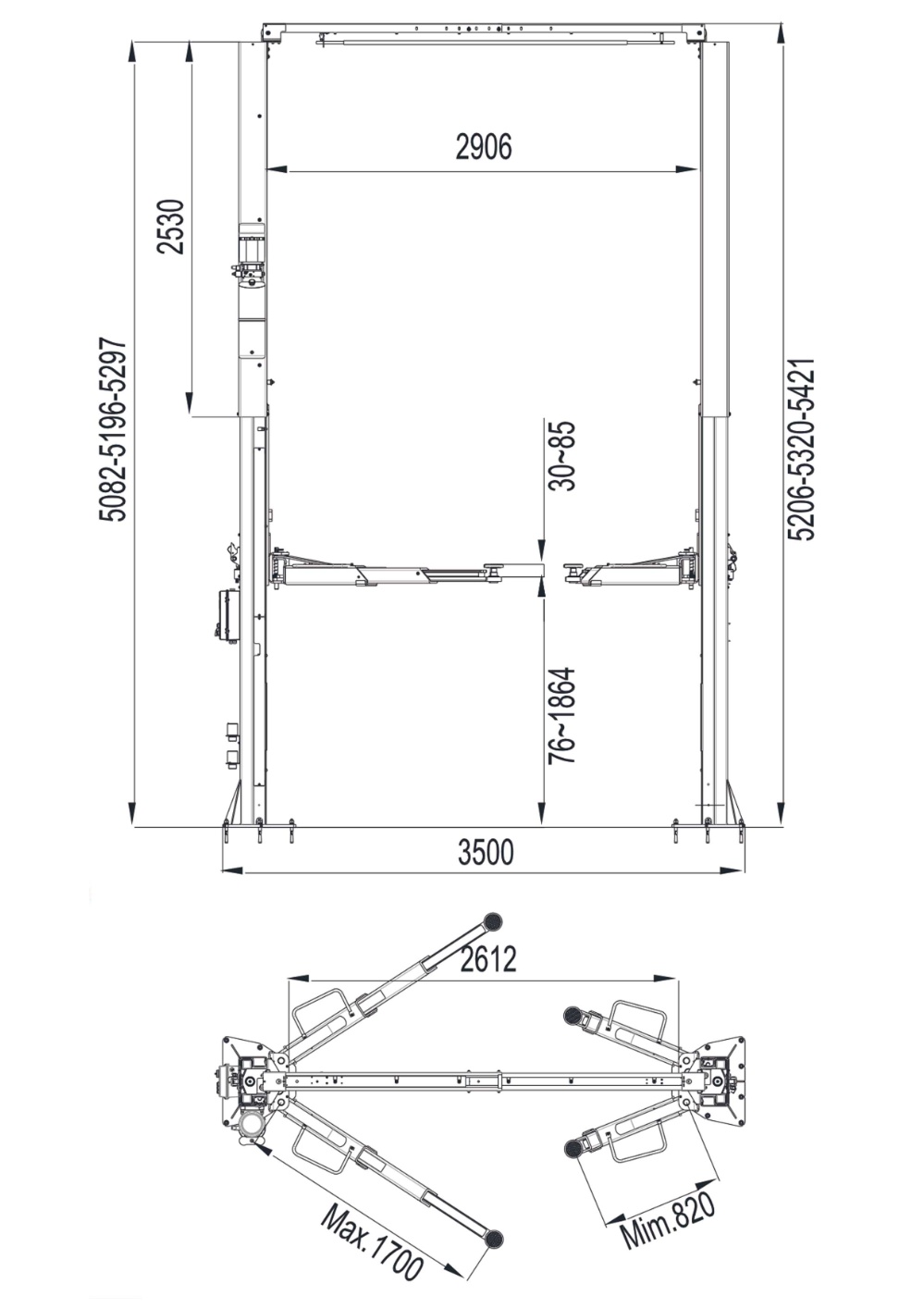

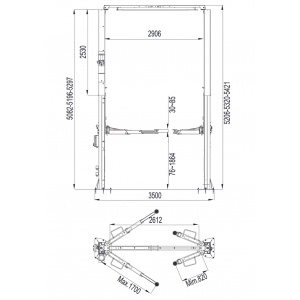

Specification

Lifting Capacity:

5500kg

Max. Lifting Height:

1894mm

Min. Height:

106mm

Overall Height:

106mm

Drive Thru:

5206, 5320, 5421mm

Lifting Time:

50s

Weight:

1020kg



STD-6255TD-1
