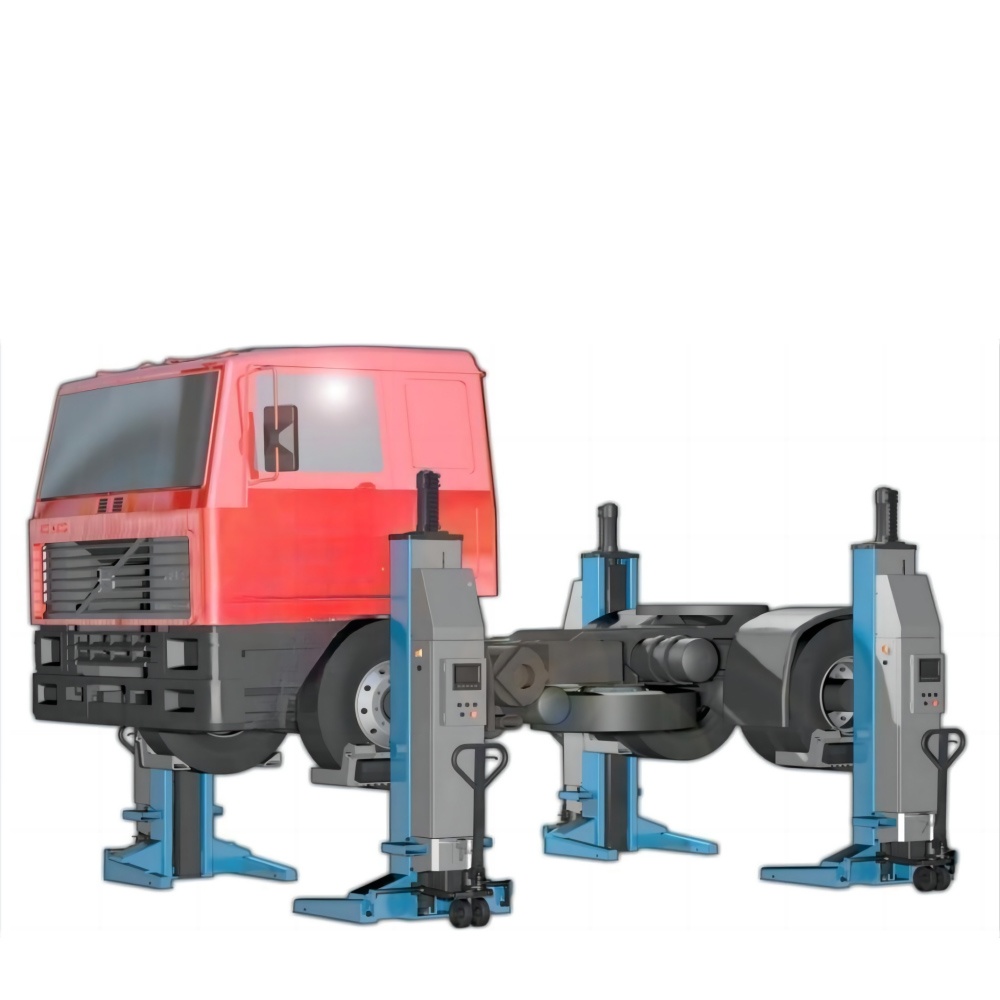

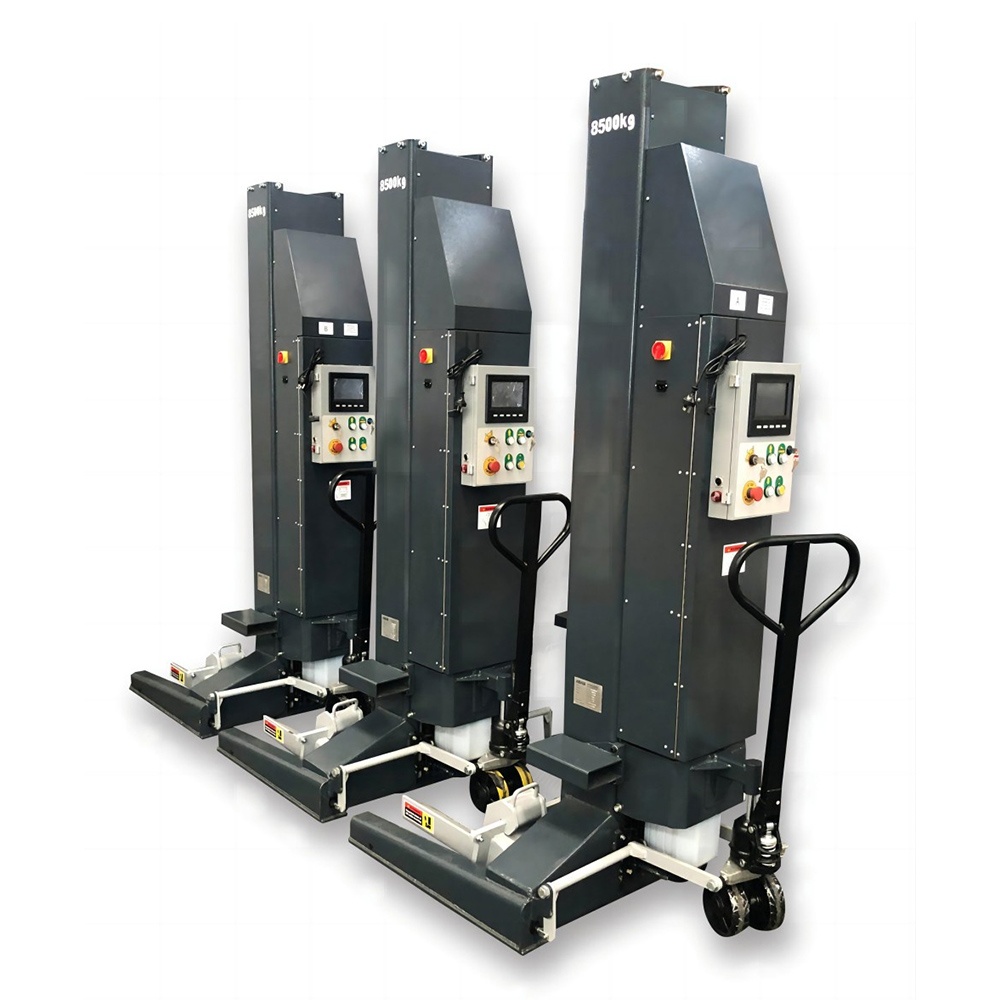

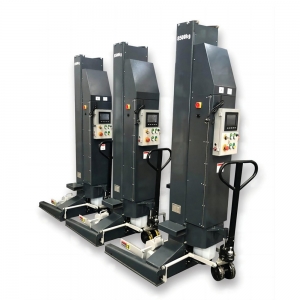

Each column lifts 5.5/7.5 ton with wireless system.

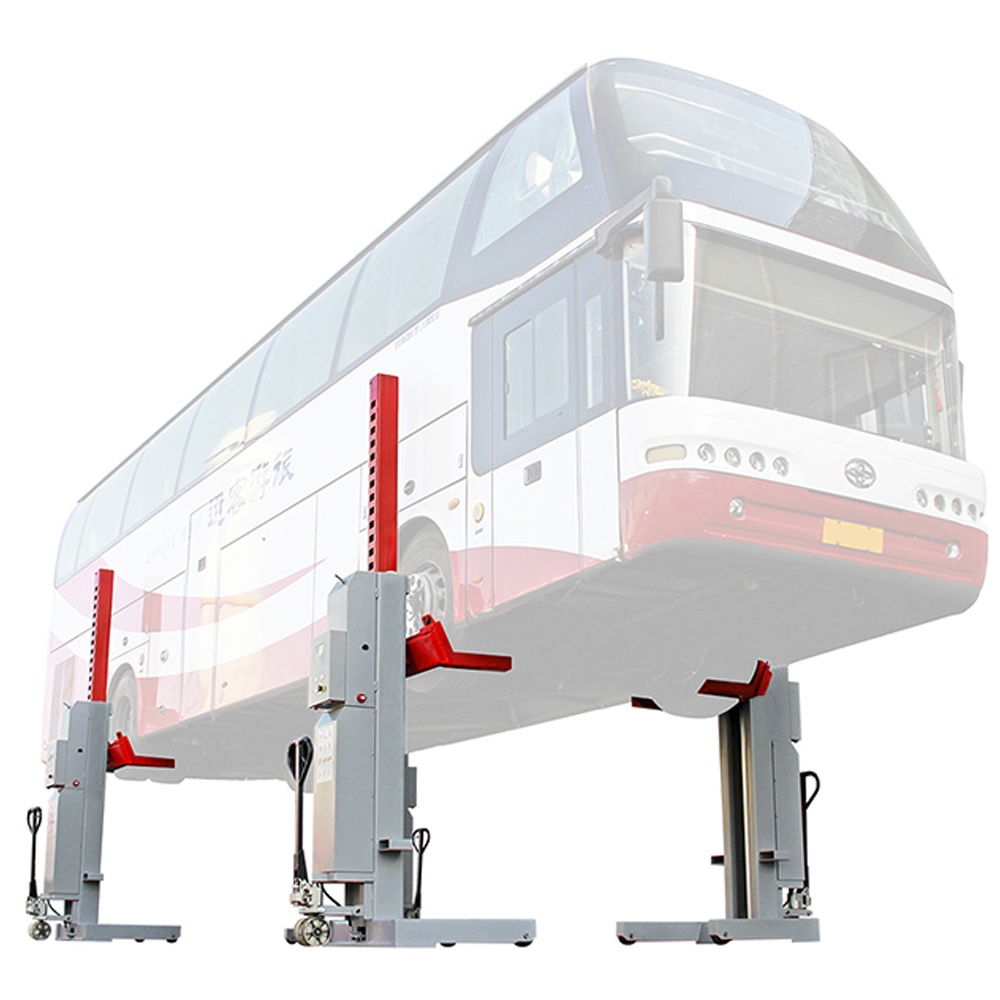

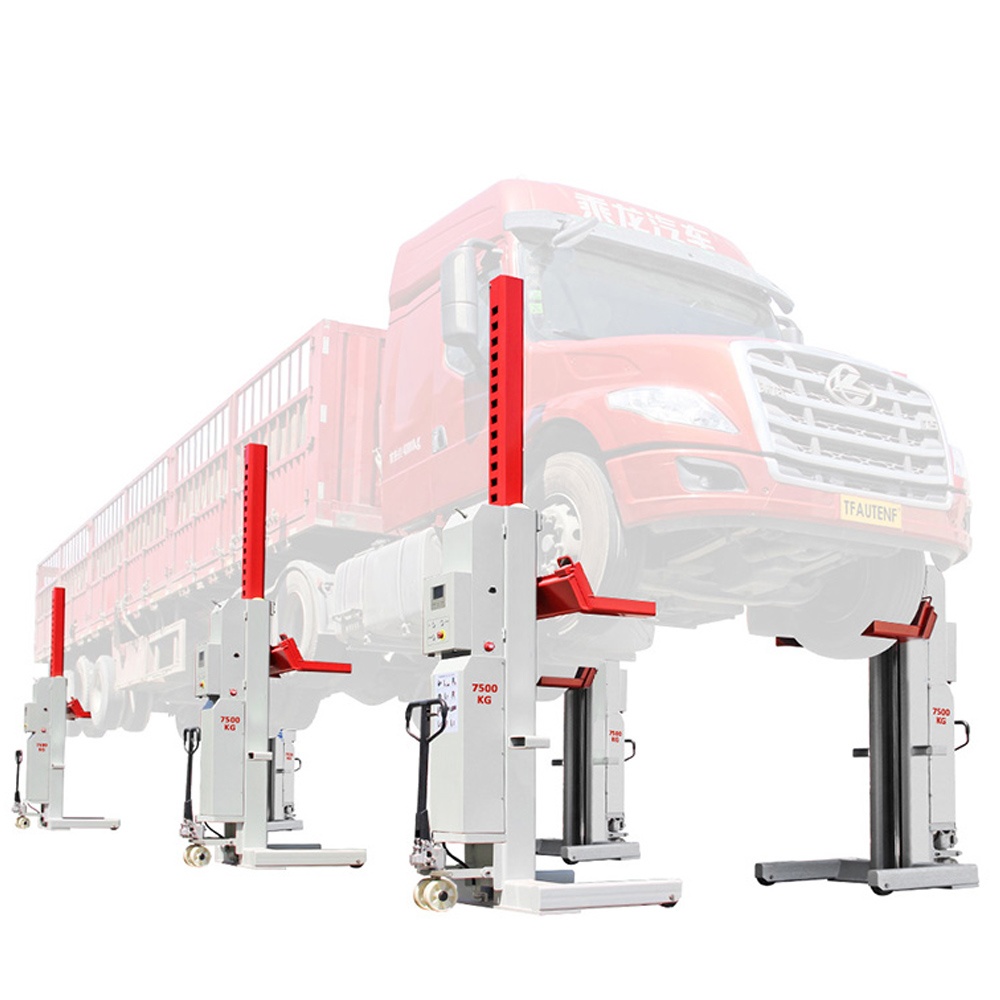

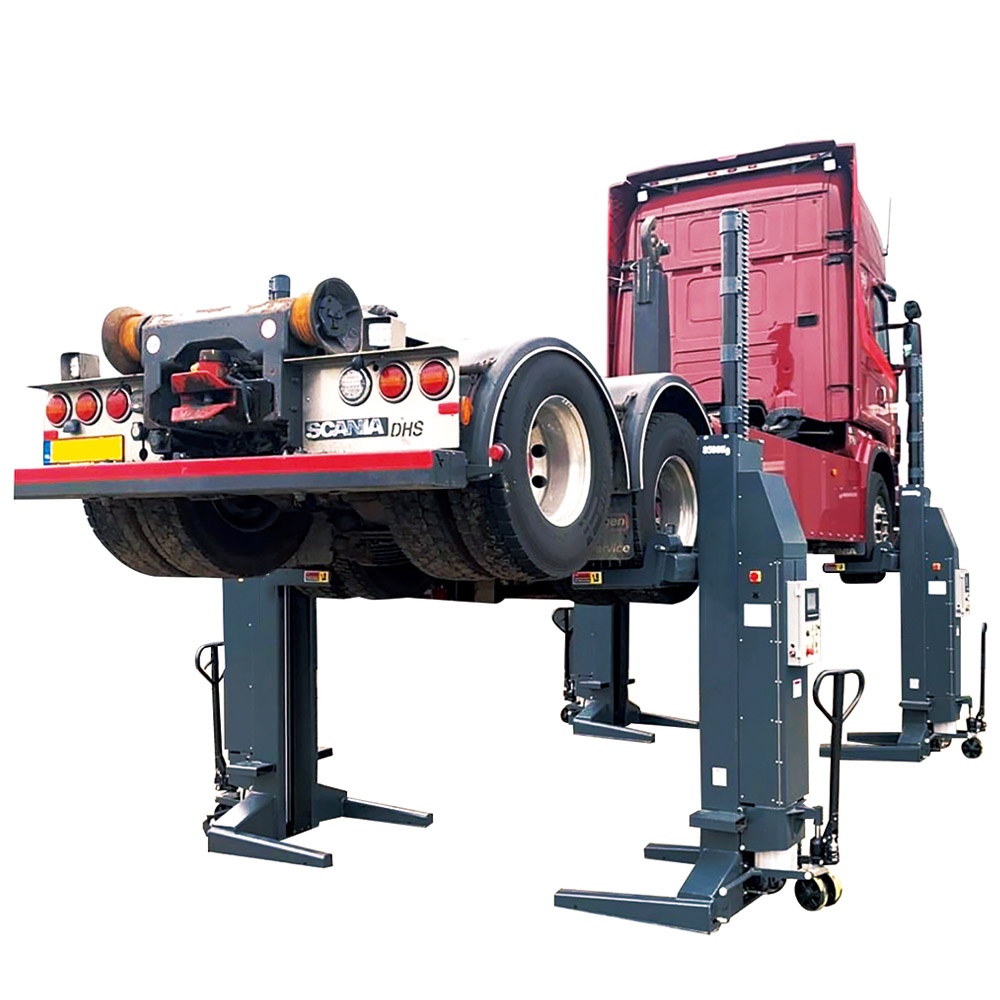

Lifting system can be combined with 4, 6, 8 columns, suitable to lift truck, bus, forklift (need optional forklift adaptor) etc.
Automatic lifting/lowering speed control to make sure synchronization of all columns.
Each column can be set as master or slave for convenient positioning.
Easy touch screen operation.
Forks adjustment available to accommodate different tyre diameters.
Emergency safety stop to ensure safe operation.
Optional forklift adaptor, tripod stand, and Axis adaptor available on request.
Quantity
ltem No.
5.5Ton/7.5Ton Wireless Heavy Duty Column Lift combines 4/6/8 columns (5.5-7.5T per column) to handle trucks, buses, forklifts (with optional adaptors), and more. Wireless touch-screen operation enables master/slave column configuration and automatic synchronized lifting/lowering. Adjustable forks fit varied tire sizes, while emergency stops and speed control ensure safety.
Capacity of Each Column | 5.5Ton/7.5Ton |
Number of Columns | 4pc, 6pc, 8pc |
Total Capacity | 22T/33T/44T 30T/45T/60T |
Lifting Height | 2470mm |
Forks Length | 402mm |
Applicable tine diameter | 500-1120mm |
Power unit | Electric-hydraulic pump |
Working voltage | DC 24V |
Weight/Column | 810kg |
