Ensures smooth up and down of the lift.
Equipped with LED Light between two platforms.
Y-type lifting arm greatly enhances bearing rigidity of the platforms.
The lift has double safety guarantee under load status.
Equipped with emergency buttons to cope with emergency situation.
Quantity
ltem No.

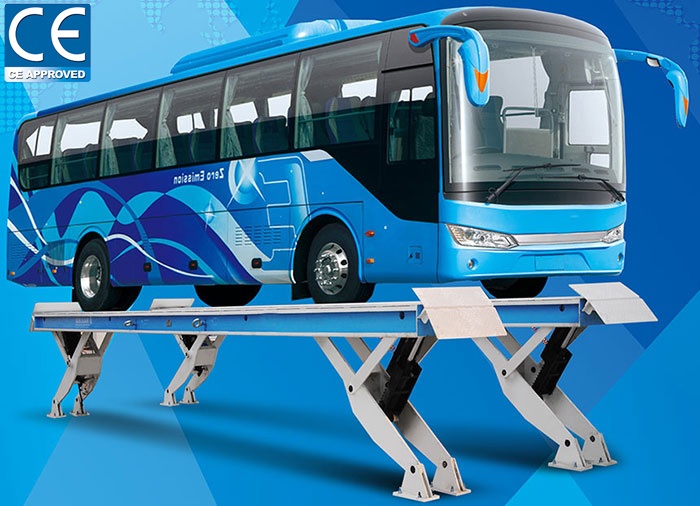

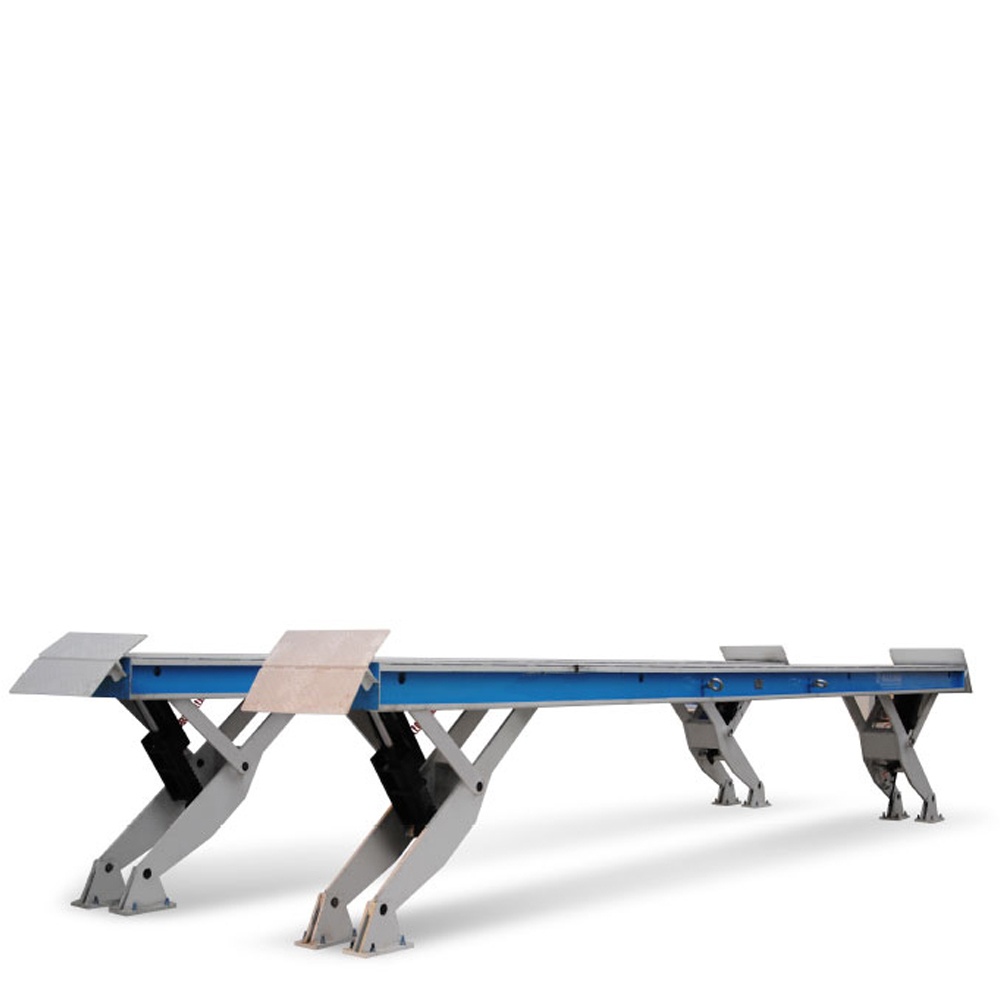

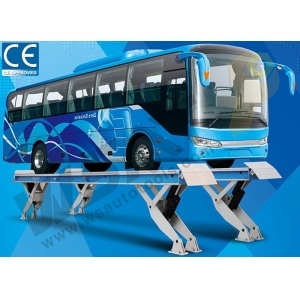

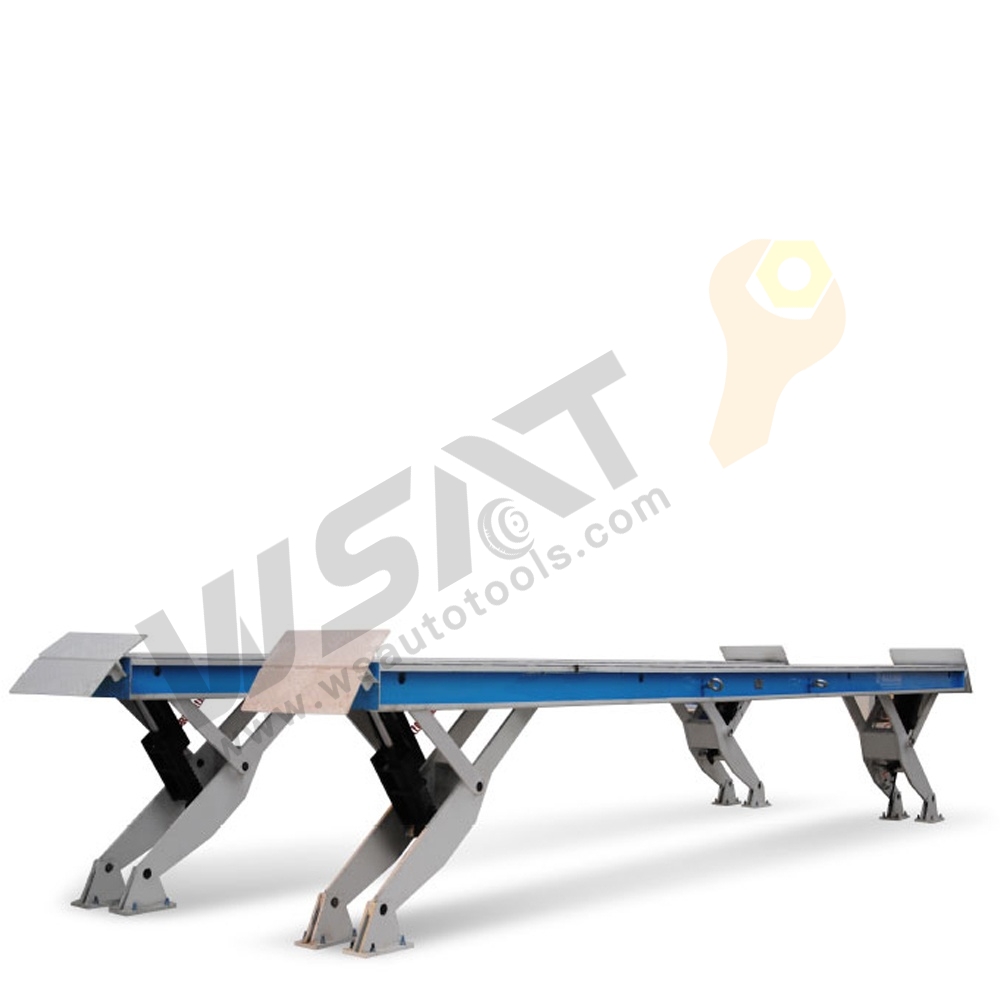

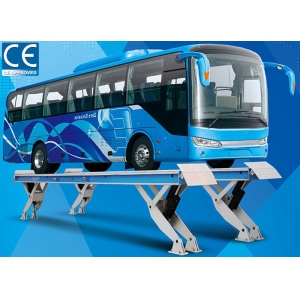

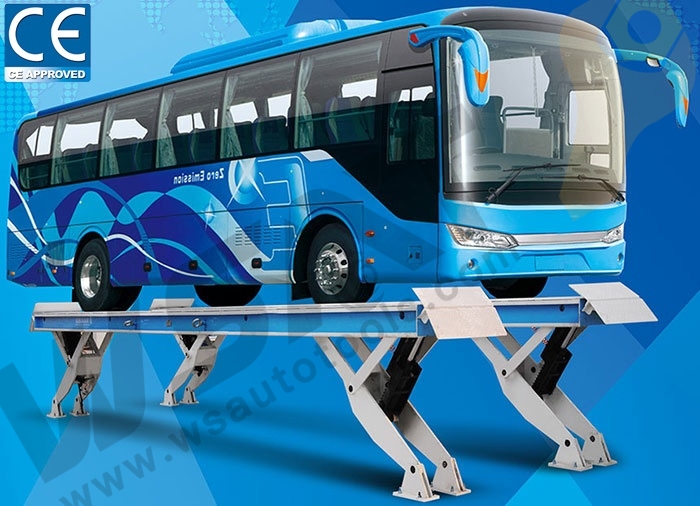

25 Ton Heavy Duty Platform Lift adopts unique hydraulic vertical lifting system and advanced high-precision balancing control device, to ensure perfect synchronization of the hydraulic cylinders and ultimately ensure the smooth up and down of lifts. Designed for the assembly, repair, maintenance, oil-change, washing and other services of various commercial vehicles, such as urban public traffic vehicles, passenger coaches and heavy duty trucks etc.
Parameters/Model | 15151 |
Rated Lifting Capacity | 25Ton |
Maximum Lifting Height | 1700mm |
Equipment Minimum Height | 375mm |
Overall Length & Width after Installation | 12800mm*2680mm |
Length & Width | 7000mm/8000mm/9000mm/10000mm/11000mm*2680mm |
Width of Single Platform | 750mm |
Maximum wheel base of vehicles | 6000mm-8000mm |
Time of Full Rise | ≤120 sec |
Voltage(multiple options) | 220v, 3phase /380v, 3phase /400v, 3phase |
Motor Power | 7.5Kw |
Maximum Hydraulic Pressure | 22.5Mpa |
