3.5/3.8/4/4.5/5 Ton Reinforced Column Type Two Post Lift

15012

  • The equipment uses eight-way Bending column, greatly enhance the strength of the column, lifting more safe heavy-duty.

  • The am support of the sliding platform of the equipment is bent once to meet the lifting load of large tonnage.

  • The safety lock of the support am is made of high-strength material to ensure the safe work of the support arm.

  • Meet the CE requirements.

  • Both the power unit and the oil cylinder have passed the fatigue test under working condition.

  • Anti-riot throttling valve is standard in the oil cylinder of this machine.

  • The device is unlocked by electronic control.

  • The support arm is equipped with a pressure-proof foot device and a tool box.



Quantity

ltem No.

Description

3.5/3.8/4/4.5/5 Ton Reinforced Column Type Two Post Lift employs eight-way bending columns for superior structural strength and heavy-duty safety, accommodating loads from 3.5 to 5 tons. Features high-strength safety locks, CE compliance, and fatigue-tested power units/oil cylinders for reliable performance. Equipped with anti-riot throttling valves, electronic unlocking, and pressure-proof foot tools for accident safety and operational stability. Integrated tool boxes and bent arm supports enhance workspace efficiency, ideal for demanding automotive repair environments.

Features

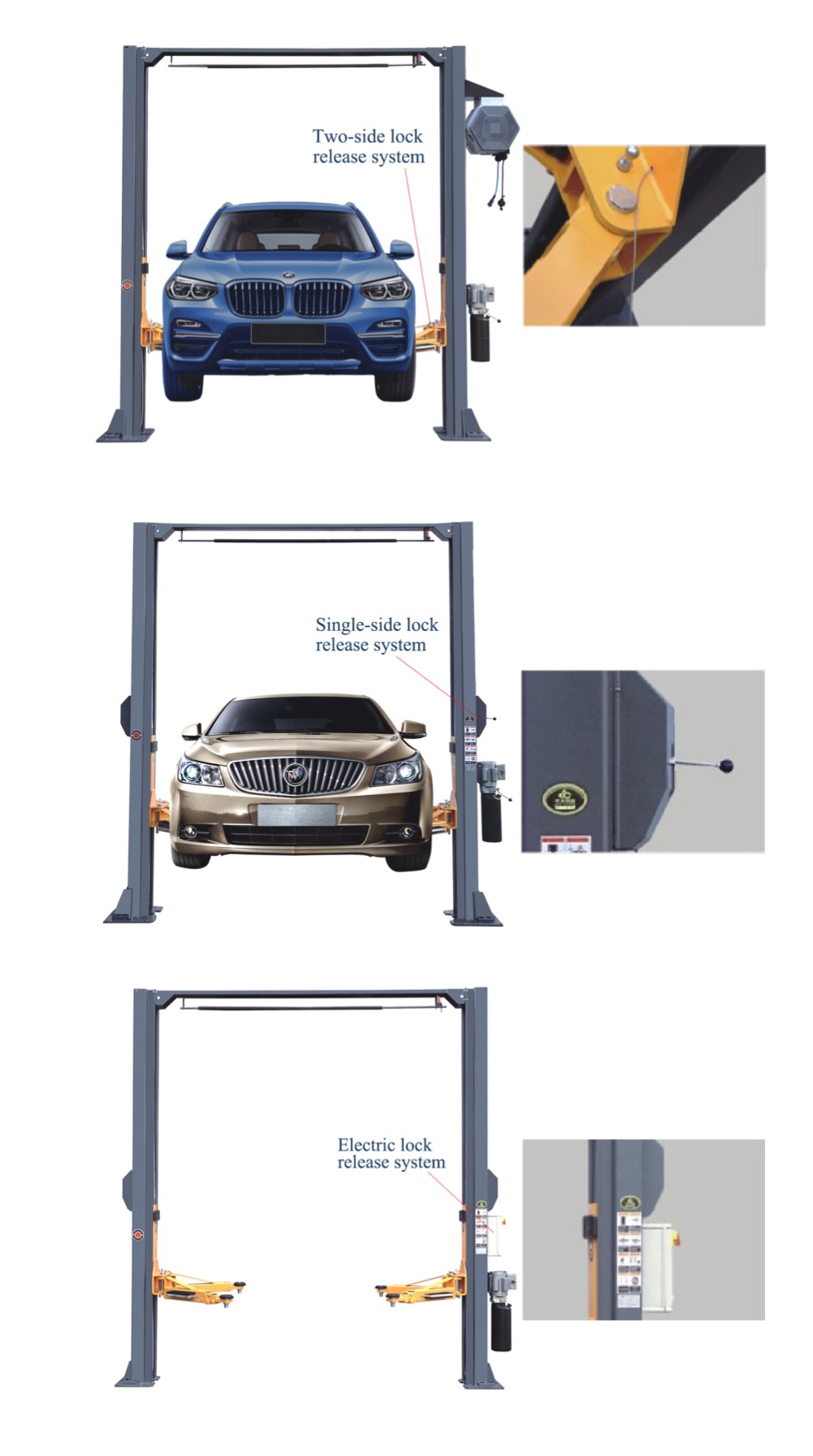

Optional lock release type:

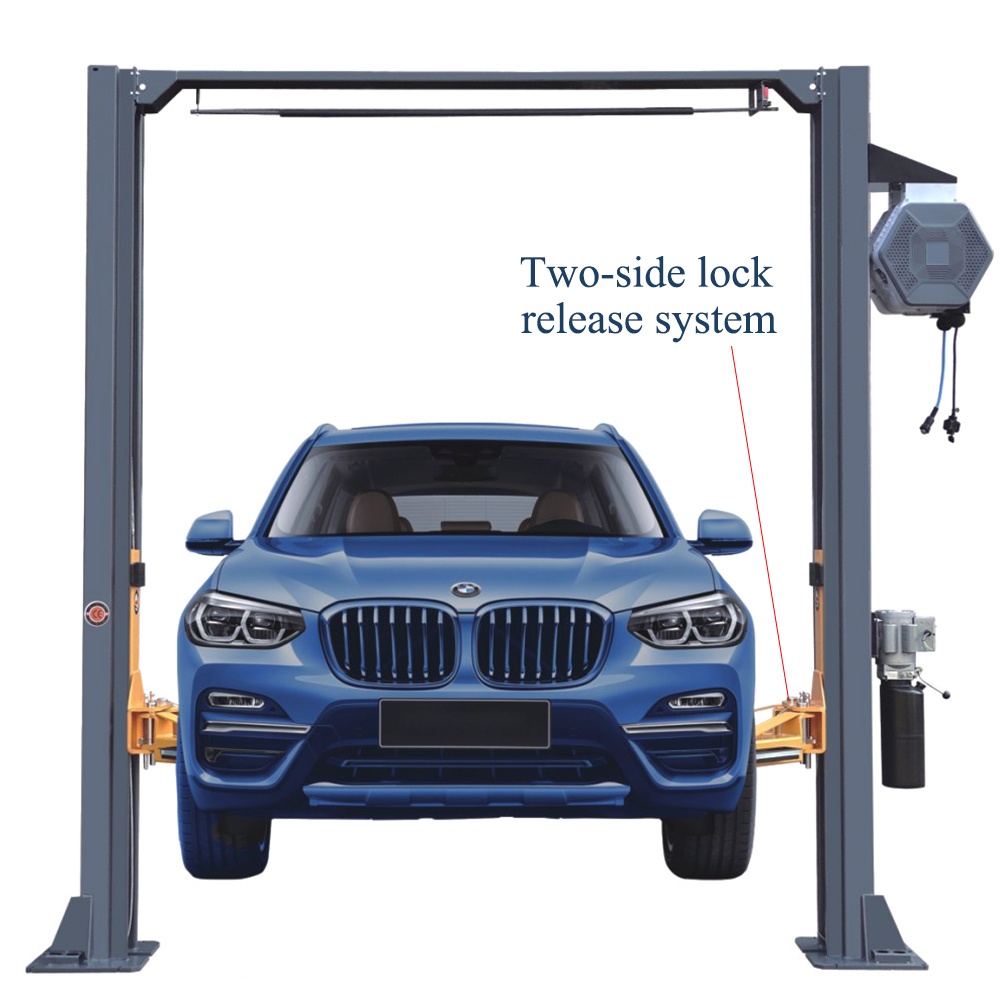

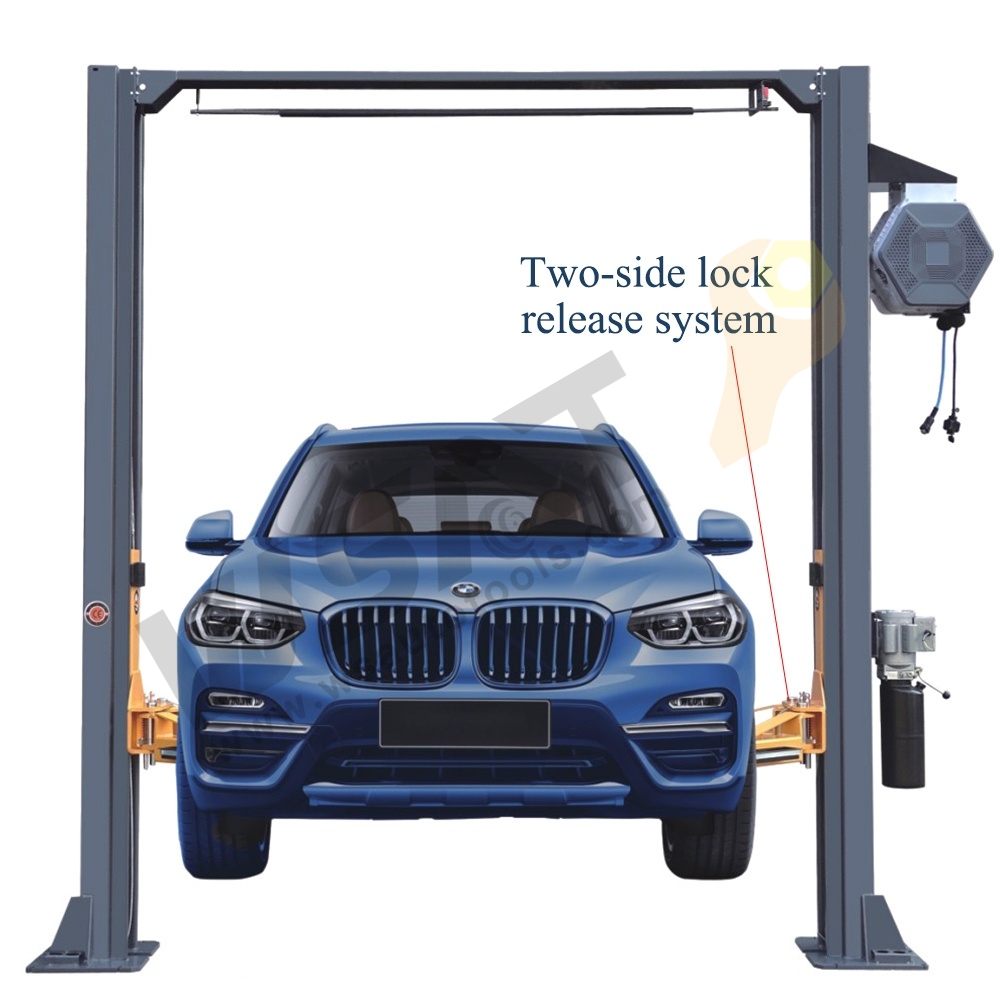

  • Two-side lock release system

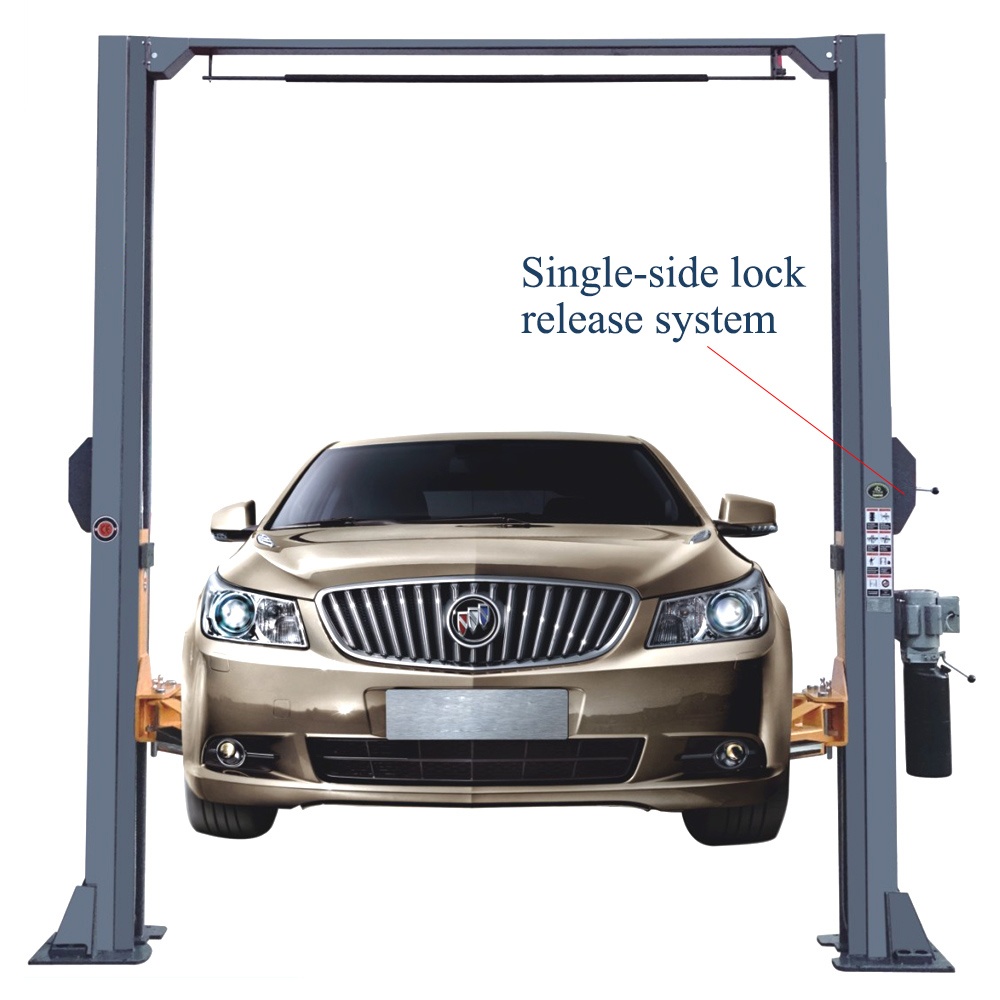

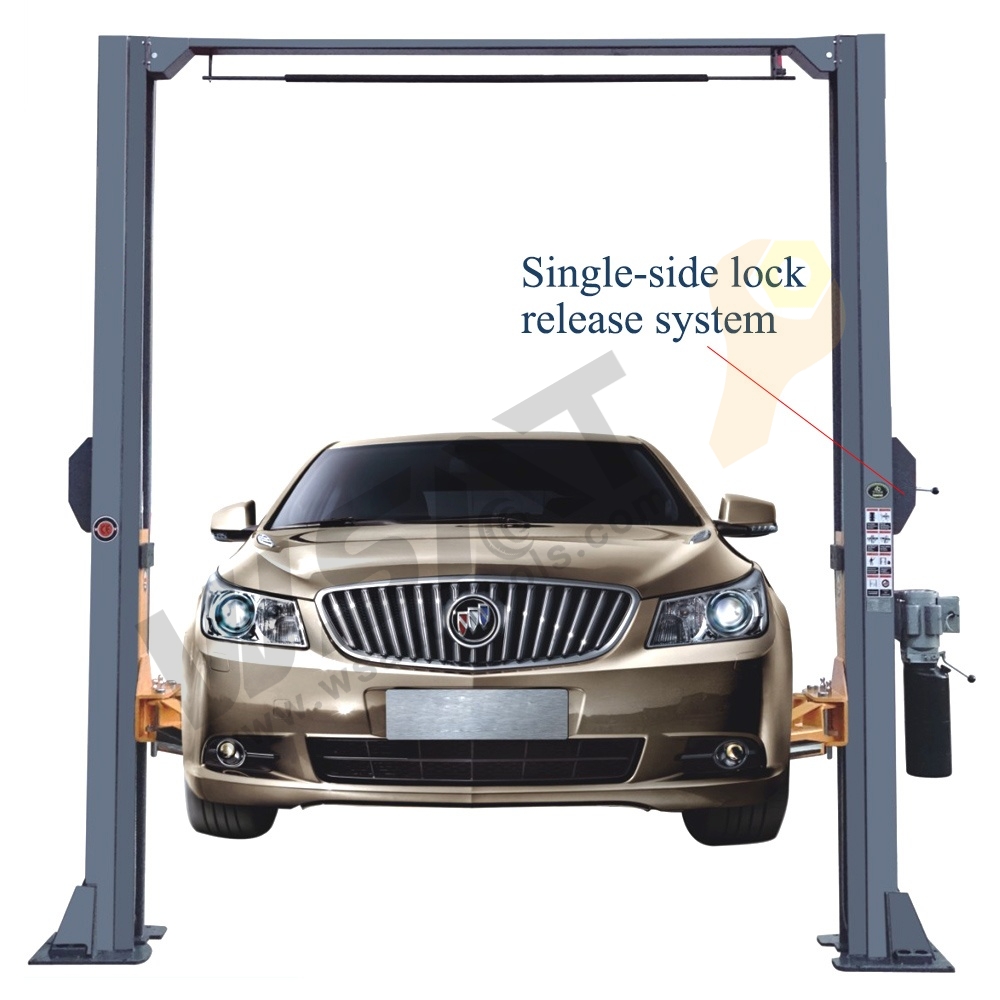

  • Single-side lock release system

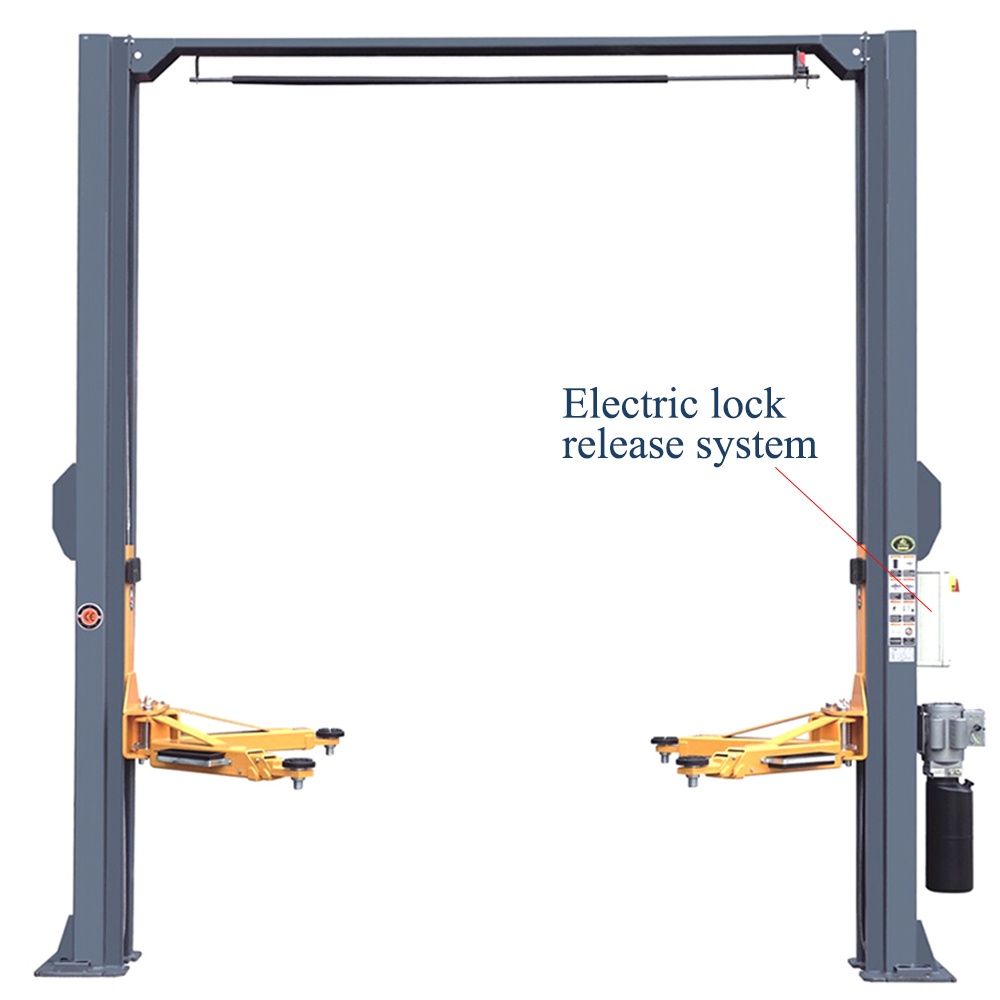

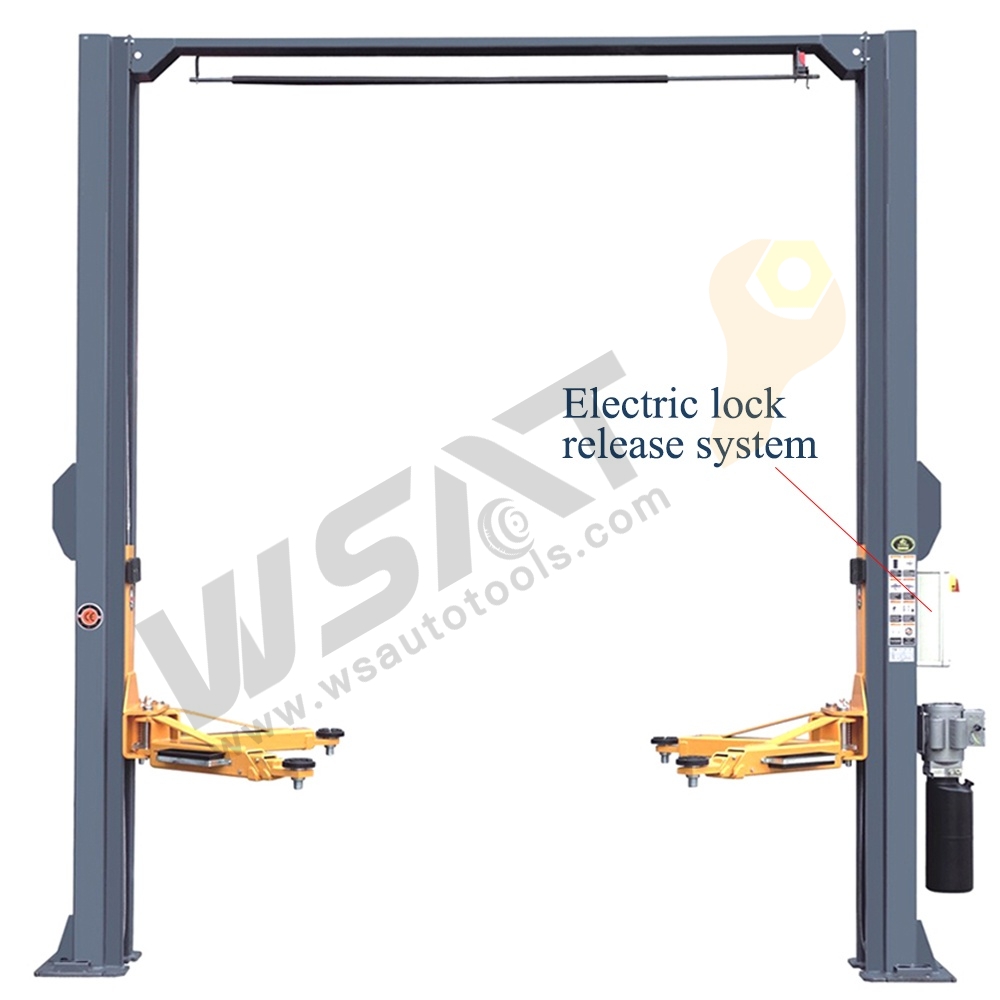

  • Electric lock release system

Capacity:

  • 3.5 Ton

  • 3.8 Ton

  • 4 Ton

  • 4.5 Ton

  • 5 Ton


15012 (9

Model

15012 – 3.5T

15012 – 3.8T

15012– 4T

15012 – 4.5T

15012 – 5T

Lifting Capacity

3.5T

3.8T

4T

4.5T

5T

Maximum Lifting Height

1800mm

Equipment Minimum Height

92mm

Rising Time

≤50s

Descent Time

≤20s≤50s

Passing Width

2400mm

Equipment Width

3420mm

Equipment Height

3587mm

Motor Power

2.2kw

Motor Voltage

110v/220v/240v/380v/415v

50Hz/60Hz

Package Size

3600/2800x500x750mm



Specification
