15101

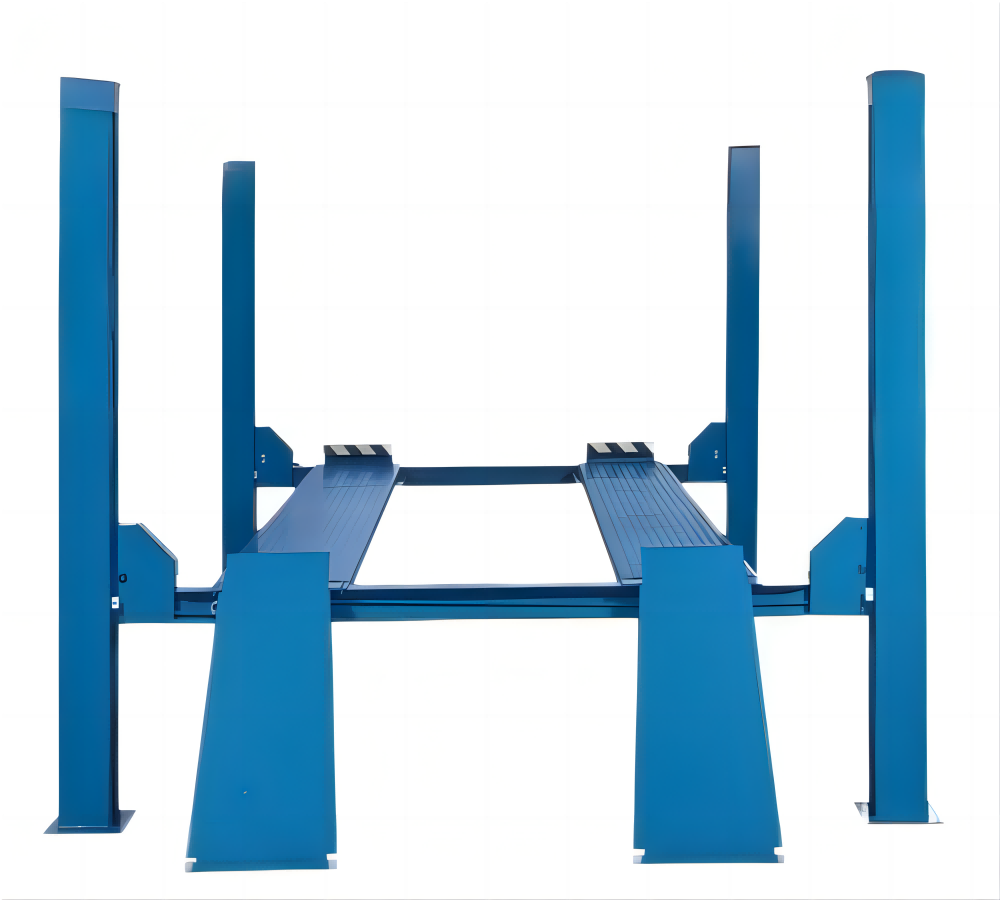

4 Ton/5 Ton Four Post Lift
Single Point manual lock release
Width between two platforms is adjustable to be fit for different vehicle
Mechanical safety lock installed in each column.
Front and rear stop plate well protect the vehicle during repairing.
Center rolling jack as optional.
24V control system as optional for CE standard
Quantity
ltem No.
Description
4 Ton/5 Ton Four Post Lift
Features
Single Point manual lock release
Width between two platforms is adjustable to be fit for different vehicle
Mechanical safety lock installed in each column.
Front and rear stop plate well protect the vehicle during repairing.
Center rolling jack as optional.
24V control system as optional for CE standard

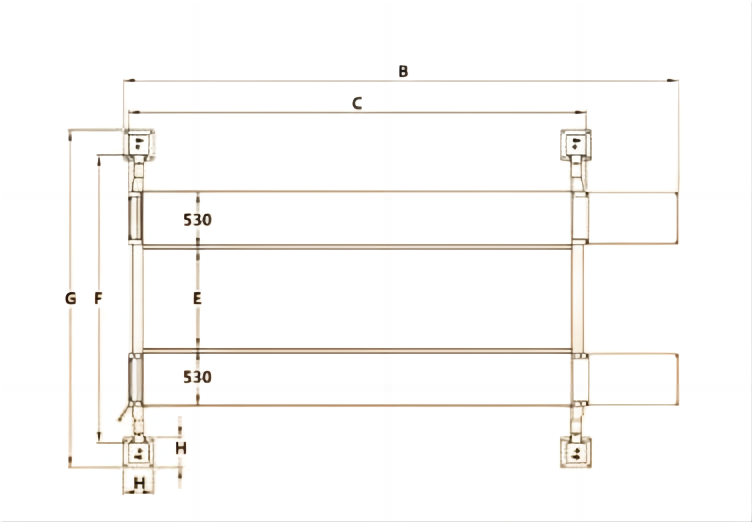

Specification

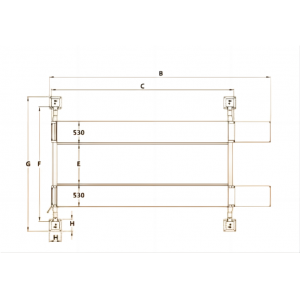

Model | 15101 - 4T | 15101 - 5T |
Lifting capacity | 4 Ton | 5 Ton |
Lifting height | 1700mm | 1700mm |
Lowest height | 120mm | 120mm |
Runway Length | 4360/4860mm | 5360mm |
Runway Width | 3100mm | 3100mm |
Unilateral Runway Width | 505mm | 505mm |
Width Between Runway | 900-1180mm | 900-1180mm |
Height of Post | 2110mm | 2110mm |
Lifting time | 55/75s | 90s |
Lowering time | 50/65s | 80s |
Motor Power | 2.2kw | 2.2kw |
Power supply | 220/240/380/415v1/3 phase | 380/415V,3 phase |
