15011
15011
The equipment adopts eight-way Bending whid greatly improves the strength of the column and makes heavy-duty lifting safer.
The arm support of the sliding platform of the equipment is bent once tomeet the lifting load of large tonnage.
The arm safety lock is made of high strength material to ensure the safeworkc of the amn.
Meet the CE requirements.
Both the power unit and the oil cylinder have passed the fatigue test under working condition.
Anti-riot throttling valve is standard in the oil cylinder of this machine.
The equipment is unlocked in a bilateral way.
The support arm is equipped with a pressure-proof foot device and a tool box.
Quantity
ltem No.

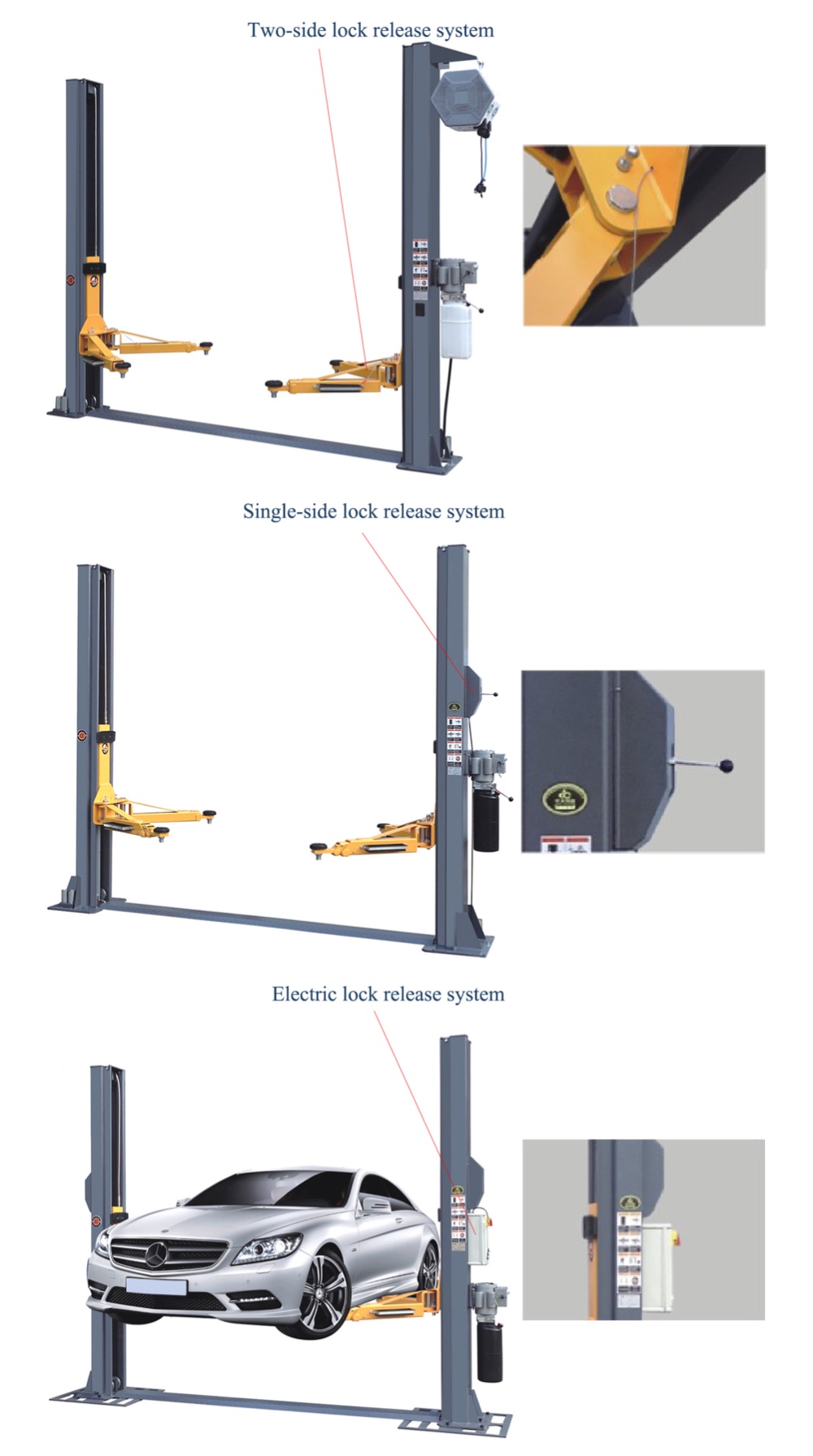

Optional lock release type:

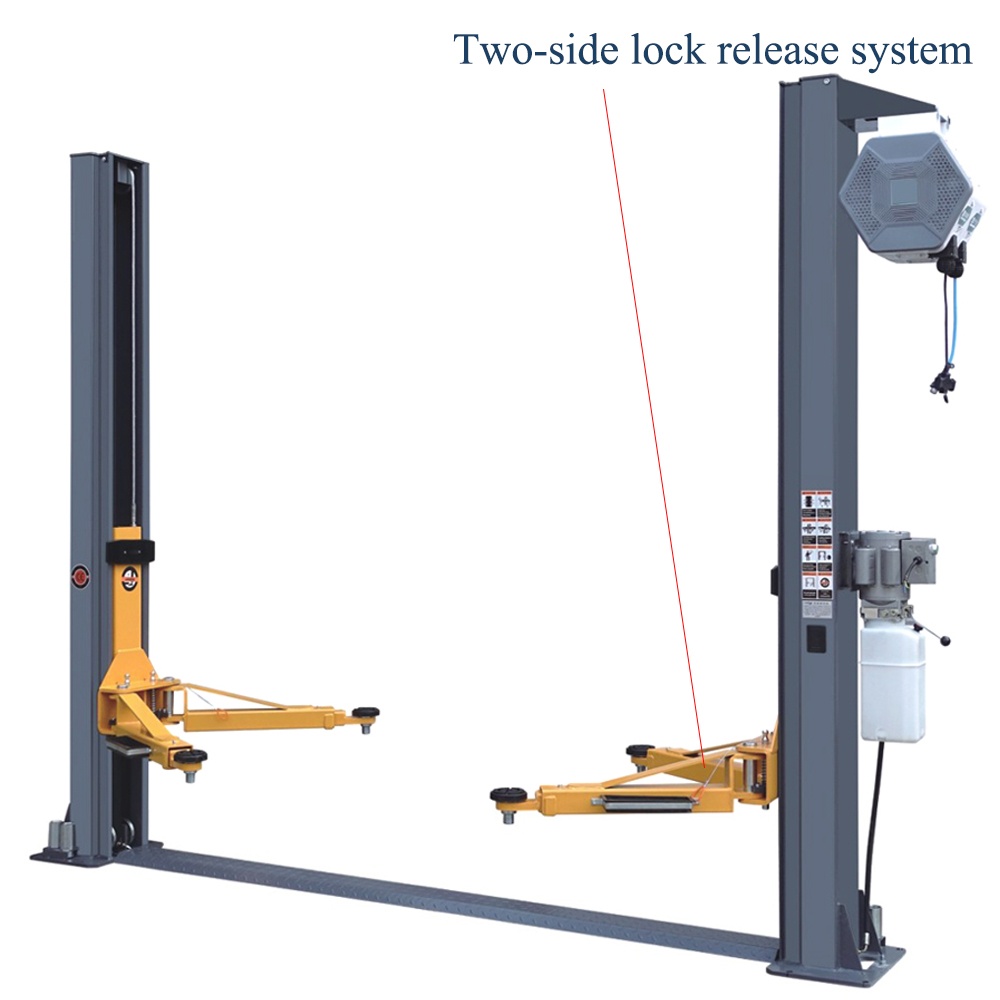

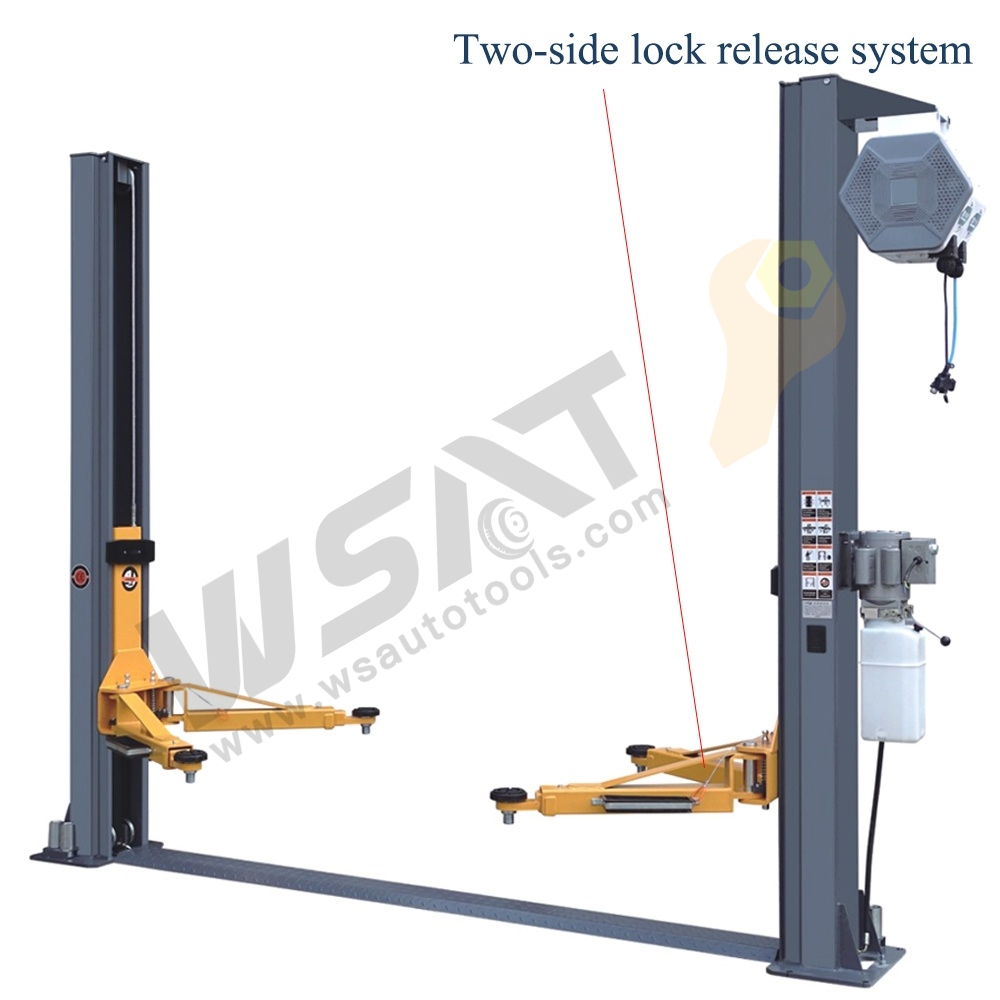

Two-side lock release system

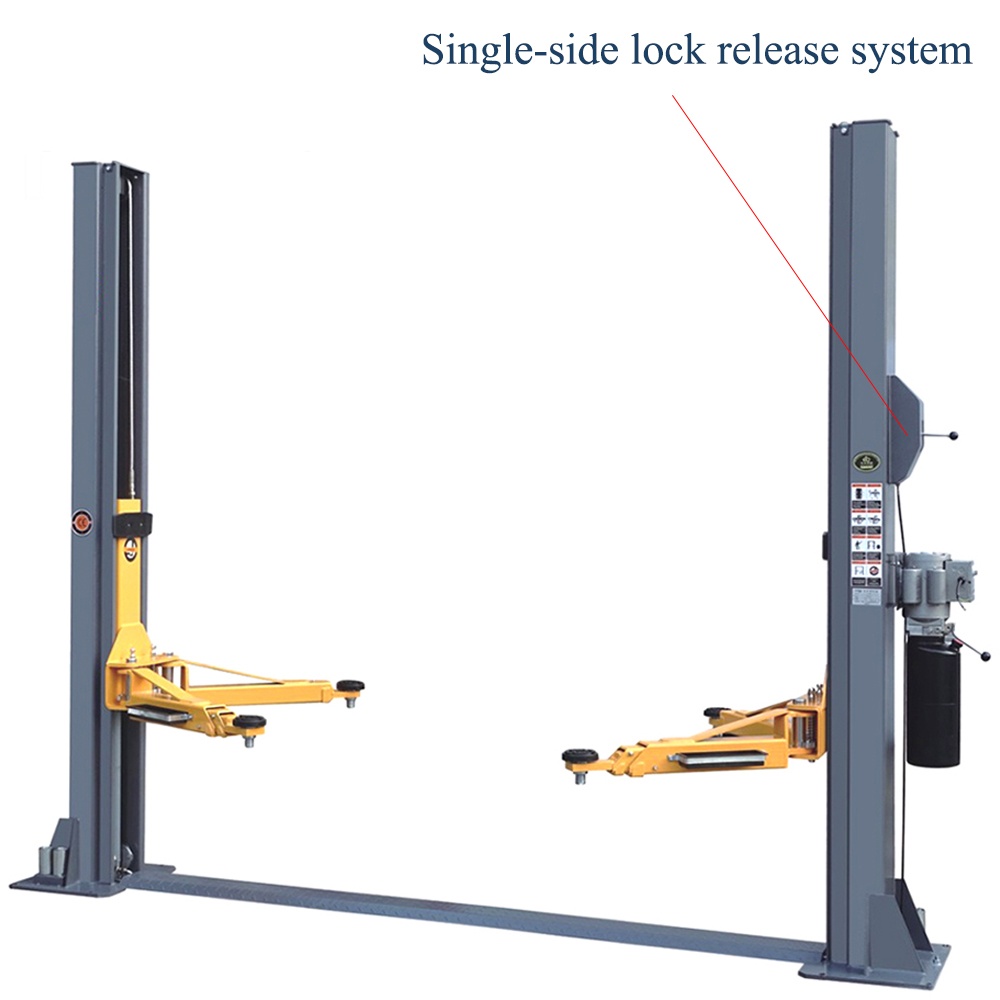

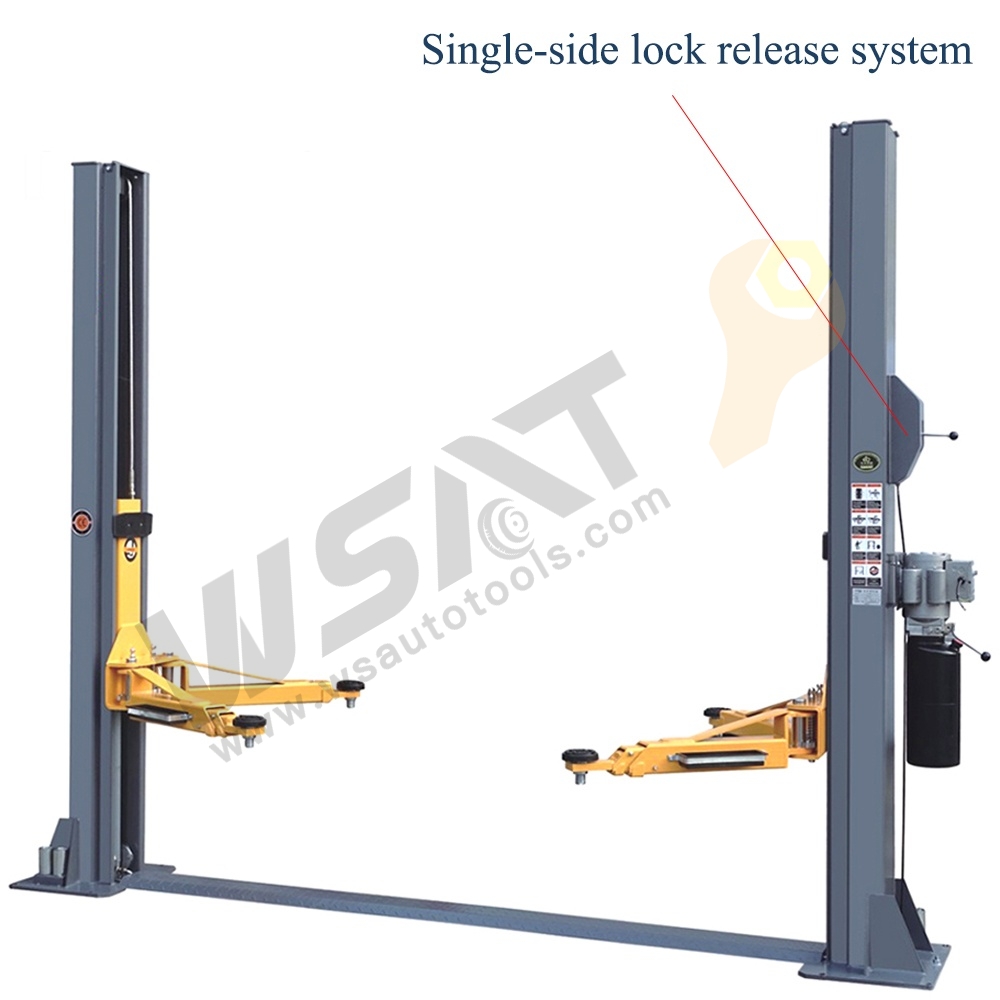

Single-side lock release system

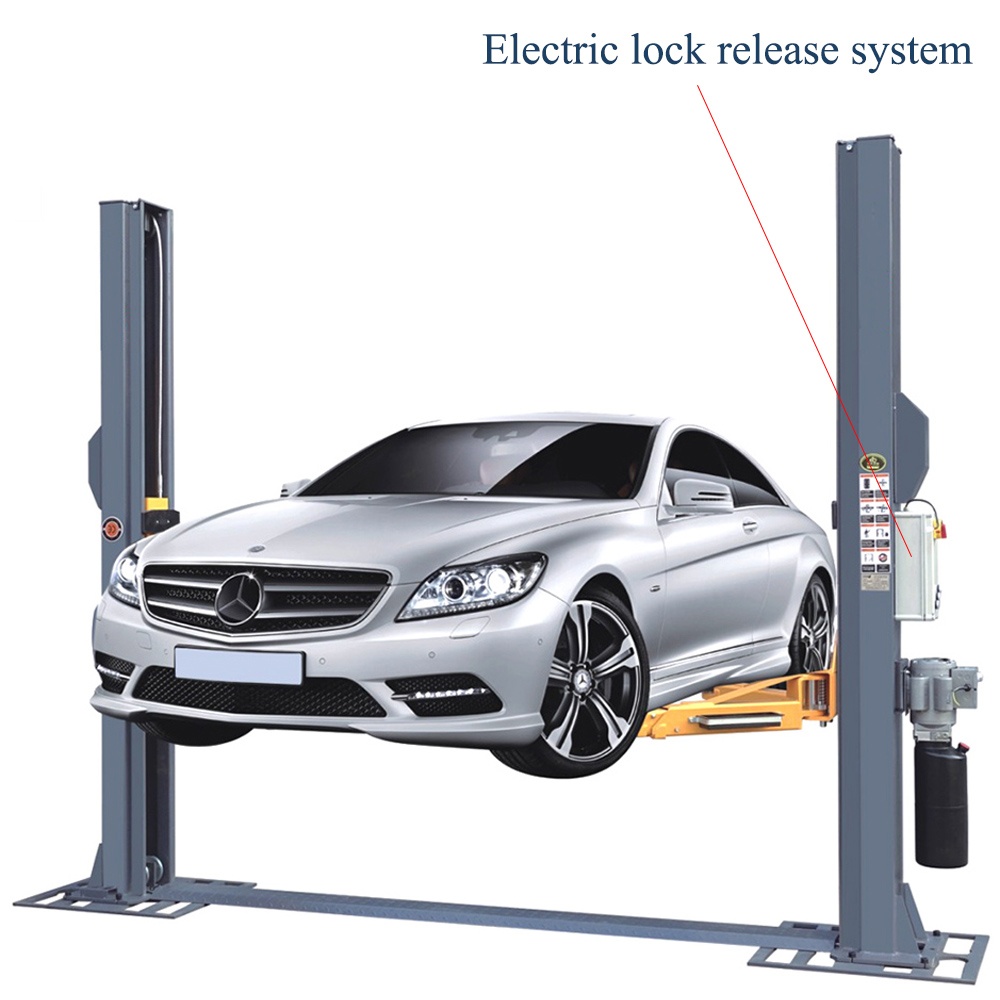

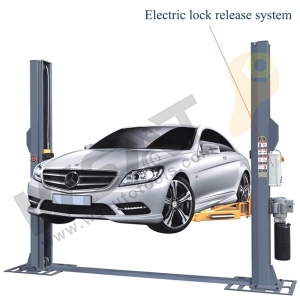

Electric lock release system
Capacity:
3.5 Ton
3.8 Ton
4 Ton
4.5 Ton
5 Ton
Model | 15011 – 3.5T | 15011 – 3.8T | 15011 – 4T | 15011 – 4.5T | 15011 – 5T |
Lifting Capacity | 3.5T | 3.8T | 4T | 4.5T | 5T |
Maximum Lifting Height | 1800mm | ||||
Equipment Minimum Height | 92mm | ||||
Rising Time | ≤50s | ||||
Descent Time | ≤20s≤50s | ||||
Passing Width | 2400mm | ||||
Equipment Width | 3420mm | ||||
Equipment Height | 2800mm | ||||
Motor Power | 2.2kw | ||||
Motor Voltage | 110v/220v/240v/380v/415v 50Hz/60Hz | ||||
Package Size | 2800x500x750mm |
