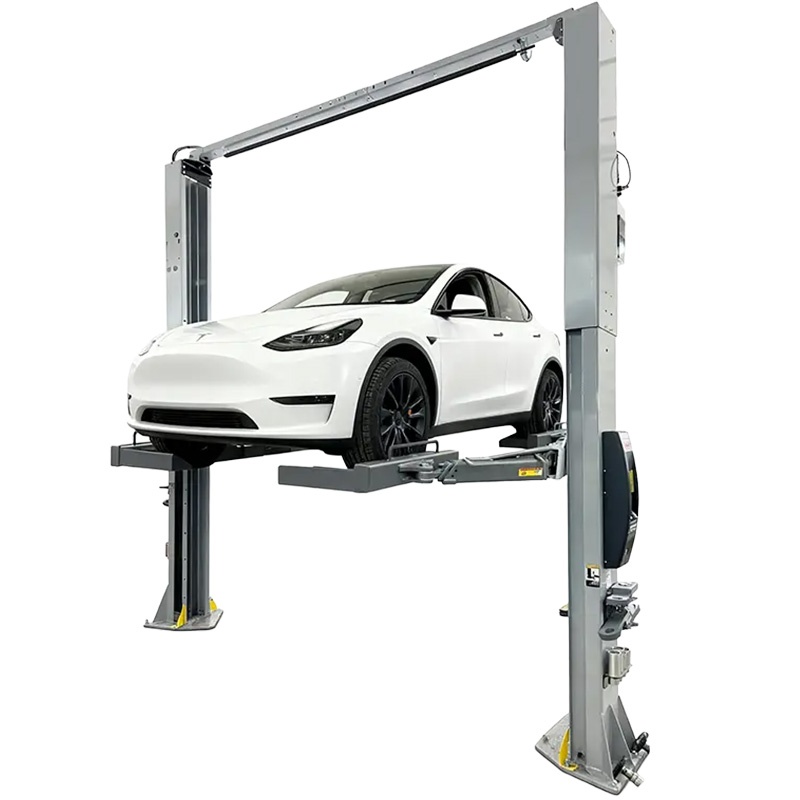

4/4.5/5 Ton Two Post Lift

15002
  • Economic double release

  • Hydraulic lifting

  • Telescopic 2 stage asymmetric arms for lifting of different vehicles

  • Lift with chain drive

  • Cables for perfect synchronisation of the carragies

  • Security up-limit switch

  • Lift without baseplate for free space to work


Quantity

ltem No.

Description

4/4.5/5 Ton Two Post Lift combines hydraulic lifting power and telescopic asymmetric arms for versatile vehicle handling, supporting 4-5 tons. Featuring an economic double-release safety lock, chain drive, and synchronized cables for stability, it ensures smooth operation and precise alignment. The up-limit switch and baseplate-free design maximize workspace flexibility and safety, while robust steel construction guarantees durability. Ideal for repair shops, this lift balances efficiency and reliability in automotive servicing.

Features

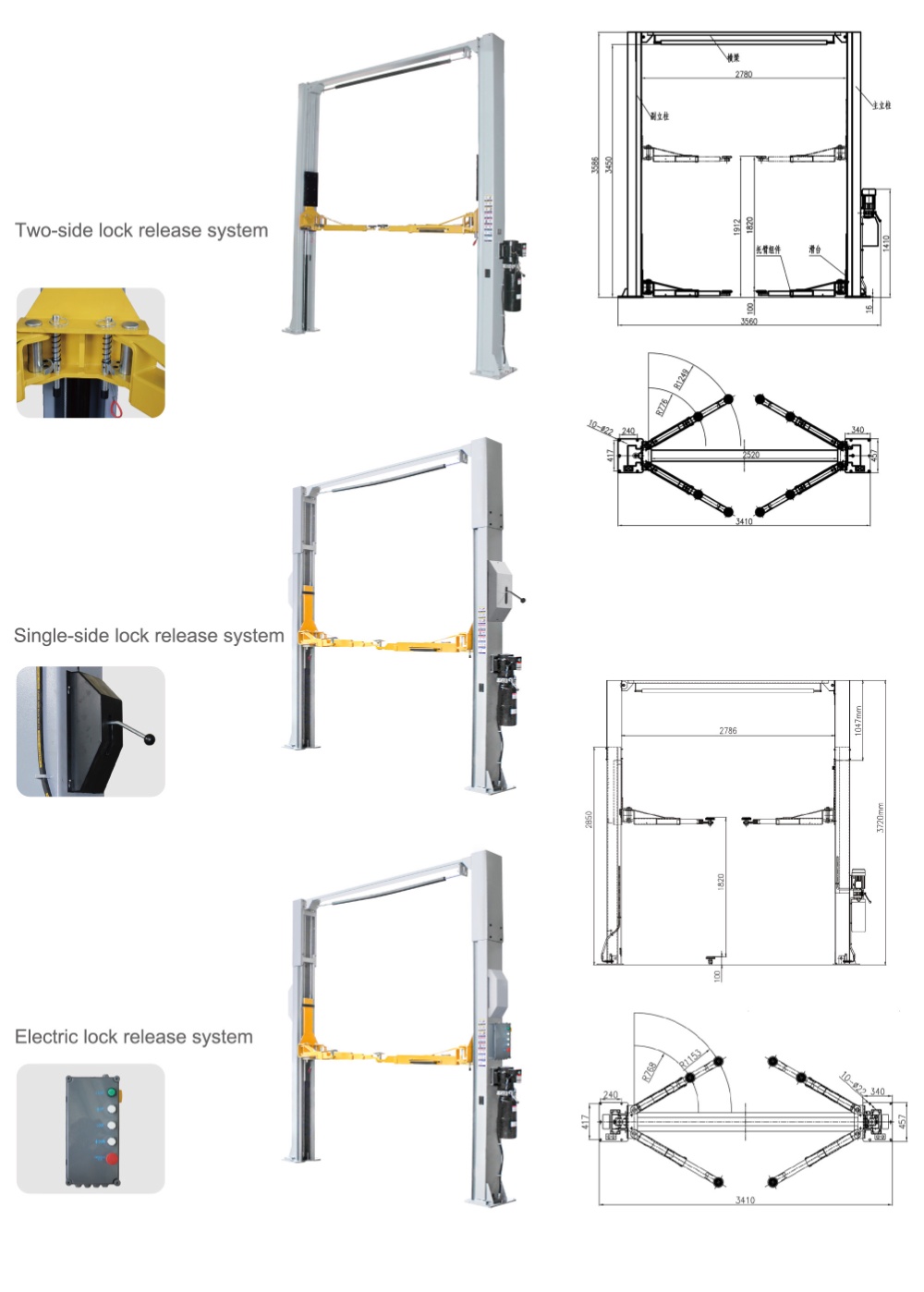

Optional lock release type:

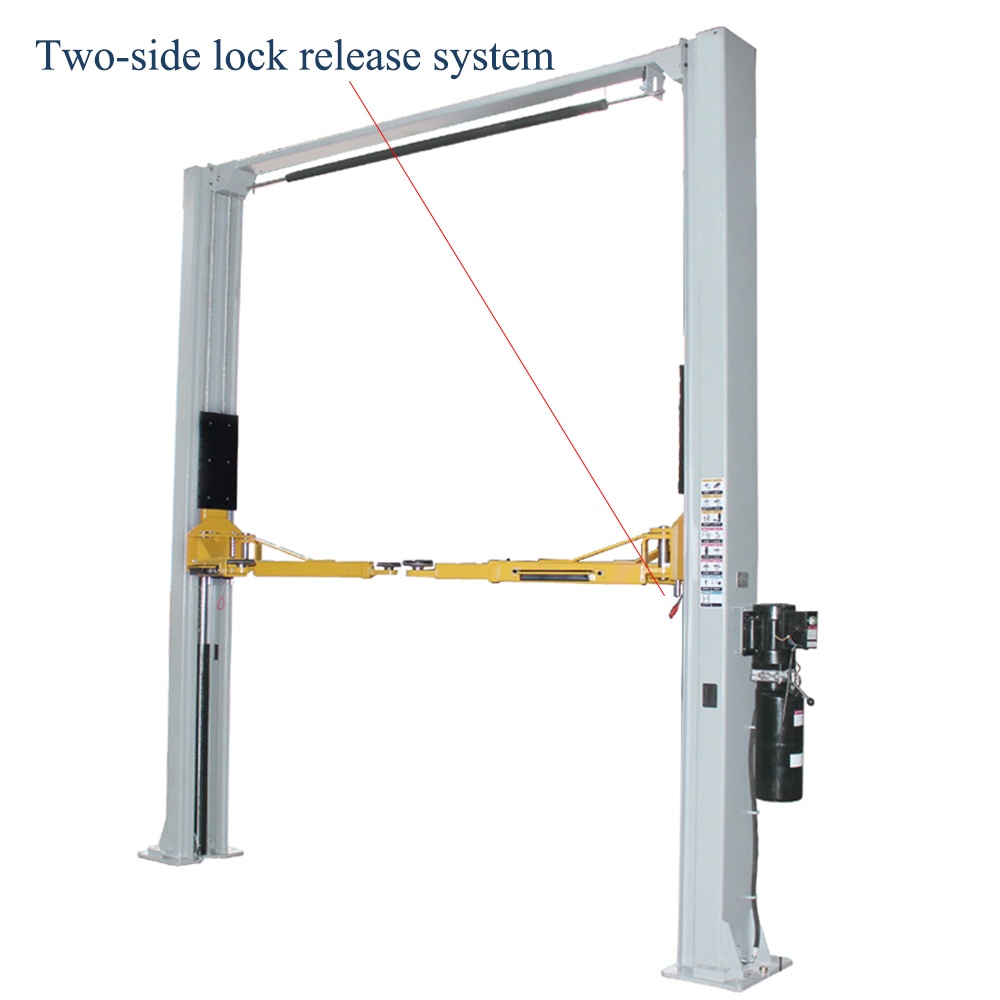

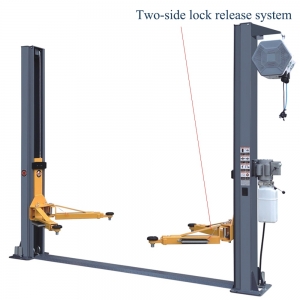

  • Two-side lock release system

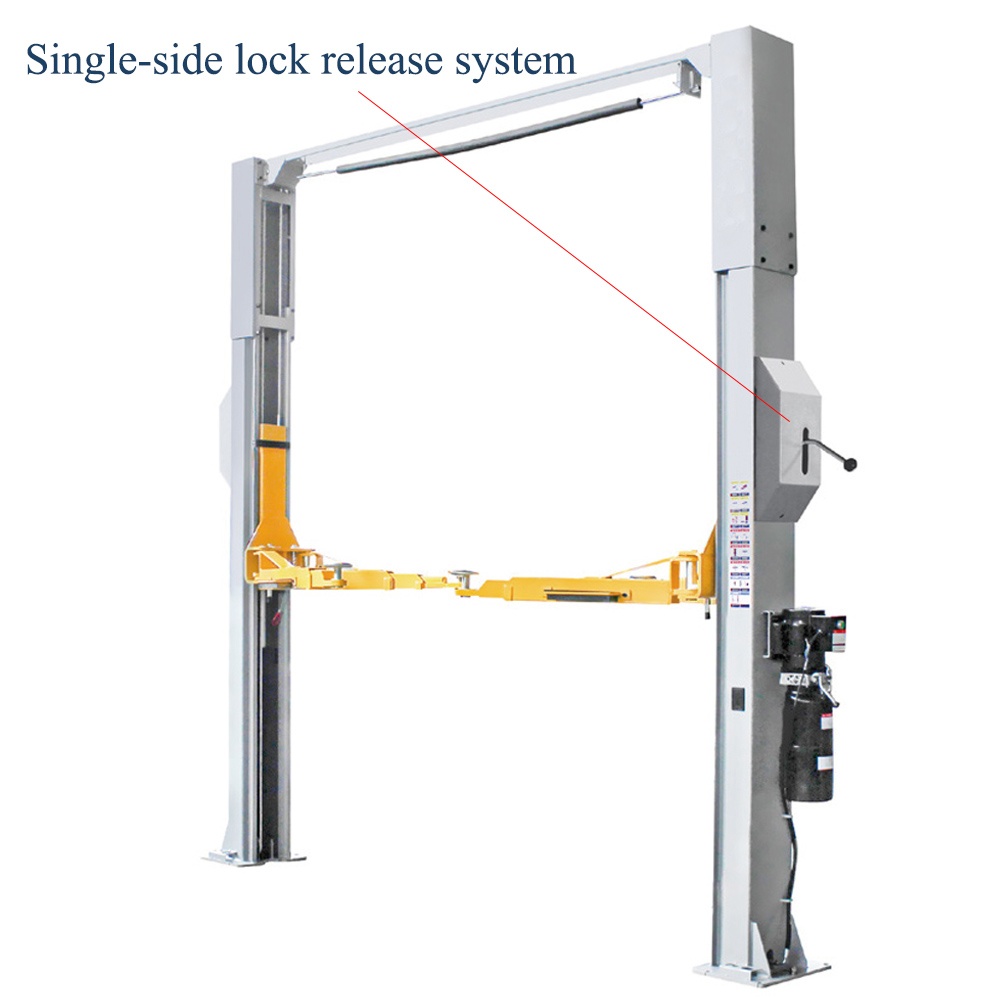

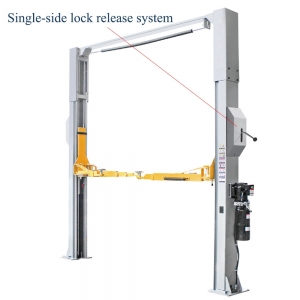

  • Single-side lock release system

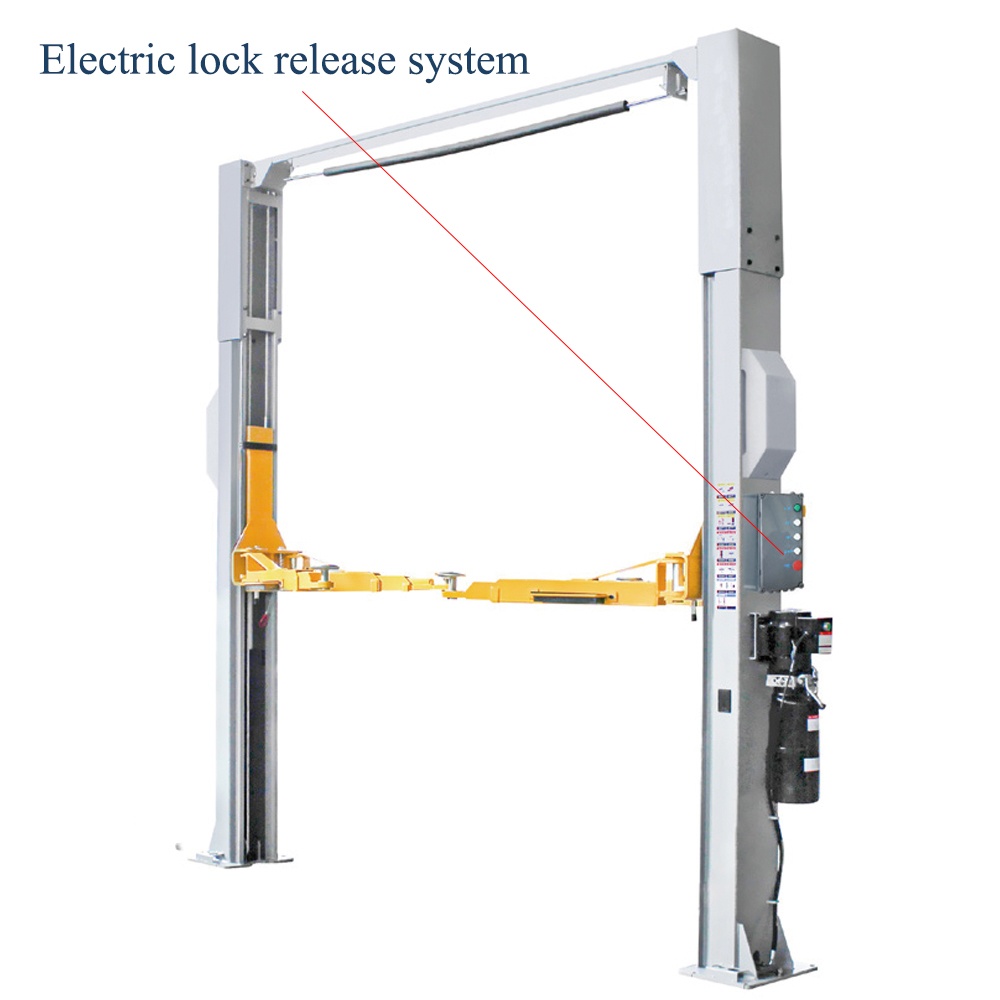

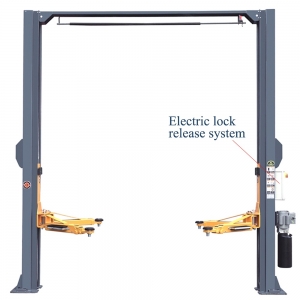

  • Electric lock release system


Capacity:

  • 4 Ton

  • 4.5 Ton

  • 5 Ton

Column construction are optional.

Sectional column can shorted the packaging length of the lift and make more efficient use of the container space.

15002-3-

Model

15002 – 4T

15002 – 4.5T

15002 – 5T

Lifting Capacity

4T

4.5T

5T

Motor Power

2.2KW

3.0KW

Max. Lifting Height

1820mm

Min. Height

100mm

Overall Height

3720mm

Overall Width

3410mm

Lifting Time

50s

Motor Voltage

380V/220V

Package Size

2880X470X740mm, PALLET
