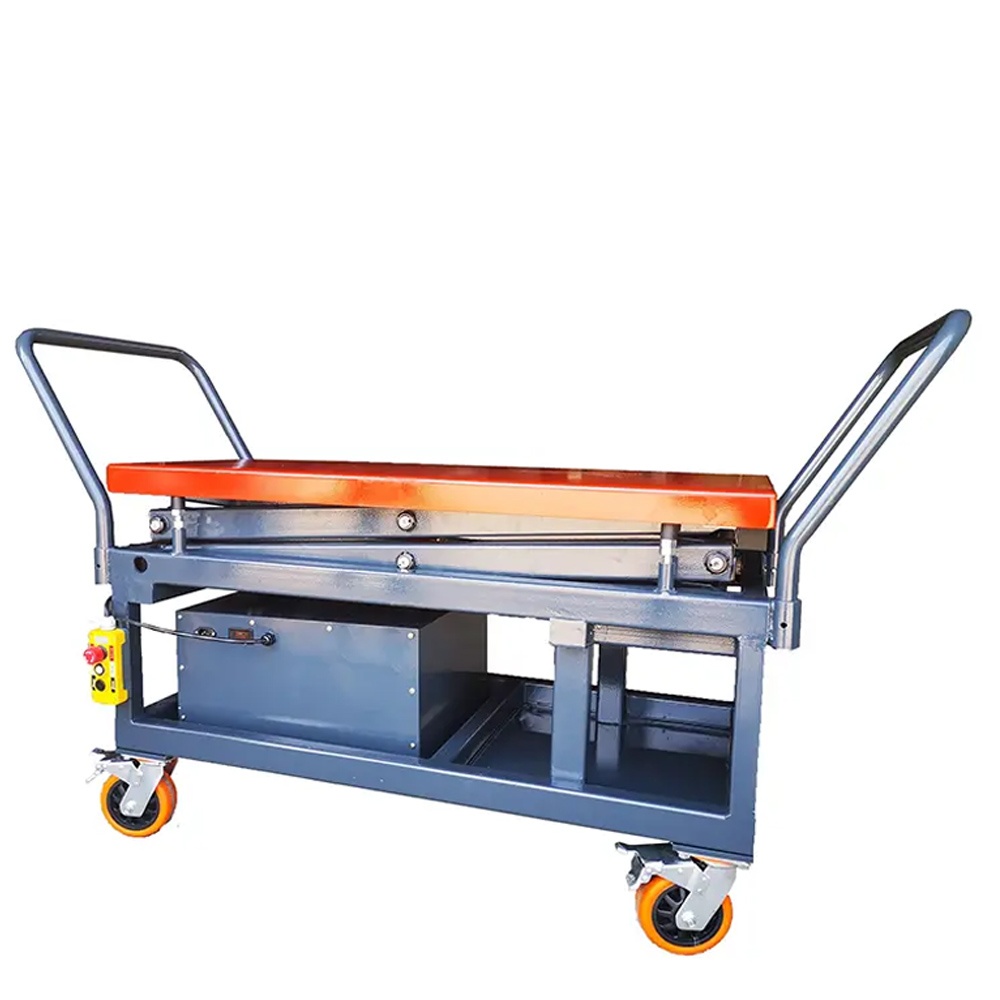

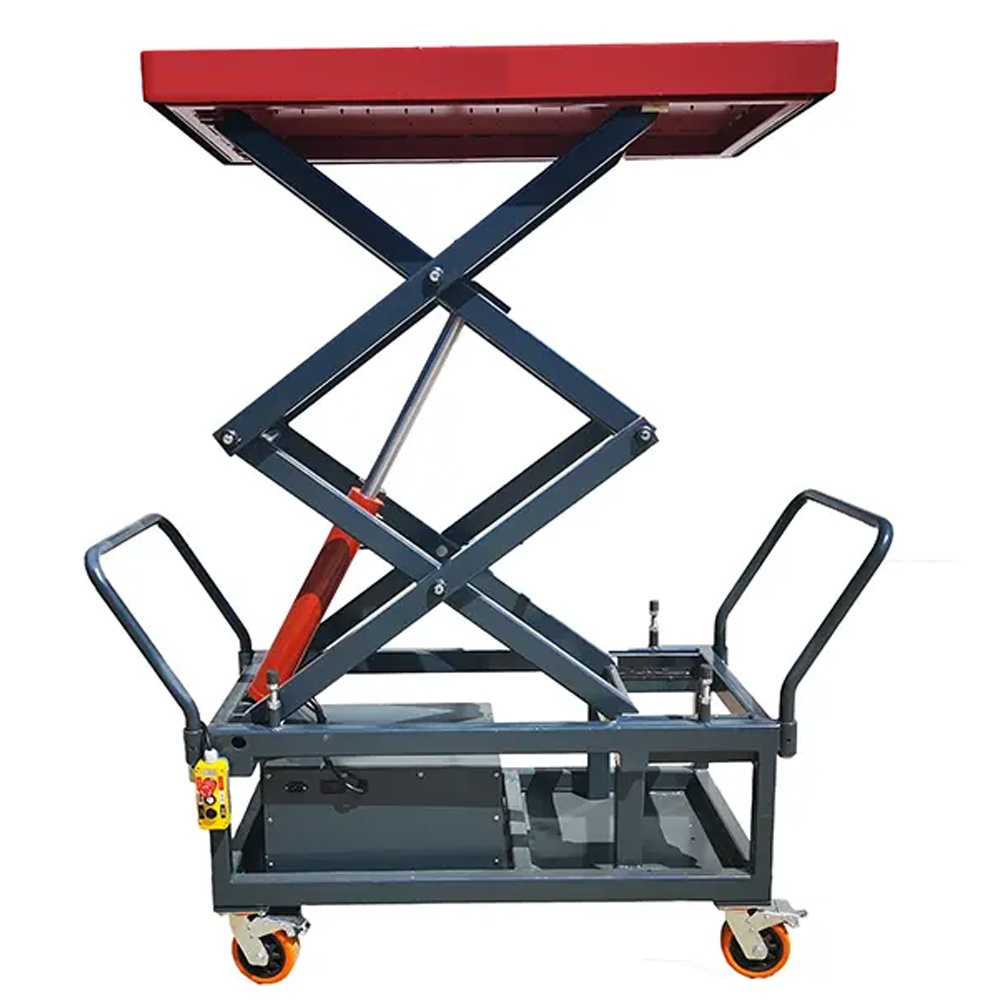

1.2 Ton Electro-Hydraulic Battery Lift

15430

  • The equipment adopts a scissor lift structure.
    The bottom of the lifting platform is equipped with universal bearings.

  • The lifting platform is equipped with a fastening device.

  • The equipment is equipped with four independent universal brake casters made of nylon material.

  • Equipped with wired remote control handle, easy to control.

  • Optional DC12V/AC220V power unit, easy to move and transfer.

Quantity

ltem No.

Description

1.2 Ton Electro-Hydraulic Battery Lift with dual hydraulic cylinders for stable 1.2-ton battery handling. Features four-directional base alignment, secure locking, and mobile nylon brake casters. Includes wired remote control and dual power options (DC12V/AC220V) for precise, portable operation in automotive or industrial settings.Adopt electro-hydraulic drive equipment for lifting, equipped with a flat lifting platform and casters with brakes. They are mainly used for lifting and transferring when the power battery of new energy vehicles is removed and installed.

Features

Max. Lifting Weight

1200kg

Max Lifitng Height

1850mm

Mini Height

820mm

Height of Handle

1030mm

Dimension of Platform

1260mm * 660mm

Movable distance of platform

25mm

Power Supply

DC12V, 1.6KW/AC220V,0.75KW

Remote Control Line

3m



Specification
