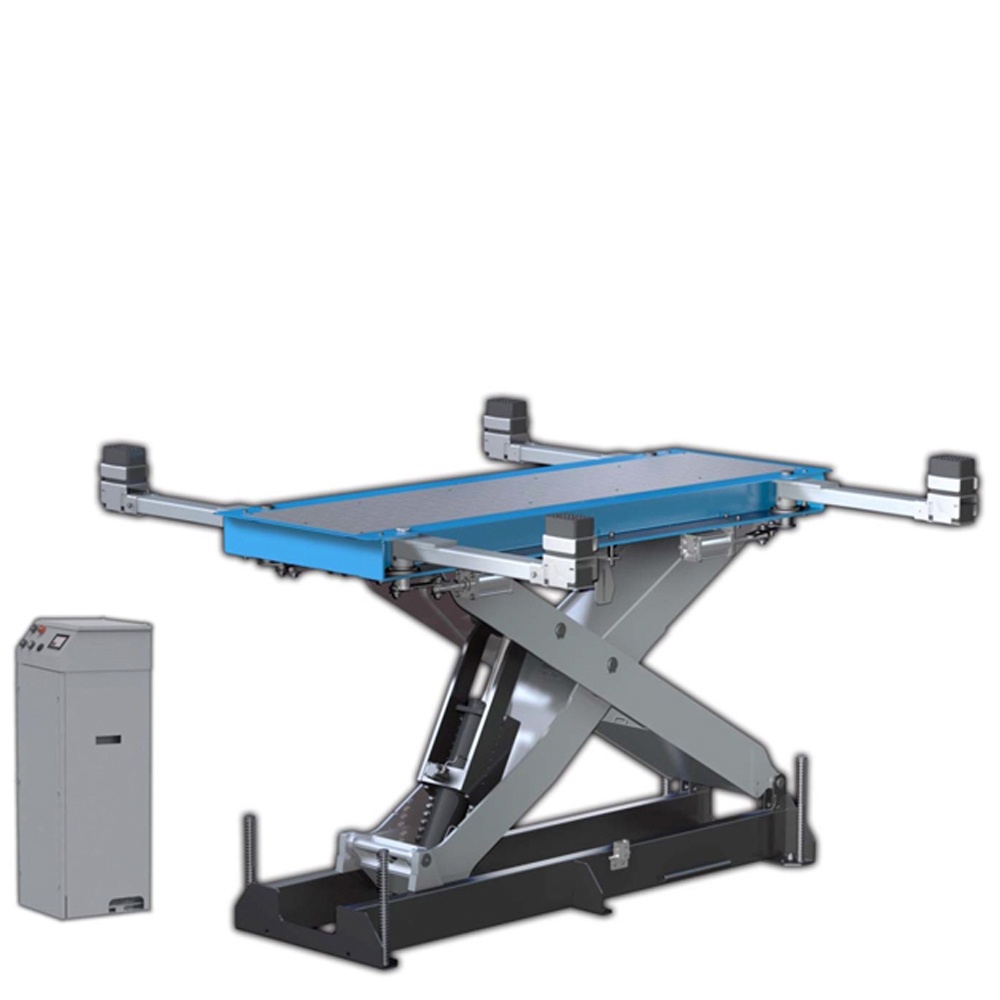

3 Ton Car Body Lift

15320

  • It is a type of lifting bridge with submerged foundations

  • Mechanical safety locking system, automatically engages and releases compressed air

  • The opening and retracting lifting arm is controlled by compressed air

  • The lifting arm can rotate in many positions to suit many different types of vehicles

  • Rubber pads can be stacked on top of each other for additional lifting height

Quantity

ltem No.

Description

3 Ton Car Body Lift utilizes a submerged foundation lifting bridge design for robust stability. Its mechanical safety locking system automatically engages and releases via compressed air, ensuring secure operation. The compressed air-controlled lifting arms extend, retract, and rotate flexibly to accommodate diverse vehicle types. Stackable rubber pads enable customizable height adjustments, making it ideal for body repairs, undercarriage access, and maintenance in automotive workshops.

Features

  • Lifting capacity: 3.0 tons

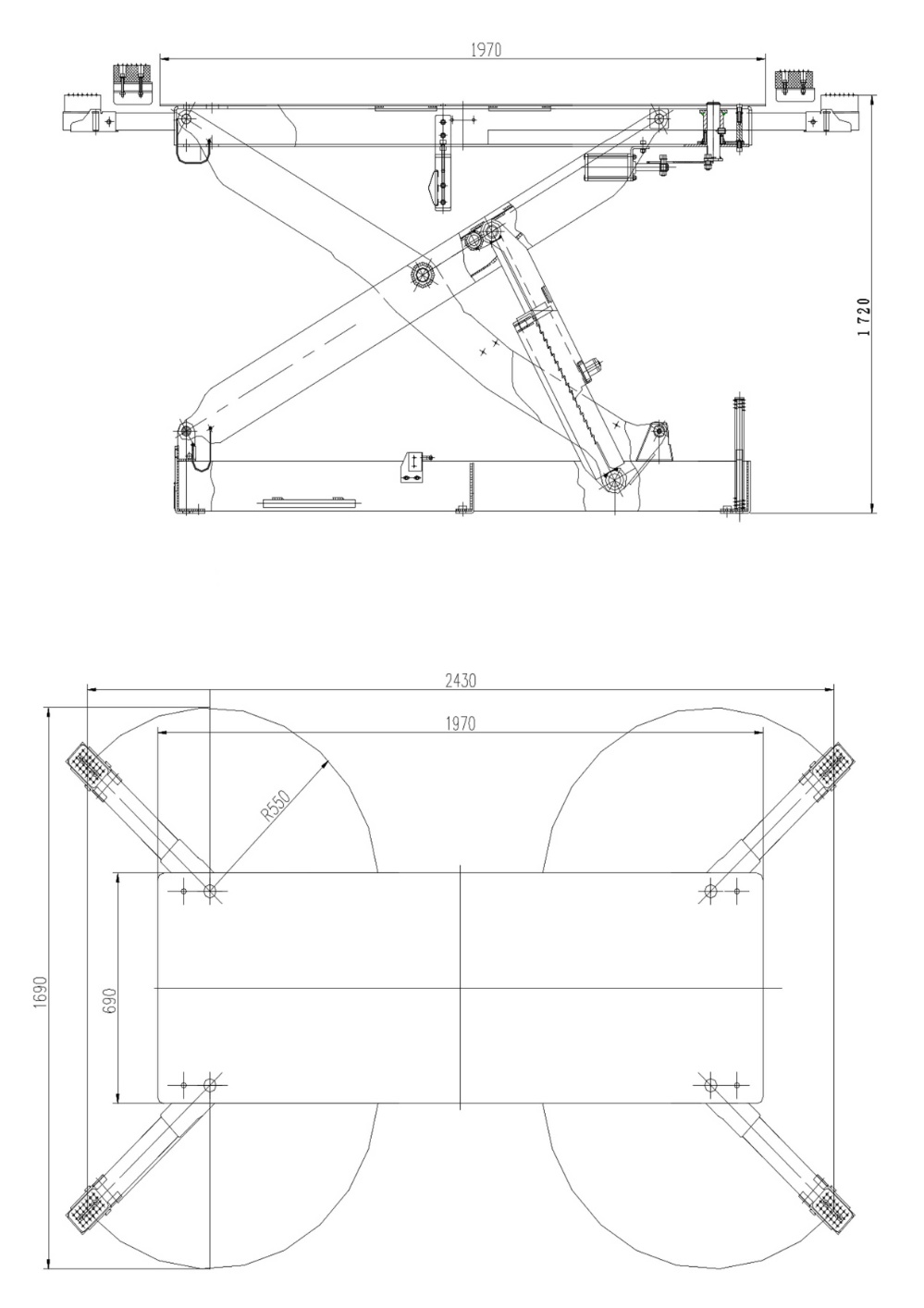

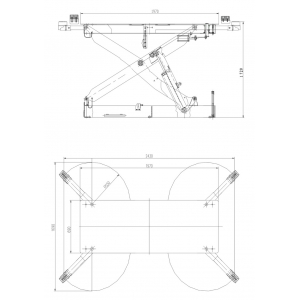

  • Lift table length 1970mm

  • Lift table width: 690mm

  • Lifting stroke: 340-1720mm

  • Available lifting height: 1380mm

  • Lifting time 50s

  • Motor: 2.2kw
