Low profile structure for on ground installation.
24V low voltage control.
The drive on ramp can also bear 3ton to make the model be available for more vehicles.
With parachute valve and safety valve for safety.
Available for tyre shops.
Can choose mechanical lock or hydraulic lock.
Quantity
ltem No.

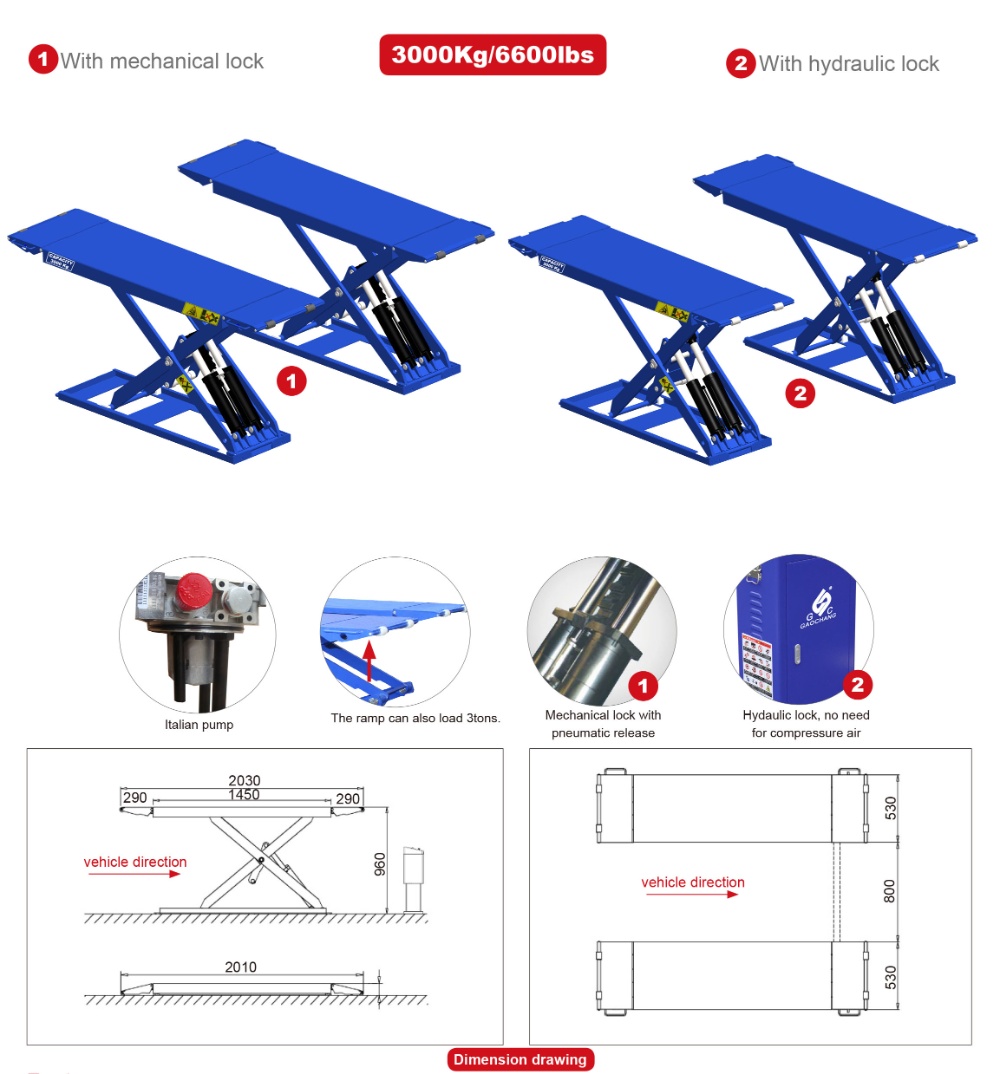

3 Ton On-Ground Mid-Rise Scissor Alignment Lift features a low-profile structure for easy on-ground installation and 24V low-voltage control. The 3-ton drive-on ramp expands compatibility with diverse vehicles, while parachute and safety valves ensure operational security. Ideal for tyre shops, it offers optional mechanical or hydraulic locks for enhanced safety. Compact yet robust, this lift delivers stable mid-rise performance for alignment and tyre servicing.
Model | 15231M | 15231H |

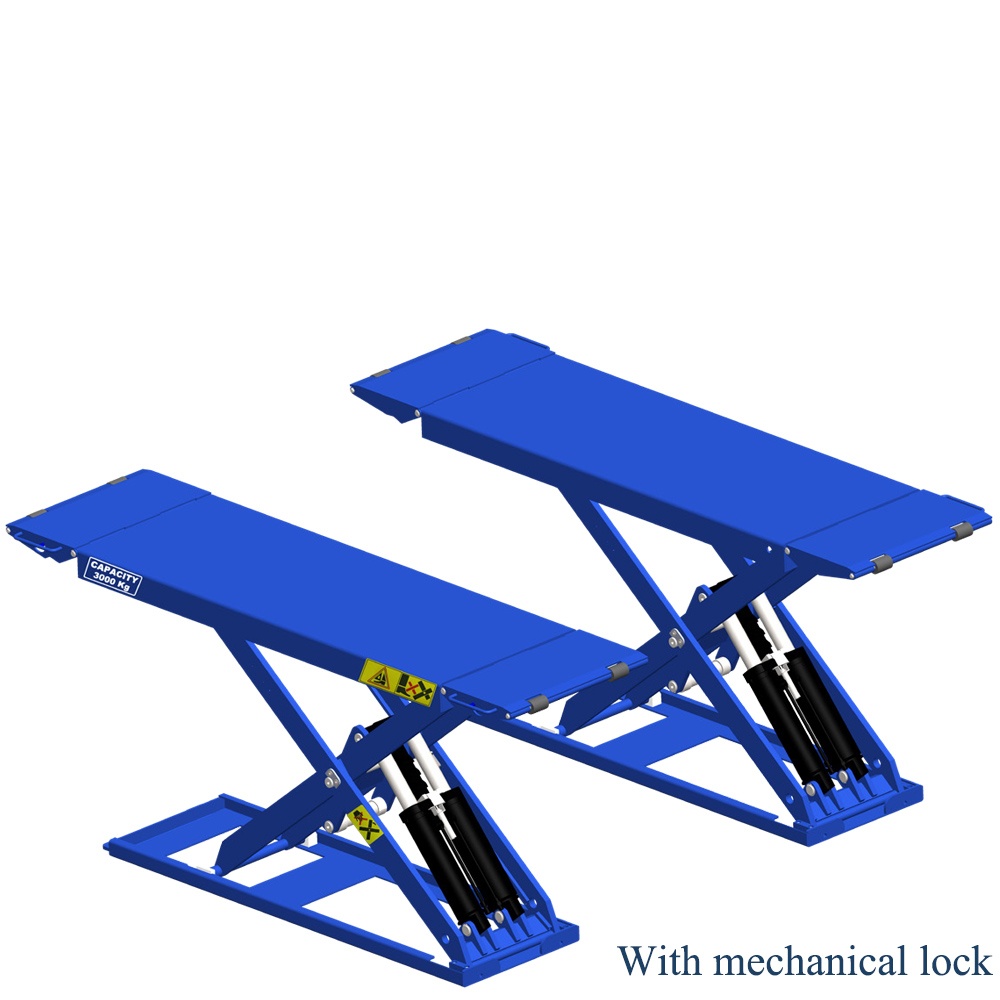

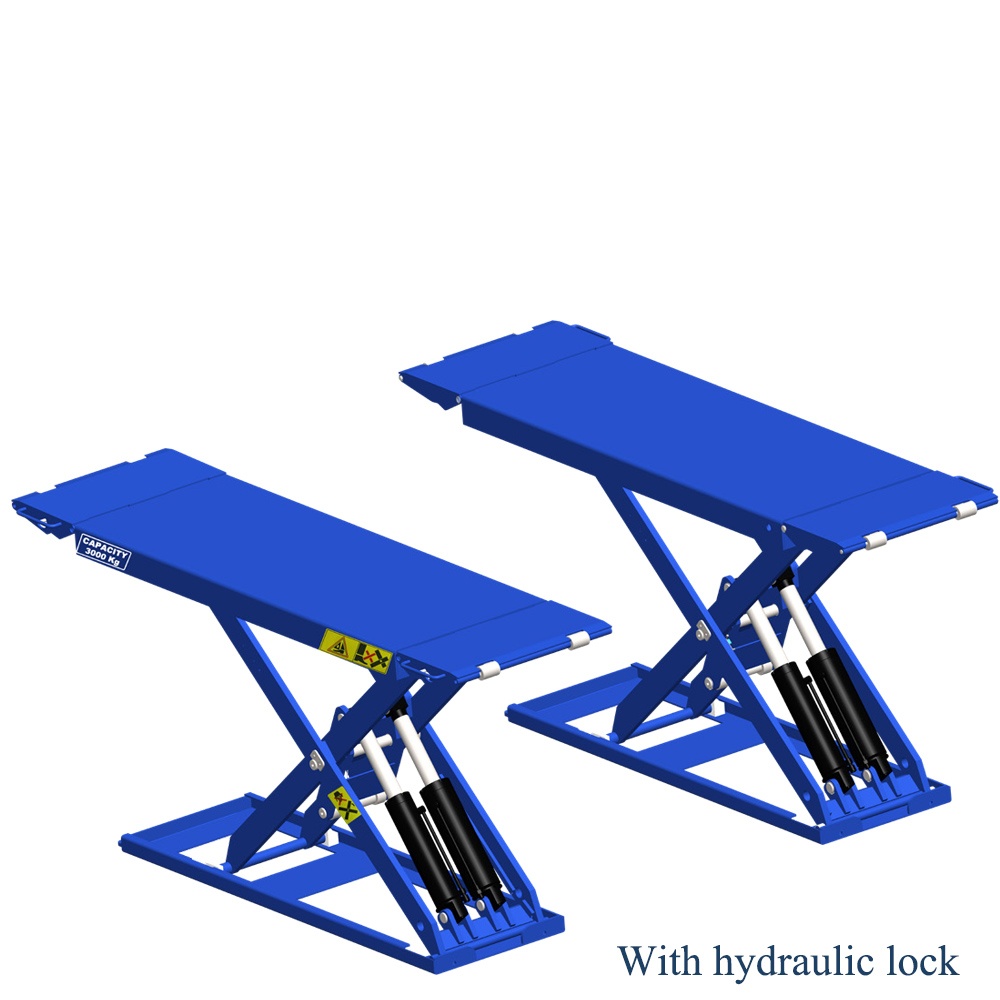

Type | mechanical lock | hydraulic lock |
Capacity | 3T | |
Power | 380V/220V, 2.2kw | |
Air supply | 4-6bar | |
Max. Lifting height | 960mm |
