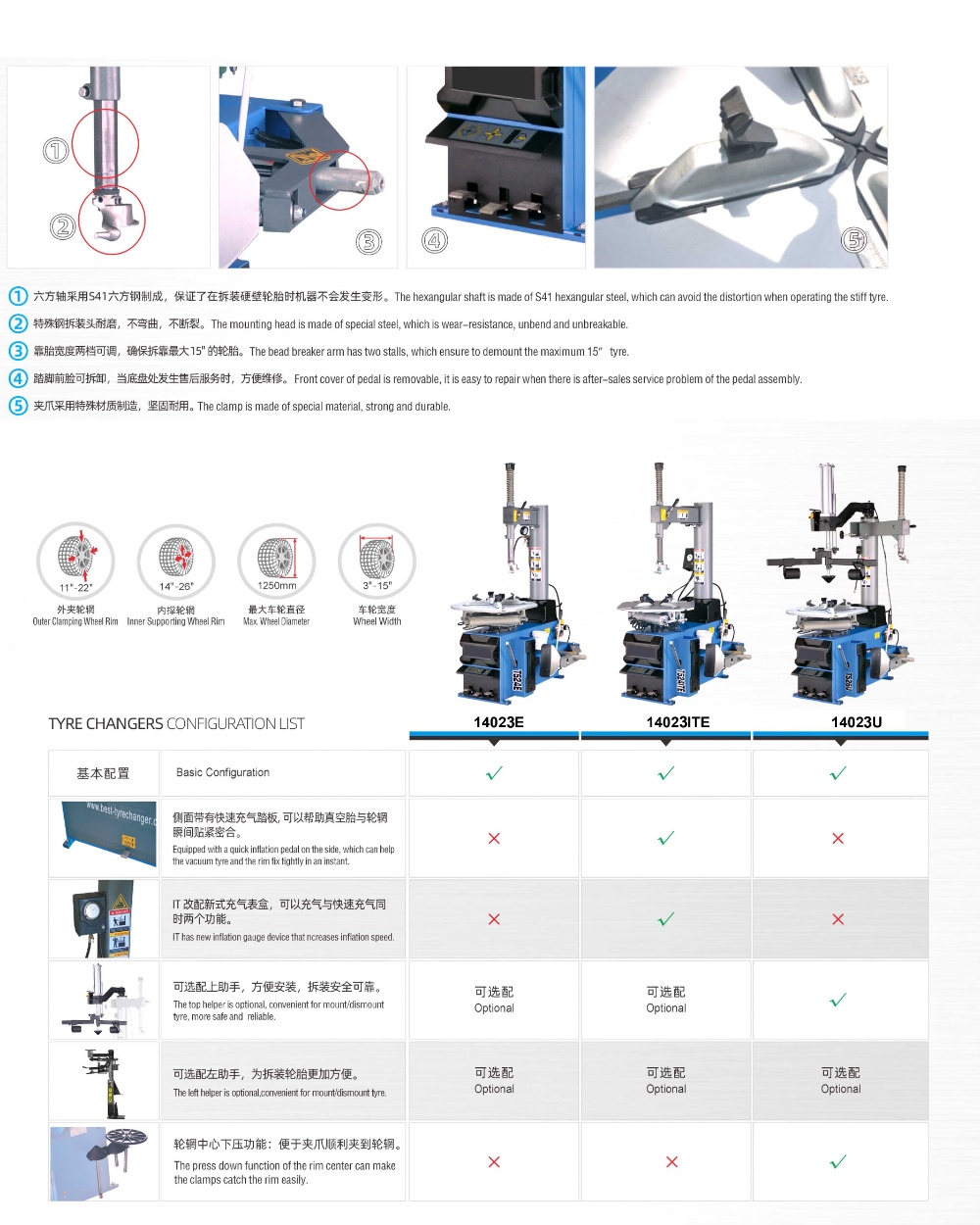

The mounting head is made of special steel, which is wear-resistance, unbend and unbreakable.
The structure of the swing arm featured with economical and practical.
The customer can optional equip the plastic tool head according to the requirement.
The universal switch is 40A with a pure silver touching point, it can bear great load with a longusing life.
The protective sheath of the bead breaker is optional.
Quantity
ltem No.

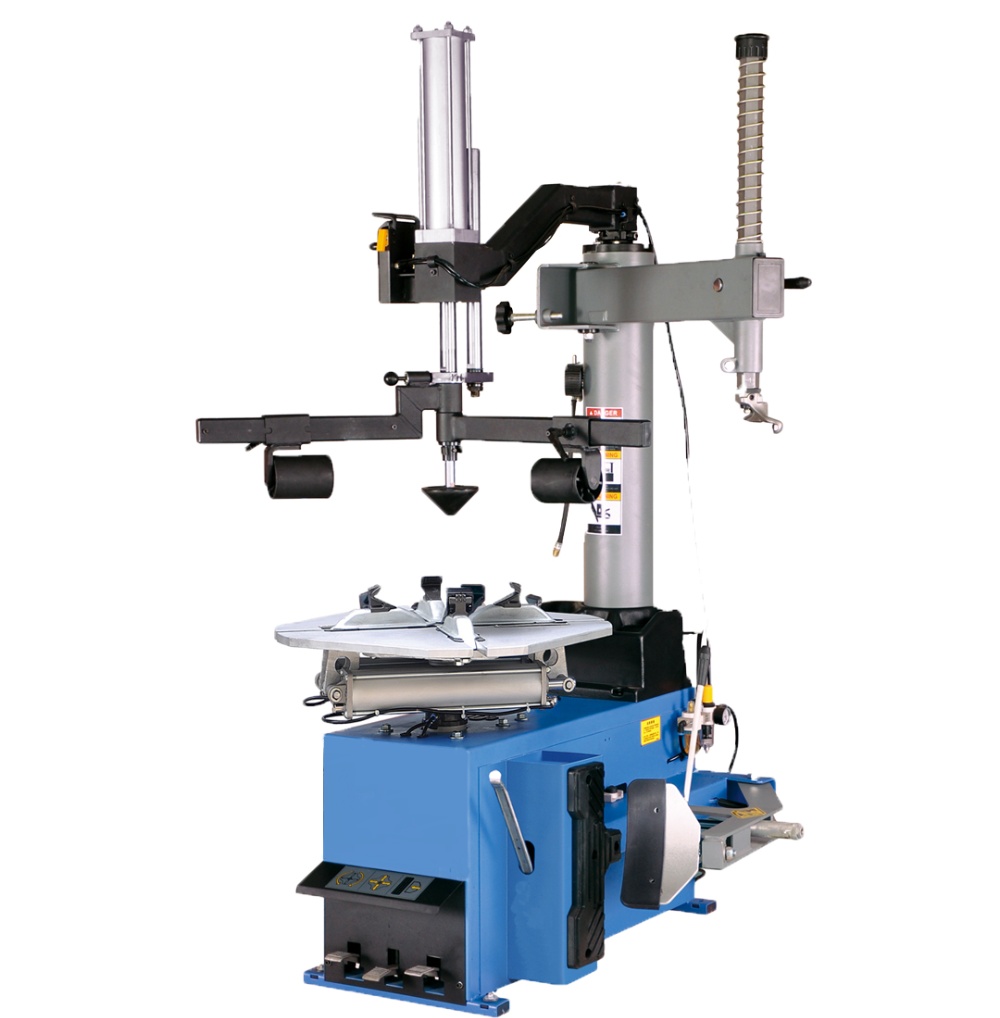

Semi-Automatic & Swing-Arm Car Tire Changer for 14" to 26" Tyres offers a blend of efficiency and precision for tire servicing. Its innovative swing-arm design provides flexible positioning and space-saving operation, ideal for workshops with limited space. The semi-automatic system streamlines tire mounting/dismounting with minimal manual effort, while the robust swing arm adjusts smoothly to accommodate tires ranging from 14" to 26". Equipped with a reinforced bead breaker and self-centering clamp, it ensures secure handling of rims and minimizes damage risks.
Item No. | 14023E | 14023ITE | 14023U |
Outside Clamping Range | 11''-22'' | 11''-22'' | 11''-22'' |
Inside Clamping Range | 14''-26'' | 14''-26'' | 14''-26'' |
Max. Wheel Diameter | 1250mm | 1250mm | 1250mm |
Wheel Width | 3''-15'' | 3''-15'' | 3''-15'' |
Air Pressure | 8-10 bar | 8-10 bar | 8-10 bar |
Motor Power | 0.75/1.1kW | 0.75/1.1kW | 0.75/1.1kW |
Noise Level | <75dB | <75dB | <75dB |
Net Weight | 243kg | 258kg | 296kg |
Gross Weight | 259kg | 289kg | 326kg |
Packaging Size | 1200x920x1070mm | 1200x920x1070mm | 1200x1030x1120mm |
