The pedal has step brake function, which can mount the tyre accurately and time saving.
The universal switch is 40A with a pure silver touching point, it can bear great load with a long using life.
The mounting head is made of special steel, which is wear-resistance, unbend and unbreakable.

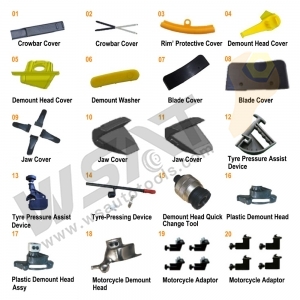

The claw, crowbar, demounting head and bead breaking shoe are optional equipped with the protective cover.
Quantity
ltem No.

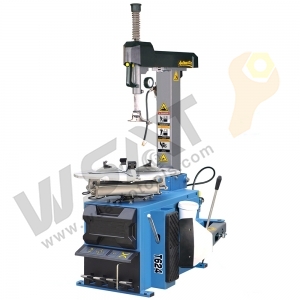

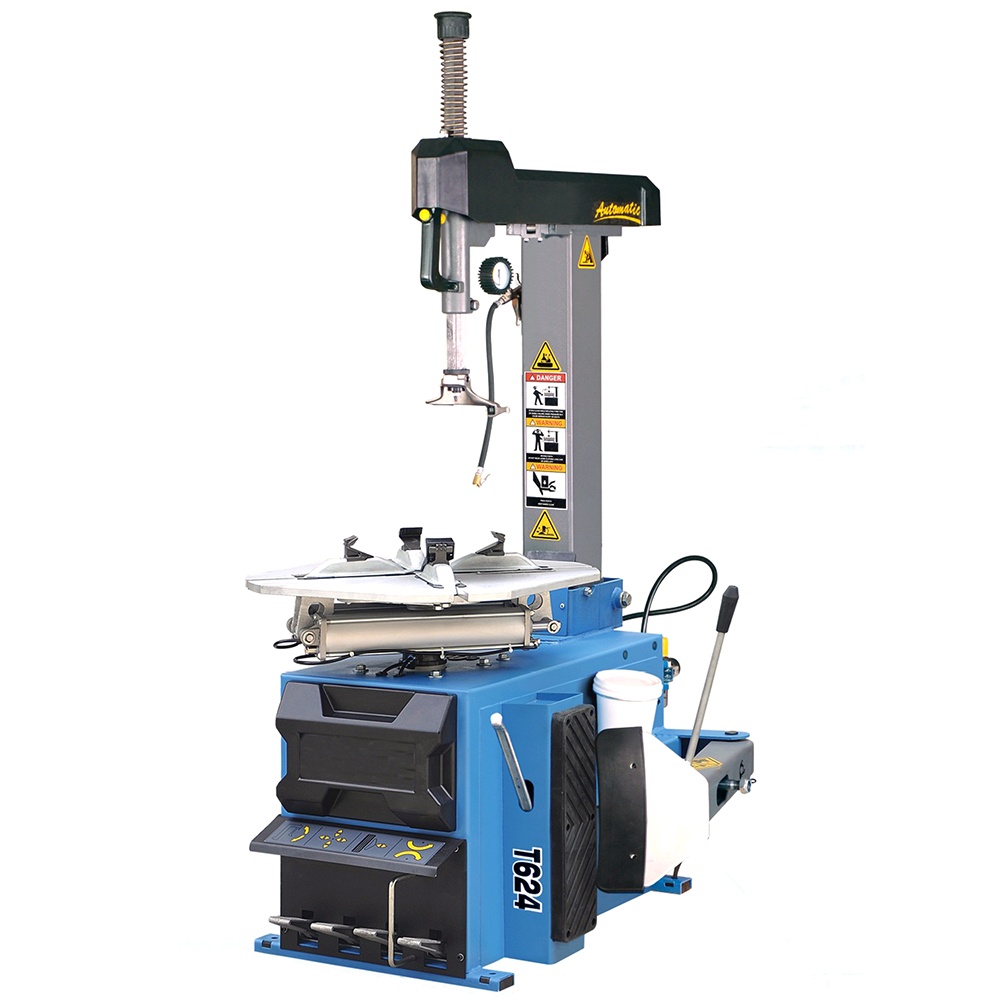

Car Tire Changer W/o Mechanical Arm for 12" to 24" Tyres delivers efficient and user-friendly tire servicing through advanced automation. The system features tilt-back positioning and an auto-lifting mounting head with integrated pneumatic locking/lifting mechanisms for secure operations. A pneumatic-controlled right helping arm expands the workspace and offers flexible adjustments, while the bead breaker replaces outdated pedal systems with a gear-adjustable design that effortlessly handles both small and large tires (12"-24") on a single unit.

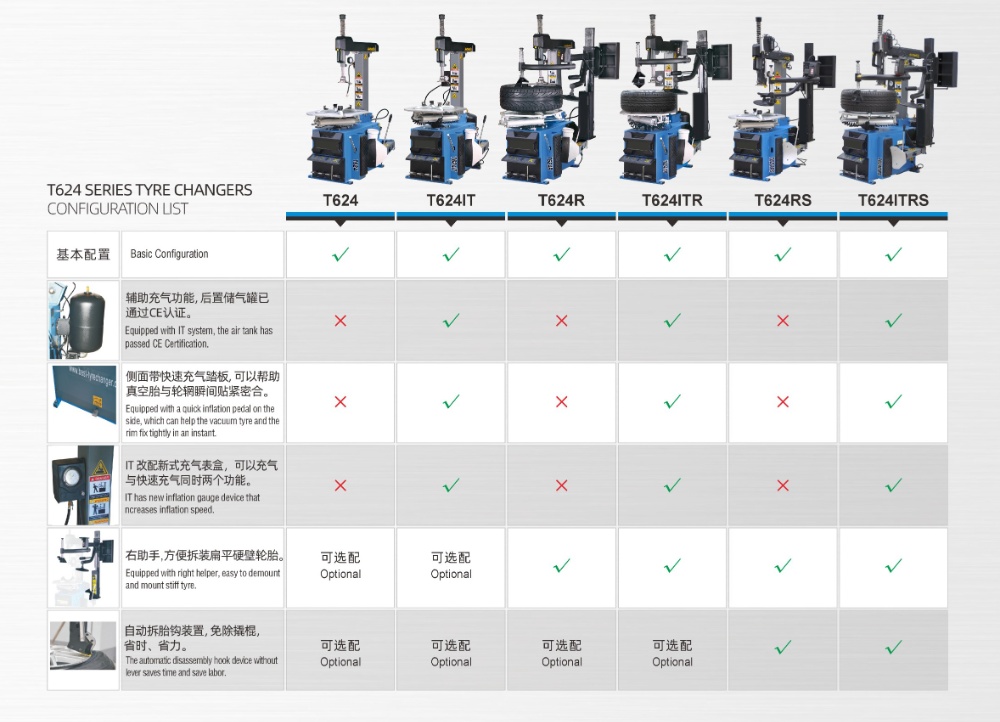

Item No. | 14020 | 14020IT | 14020R | 14020ITR | 14020RS | 14020ITRS |
Rim Clamping (external) | 11”-20” | 11”-20” | 11”-20” | 11”-20” | 11”-20” | 11”-20” |
Rim Clamping (internal) | 12”-24” | 12”-24” | 12”-24” | 12”-24” | 12”-24” | 12”-24” |
Maximum Wheel Diameter | 950mm | 950mm | 950mm | 950mm | 950mm | 950mm |
Wheel Width | 3”-12” | 3”-12” | 3”-12” | 3”-12” | 3”-12” | 3”-12” |
Operating Pressure | 8-10bar | 8-10bar | 8-10bar | 8-10bar | 8-10bar | 8-10bar |
Motor Power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
N.W./G.W. | 200/243kg | 235/256kg | 271/335kg | 306/348kg | 299/347kg | 315/360kg |
Packaging Size | 980x760x1010mm | 980x760x1010mm | 980x760x1010mm 1280x550x450mm | 980x760x1010mm 1280x550x450mm | 980x760x1010mm 1280x550x450mm | 980x760x1010mm 1280x550x450mm |
