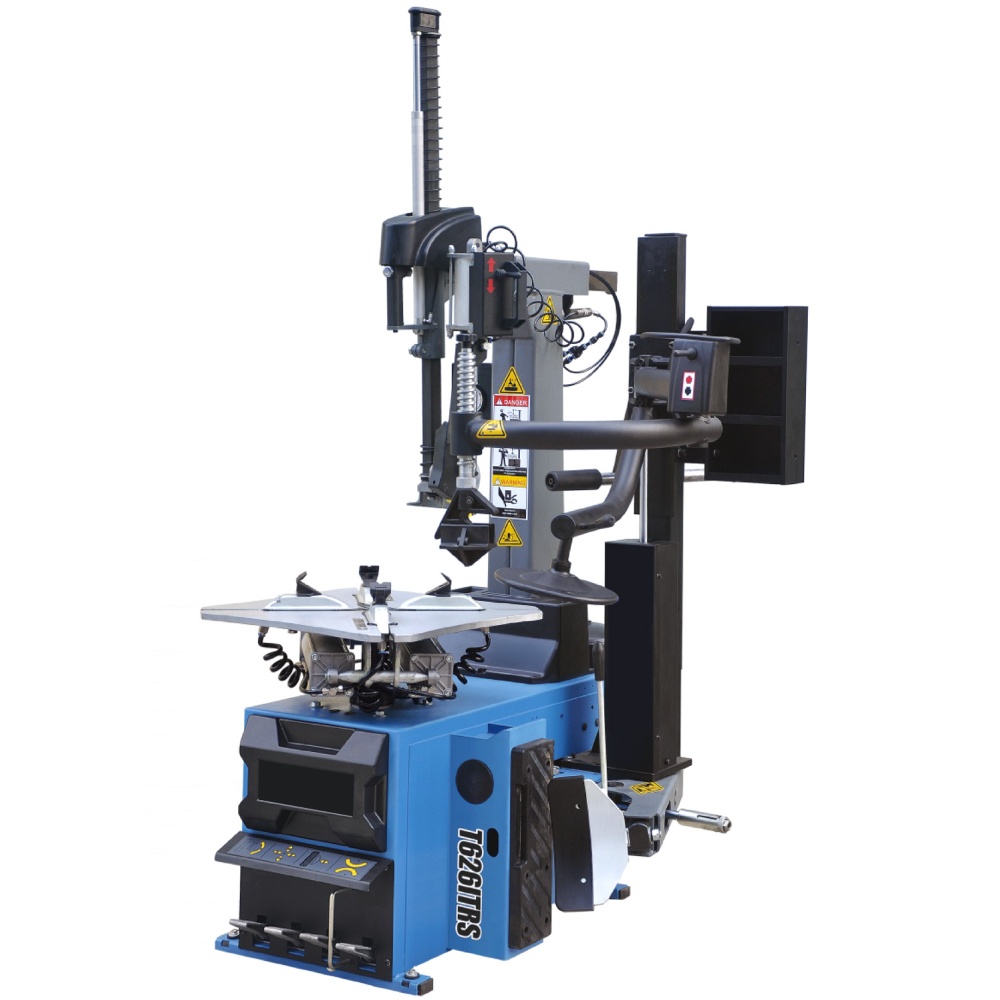

Full- Automatic Car Tire Changer for 13" to 26" Tyres

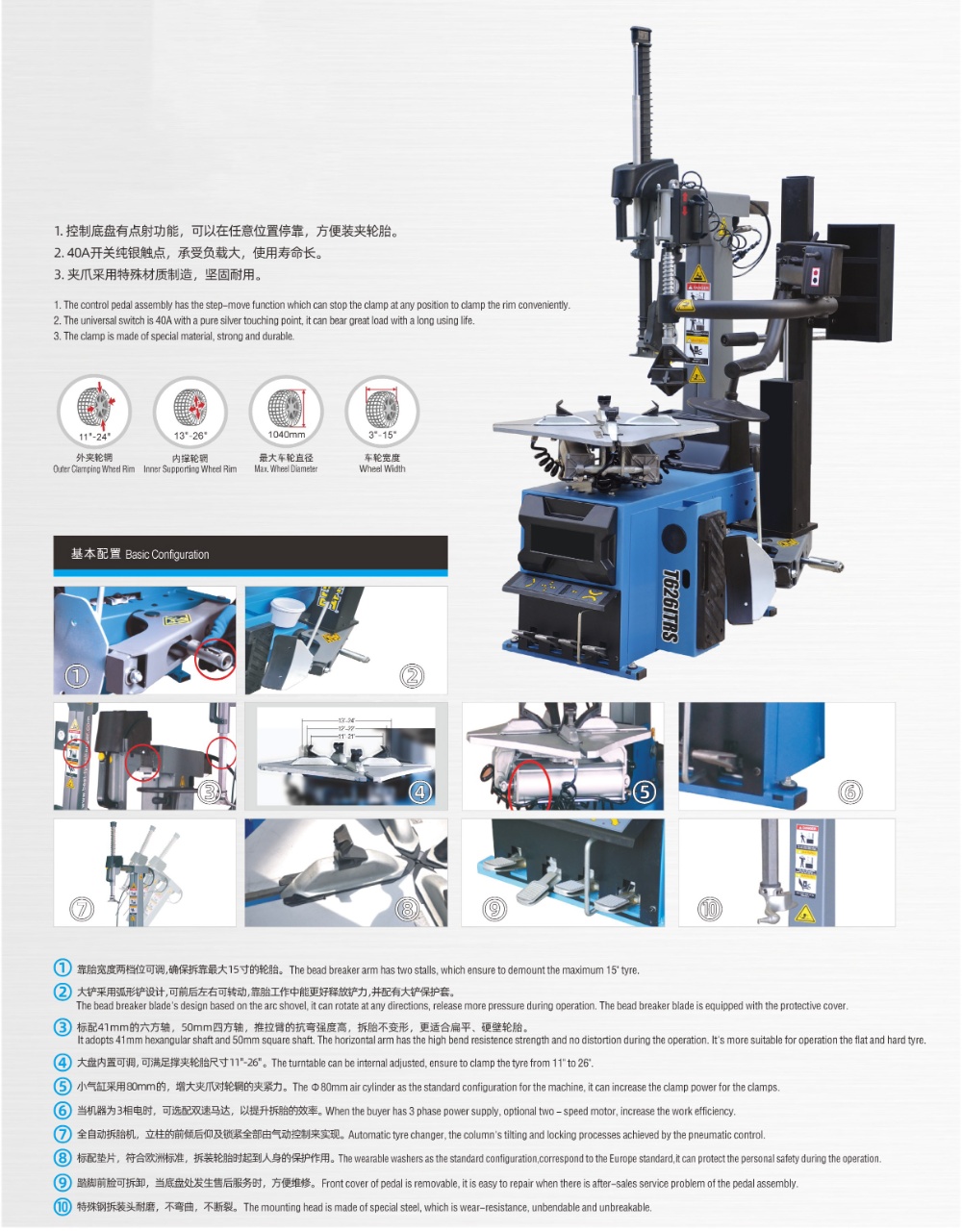

Equipped with right helper, easy to demount and mount stiff tyre.
The bead breaker blade's design based on the arc shovel.
The bead breaker arm has 2 stalls, which ensure to demount the maximum 15''tyre.
The wearable washers as the standard configuration, can protect the personal safety during the operation.
Quantity
ltem No.
Description
Features

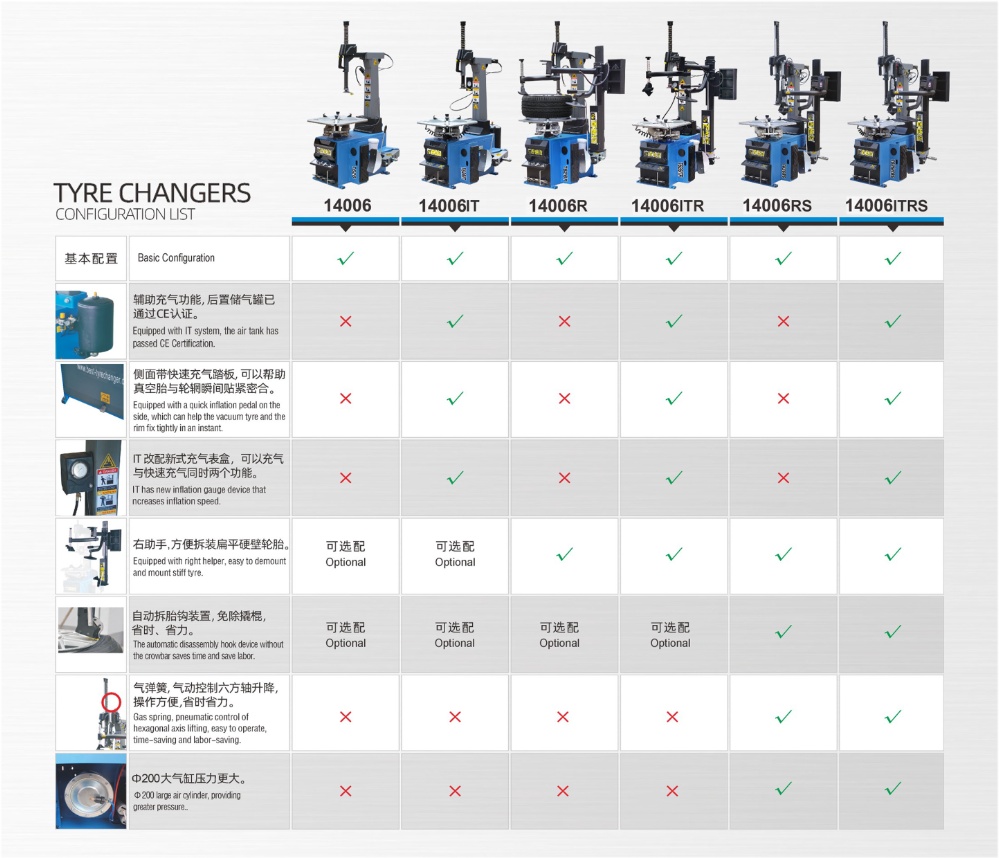

Item No. | 14006 | 14006IT | 14006R | 14006ITR | 14006RS | 14006ITRS |
Rim Clamping (external) | 11”-24” | 11”-24” | 11”-24” | 11”-24” | 11”-24” | 11”-24” |
Rim Clamping (internal) | 13”-26” | 13”-26” | 13”-26” | 13”-26” | 13”-26” | 13”-26” |
Maximum Wheel Diameter | 1040mm | 1040mm | 1040mm | 1040mm | 1040mm | 1040mm |
Wheel Width | 3”-15” | 3”-15” | 3”-15” | 3”-15” | 3”-15” | 3”-15” |
Operating Pressure | 8-10bar | 8-10bar | 8-10bar | 8-10bar | 8-10bar | 8-10bar |
Motor Power | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw | 0.75/1.1kw |
N.W./G.W. | 260/291kg | 275/310kg | 329/379kg | 344/398kg | 333/427kg | 348/442kg |
Packaging Size | 1100x860x980mm | 1100x860x1020mm | 1100x860x980mm 1280x550x450mm | 1100x860x100mm 1280x550x450mm | 1400x1020x1160mm 1280x550x450mm | 1400x1020x1160mm 1280x550x450mm |
Specification
