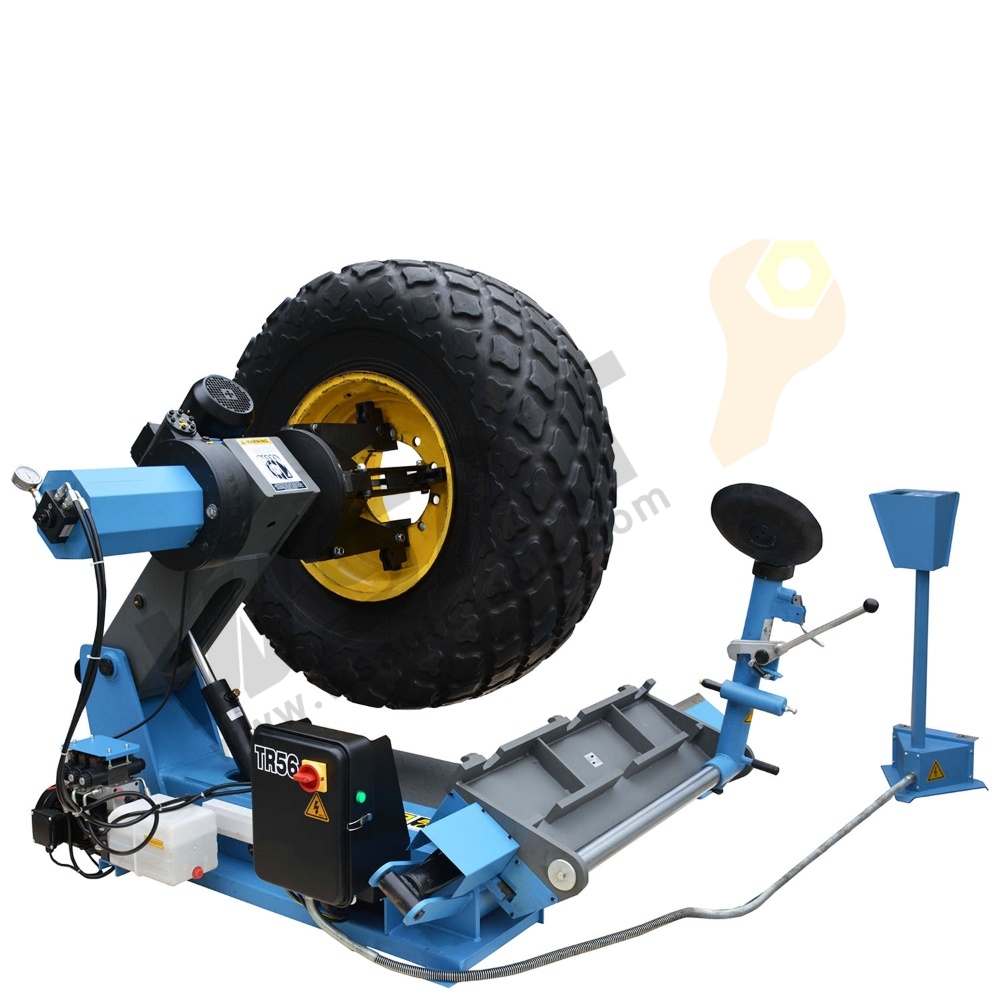

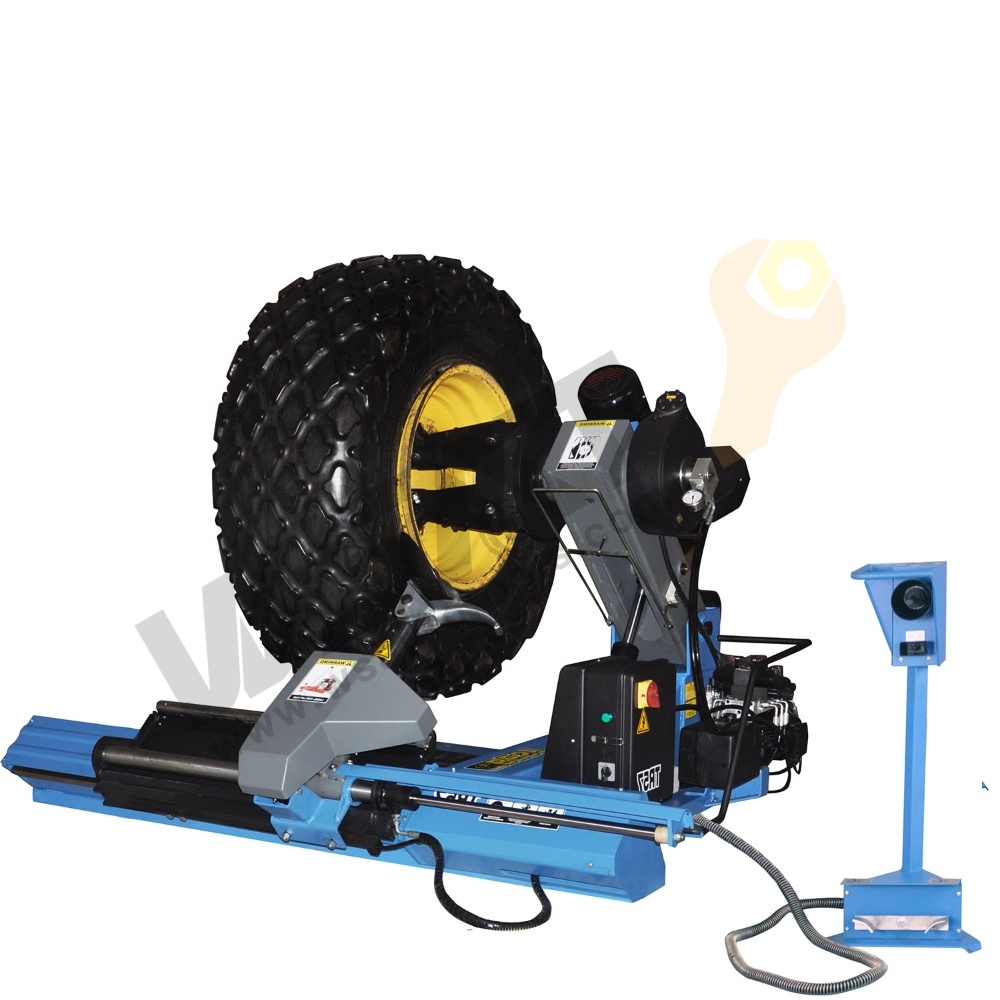

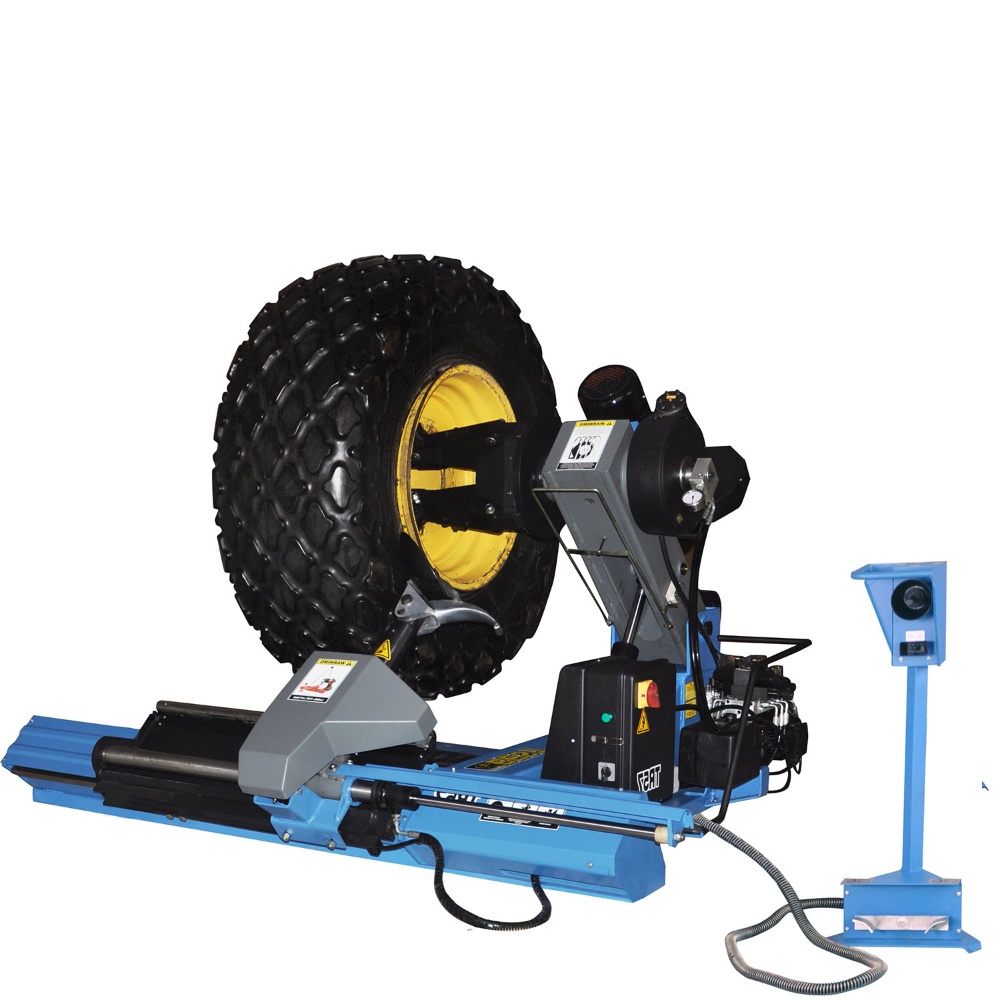

Heavy Duty Truck Tire Changer for 14'' to 56'' Tyres

14051~14052
  • Can disassemble and assemble vacuum tires and ring tyres.

  • The lifting arm cylinder is supported by a safety switch.

  • Equipped with hydraulic drive trailer, the tire moves left and right on the disassembly and assembly machine.

  • The trunk arm and the disassembly head are made of special material.

Quantity

ltem No.

Description

Heavy Duty Truck Tire Changer for 14'' to 56'' Tyres is designed for extreme durability and precision.Its robust lifting arm with a center-supported oil cylinder and distortion-resistant tool arm (made of special alloy) guarantees stability when handling large tyres up to 56''. The die-cast aluminium-alloy gearbox offers superior sealing and oil tightness, while the ergonomic mounting head and integrated shifting plate streamline operations, delivering unmatched efficiency for heavy-duty applications.



Features

Item No.:

14051

14052

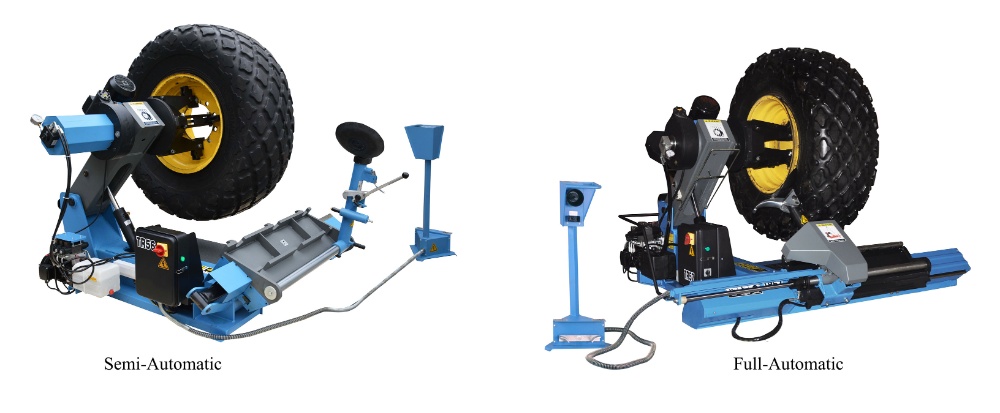

Type

Semi-Automatic

Full-Automatic

Rim Diameter

14"-46"

14"-46"

Rim Capacity  (With Extensions)

14"-56"

14"-56"

Max.Wheel Weight

1500KGS

1500KGS

Max.Wheel Width

1100mm

1100mm

Max. Tyre Diameter

2200mm

2300mm

Hydraulic Pump Motor

1.5kw

1.5kw

Gearbox Motor

1.8kw

2.4/3.1kw

Net Weight

891KGS

987KGS

Power

380V 50HZ  3PH

380V 50HZ  3PH

Packaging Size

2280*2070*1070MM

2280*2070*1070MM

14051

Specification
