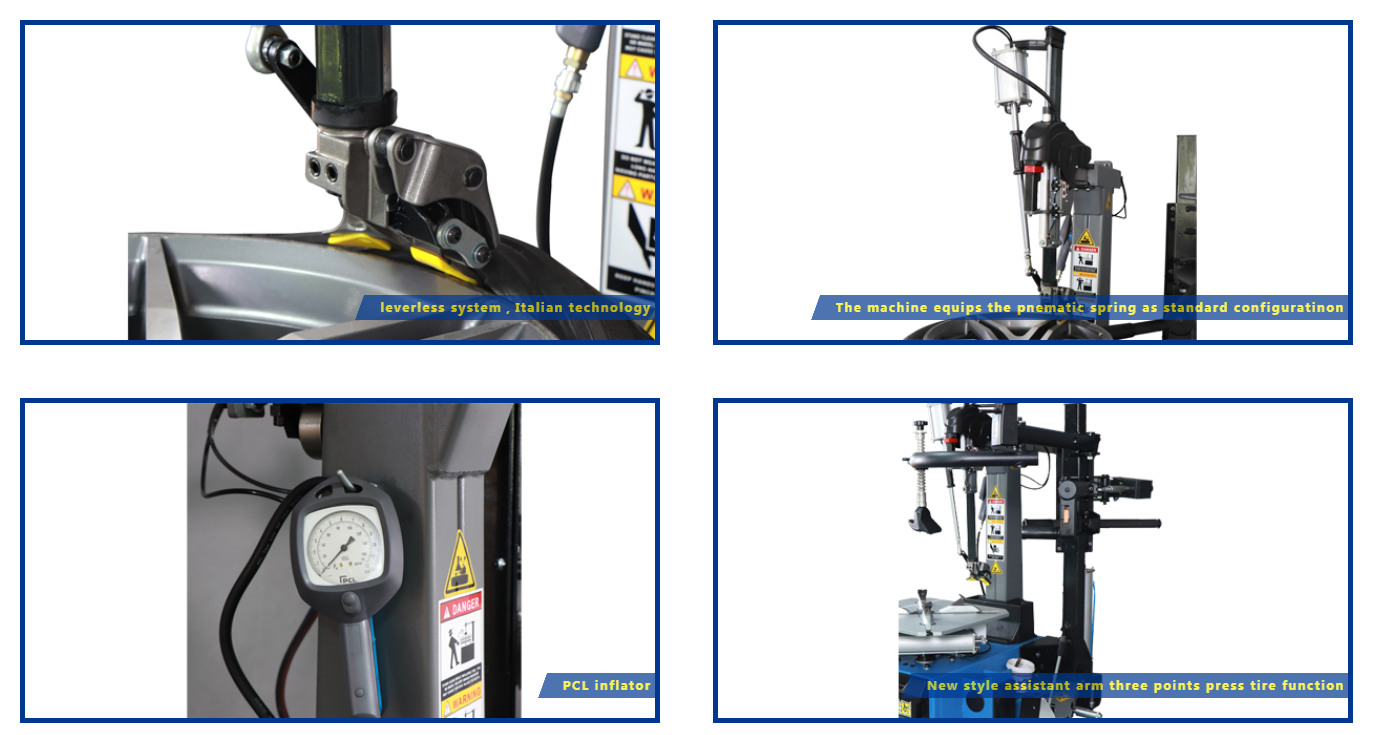

The control pedal assembly has the step-move function which can stop the clamp at anyposition to clamp the rim conveniently.
The machine adopts the bead breaker cylinder with ф200 diameter as standard configurationhaving bead break power 2800KG to bead break the tyre from rim easily.
The universal switch is 40A with a pure silver touching point, it can bear great load with along using life.
The clamp is made of special material, strong and durable.
Quantity
ltem No.

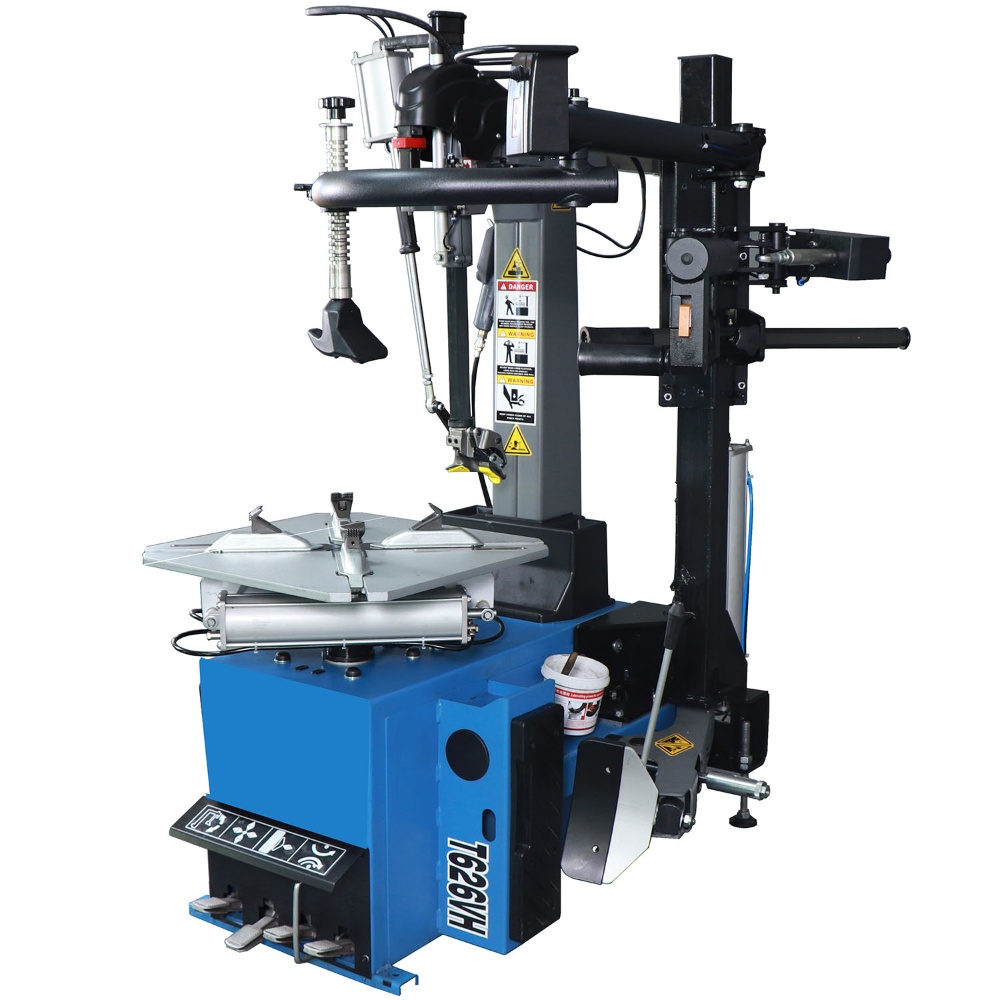

The Full-Automatic Car Tire Changer with Double Arms for 13" to 26" Tyres is a professional-grade solution designed for efficient tire servicing. Equipped with a 1.23" enlarged disc, it effectively handles larger and wider tires with enhanced grip capability. Its innovative left-right cylinder auxiliary arm system significantly simplifies flat tire disassembly/assembly operations, reducing physical effort while improving speed and precision. The machine features an intelligent self-centering mechanism that ensures quick positioning and operator-friendly performance.
Item No. | 14005A | 14005B |
Rim Clamping (external) | 11”-24” | 11”-24” |
Rim Clamping (internal) | 13”-26” | 13”-26” |
Maximum Wheel Diameter | 1040mm | 1040mm |
Wheel Width | 3”-15” | 3”-15” |
Operating Pressure | 8-10bar | 8-10bar |
Motor Power | 0.75/1.1kw | 0.75/1.1kw |
N.W./G.W. | 360/423kg | 390/450kg |
Packaging Size | 1200x1050x1150mm 1650x500x630mm | 1400x1050x1150mm 1650x500x630mm |
