Electric self-priming compact portable rotary vane pump.
Built-in by pass valve design for safe and dependable fuel delivery.
Available to equip with fuel transfer accessories: Flow meterNozzle and stationary installations.
Quantity
ltem No.

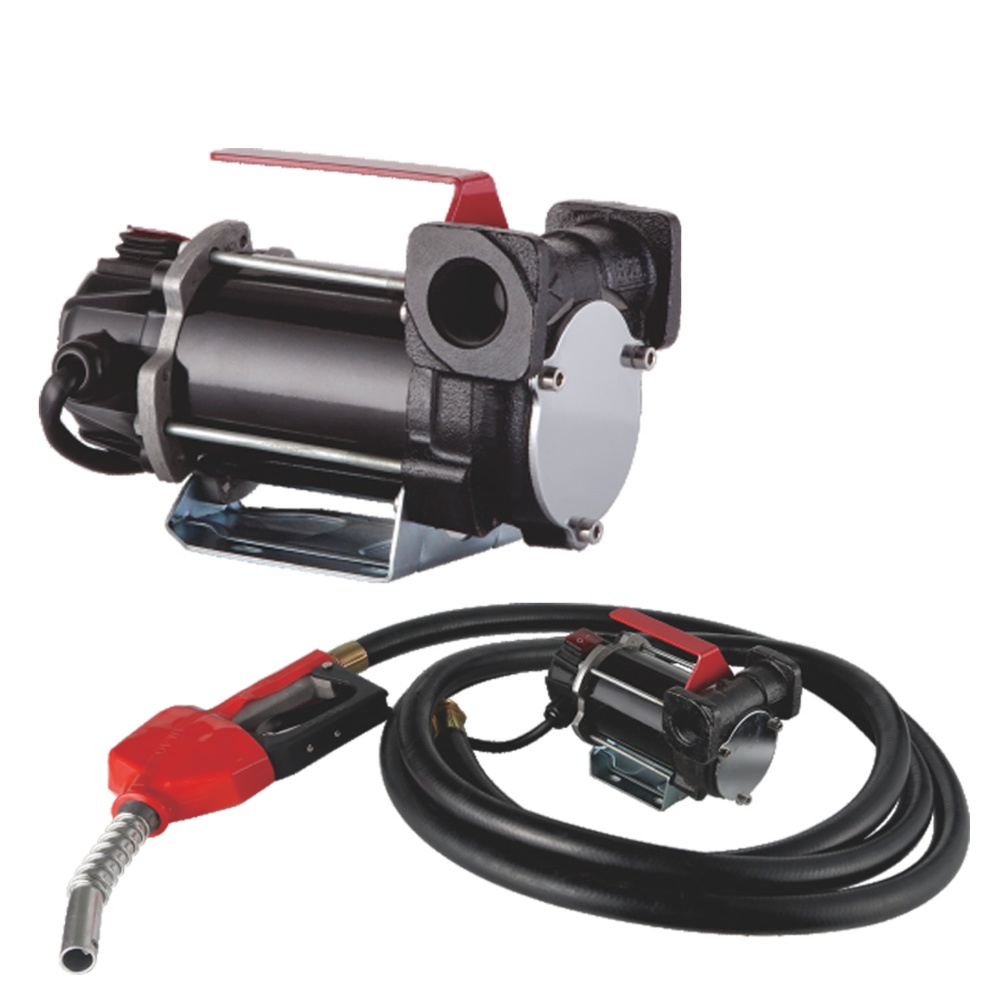

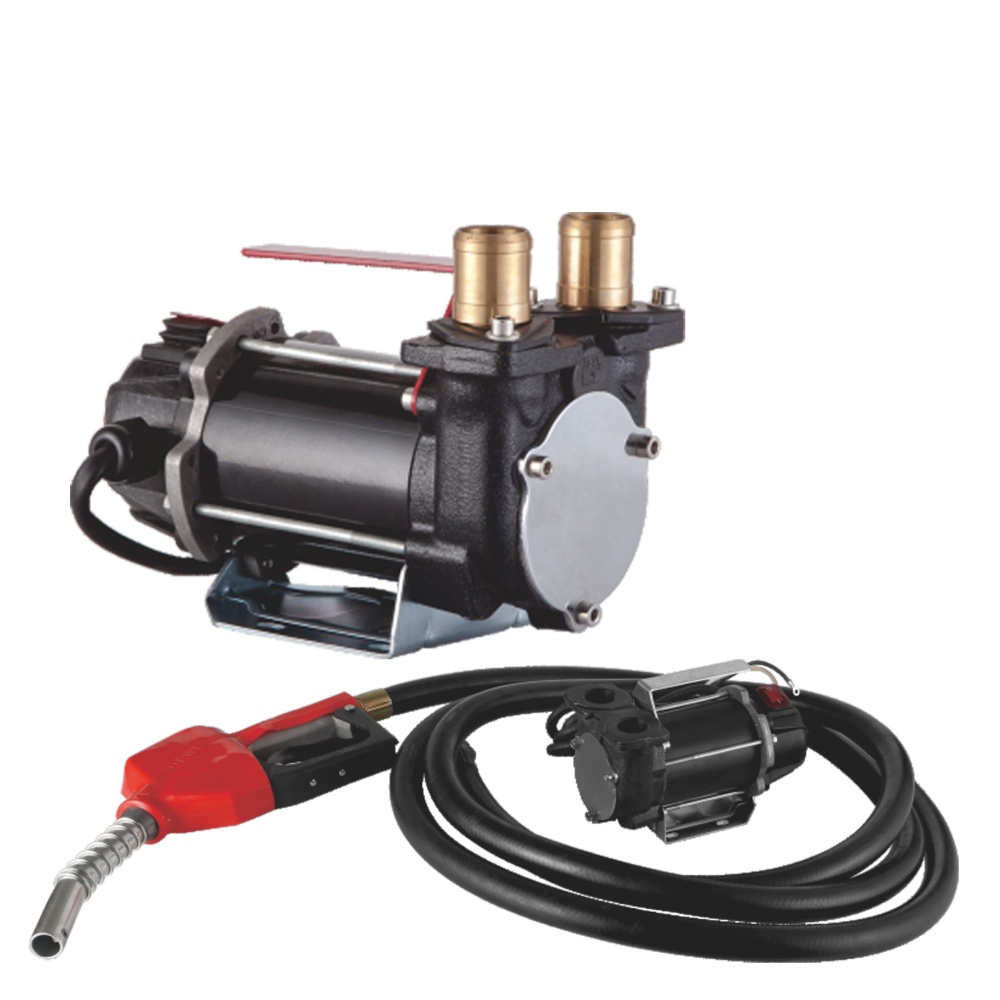

DC12V/24V Transfer Pump and Unit 50L Flow-Rate is a compact, portable electric pump featuring self-priming rotary vane technology for efficient fuel transfer. Compatible with 12V/24V power sources, it delivers a high flow rate of 40L per minute, ideal for vehicles, workshops, or outdoor use. The built-in bypass valve ensures safe operation, while optional accessories like flow meters, nozzles, and stationary installations enhance versatility. Durable and user-friendly, it simplifies fuel handling with reliability and precision.
Item No. | 16441A | 16441B |
Flow rate | 50L/min | 50L/min |
Voltage | 12V | 24V |
Power | 300W | 300W |
Duty-cycle | 30min | 30min |
Speed | 3200rpm | 3200rpm |
Threaded ports | 3/4” BSP | 3/4” BSP |
Pressure | 1.3bar | 1.3bar |
Materials:
Body: cast iron
Rotor: sintered steel
Vanes: acetal resin
Seal: NBR
Shaft: steel
Motor: carbon brush permanent magnet
Duty cycle: 30min"
