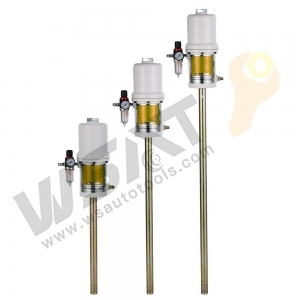

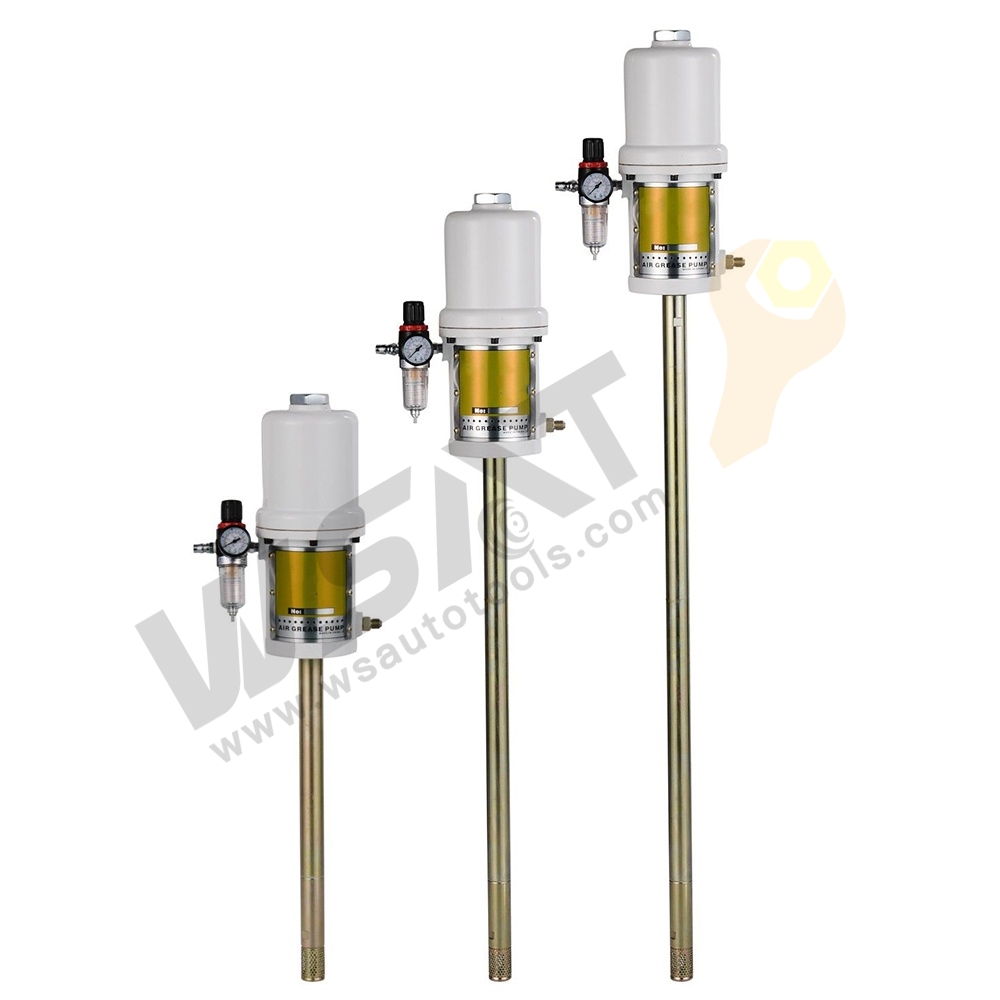

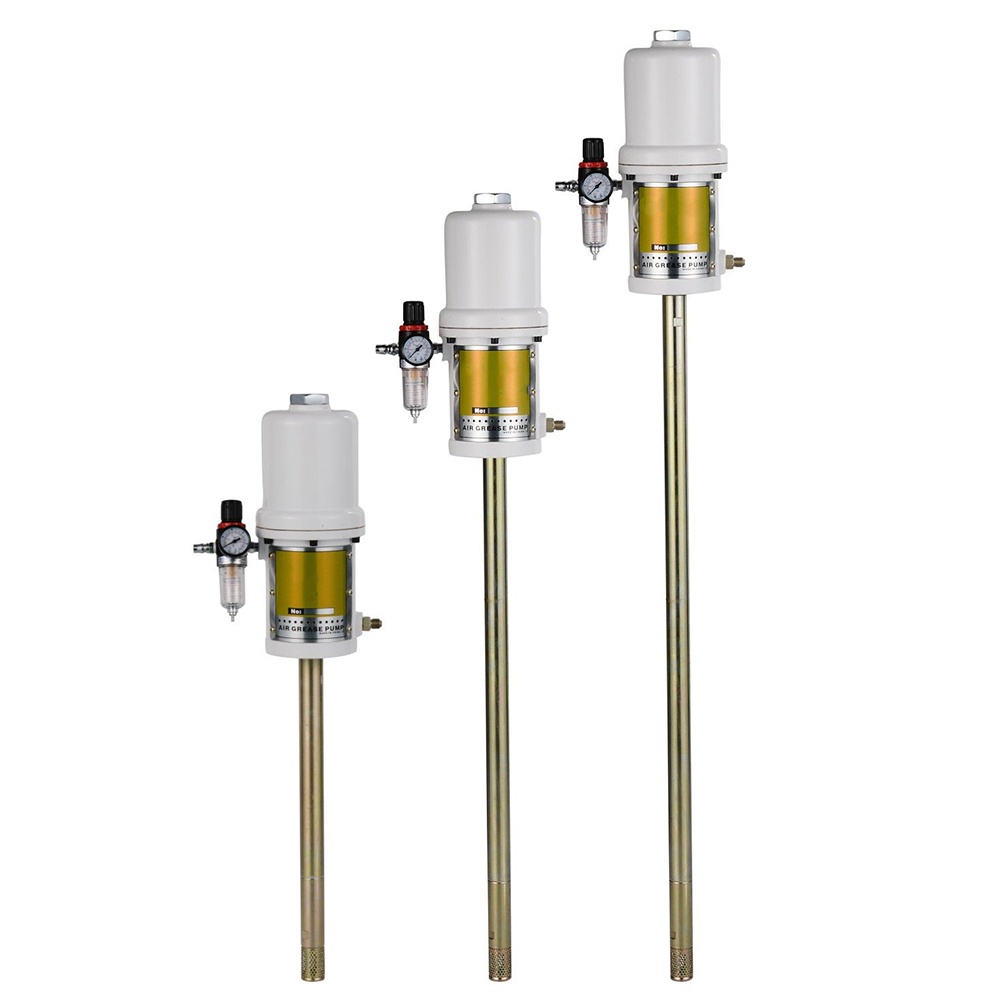

55:1 Air Grease Pump

16056/16057/16058

  • Use for lubrication system and grease diffluence set equipment.

  • For dispensing grease of all types short and long distance at high pressure.

Quantity

ltem No.

Description

55:1 Air Grease Pump efficiently dispenses all grease types at high pressure for short or long-distance lubrication systems and grease diffluence setups. Powered by a 55:1 air-to-grease ratio, it ensures robust, reliable performance in industrial, automotive, and heavy machinery applications, streamlining grease distribution while maintaining precision under demanding conditions.

Features

Item No.

16056

16057

16058

Drum Application

20-30kg

50-60kg

180-220kg

Working Pressure

5-8bar

5-8bar

5-8bar

Max. Fluid Pressure

450bar

450bar

450bar

Cylinder Dia.

108mm

108mm

108mm

Max. Free Flow Rate

1300g/min

1300g/min

1300g/min

Suction tube length

440mm/17.5’’

740mm/29’’

940mm/37’’

Input/output

1/4”

1/4”

1/4”

N.W

5kg

.5kg

Kg

Measurement

195x185x815mm

195x185x1135mm

195x185x1335mm



Specification
