Automotive Digital Cylinder Pressure Gauge
- Intelligent digital pressure gauge: 2.8-inch backlit display shows clear and accurate data.

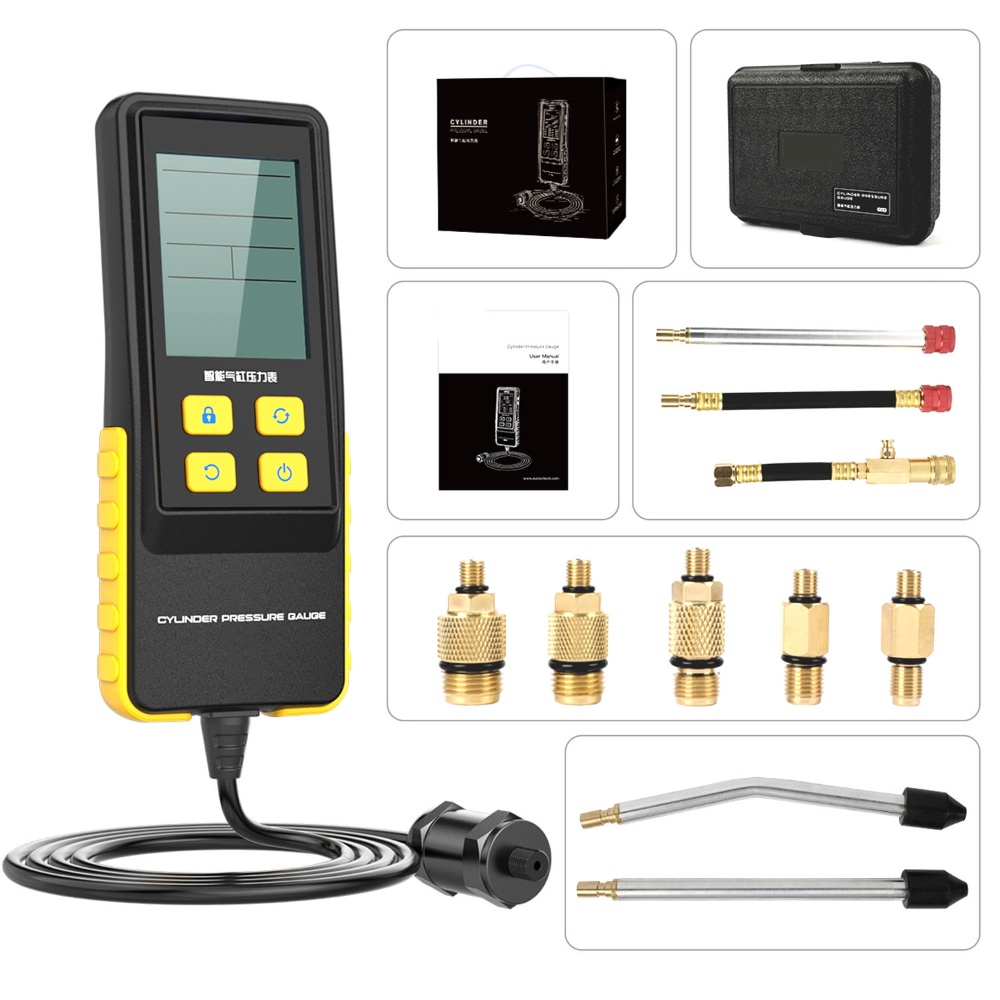

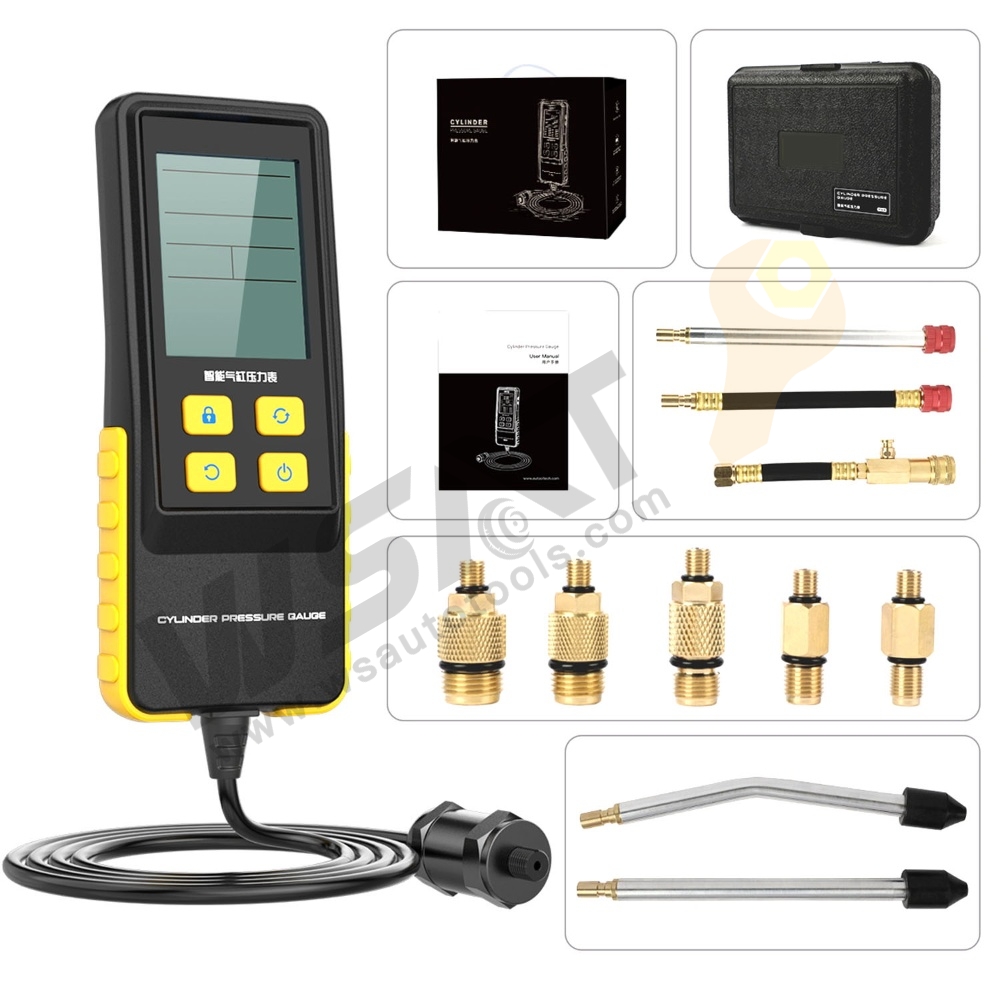

Selected Riveted Copper Material: Equipped with a variety of fittings made of riveted copper.

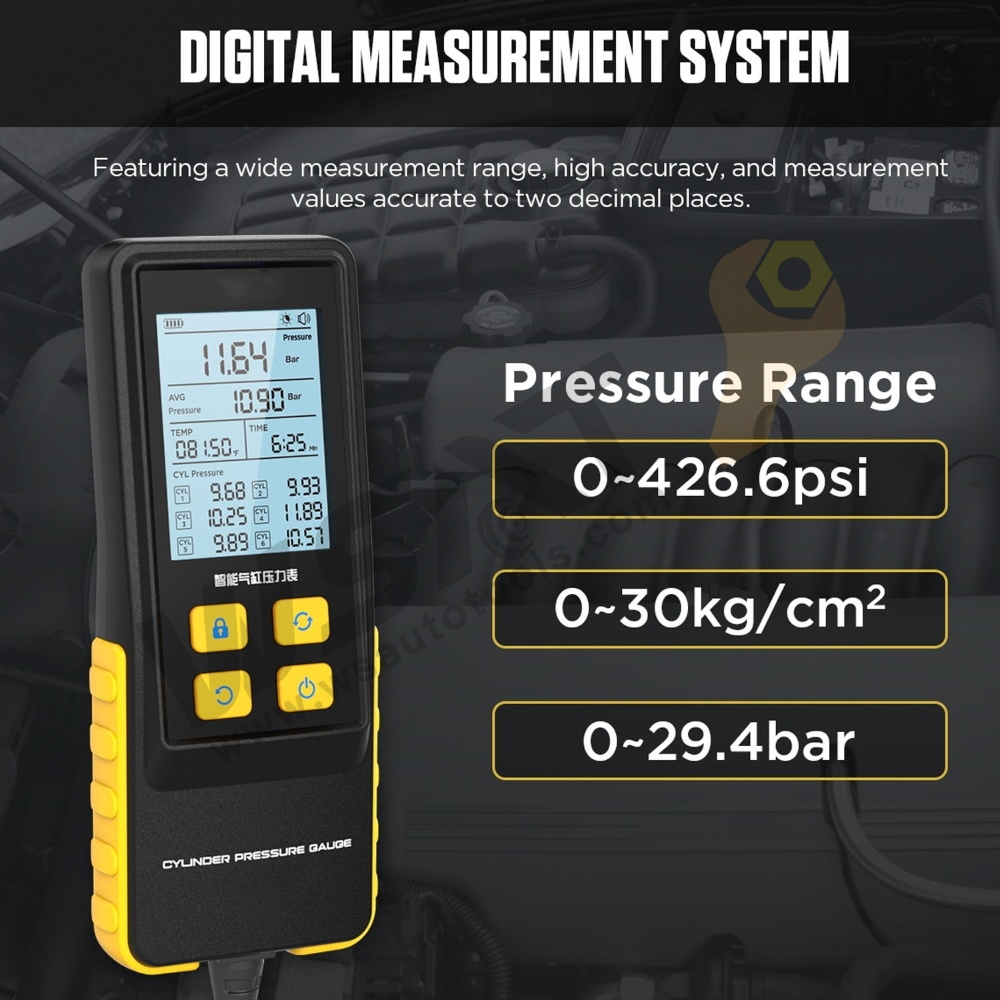

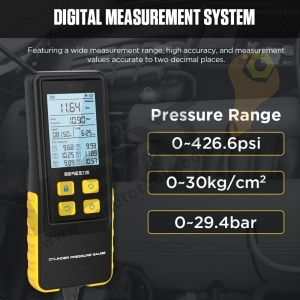

- Measurement accuracy: It has a large measuring range and high precision, measuring values can be accurate to two decimal places.
Quantity
ltem No.
Description

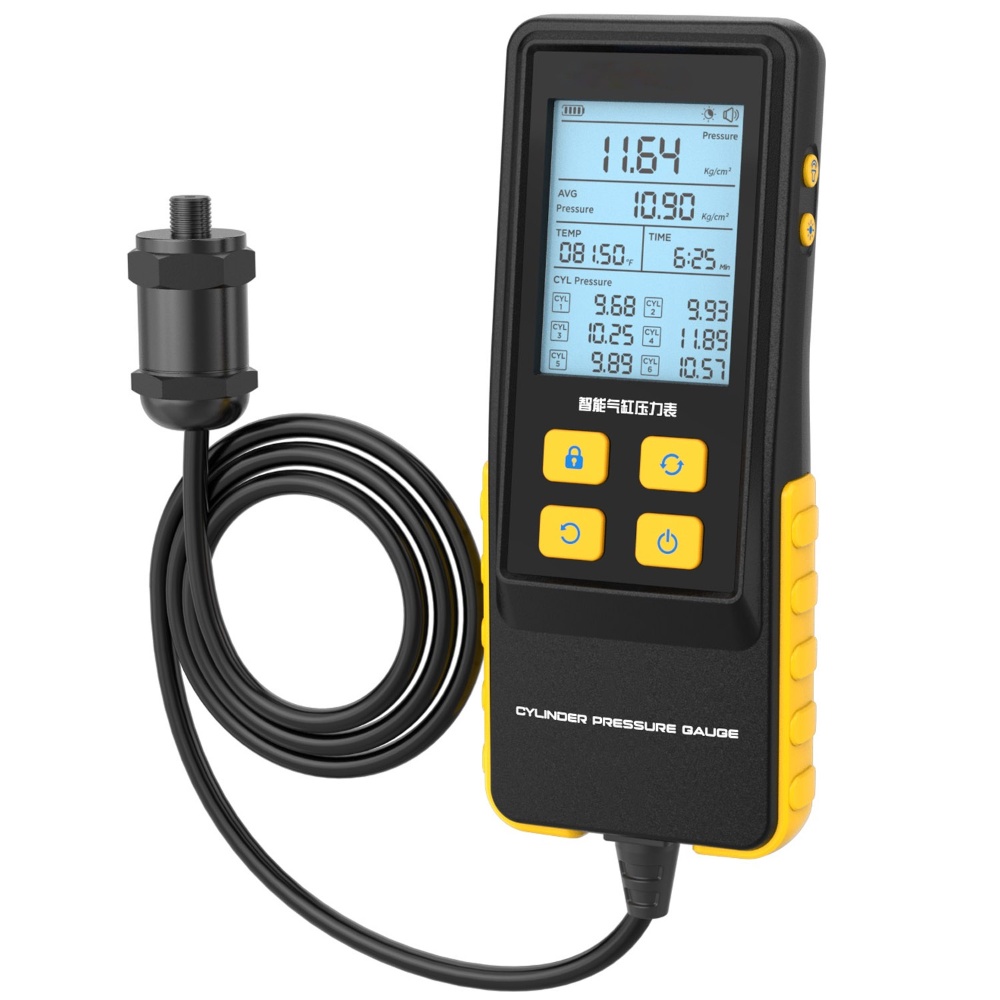

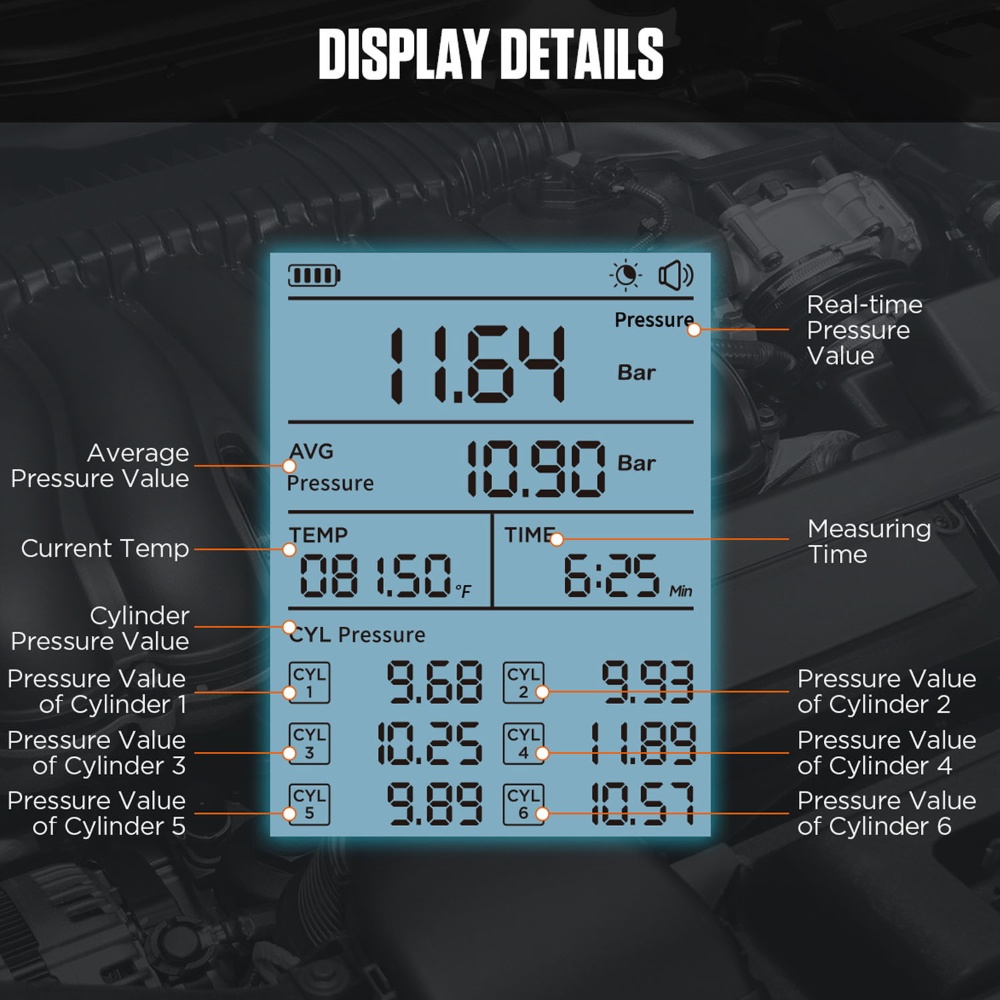

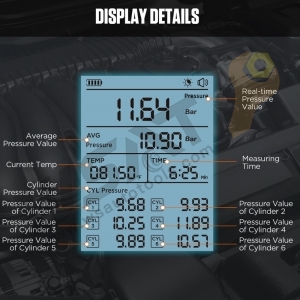

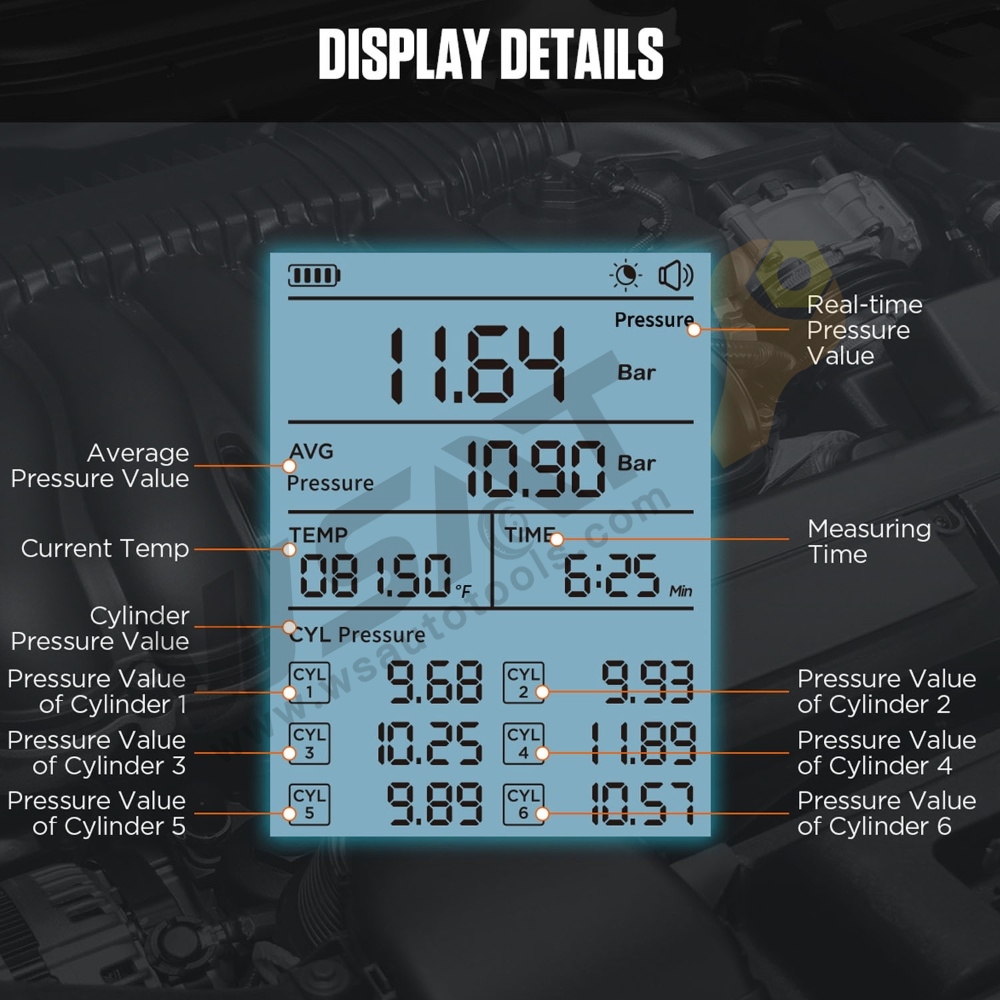

Automotive Digital Cylinder Pressure Gauge is a smart cylinder compression pressure gauge, with a 2.8-inch HD screen, which helps you master all the information of your cylinders. Such as real-time pressure value, average pressure value, and cylinder current temperature. And PT610 can store 6 cylinders’ pressure data at maximum for your comparison and detection.
Features
| Operating Voltage | 6V(4 AAA batteries) |
Pressure Units | bar,kg/cm2,Psi |

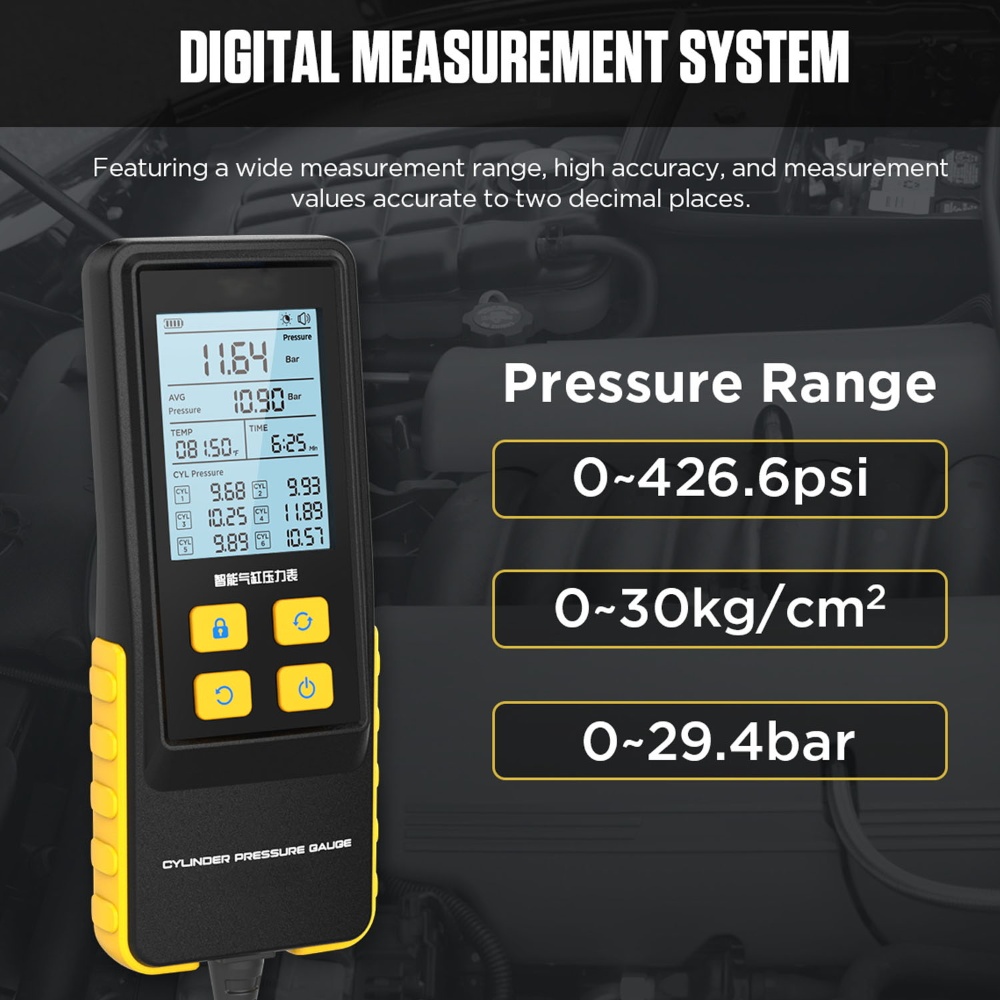

| Pressure Range | 0-30bar,0-435.11psi,0-30.6kg/cm2 |
| Resolution | 0.01bar, 0.01kg/cm2, 0.01Psi |
| Overload Pressure | 40bar |
| Temperature Range | -55℃-125℃ |

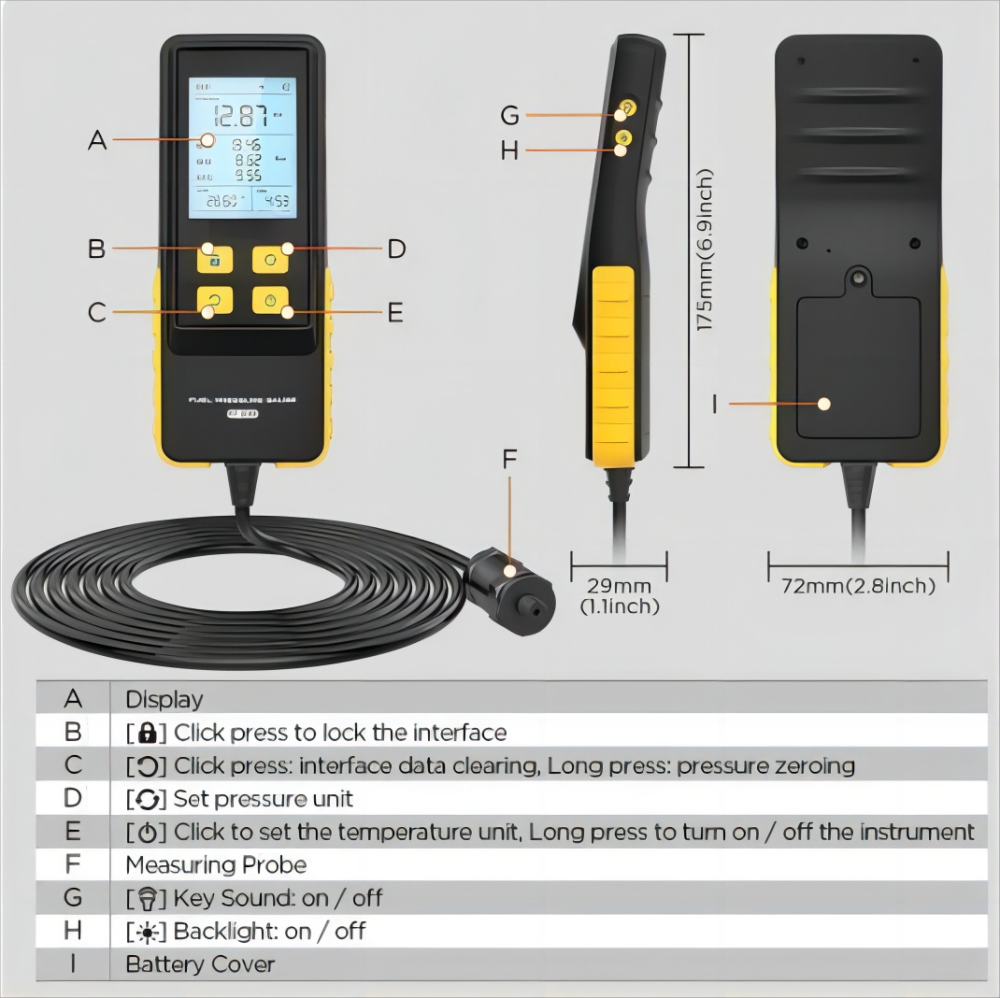

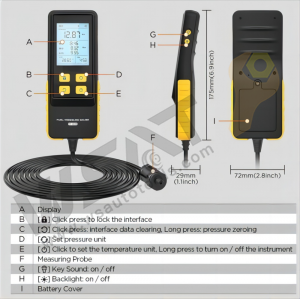

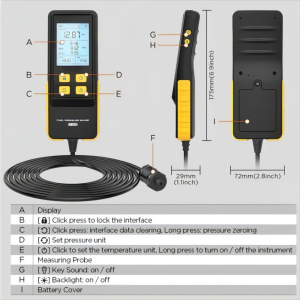

| Main Unit Dimensions | 29x72x175mm |
| Packaging Dimensions | 260x102x203mm |
Specification
