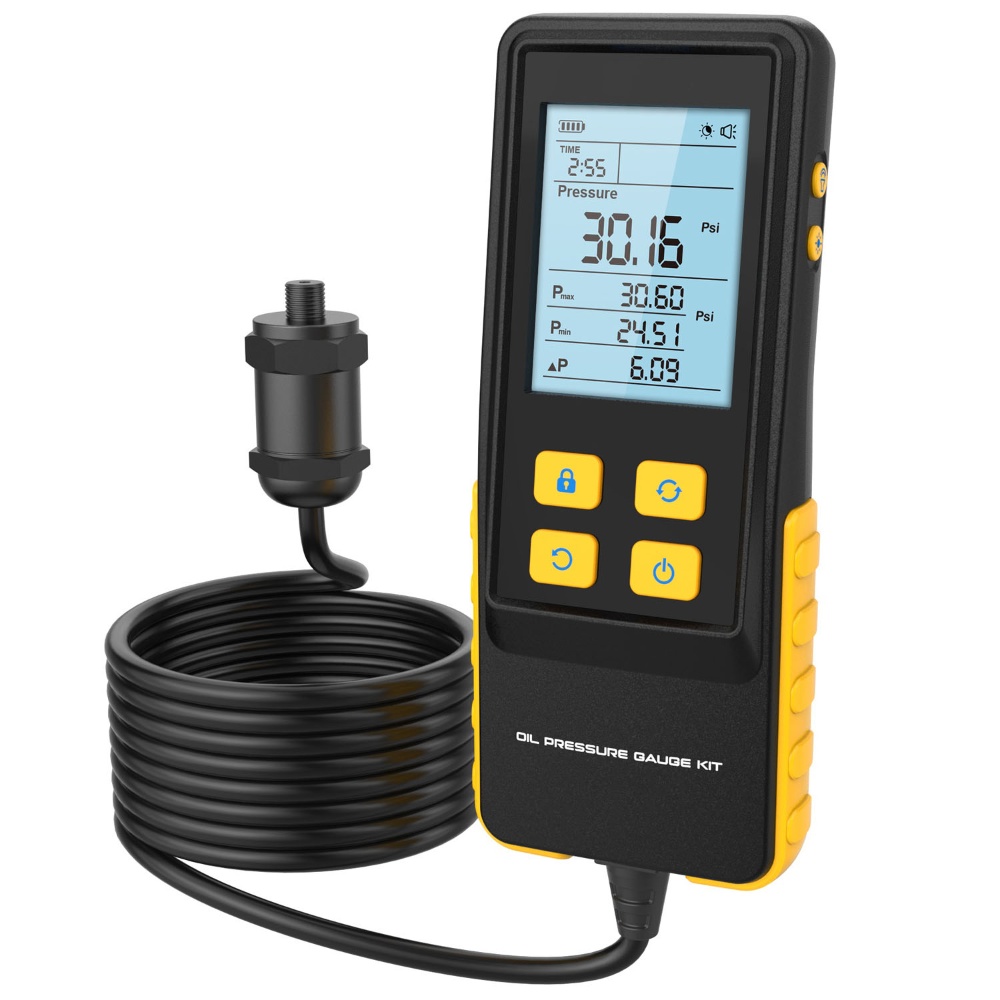

Automotive Digital Engine Oil Pressure Gauge

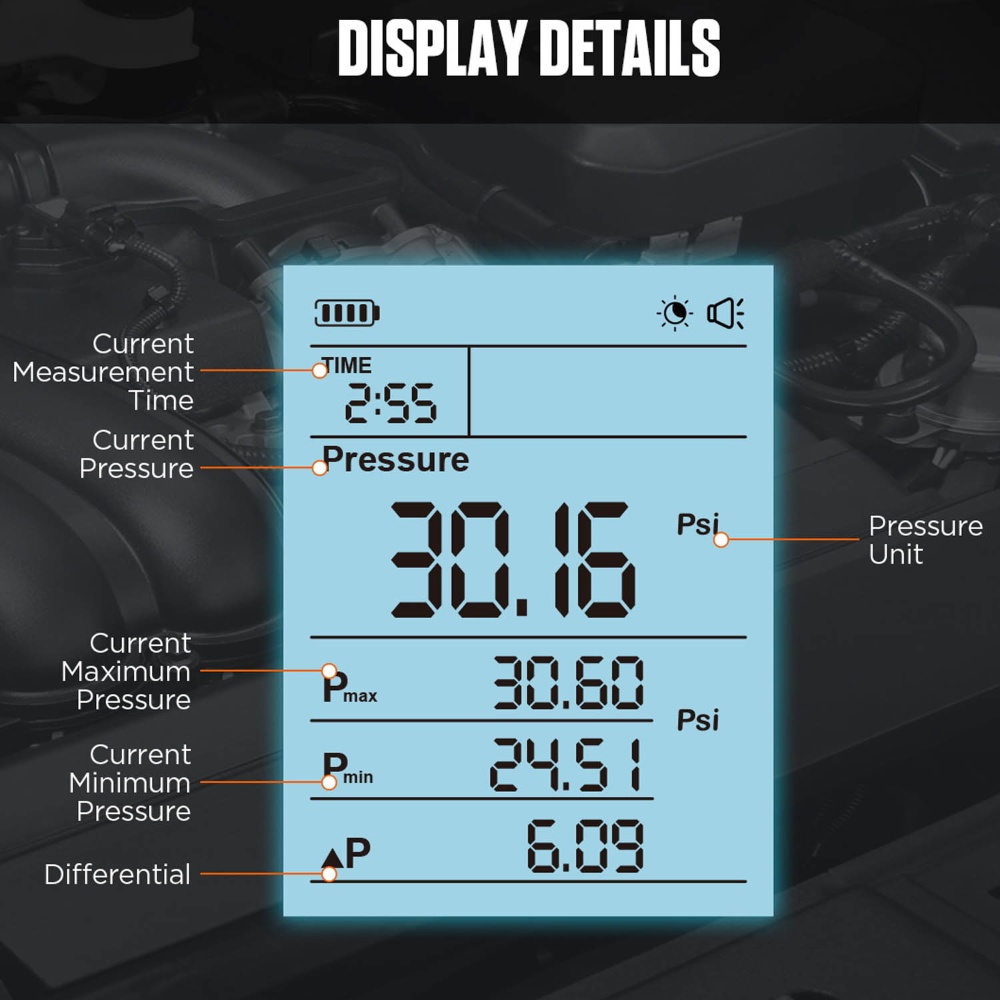

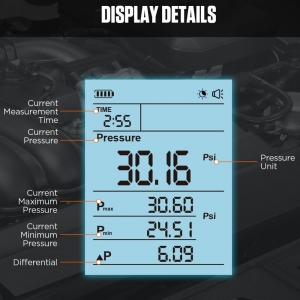

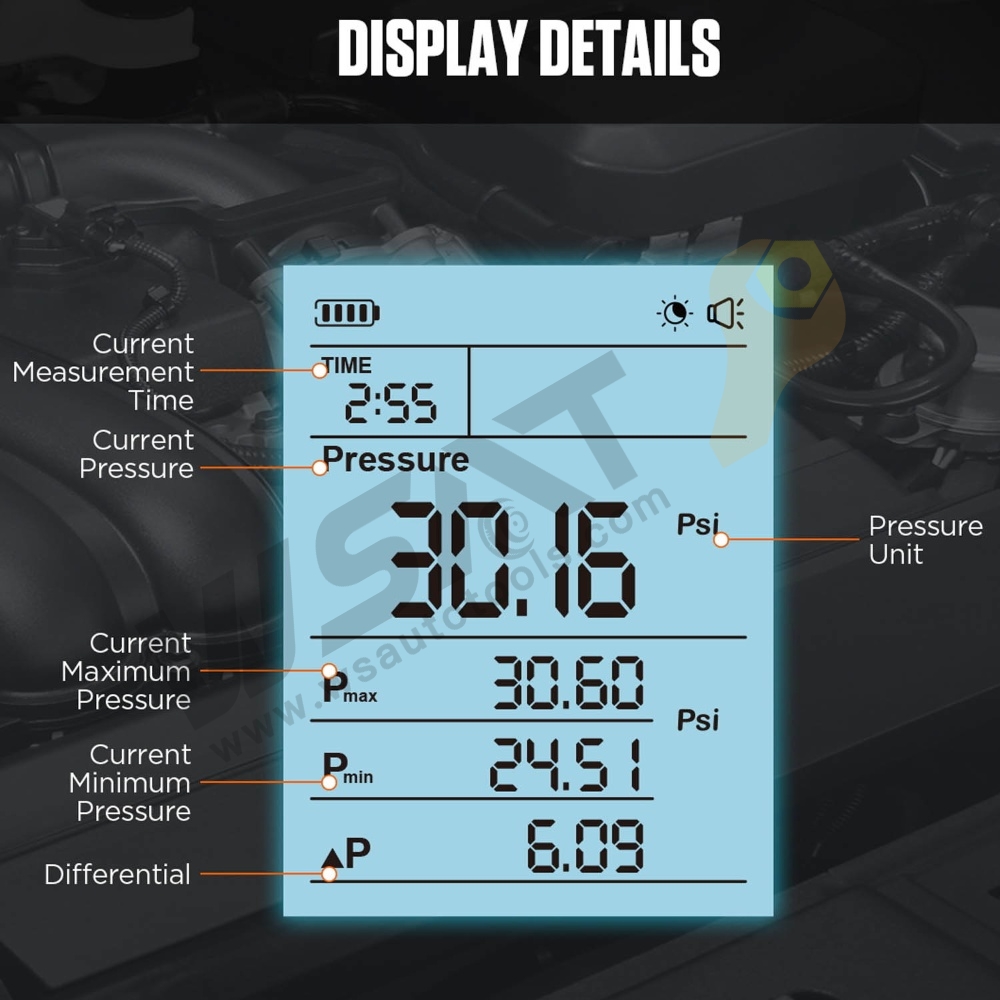

- High measurement accuracy: it can clearly and accurately display the data of real-time pressure, average pressure, and engine oil temperature.
High durability: with the pressure and temperature resistance characteristics of riveted copper material and reinforced rubber hose.
- Data Saving: Data saving and interface lockout features save up to 6 sets of test data.The pressure tester equips a quick-release valve button for quick pressure release.

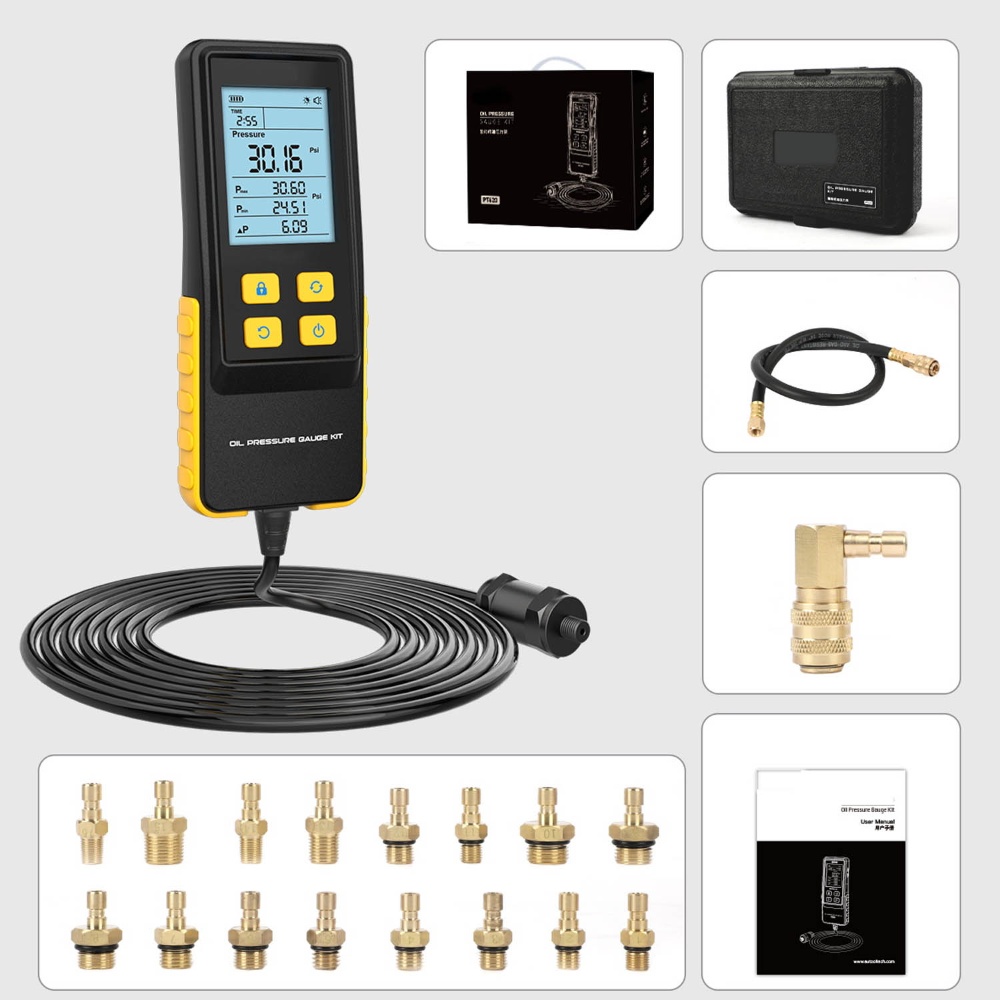

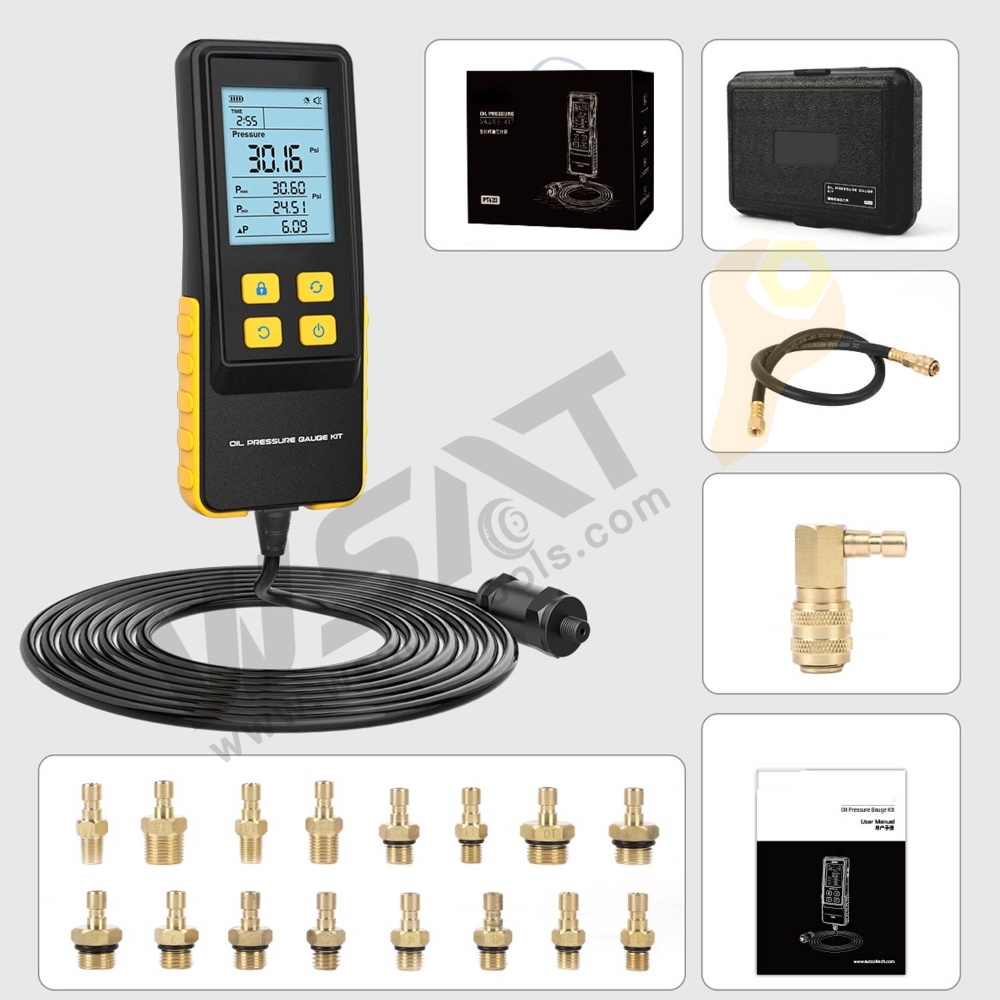

- Selected riveted copper material: Equips a variety of fittings made of riveted copper and a long hose made of reinforced rubber.
- Easy Instant Read: Available in PSI, Bar, and KG/CM², controlled with a single button.
Quantity
ltem No.
Description
Automotive Digital Engine Oil Pressure Gauge is one of the latest automotive intelligent pressure detection series products launched by Accidental Technology, which is mainly used to detect the oil pressure of the engine, using a digital measurement system, and the detection sensitivity is extremely high. The ability to display the oil pressure in real-time and intuitively makes oil pressure detection easy and smooth.
Features
| Operating Voltage | 6V(4 AAA batteries) |
Pressure Units | bar,kg/cm2,Psi |
| Accuracy | 0.5℅FS |

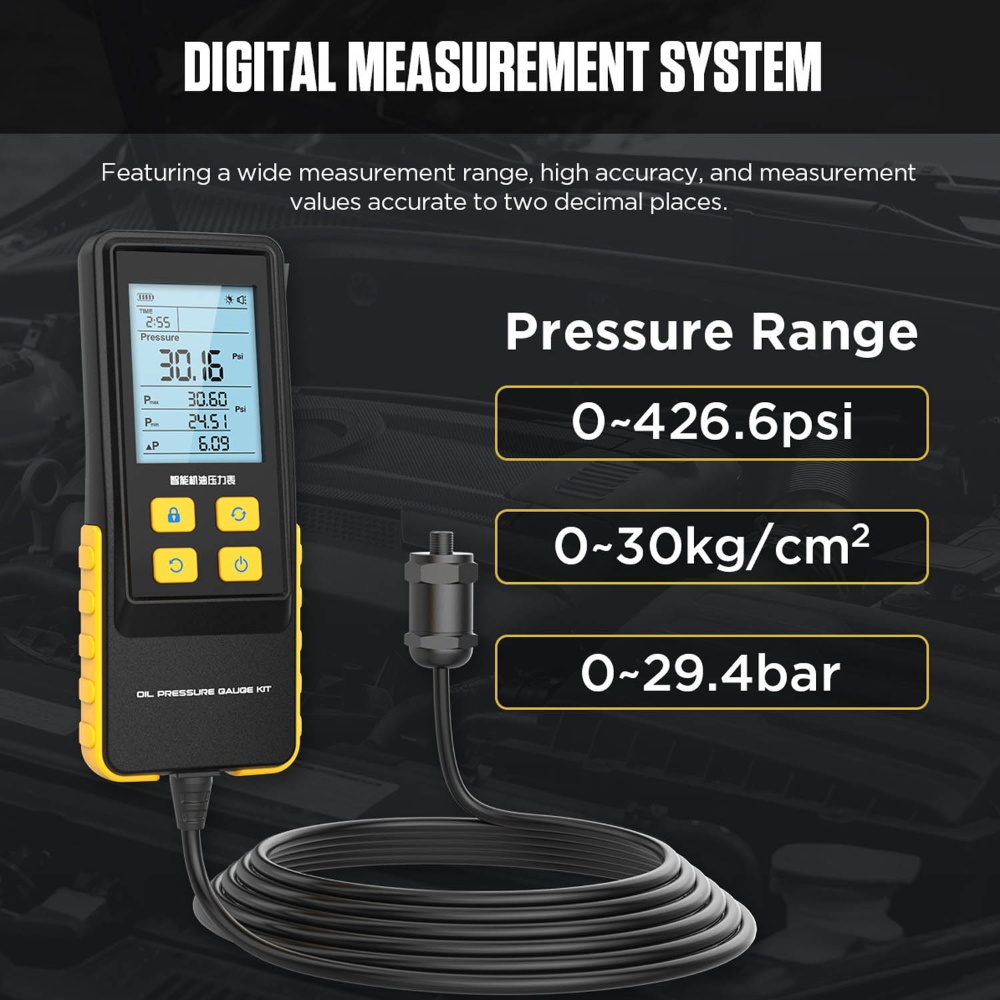

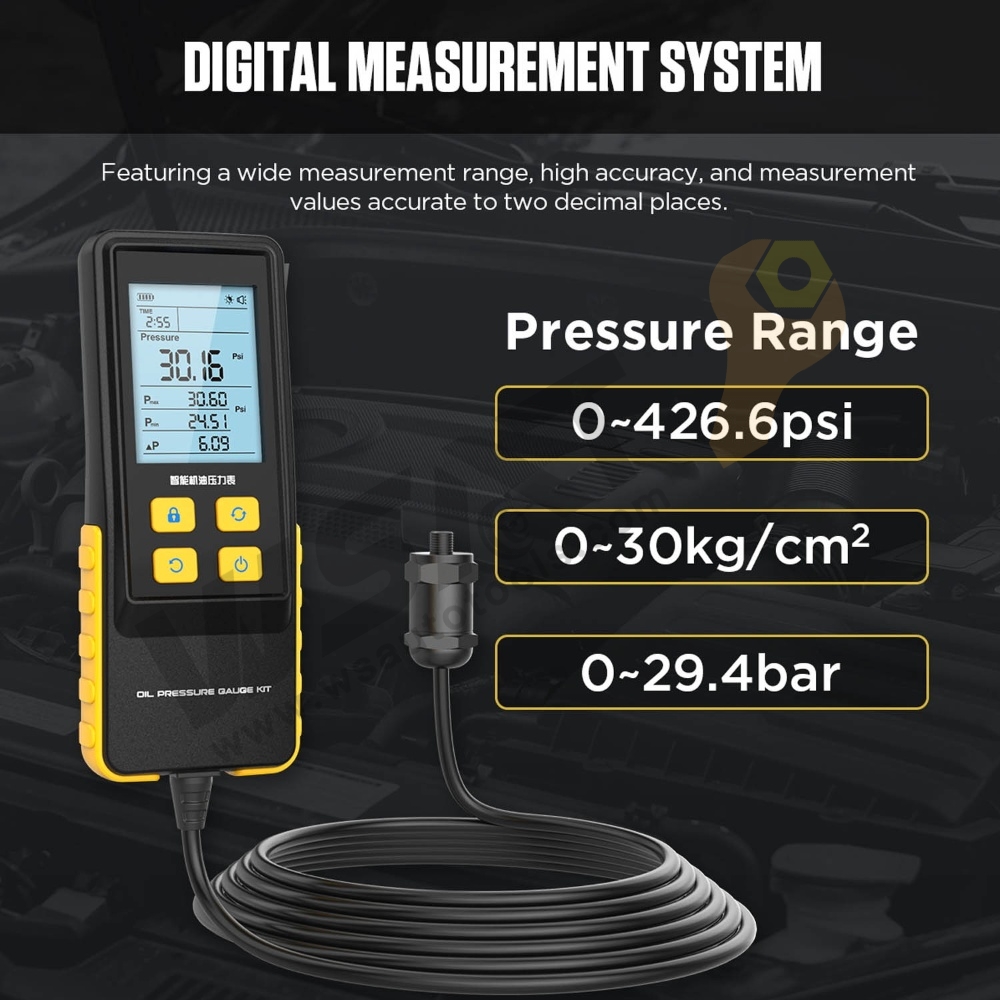

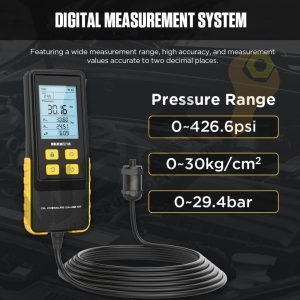

| Pressure Range | 0-30bar,0-435.11psi,0-30.6kg/cm2 |
| Resolution | 0.01bar, 0.01kg/cm2, 0.01Psi |
| Overload Pressure | 40bar |

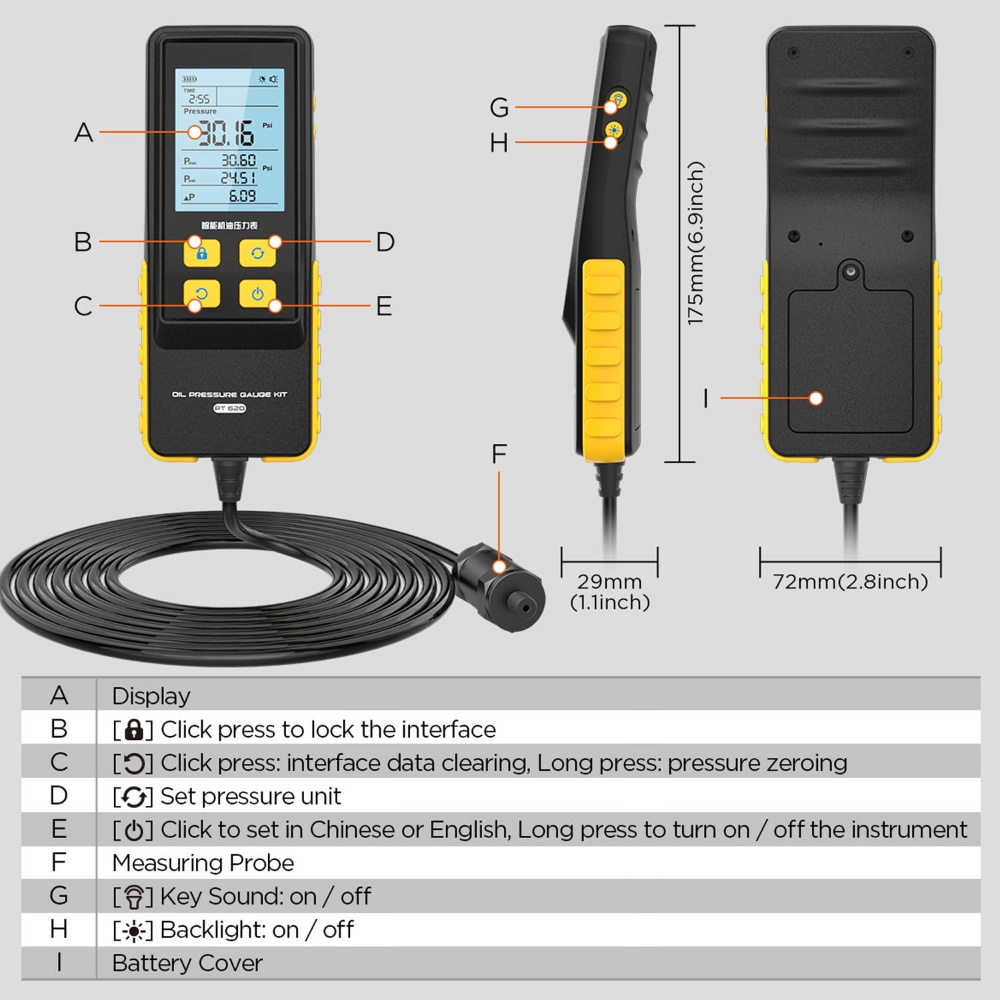

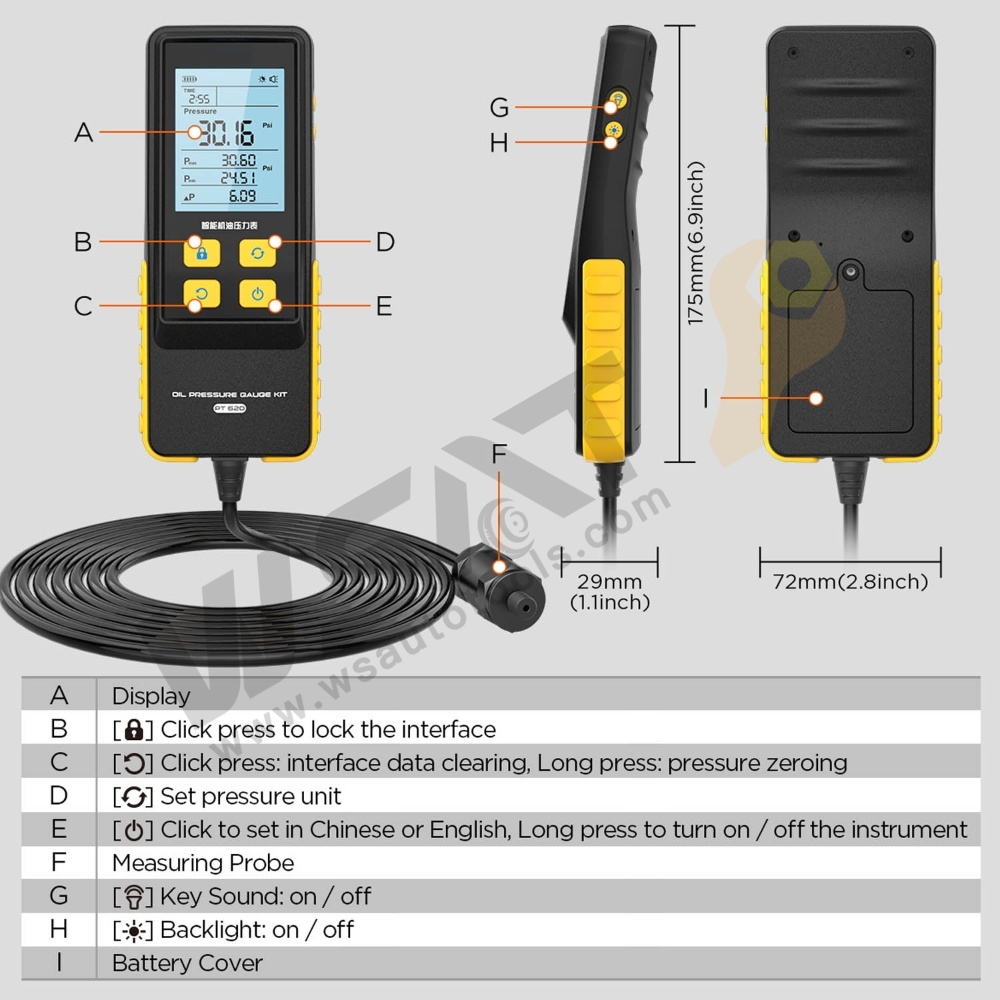

| Main Unit Dimensions | 29x72x175mm |
| Packaging Dimensions | 260x102x203mm |
Specification
