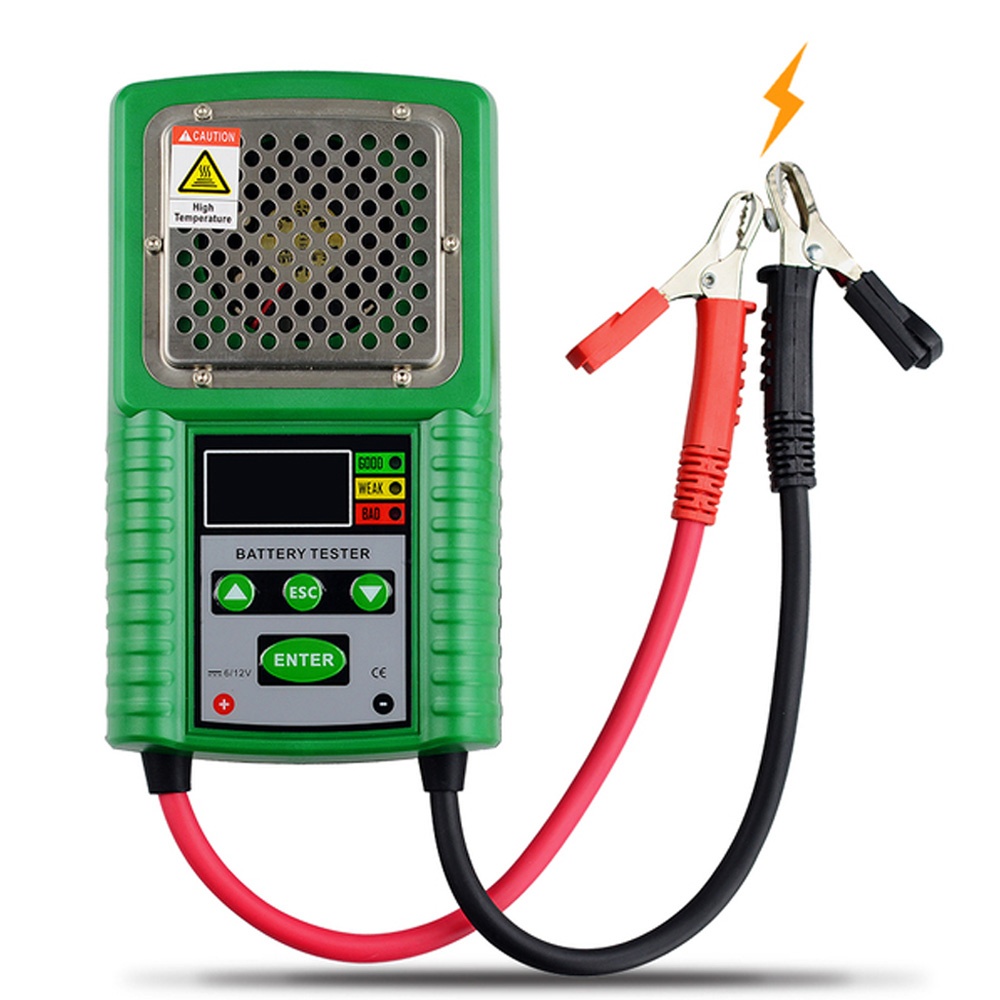

6V/12V Automotive Battery Tester for Lead Acid and Li-ion Battery
80A discharge current load test designs for 6V/12V lead acid and li-ion battery from 40Ah to 200Ah .
Automotive electrical system test includes engine cranking test, maximum load test, charging system test.
Built-in 10 seconds timer in load test to avoid defective
Temperature control in load test
Reverse polarity protection
Color LED directly tells conclusion of battery SOH (good/weak/bad)
- Auto data hold
Quantity
ltem No.
Description
It is a 6V/12V Automotive Battery Tester designed for traction and start-up lead-acid battery which can satisfy the loading capacity of traction lead-acid battery and cranking ability test of start-up lead-acid battery also it provides internal resistance parameters while testing .The instrument is featured by excellent design convenient operation accurate reading and complete functions. Instrument adopts lattice LCD display test process and results acousto-optic hint. Its inner side adopts precise circuit and powerful digital processing unit using four-wire Kelvin test connection method to complet a series of complicated data collection and calculation and obtain the test data of each item. In addition the inner of instrument has strengthened the input protection to prevent polarity reversed connection and access voltage too high poor contact of test clip head over temperature prompt and other protection measures in order to make the operation more security and convenient.The shell of instrument is made of solid ABS engineering materials at the same time its top and bottom add steel plate with opening for simulating heating part of load and equipped with fans to strengthen cooling in order to make the testing process more stable and reliable.
Features

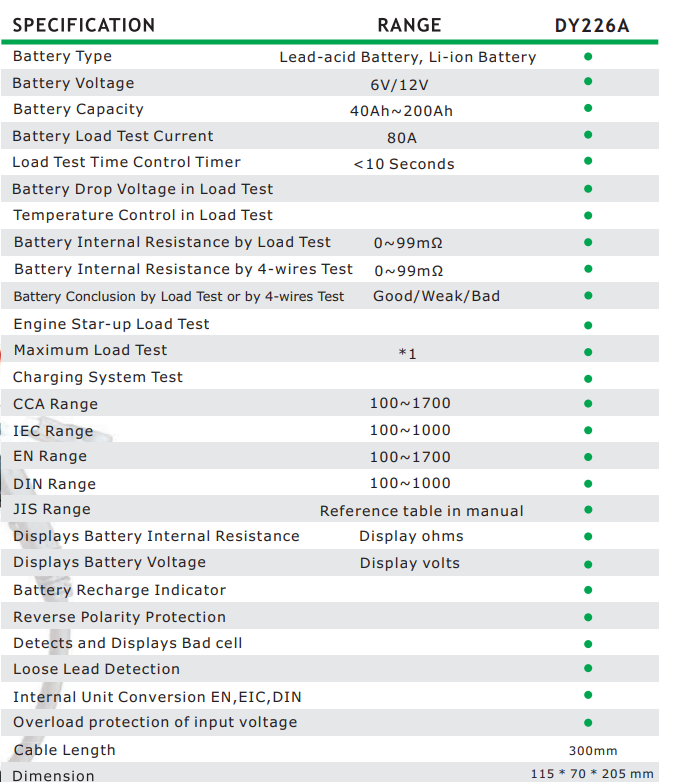

Specification
