13473-30A/13473-45A/13473-70A/13473-80A/13473-100A/13473-150A

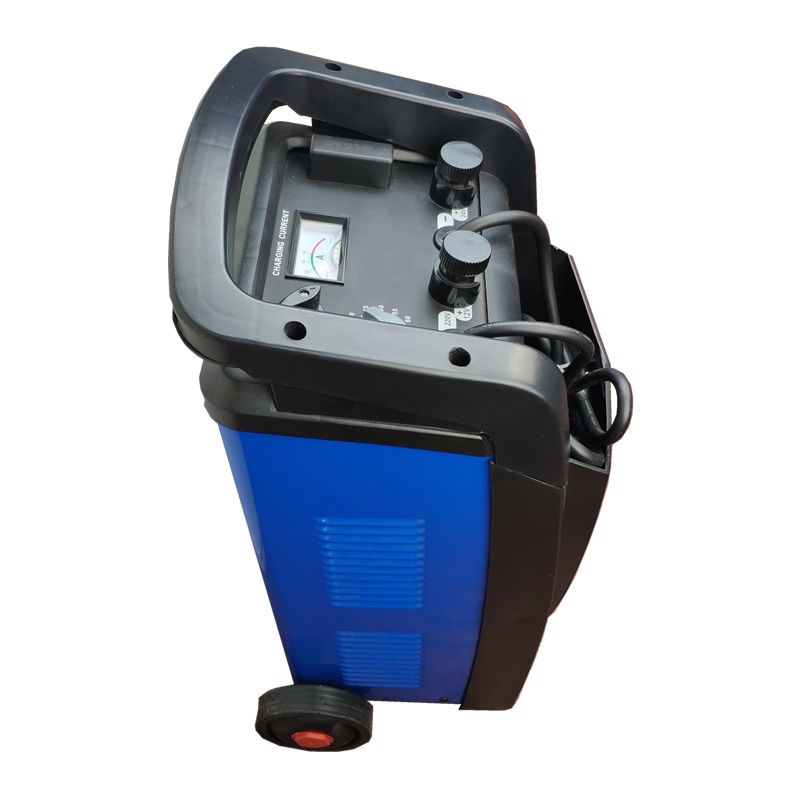

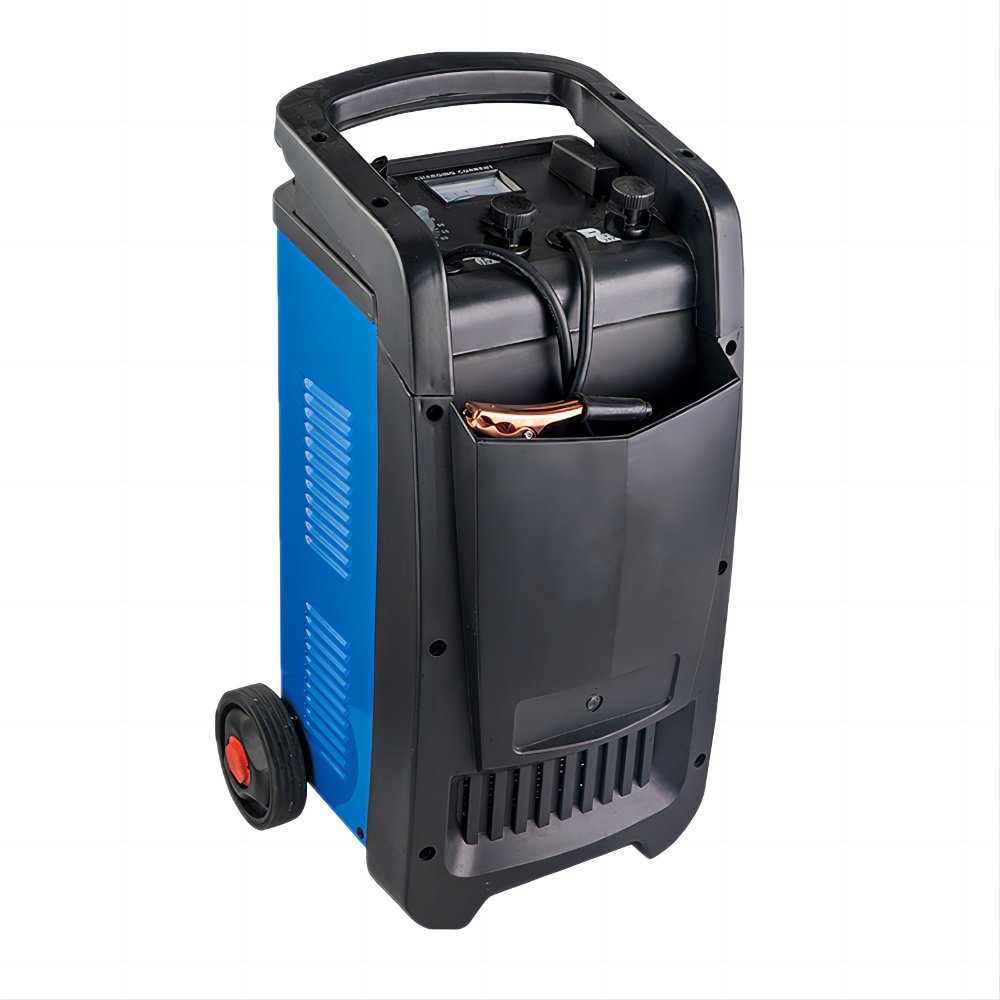

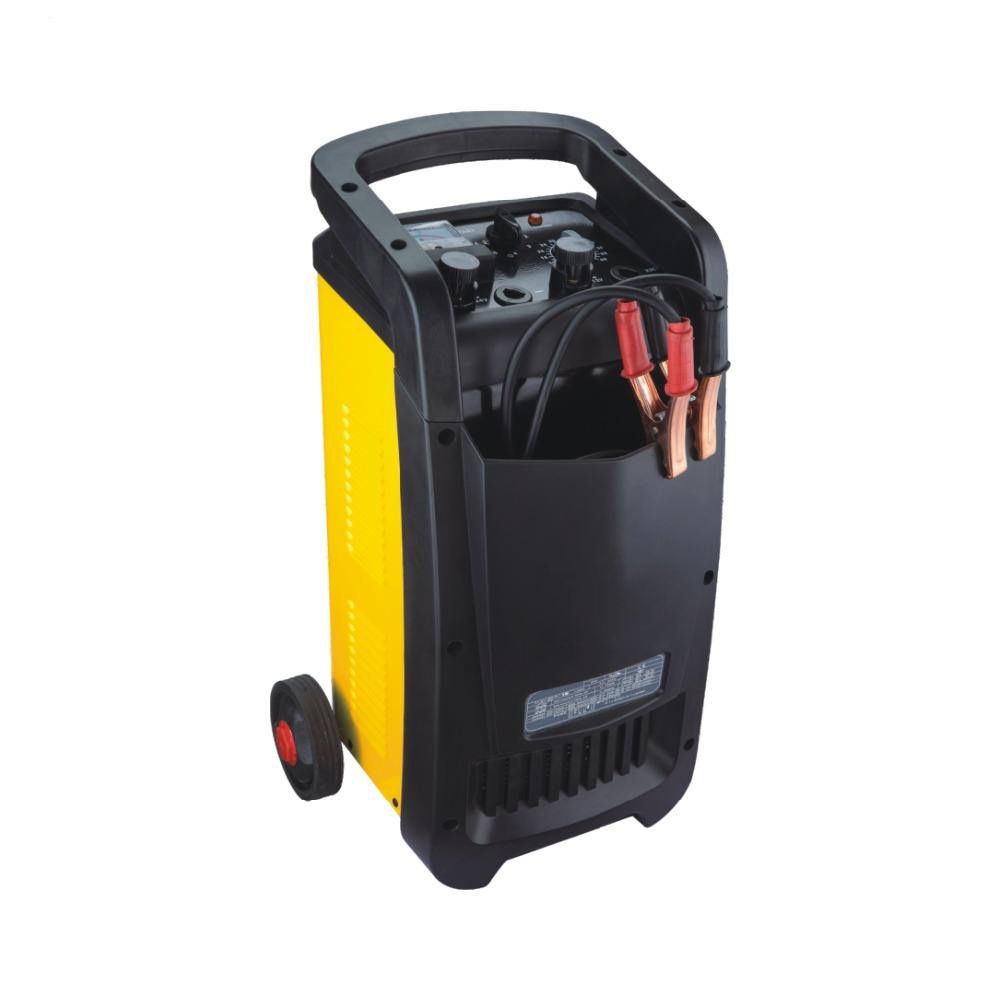

12V/24V Movable Battery Charger
Single-phase,portable battery charger and starter ,on wheels.
For charging lead-acid batteries with 12/24V voltage and starting all kinds of cars,vans,light trucks,tractors and trucks.

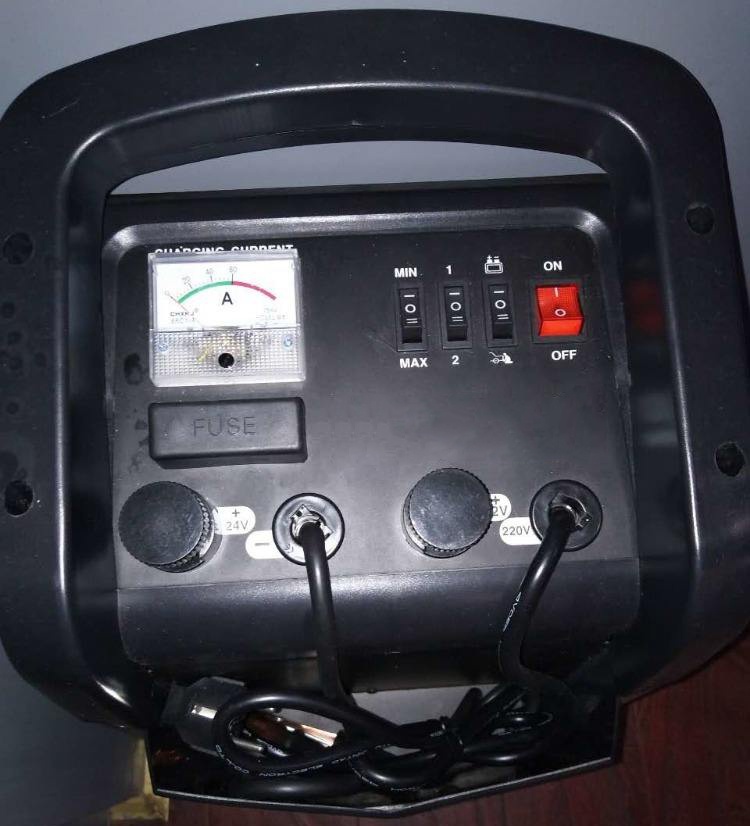

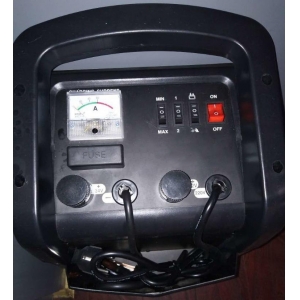

Equipped with selector for normal or quick charging(boost),quick start,timer for quick charger and ammeter.
Quantity
ltem No.
Description
12V/24V Movable Battery Charger use great power silicon controlled rectifier for pulse recharging.It uses advanced circuit design,high efficiency,long life etc.Used for motorcycle,car vessel,factory and various of storage battery recharging,can start the motor and engine.
Features
Item | 13473-30A | 13473-45A | 13473-70A | 13473-80A | 13473-100A | 13473-150A |
Power voltage (V) | 220V | 220V | 220V | 220V | 220V | 220V |
Frequency(HZ) | 50 | 50 | 50 | 50 | 50 | 50 |
Rated capacity(W) | 460 | 550 | 770 | 950 | 1000 | 1100 |
Charging voltage(V) | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 |
Rated current(A) | 30 | 45 | 70 | 80 | 100 | 150 |
Starting current(A) | 130/200 | 180/300 | 220/400 | 300/500 | 350/600 | 400/700 |
Suitable battery (Ah) | 30-300 | 30-450 | 30-700 | 30-800 | 30-1000 | 40-1500 |
Protection class | IP21S | IP21S | IP21S | IP21S | IP21S | IP21S |
Insulation class | H | H | H | H | H | H |
Dimension (mm) | 600*310*270 | 600*310*270 | 600*310*270 | 670*360*300 | 670*360*300 | 670*360*300 |
Weight (kg) | 17 | 19 | 22 | 24.5 | 27 | 28 |
Specification
