13471-10A/13471-15A/13471-20A/13471-25A/13471-30A/13471-40A/13471-50A

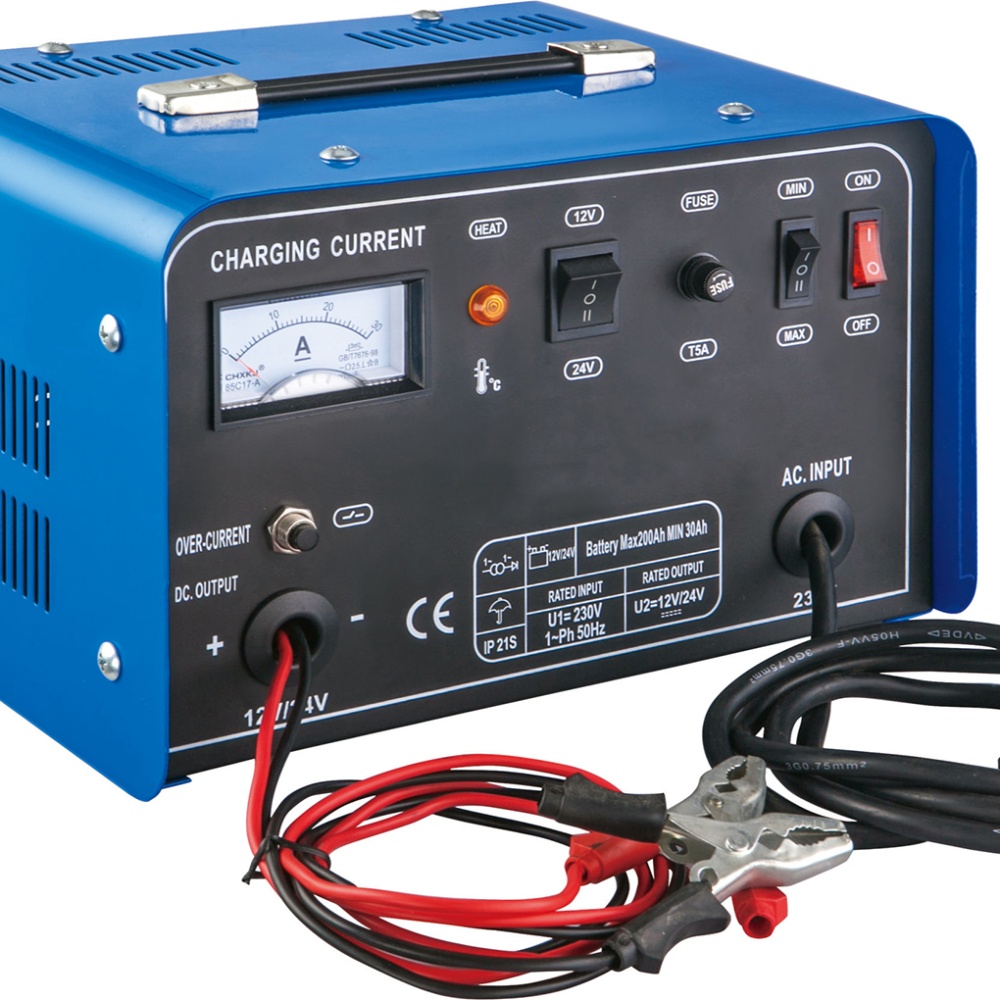

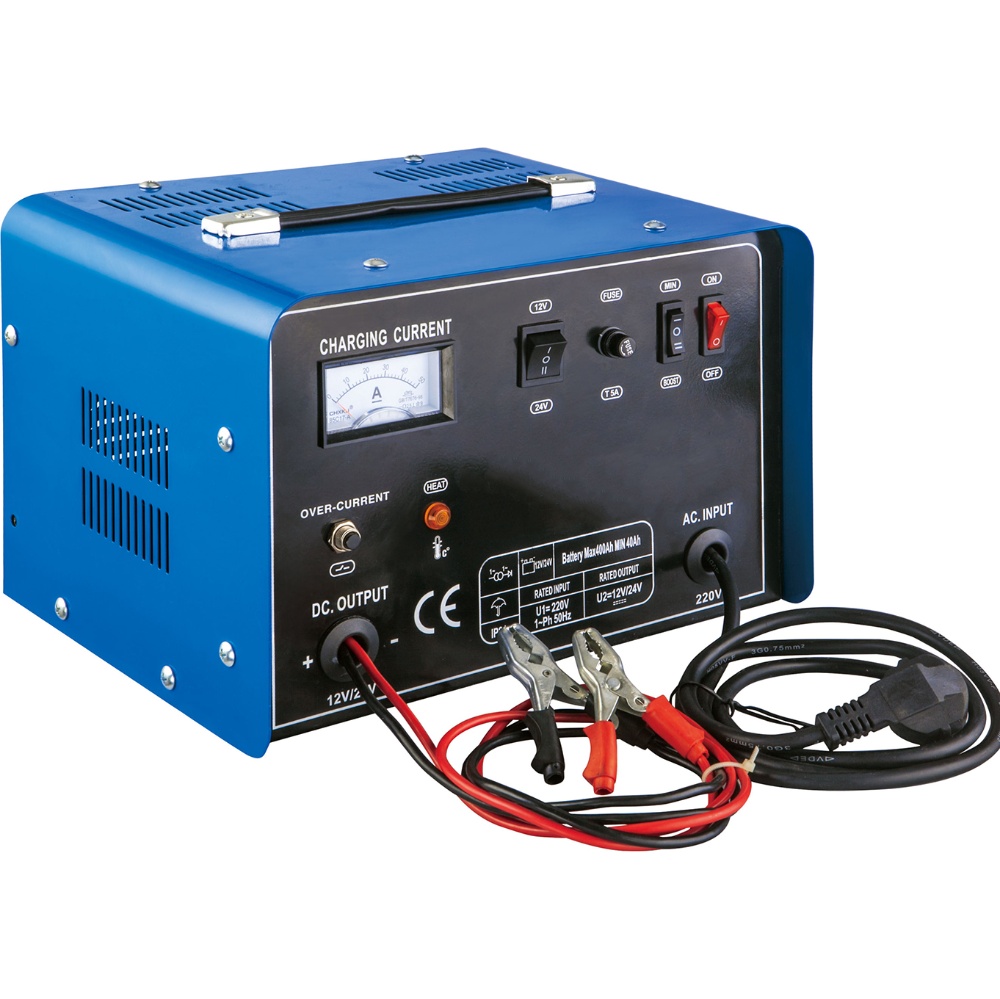

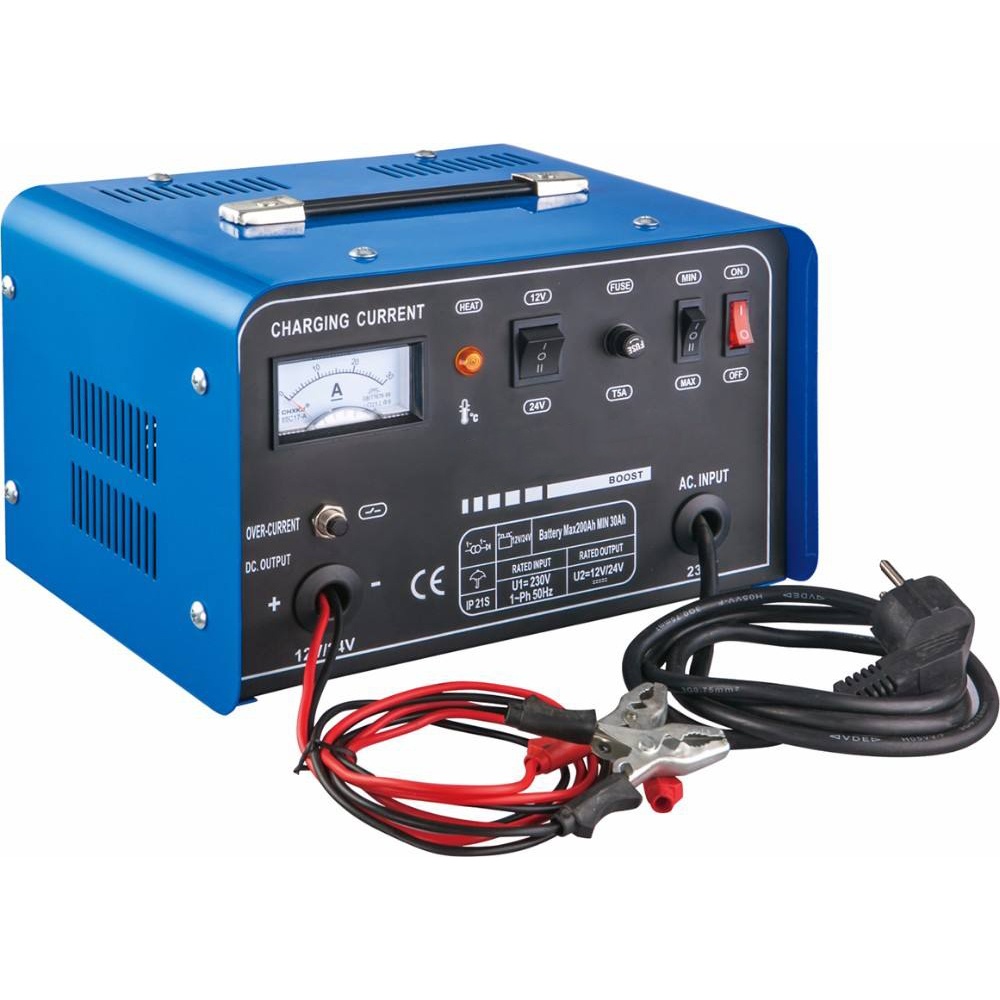

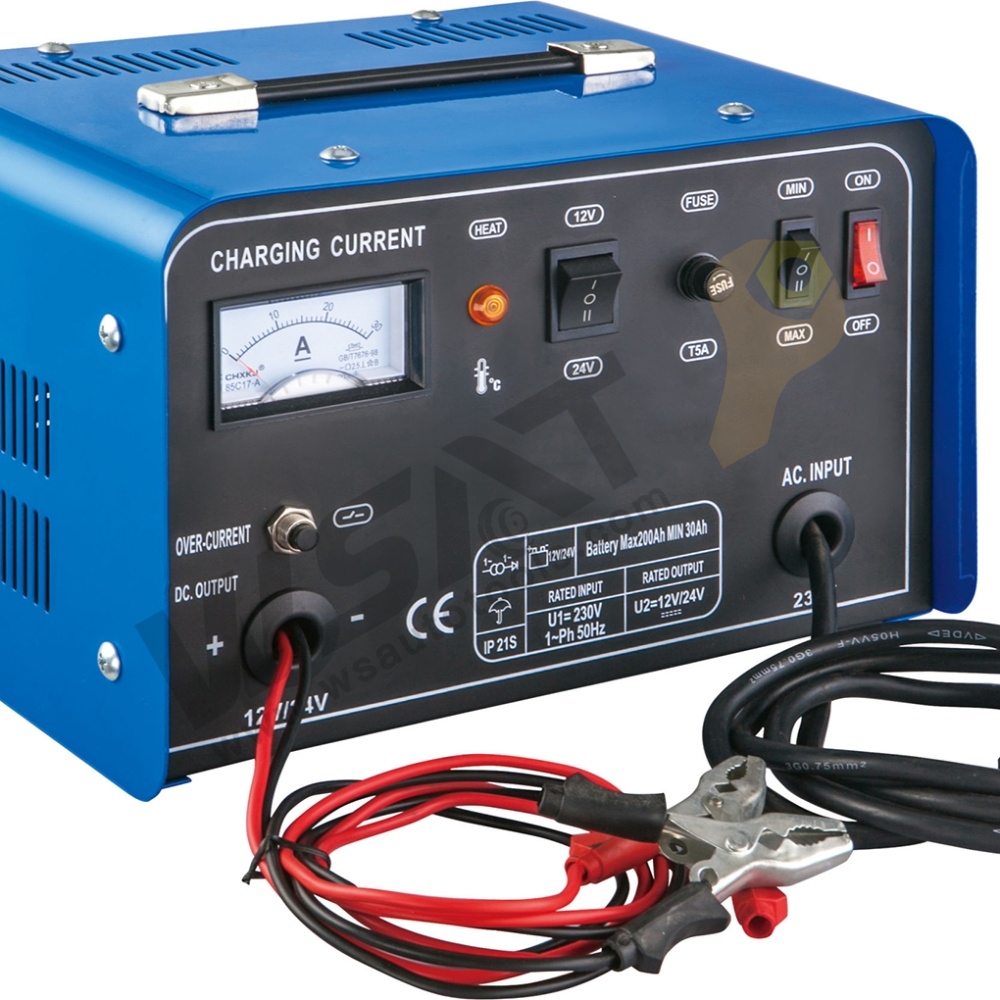

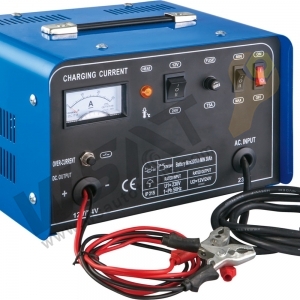

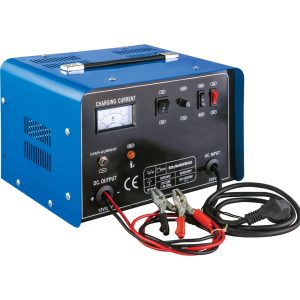

12V/24V Battery Charger
Single-phase,portable battery chargers for charging lead-acid batteries with 12/24v voltage.
Equipped with ammeter.
Protected against overload and polarity reversal.
Equipped with selector for normal or quick charging.
Quantity
ltem No.
Description
12V/24V Battery Charger is used to charge lead-acid battery in small cars and trucks,worked by transformer to lower the voltage.It has very simple and reliable circuit,lowers the machine faulty rate to min.Battery charger also has fast and slow charging switch,can fast charge battery and also protect from overcharging.When battery is discharging, the over current protector can protect machine from being damaged by big current.
Features
Item | 13471-10A | 13471-15A | 13471-20A | 13471-25A | 13471-30A | 13471-40A | 13471-50A |
Power voltage (V) | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
Frequency(HZ) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Rated capacity(V) | 160/290 | 170/300 | 220/320 | 240/360 | 260/480 | 360/720 | 480/960 |
Charging voltage(V) | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 | 12/24 |
Rated current (A) | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
Suitable battery (Ah) | 12-100 | 18-120 | 20-125 | 25-150 | 30-200 | 35-300 | 40-400 |
Protection class | IP21S | IP21S | IP21S | IP21S | IP21S | IP21S | IP21S |
Insulation class | H | H | H | H | H | H | H |
Dimension (mm) | 270*220*210 | 270*220*210 | 270*220*210 | 290*255*220 | 290*255*220 | 315*280*240 | 315*280*240 |
Weight (kg) | 4.3 | 4.8 | 5.3 | 5.6 | 7.1 | 8.3 | 10.4 |
Specification
