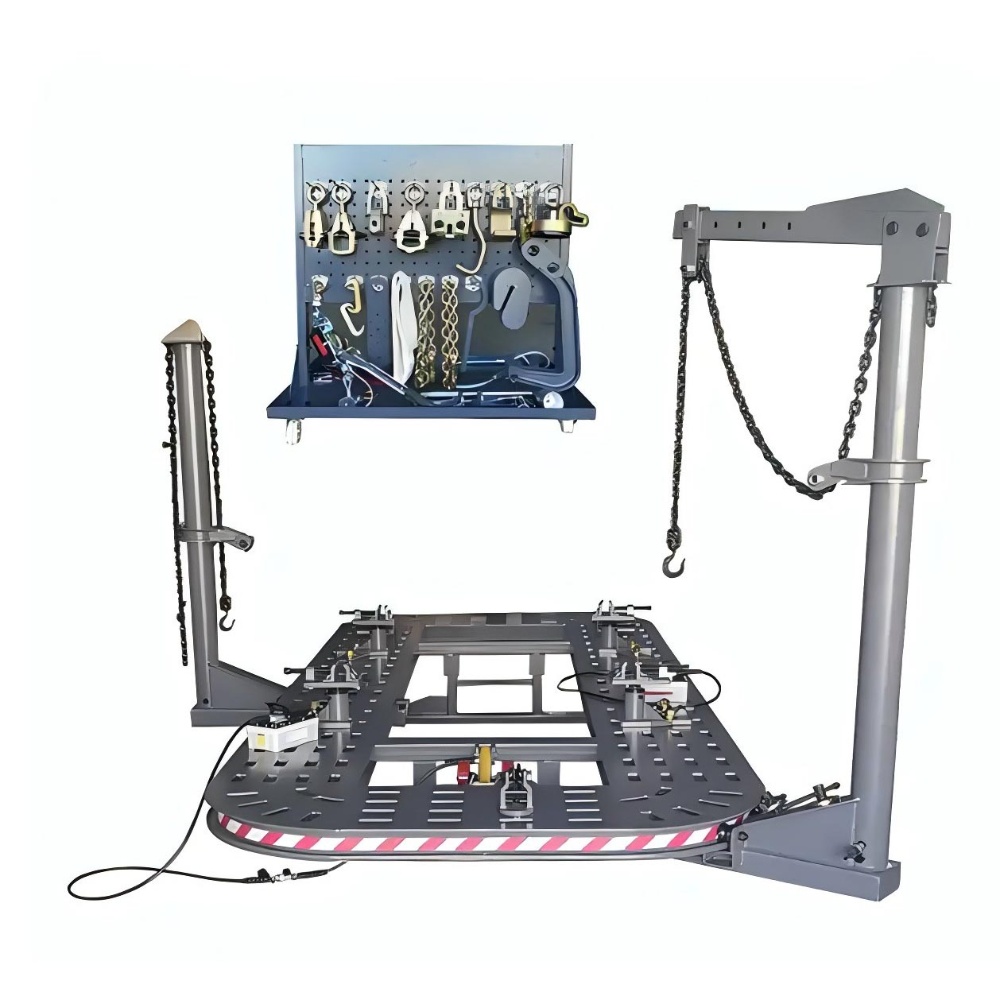

Auto Body Shaping Equipment

17001

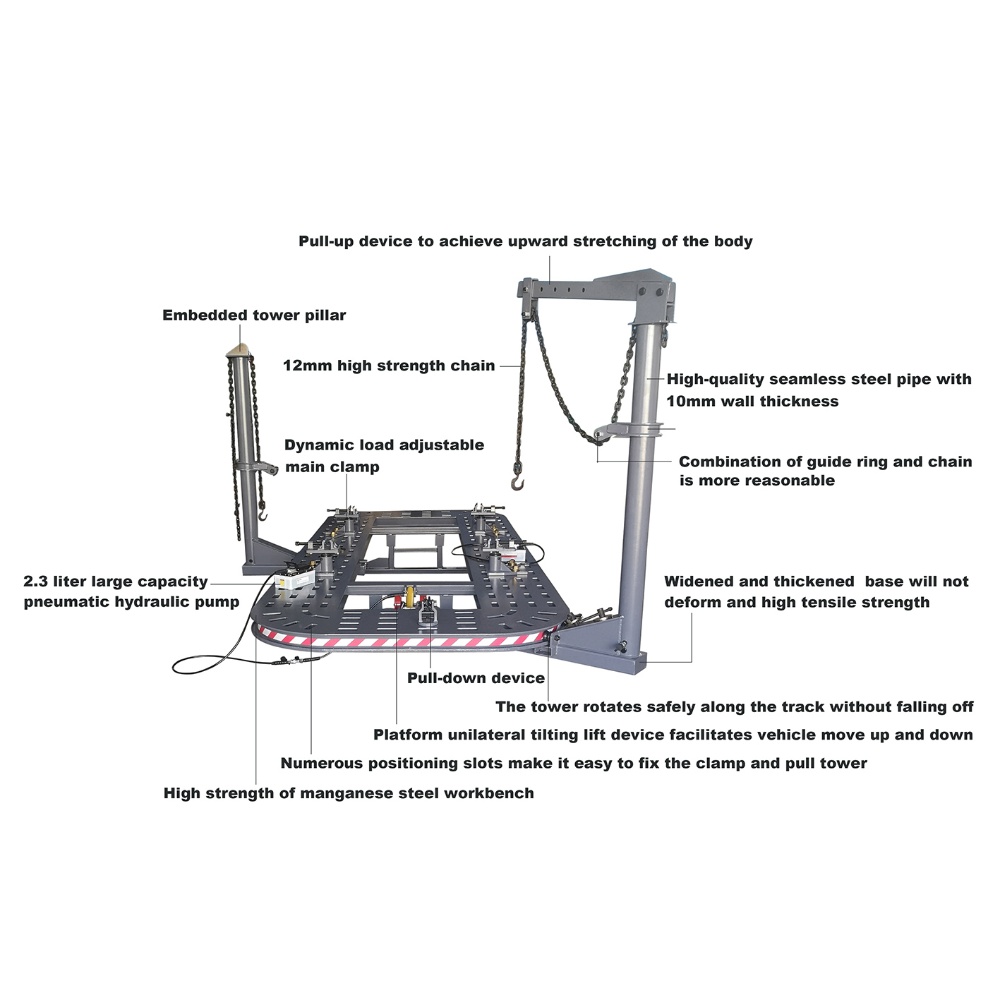

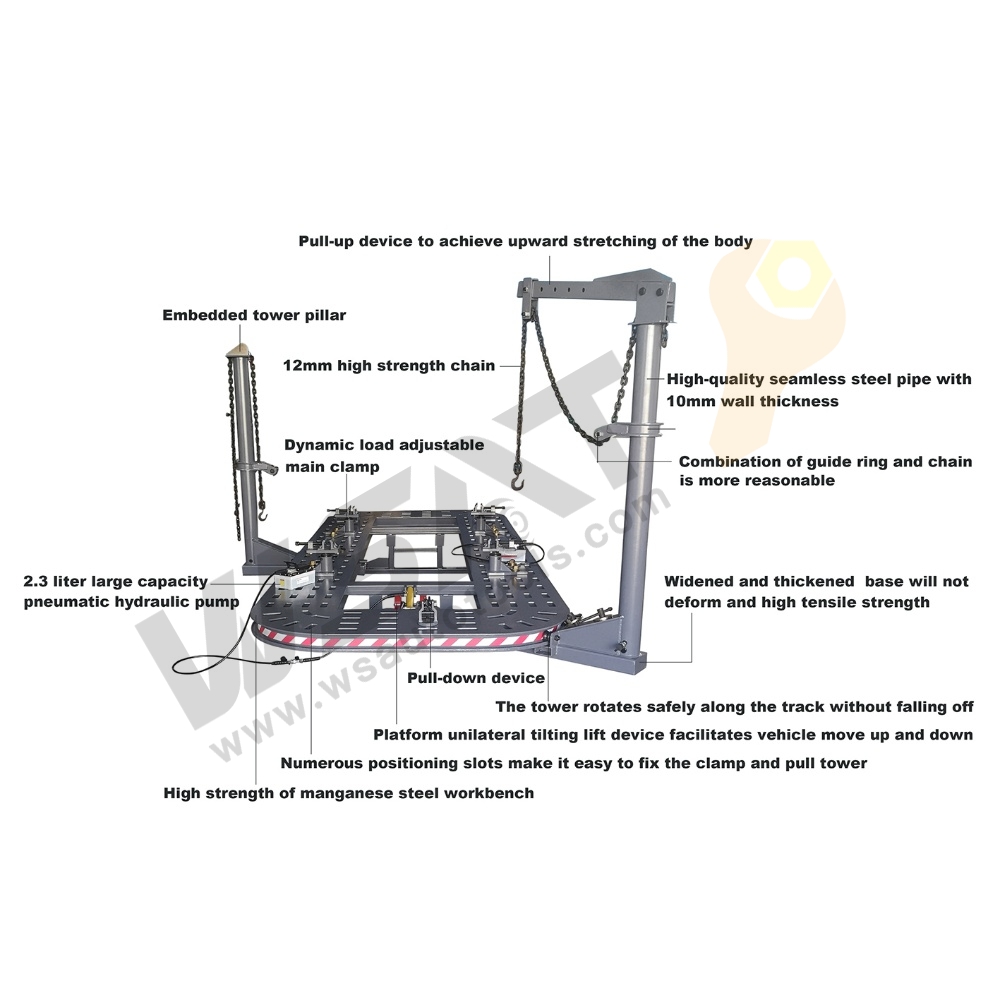

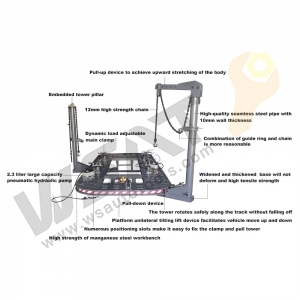

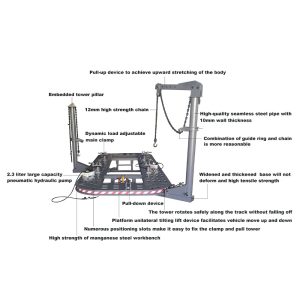

  • Hydraulic tilt lifting bench,with the flexible legs,easily loading and unloading any Collision cars.

  • High-precison working bench is made by two sheets of 10mm thickness  Manganese steel plate,it is enough strong for powerful pull.

  • The two post can be rotated 360 degree along the bench.

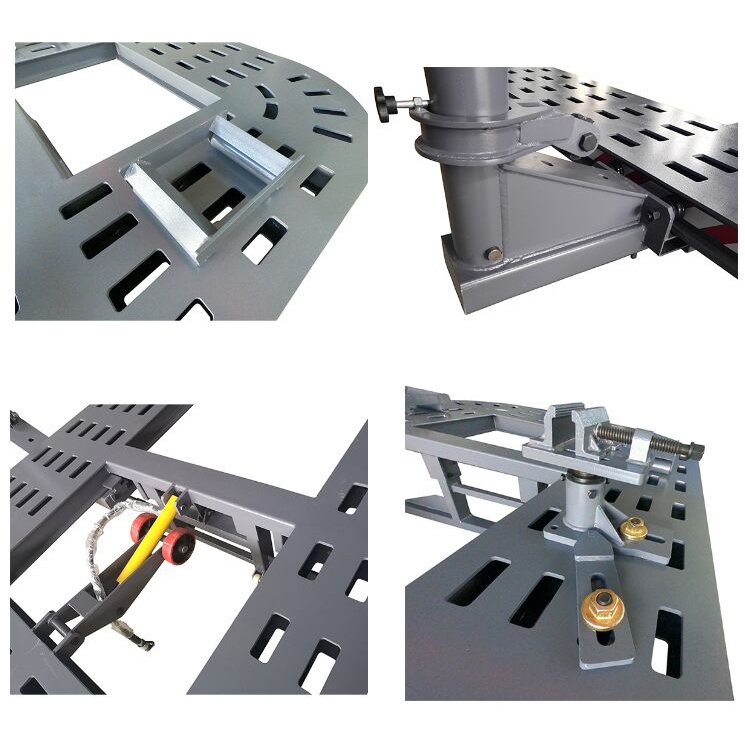

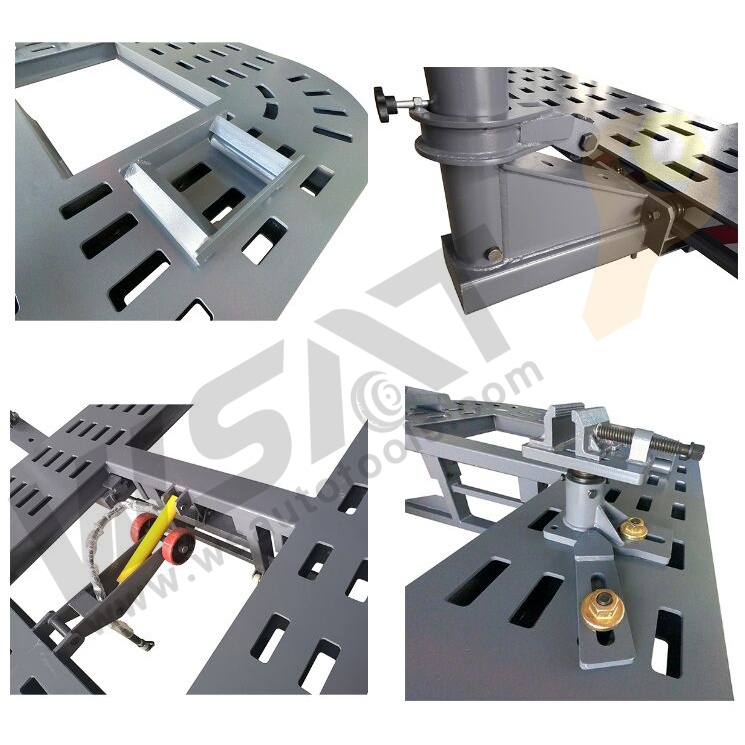

  • Four universal clamp device is more convenient for fix.

  • Streamline clamps can fasten almost all various damaged vehicles.

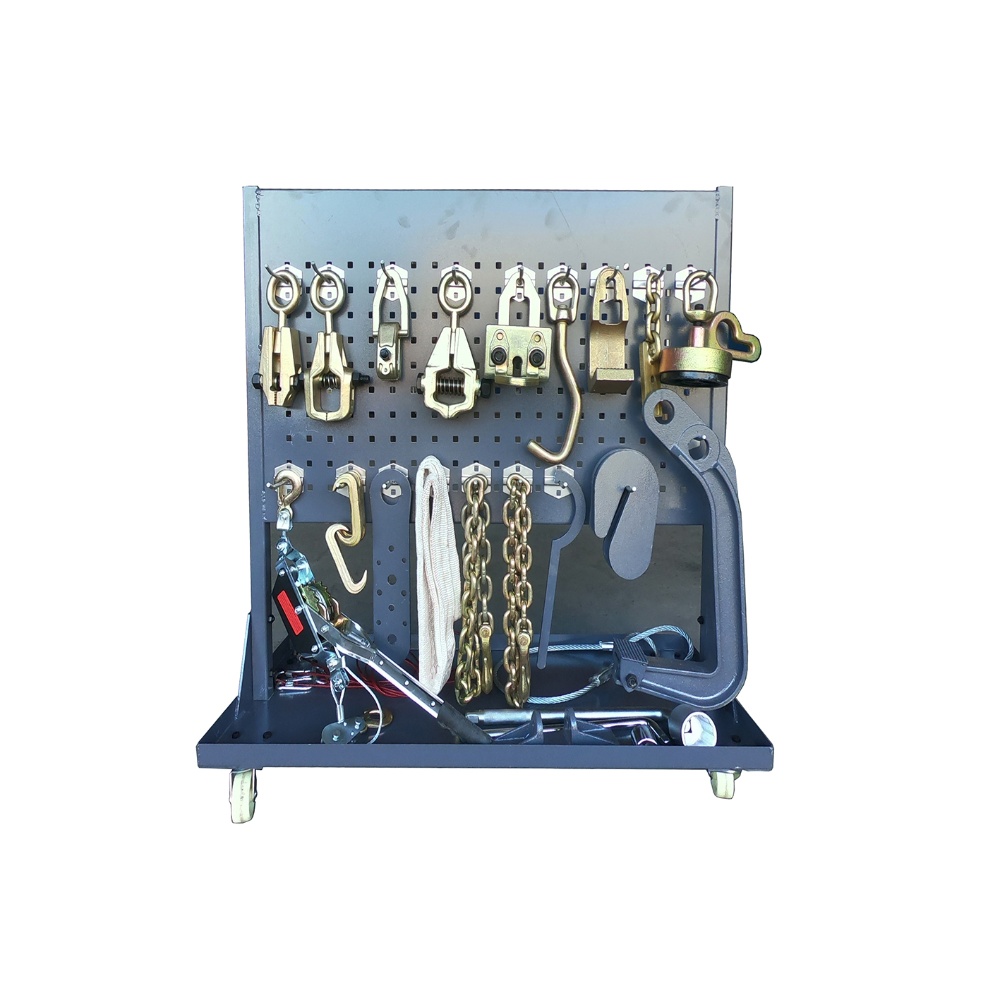

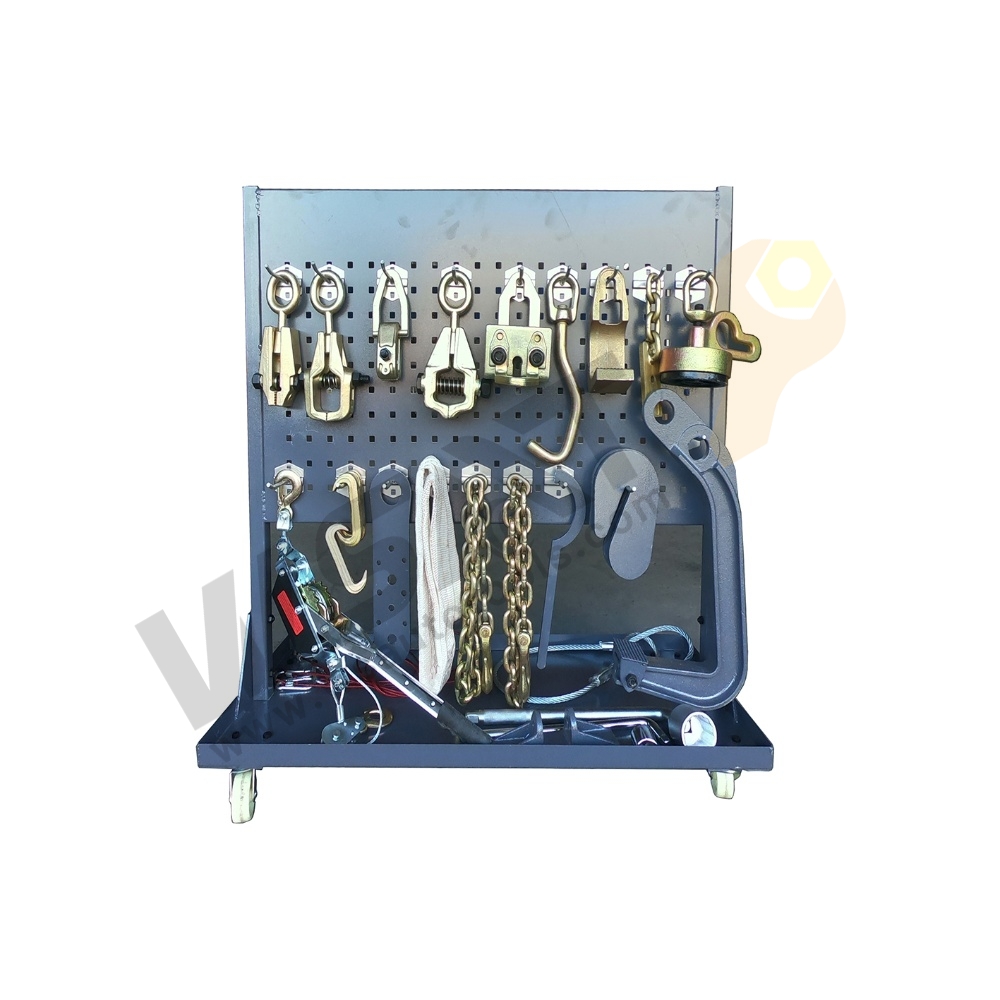

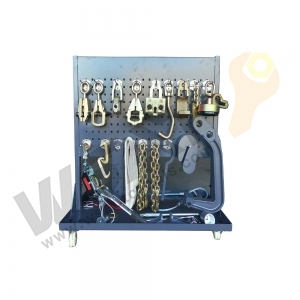

  • Universal sheet metal tools make the repair flexible and convenient, used for any straightening.

  • Unilateral lifting(Hydraulic)

Quantity

ltem No.

Description

Auto Body Shaping Equipment is a hydraulic tilt lifting bench with adjustable flexible legs for efficient loading and unloading of collision-damaged vehicles. The workbench, constructed with dual 10mm-thick manganese steel plates, ensures robust durability for heavy-duty pulling operations. Featuring 360-degree rotatable posts, four universal clamps, and streamlined gripping devices, it adapts to diverse vehicle damage types for rapid fixation.

Features

Max. Lifting Capacity: 3.5T

Bench Length: 5600mm

Bench Width: 2200mm

Bench Height: 550mm

Radius of Pulling: 360degree

Hydraulic Maximum Power: 70Mpa

Air Supply Required: 0.8Mpa

Total Weight: 2180kg

17001-4


Specification
