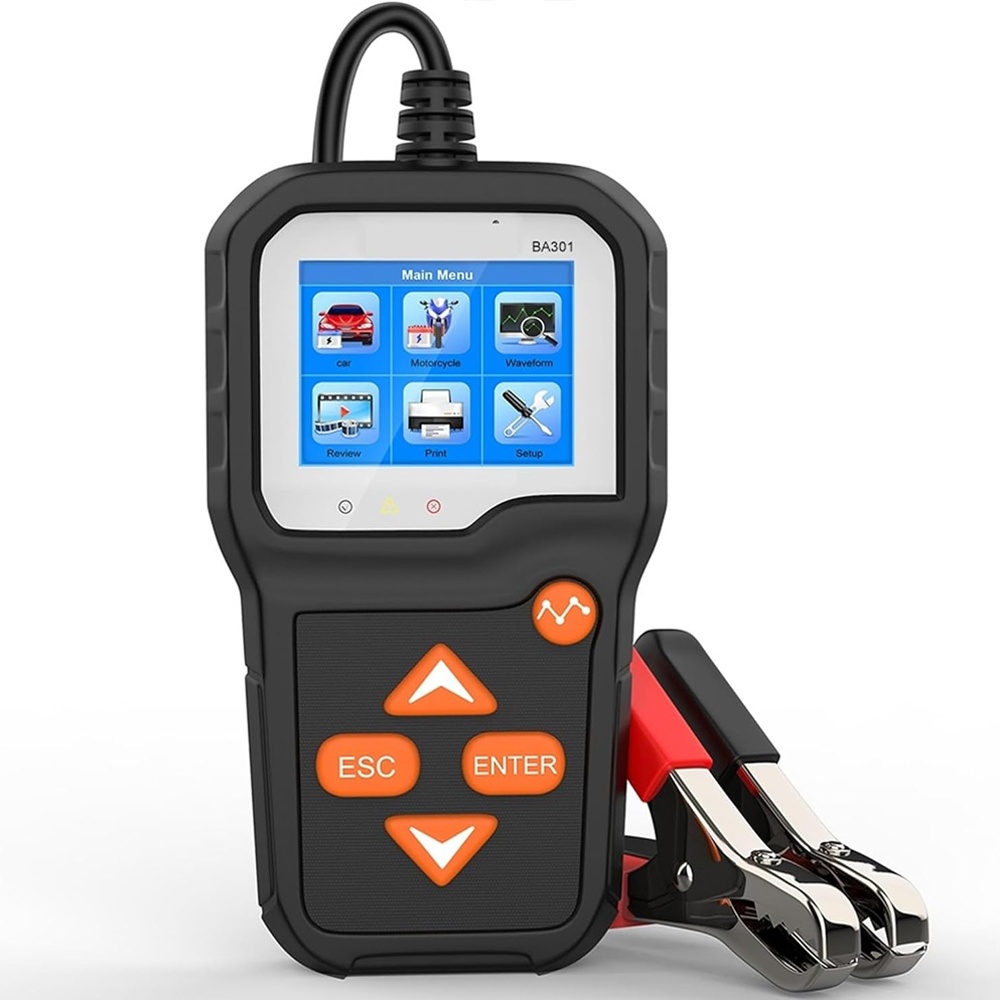

6V/12V Automotive Battery Tester for Lead Acid Battery

13318

6V/12V Automotive Battery Tester for Lead Acid Battery is capable of testing all 6V and 12V 100-2000CCA lead-acid batteries, including regular flooded, AGM flat plate, AGM spiral or GEL batteries. It is suitable for testing and diagnosing batteries in cars, boats, lawnmowers and more. It supports not only battery health testing, but also battery cranking and charging testing. The unique feature of this battery analyser is voltage waveform analysis, which tracks real-time voltage changes to detect battery issues and allows continuous voltage monitoring results to be uploaded to a PC for analysis of on-board systems.

Quantity

ltem No.

Description

This 6V/12V Automotive Battery Tester for Lead Acid Battery is capable of testing all 6V and 12V 100-2000CCA lead-acid batteries, including regular flooded, AGM flat plate, AGM spiral or GEL batteries. It is suitable for testing and diagnosing batteries in cars, boats, lawnmowers and more. It supports not only battery health testing, but also battery cranking and charging testing. The unique feature of this battery analyser is voltage waveform analysis, which tracks real-time voltage changes to detect battery issues and allows continuous voltage monitoring results to be uploaded to a PC for analysis of on-board systems.

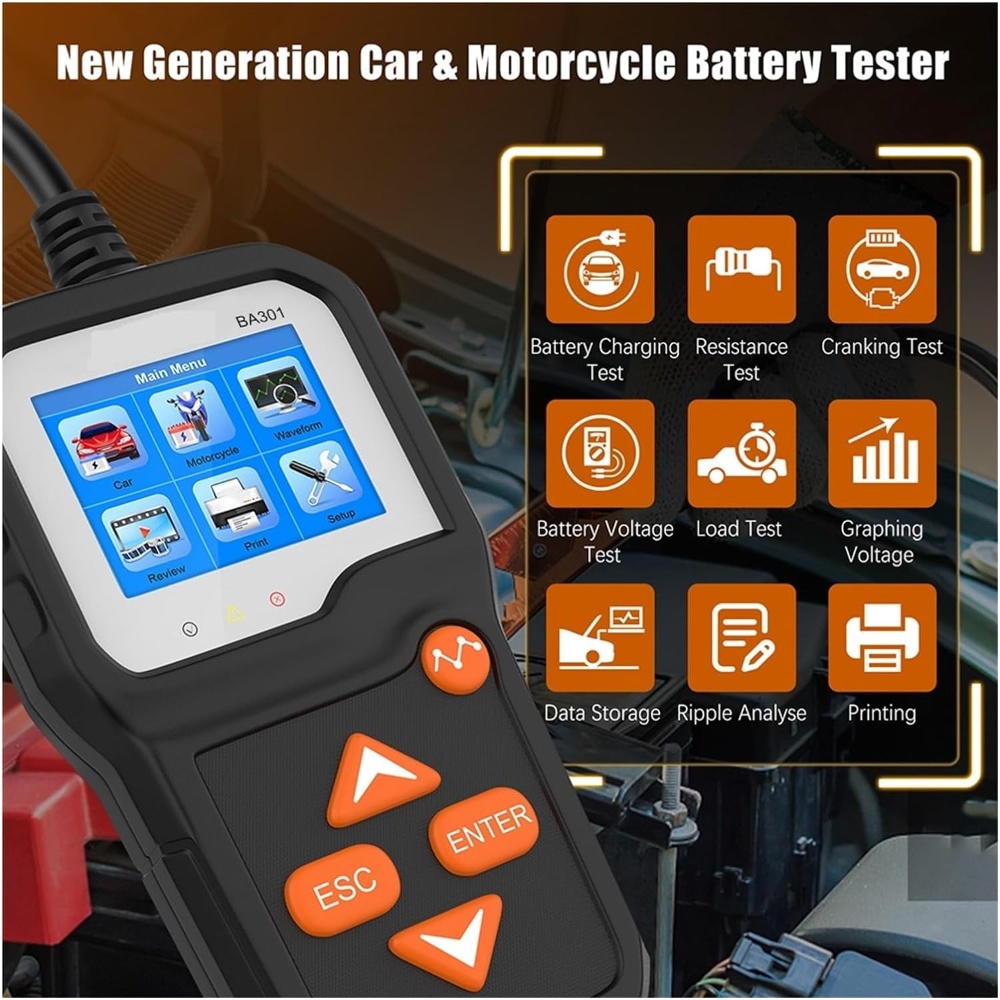

Features

Test technology to easily, quickly and accurately measure the actual cold cranking current capability of the car starting battery, the health status of the battery itself, and the common faults of the car starting system and charging system

It can help maintenance personnel find problems quickly and accurately, so as to realize rapid repair of vehicles.

The starting test is used to test and analyze the actual required starting current and starting voltage to check whether the starter motor works normally. The test results show start time, voltage and status.

The charging test is used to check and analyze the status of the charging system (generator, rectifier, rectifier diode, etc.), display the load voltage, no-load voltage, ripple status, and charging system status, so as to whether the output voltage of the generator is normal.

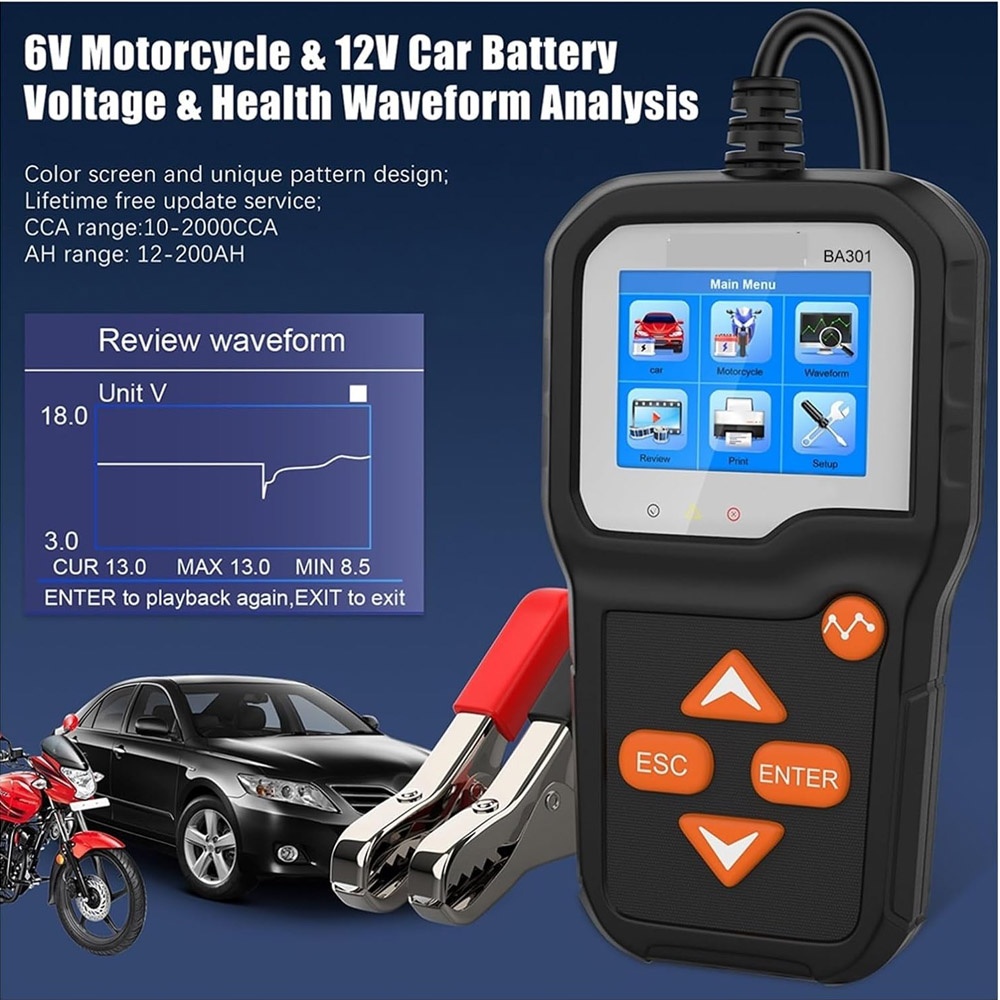

Real-time voltage can be monitored to check battery health status. There are hotkeys to directly read the voltage change graph with one key.

Specification

1. Strong Capacity: Works on 6V&12V batteries, battery ratings from 100 - 2200 CCA, also starter and alternator;

2. Test Multiple Battery Types: regular flooded, EFB, AGM flat plate, AGM spiral and gel;

3. Color screen, support both in-vehicle and out-of-vehicle test, no need to remove the battery;

4. Test Standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE and GB;

5. Test result: SOH, SOC, CCA value, CCA rating, voltage, internal resistance, etc;

6. Provide reliable results within seconds, display suggestion according to the testing results (Good, Recharge, Replace), detects bad cells directly;

7. Polarity reverses connection protection; reminder light

8. Support 12 languages: English, Russian, French, Spanish, German, Italian, Portuguese, Dutch, etc.

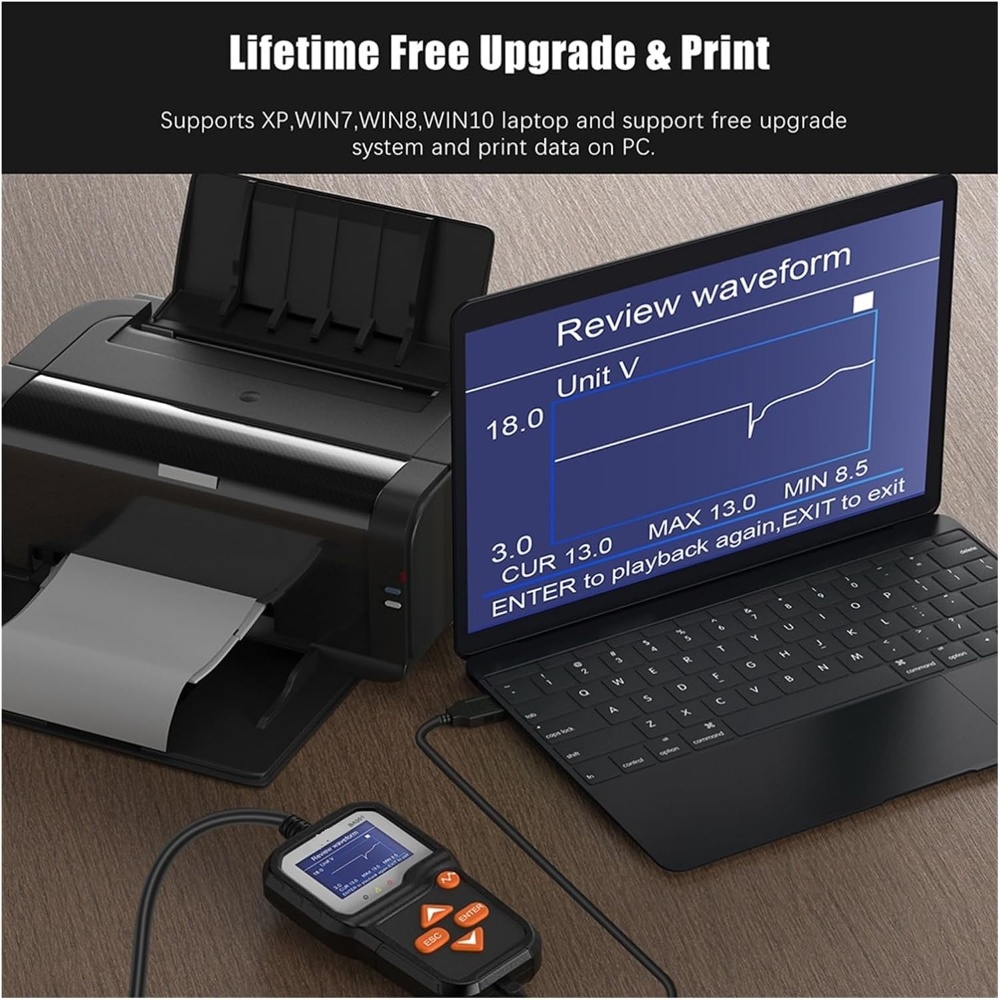

9. Print data & Lifetime free update service;

10. Suitable for automobile factory, garage, auto battery manufacturer, and DIY enthusiasts, etc.
