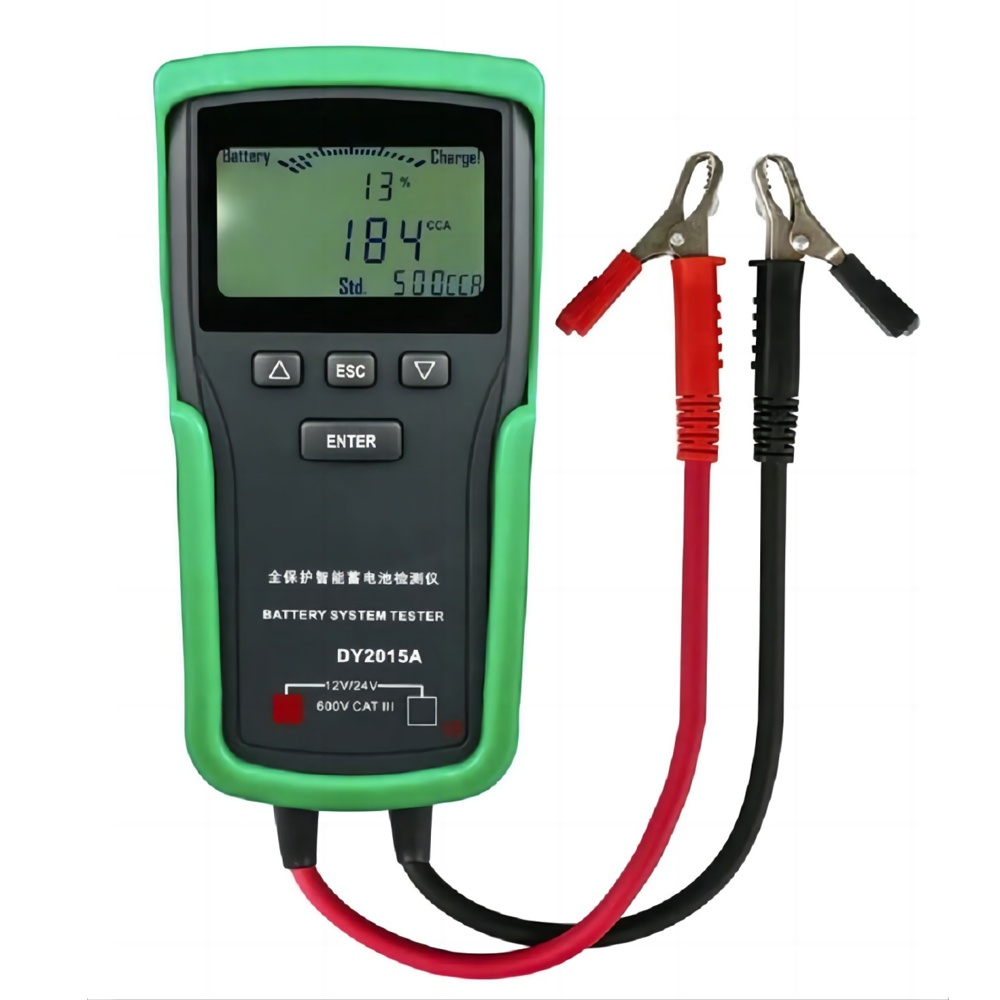

12V/24V Automotive Battery Tester for Lead Acid Battery is used for activated style lead acid storage battery.

Precise circuit and strong digital processing unit make it complete collection of a series of complicated data and figure out every test data, which available by 4-wire Kelvin test connection.  Besides it strengthens input protection inside , in order to prevent such situations as polar reversal connection, over-high voltage input, poor contact of the test clamps and so on. That makes sure safer and more convenient when testing.

• Conforms to CAT III 600V


• With large LCD display, easy to read the value

• Fully diagnose the battery status and car charging system

• Battery test: cold cranking amps, battery resistance, voltage, life analysis

• Engine system test: the change of battery system with the process of startup

• Charging system test: the charging system working state of the output

• Maximum load system test: the maximum load state of battery

• Rich Parameters measured and displayed for battery condition diagnose

• Overload protection and wrong connection protection keeps operator always safe

• Easily read out conclusion of battery condition good/OK/pay attention/replace

• Loose lead detection, unit conversion CCA/IEC/EN/DIN
