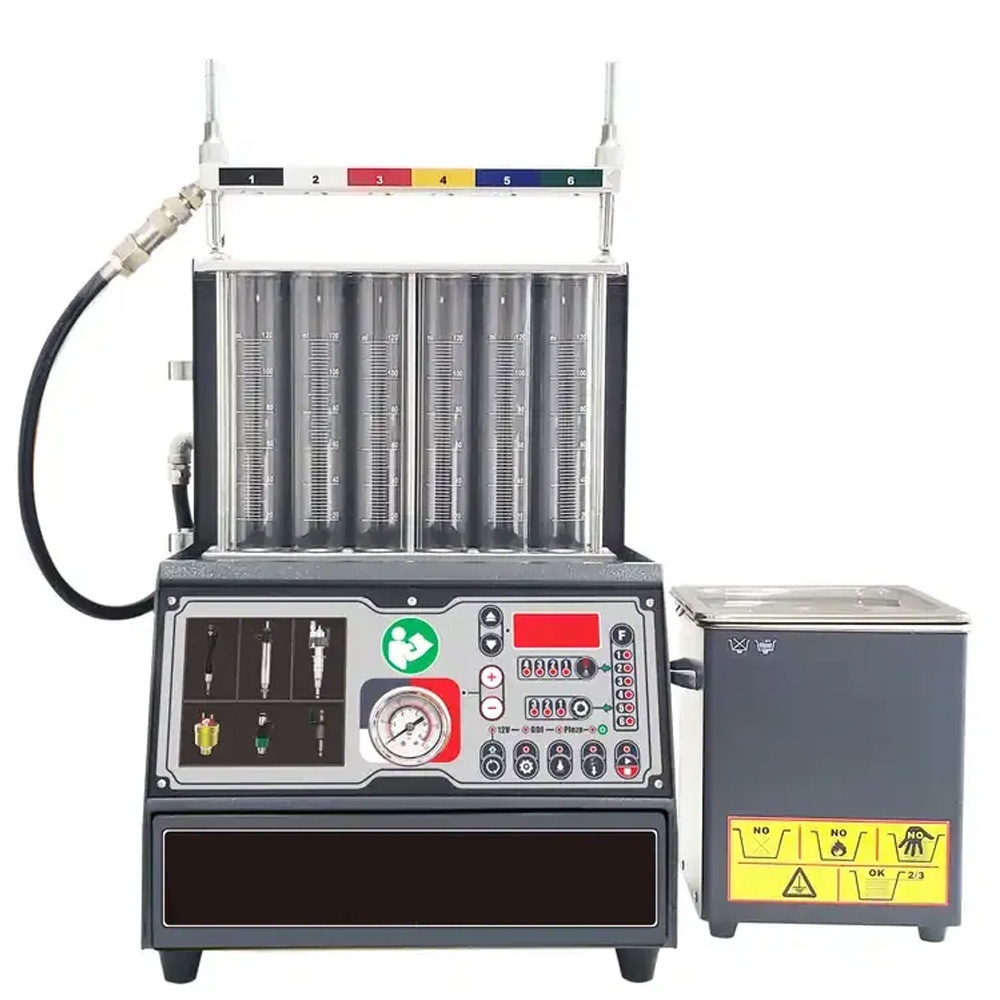

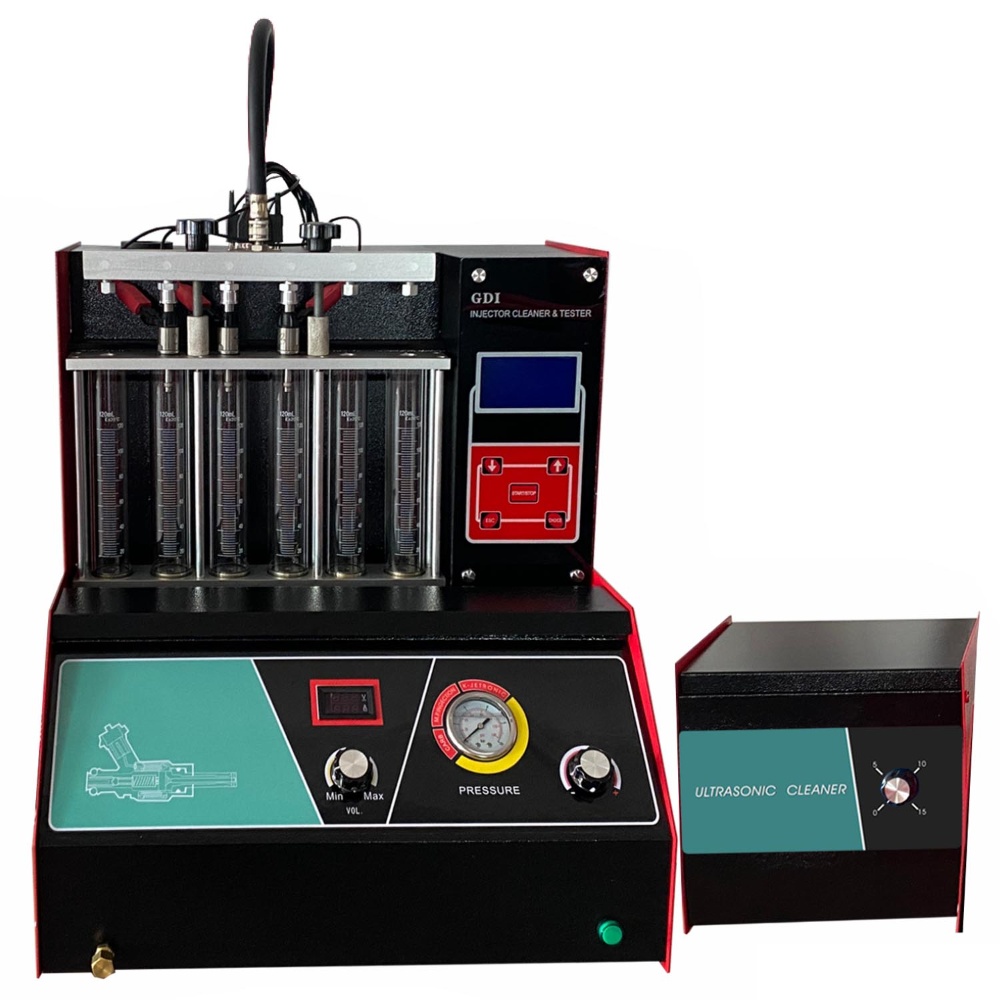

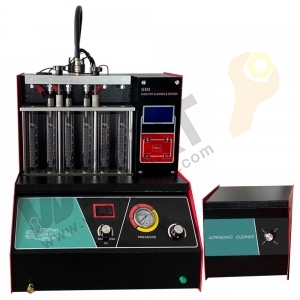

Fuel Injector Cleaning And Testing Machine For Standard/GDI Injectors

16577
  • It can clean and test not only standard injectors but also GDl injectors, such as for Mercedes-Benz.BMW, Audi, Porsche, Ford, and other direct injection engines.

  • GDl Fuel injector 6-cylinder Cleaner and Tester designs with various types of voltage output(0V~24V) to be selected to adapt for different types of injector testing.

  • It can test and clean 6 injectors at the same time for better efficiency.

  • Return fuel by solenoid valve.

  • Purge the residue in the rail and injector after test.

  • The test liquid drain valve is installed at the front end of the machine.

  • Very easy and convenient to deal with and no worries about leaving a mess.

Quantity

ltem No.

Description

Fuel Injector Analyzer & Cleaner is a versatile tool for standard and GDI injectors, including Mercedes-Benz, BMW, Audi, Porsche, and Ford models. Featuring adjustable 0V~24V voltage output, it tests and cleans 6 injectors simultaneously for rapid servicing. The system includes a solenoid valve for clean fuel return, automatic rail/injector residue purging, and a front-mounted drain valve for mess-free operation. With eco-friendly ultrasonic cleaning and intuitive controls, it ensures precision and efficiency for direct injection engines.

Features

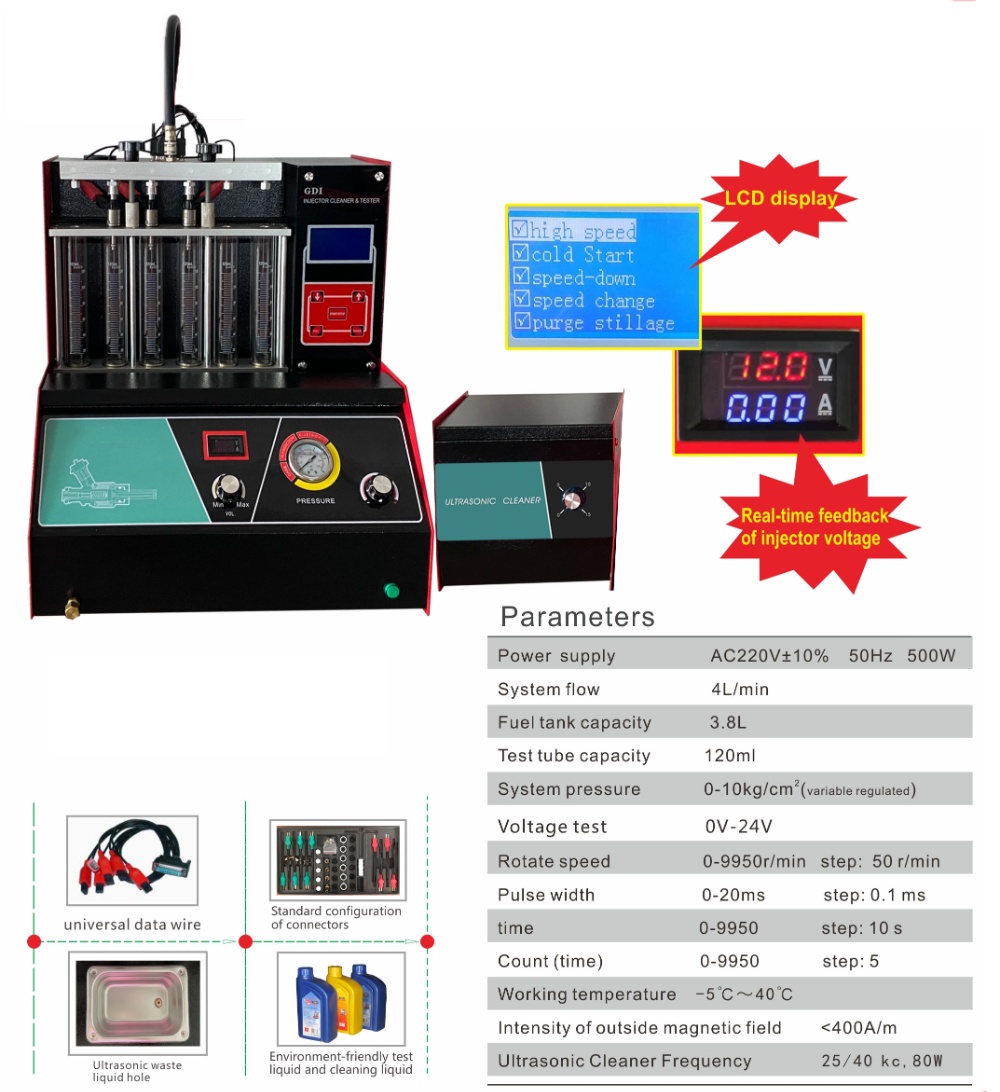

  • Power supply: AC220V+10% 50Hz, 500W

  • System Flow: 4L/min

  • Fuel tank capacity:3.8L

  • Test tube capacity: 120mI

  • System pressure: 0-10kg/cm²(variable regulated)

  • Voltage test: 0-24V

  • Rotate speed: 0-9950r/min step: 50 r/min

  • Pulse width:  0-20ms           step: 0.1 ms

  • time:  0-9950                        step: 10 s

  • Count(time) : 0-9950           step: 5

  • Working temperature: -5°C~40°C

  • Ultrasonic clean frequency: 25/40kc, 80W

16574-2
