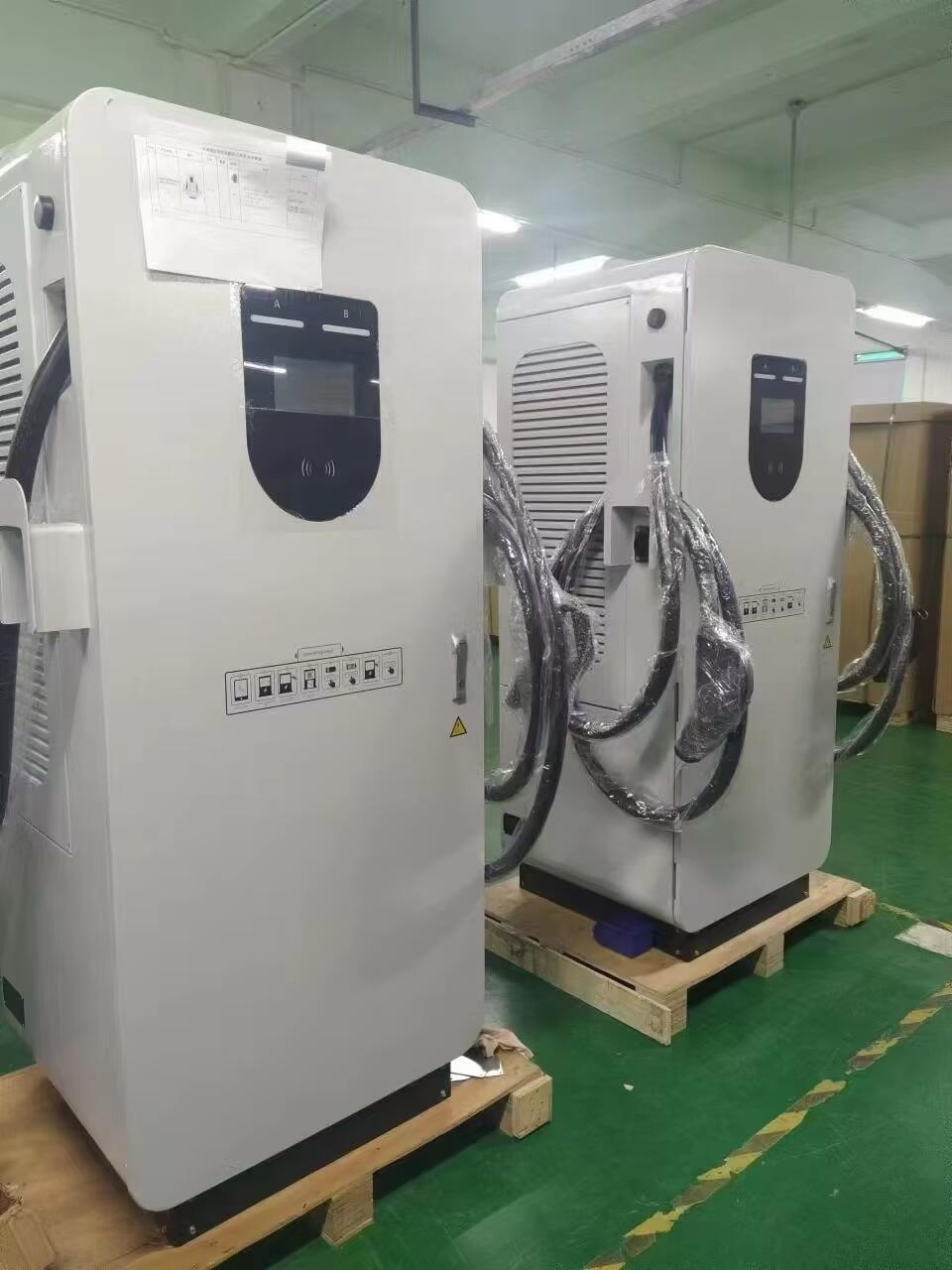

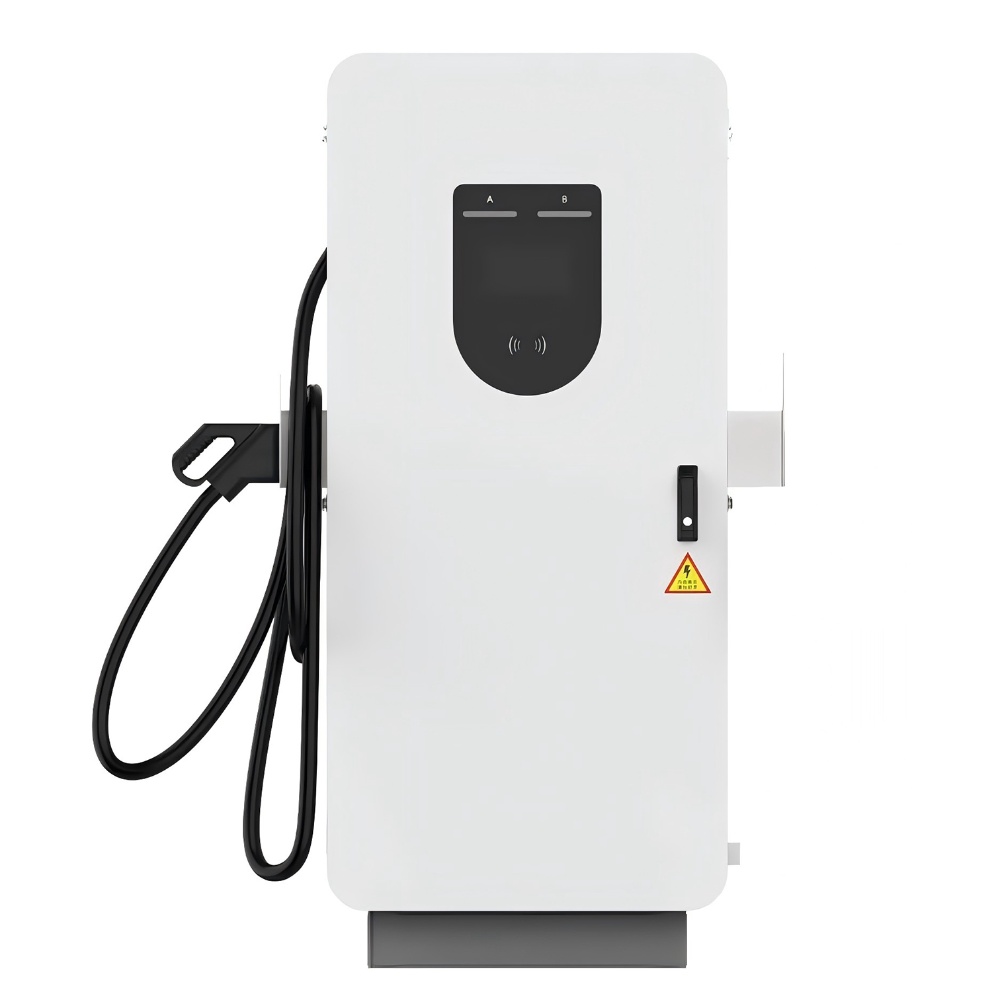

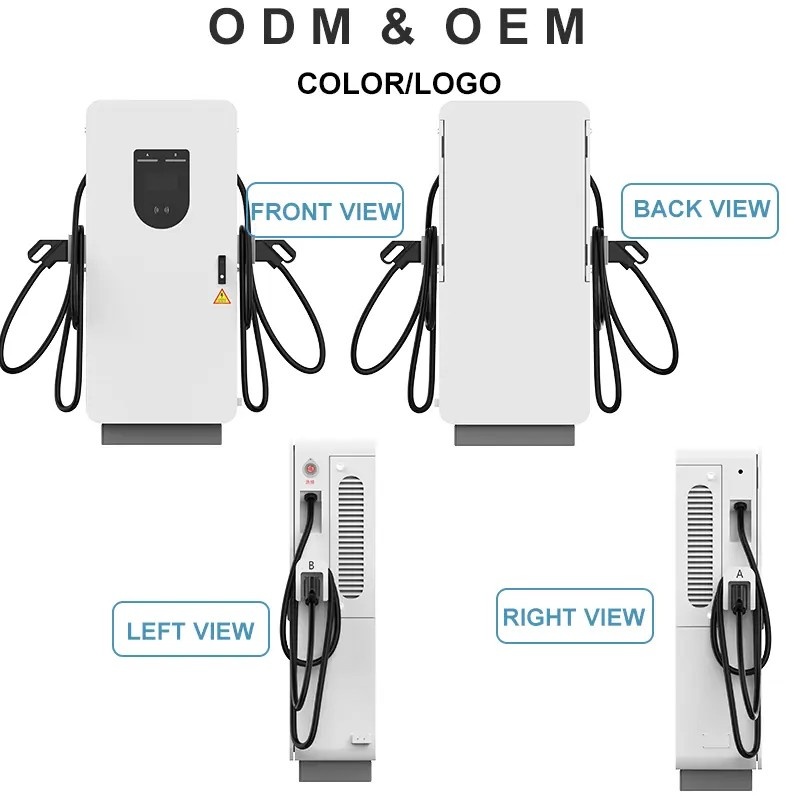

High Power Floor-mounted 80KW 100KW 120KW DC Fast EV charger station

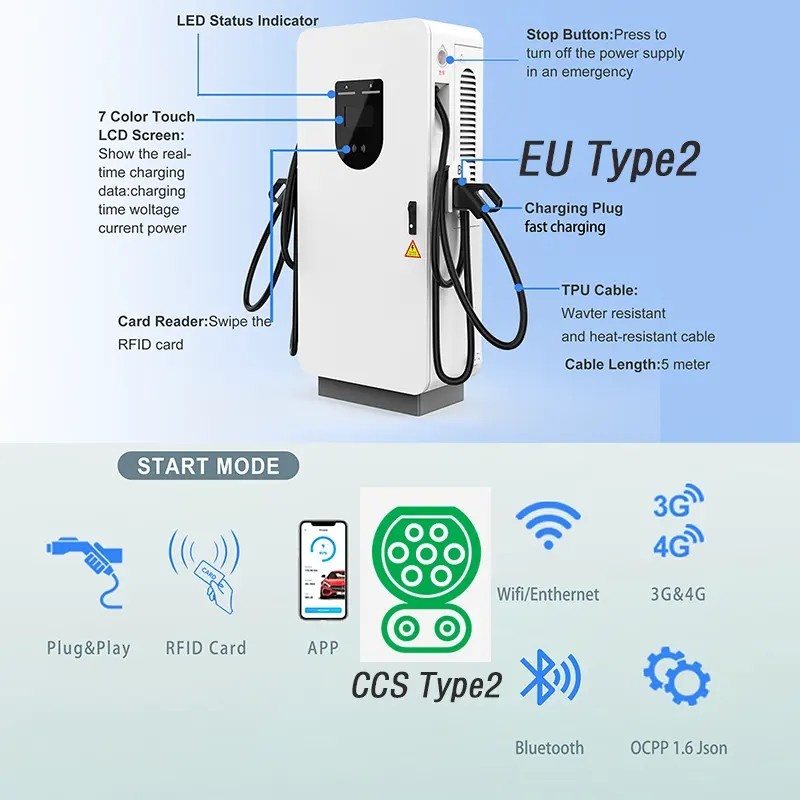

Charging connector: CCS 2 cable
LED indicator light: Green/Yellow/Red
Liquid crystal display: 7-inch color touch screen
RFID reader: MIFARE ISO/IEC 14443 A
Startup mode: Plug and play/RFID card/application
Emergency stop: YES
Interface language: English/Chinese
Install: floor stand
Cooling method: fan cooled
Quantity
ltem No.
Description
High Power Floor-mounted 80KW 100KW 120KW DC Fast EV charger station adopts fast charging tectology to support warious types of batteries.The power of this chassis is 80/100/1200W Segmented cantant power design,wide range seting of output woltage and curent can sigrfcantly improve charging speed.The power unit adopts high-frequeng swiching power supply modules for paralleloperaion,and eachmodule sindeperdently controlledwith strong reliabilty and easy maintenance.Charging method: 80/100/120KW DC pile, single gun output power of 80/100/120KW(and so on for otherpowers).
Features
Name and Model | 13508-1 | 13508-2 | 13508-3 | |
Input | Power supply | 3P+N+PE | ||
Voltage range | 400VAC | |||
Frequency | 50/60HZ | |||
Output | Output voltage | 200-1000V DC | ||
Maximum current | 250A | 250A | 250A | |
Rated power | 80KW | 100KW | 120KW | |
User interface | Auxiliary power supply | 12VDC | ||
Communication | WIF | selectable | ||
Ethernet | YES | |||
3G/4G | YES | |||
OCPP | OCPP 1.6 Json (OCPP 2.0 optional) | |||
Electrical | Efficiency | ≥95% | ||
Power facto | ≥0.99 at 50%to 100%load | |||
THD | ≤5% at 50% to 100% load | |||
Ripple coefficient | ≤±0.5% | |||
Operating | RCD | class a | ||
Entrance protection | IP54 | |||
Impact protection | IK08 | |||
Authentication | CE | |||
Certificate Compliance | EN/IEC 61851-1:2017,EN/IEC 61851-23:2014 | |||
Noise | ≤60DB | |||
Working temperature | -30℃~+55℃ | |||
Working humidity | 5%~95% | |||
Working altitude | <2000M | |||
Size and weight | 700*400*1600MM(L*W*H)(250KG) | 700*500*1700MM(L*W*H)(250KG) | 700*500*1700MM(L*W*H)(280KG) | |
Specification
