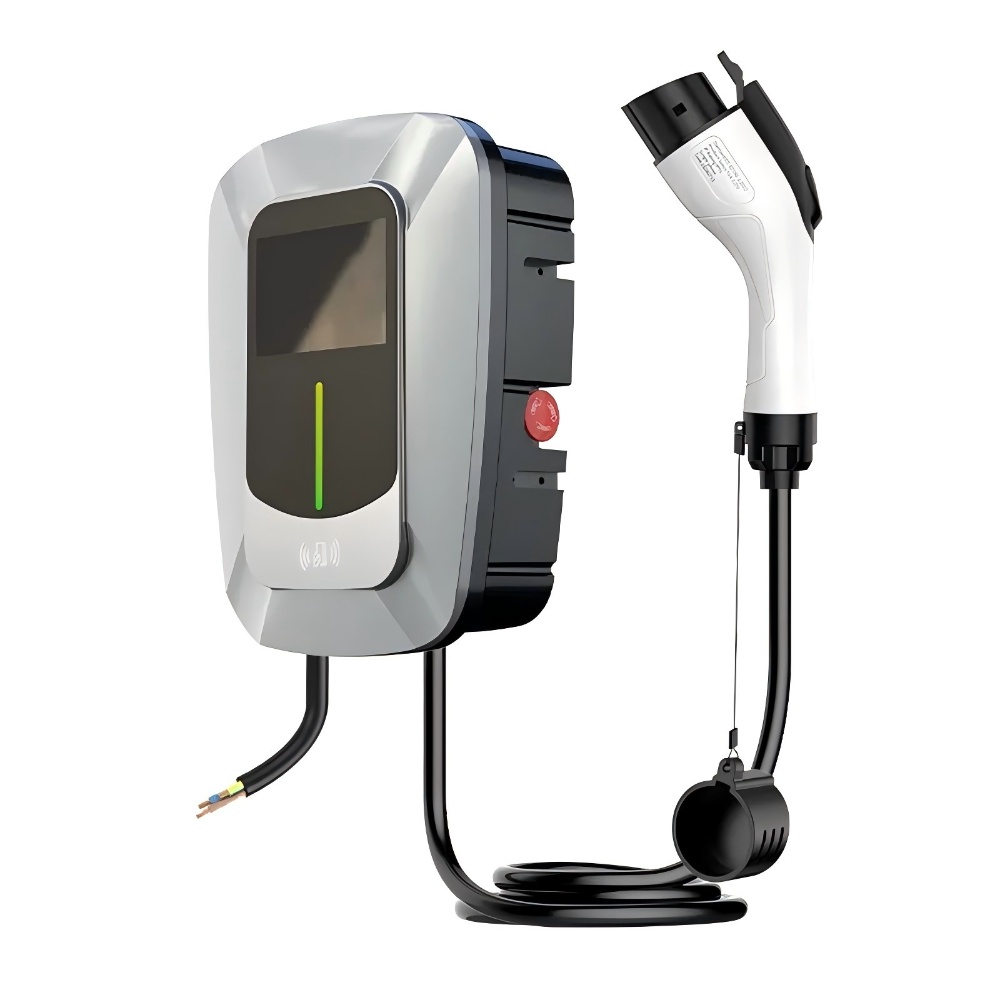

European Wall-Mounted Electric Vehicle Charging Pile 7kW 11kW 22kW AC Swipe Card Activated

13506-1/13506-2/13506-3/13506-4/13506-5/13506-6
  • Shell material: Flame retardant ABS+PC9330

  • Installtion method: Column type/wall mounted type

  • Install components: Wall mounted screw accessories [can be installed with columns]

  • Wiring method: Down in,down out

  • Applicable scenarios: Indoor/Outdoor

  • Cooling method: Natural cooling


Quantity

ltem No.

Description

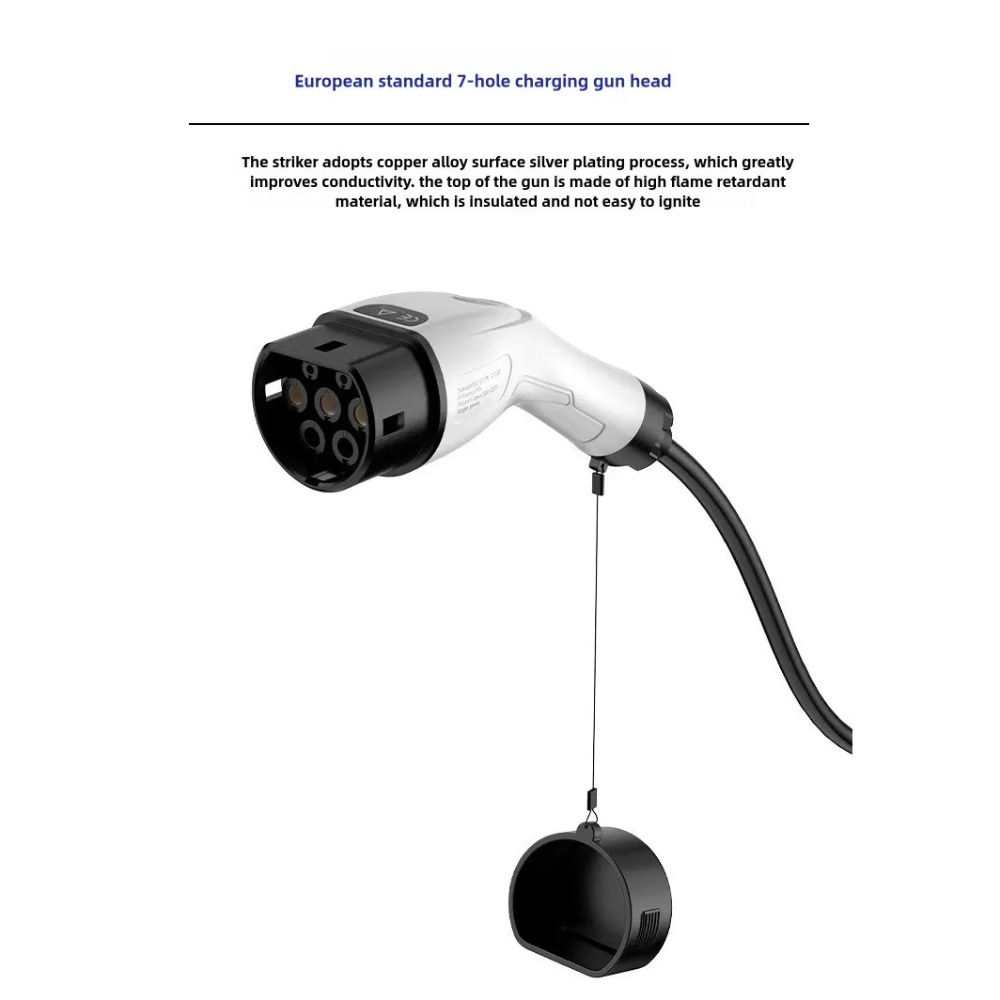

European Wall-Mounted Electric Vehicle Charging Pile 7kW 11kW 22kW AC Swipe Card Activated supports vehicle electronic charging lock functionVehicle automatically locks the charging head after parkingand charging and locking the vehicle.The firing pin is made of copper alloy with silver-plated surface and the top of thegun head is made of high flame-retardant material.

The gun head has been tested by professional laboratory equipmentfor over 20,000+ insertion and removal tests to have a long service life.


Features

Name and Model

13506-1

13506-2

13506-3

13506-4

13506-5

13506-6

Product type

Screen display+swipe card activation+gun insertion

Commercial+screen display+swipe card activation+gun insertion

Equipment size

Charging head220*62*55mm/control box272.97*222.17*101.2mm【H*W*D】

Cable specifications

3*6MM²+1*0.75MM²

5*2.5MM²+1*0.75MM²

5*6MM²+1*0.75MM²

3*6MM²+1*0.75MM²

5*2.5MM²+1*0.75MM²

5*6MM²+1*0.75MM²

Cable length

5 meters [supports customized wire length]

Input voltage

AC220V

AC380V

AC220V

AC380V

Input frequency

50HZ

Maximum power

7KW

11KW

22KW

7KW

11KW

22KW

Output voltage

AC220V

AC380V               AC220V

AC380V

Output current

32A

16A three-phase

32A three-phase

32A

16A three-phase

32A three-phase

Standby power

3W

Working humidity

5%~95% non condensing

Working temperature

-30℃~+50%℃

Working altitude

<2000M

Protection level

Gun head IP55/control box IP67

Safety standards

GB/T 20234.1/2-2015

Flame retardant grad

UL94 V0

Interface

LED indicator light/digital screen display

LED indicator light/digital screen display/4G or WIFI

Communication interface

4G or WIFI

Box specifications/weight

430*430*140MM【4KG】

430*430*140M【4.5KG】

430*430*140MM【4KG】

430*430*140MM【4.5KG】
