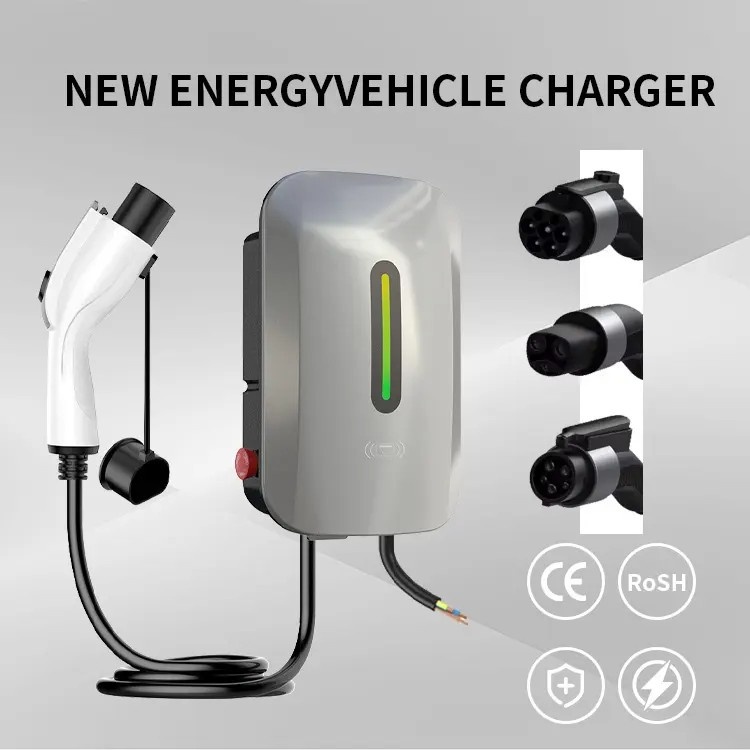

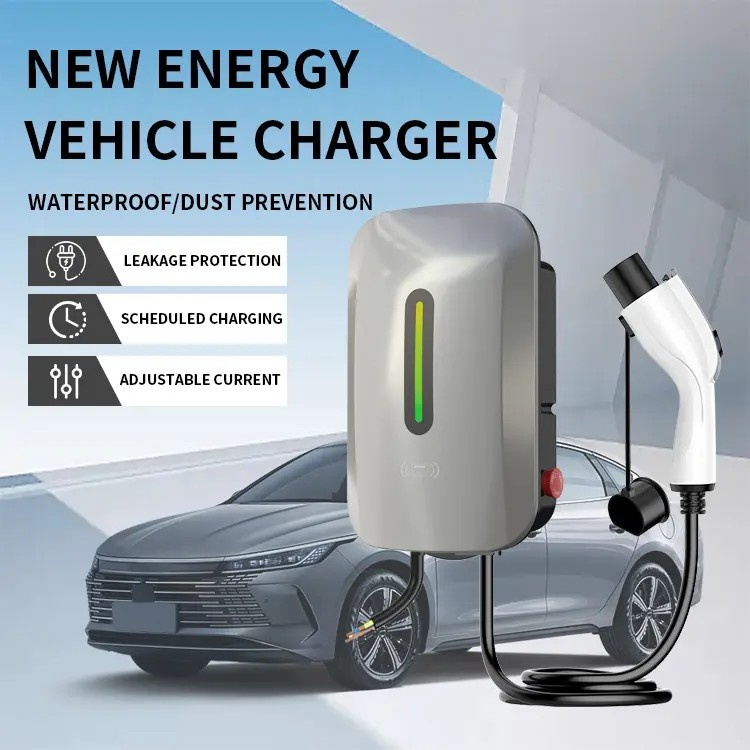

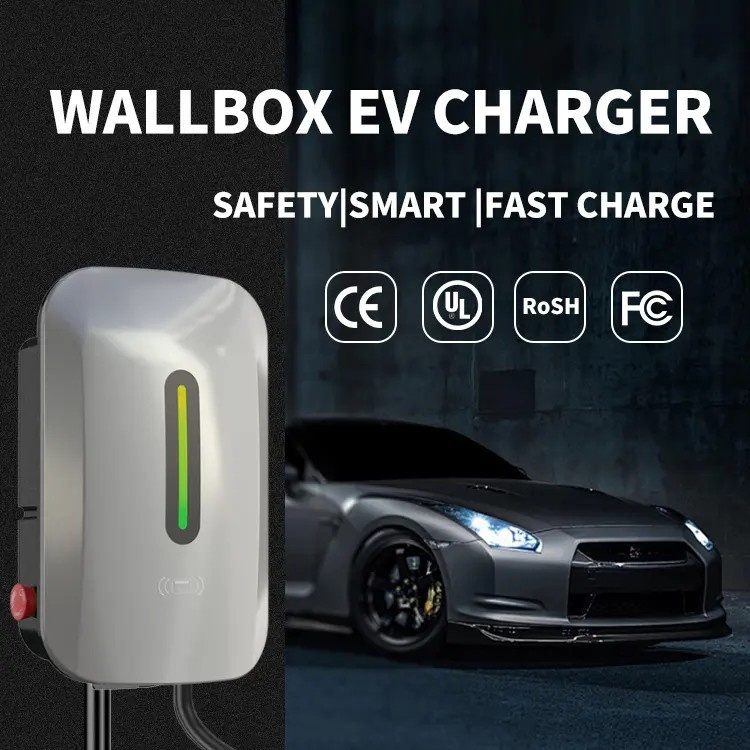

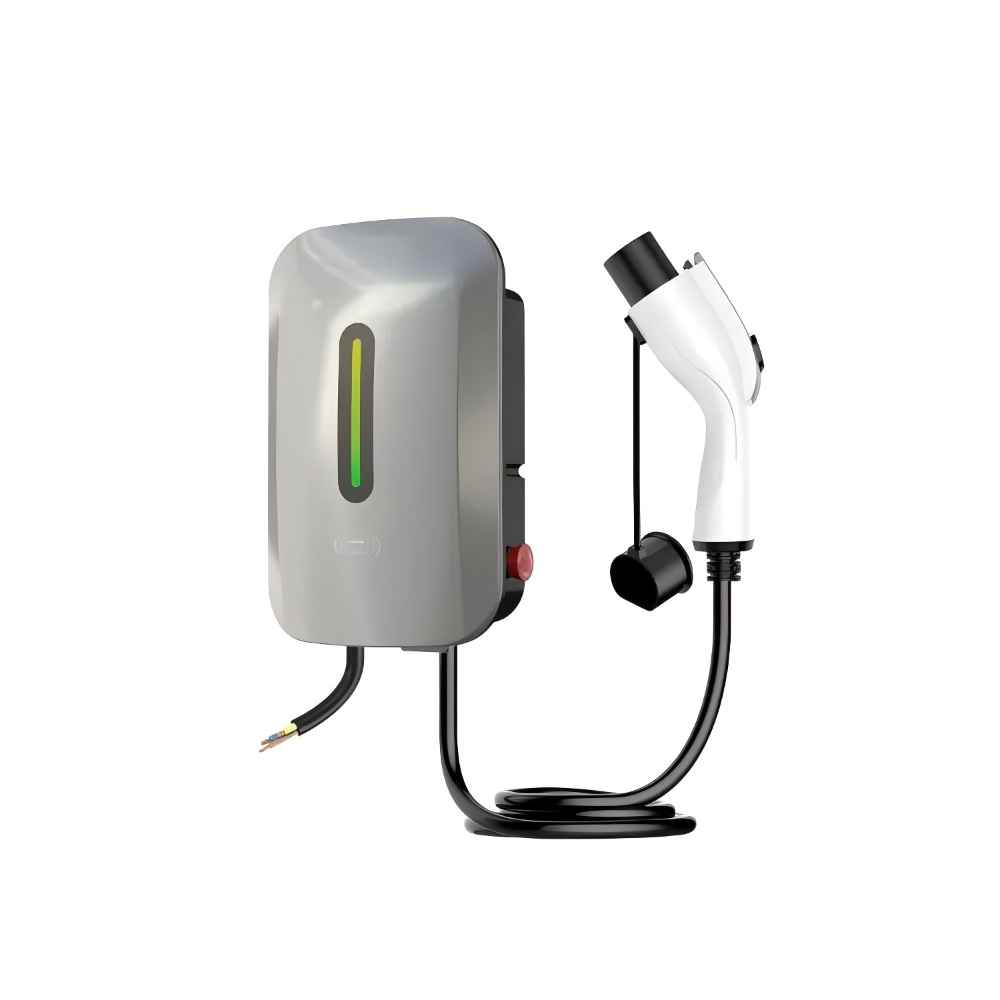

Waterpoof Swipe Card Start 7KW Type2 EV Charger

13505
  • Product type: Swipe card activation

  • Shell material: Flame retardant ABS+PC9330

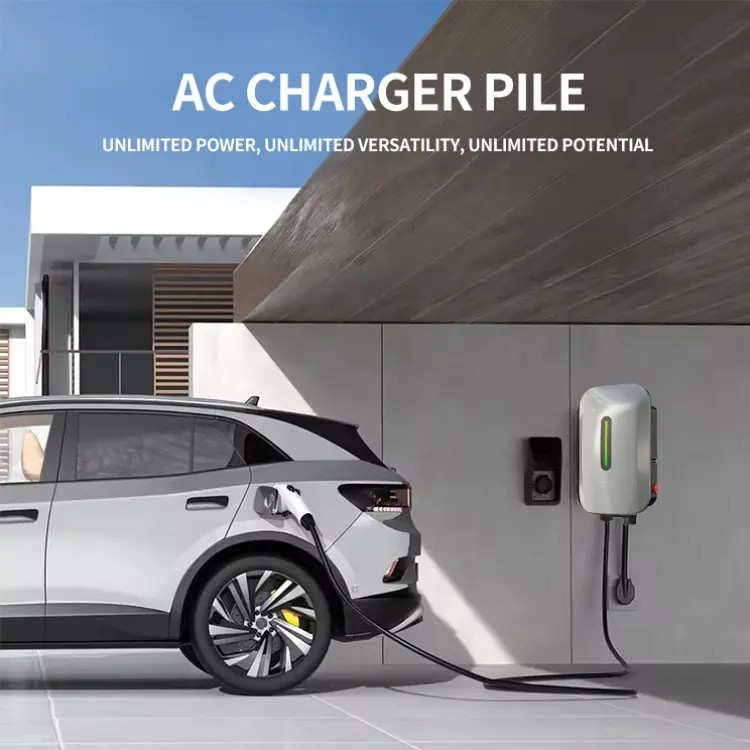

  • Installation method: Column type/wall mounted type

  • Install components: Wall mounted screw accessories [can be installed with columns]

  • Wiring method: Down in,down out

  • Applicable scenarios: Indoor/Outdoor

  • Cooling method: Natural cooling


Quantity

ltem No.

Description

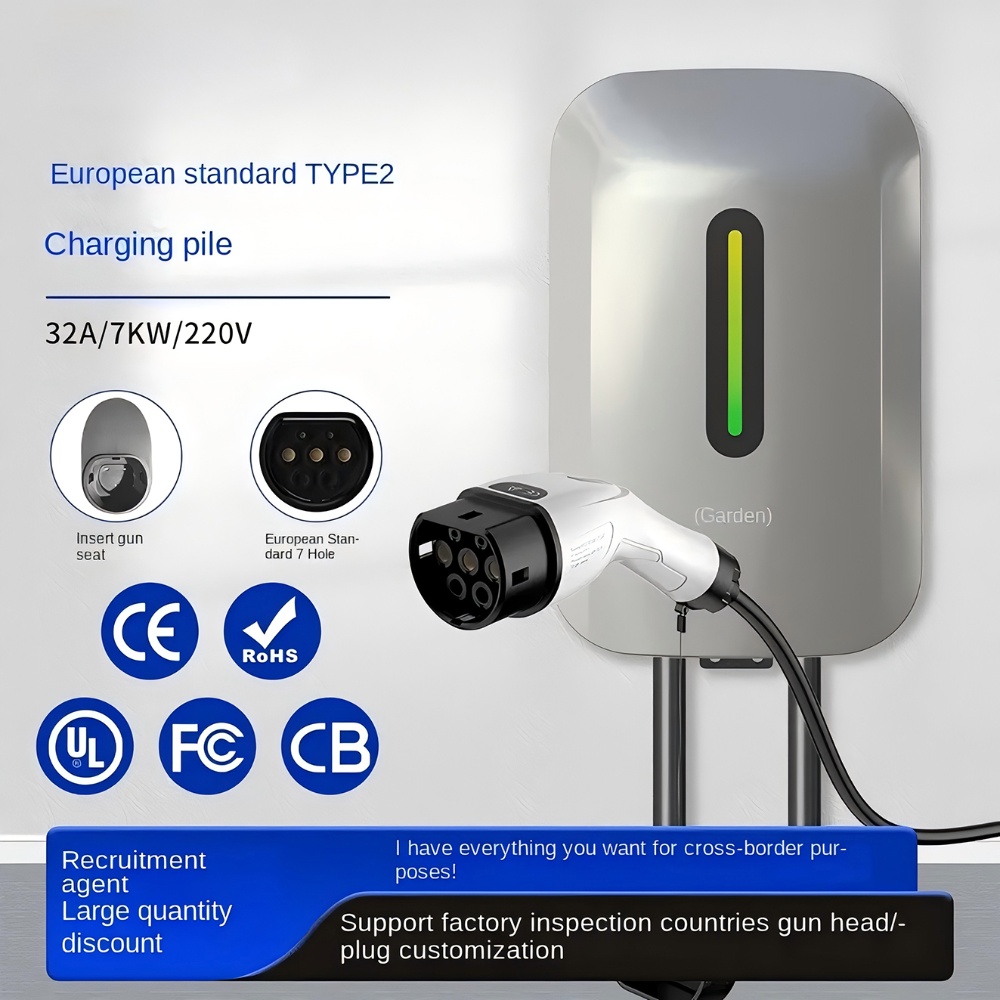

Waterpoof Swipe Card Start 7KW Type2 EV Charger  is compatible with most European AC electric vehicles because of the IEC62196-2 Type 2, eliminating most brand barriers to electric vehicle owners.Using a standard J1772 connector, the TJ allows for wide compatibility with electricvehicles with American standard AC charging interfaces or plug-in hybrid vehicles.

Coverage includes Tesla (adapter needed),Ford,GM, Volkswagen, Nissan, Audi and more; perfect for users that own more than one electric vehicle.

Features

Name and Model

13505

Equipment size

Charging head 220*62*55mm/control box 1270*170*89.65mm【H*W*D】

Cable specifications

3*6MM²+1*0.75MM²

Cable length

5 meters [supports customized wire length]

Input voltage

AC220V

Input frequency

50HZ

Maximum power

7KW

Output voltage

AC220V

Output current

32A

Standby power

3W

Working humidity

5%~95% non condensing

Working temperature

-30℃~+50%℃

Working altitude

<2000M

Protection level

Gun head IP55/control box IP67

Safety standards

GB/T 20234.1/2-2015

Flame retardant grade

UL94 V0

Interface

LED indicator light

Communication interface

/

Box specifications/weight

430*430*140MM【3.5KG】

13505-8

13505-3

Specification
