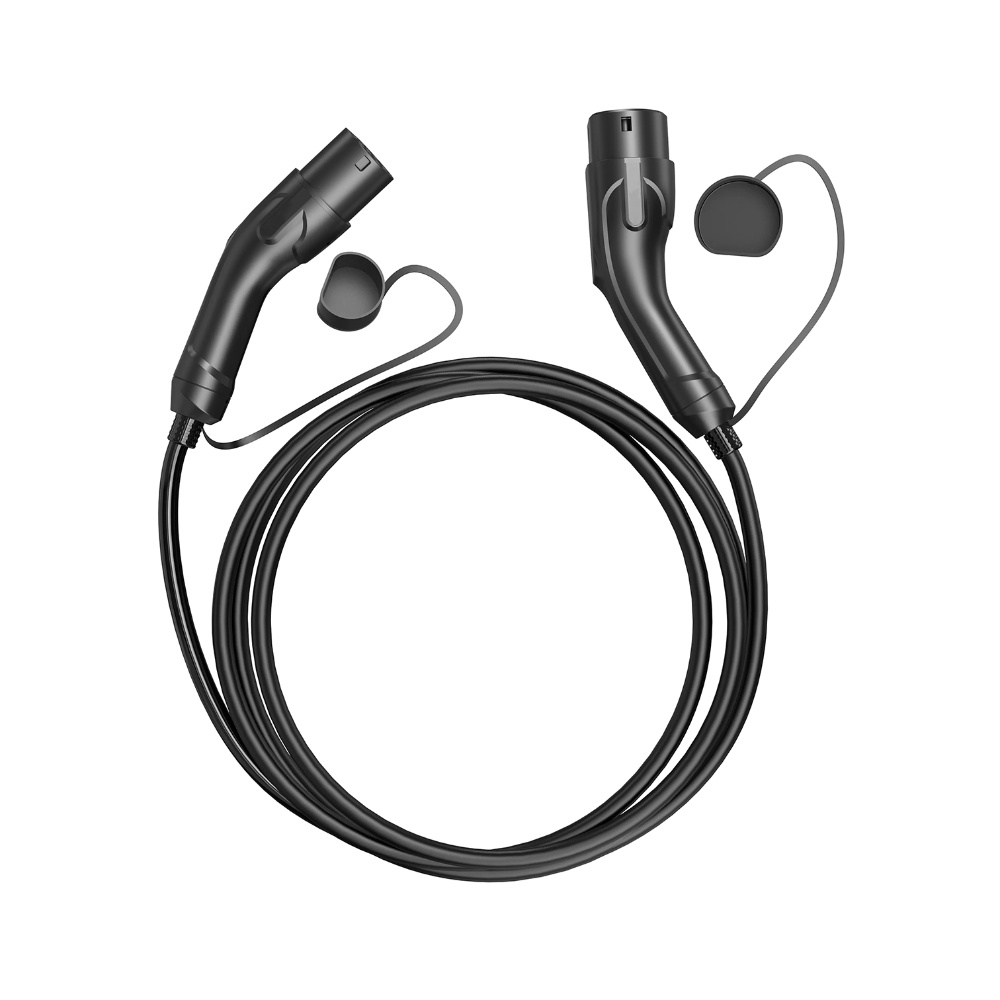

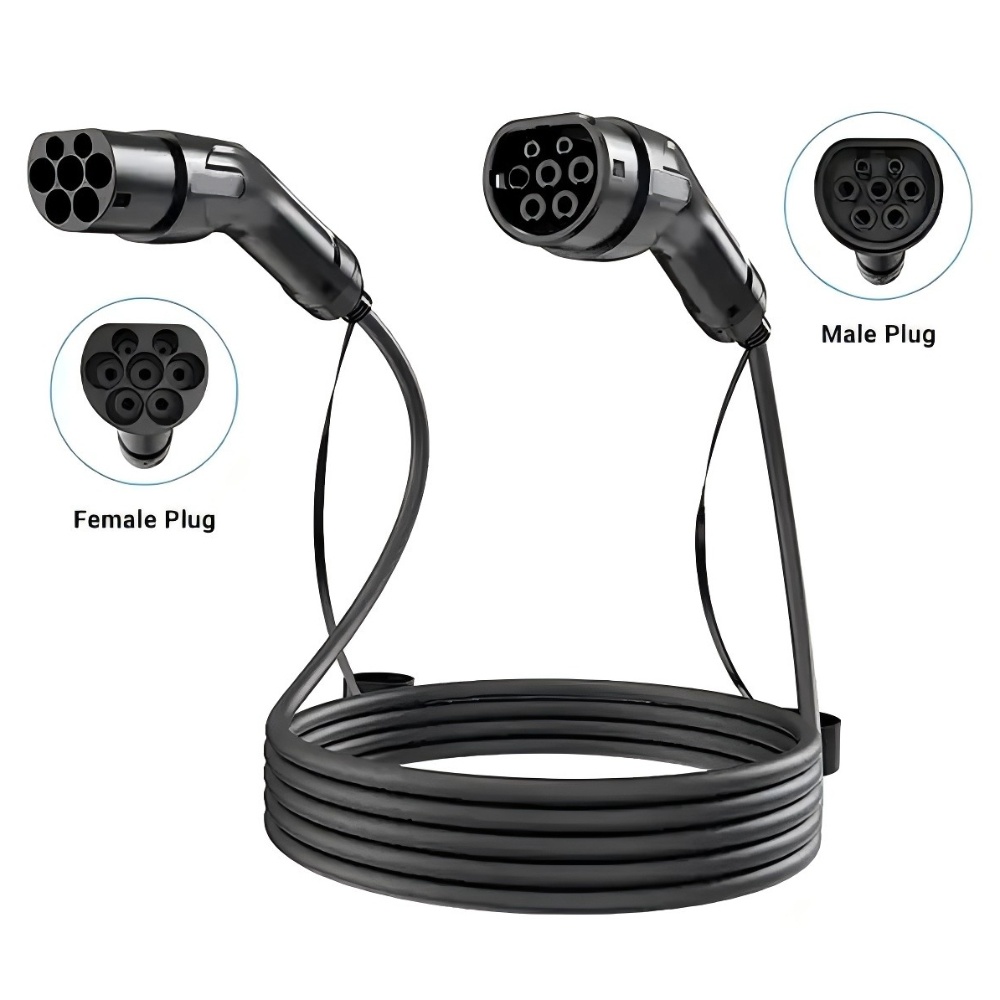

Type 2 EV Charging Extension Cable

13520-1/13520-2/13520-3/13520-4

Supports high speed charging, allowing you to charge your electric vehicle quickly and efficiently.

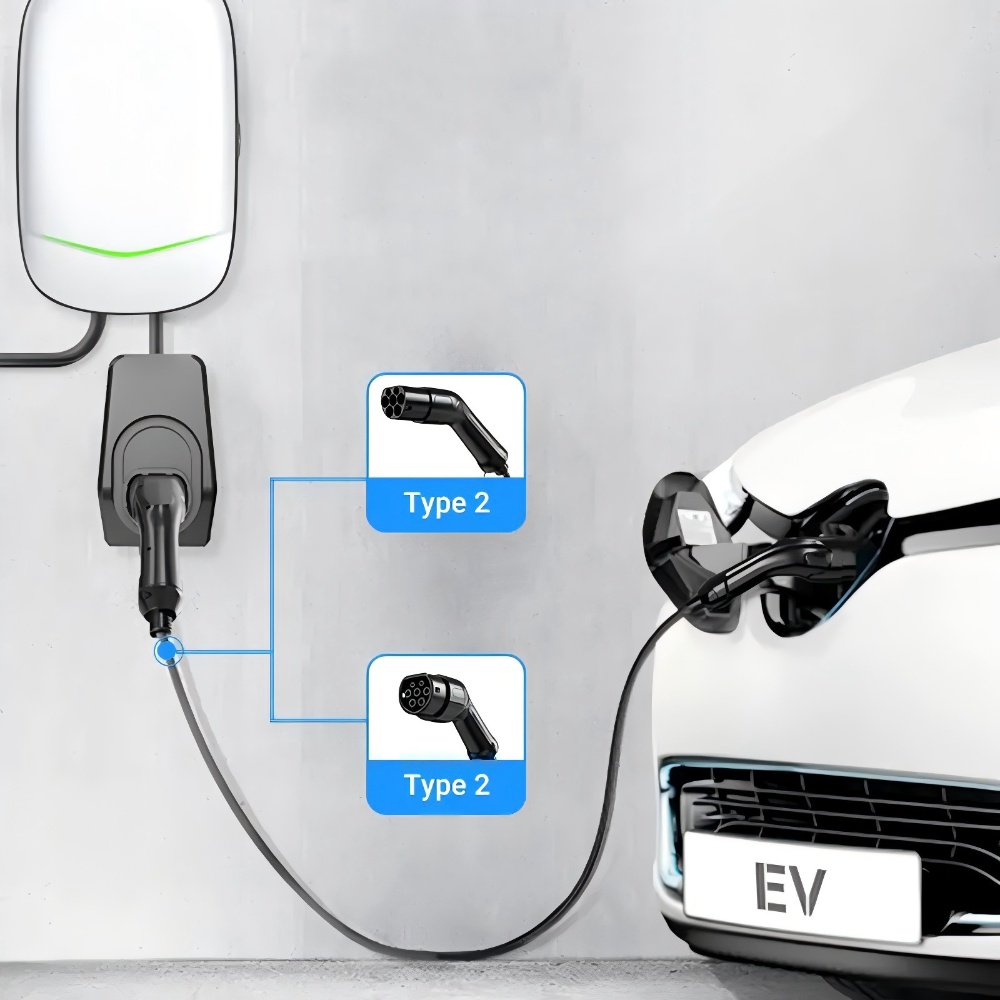

Compatible with all electric vehicles compatible with a type 2 charging standard to ensure wide compatibility and flexibility.
Charging cable was made from durable and sturdy materials and is built to withstand rigorous daily use.
Contains advanced safety features, including overvoltage protection, over-current protection and short circuit protection.

Quantity

ltem No.

Description

Type 2 EV Charging Extension Cable is made from durable and sturdy materials and is built to withstand rigorous daily use. It features high grade copper wires and a thickened insulation jacket that provides superior protection against wear.Built-in multiple layers of safety protection mechanisms to prevent issues such as overloading and overheating and supports multiple models of new energy vehicles, offering wide compatibility.

Features

Model	13520-1	13520-2	13520-3	13520-4
ELECTRICAL PERFORMANCE
Rated Voltage	250V AC	480V AC	250V AC	480V AC
Rated Current	20A AC	20A AC	32A AC	32A AC
Rated Frequency	50Hz~60Hz
Maximum Charge Capacity	4.6kW	13.8kW	7.4kW	22.1kW
Insulation Resistance	≥500MΩ
Input Wiring Scheme	L1,N,PE,PP,CP	L1,L2,L3,N,PE,PP,CP	L1,N,PE,PP,CP	L1,L2,L3,N,PE,PP,CP
Compatible Supply Type	Single-Phase	Three-Phase	Single-Phase	Three-Phase
FUNCTIONAL SPECIFICATIONS
Plug/Connector Type	Type 2
Conductor Material	Copper alloy,silver plated surface
EV Cable Specification	3×2.5mm²+1×0.5mm²	5×2.5mm²+1×0.5mm²	3×6mm²+1×0.5mm²	5×6mm²+1×0.5mm²
EV Cable Length	5m
EV Cable Material	TPU
Mechanical Life	Unloaded plugged:>10000
Type of Interlock Mechanical
Spiral	NO/YES(Optional)
Spiral Cable Length	6m(4m effective stretch length)
SAFETY &COMPLIANCE SPECIFICATIONS
Certificate	CE
Conforming To Standard	EN 62196 EN IEC61851-1
OPERATIONAL SPECIFICATIONS
Use Of Ambient Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +80℃
IP Rating	IP55(Mated)IP54(Not mated)
WEIGHT &SIZE
Weight	2.35kg	3.05kg	3.20kg	4.10kg
Color Box Size	370mm×370mm×115mm

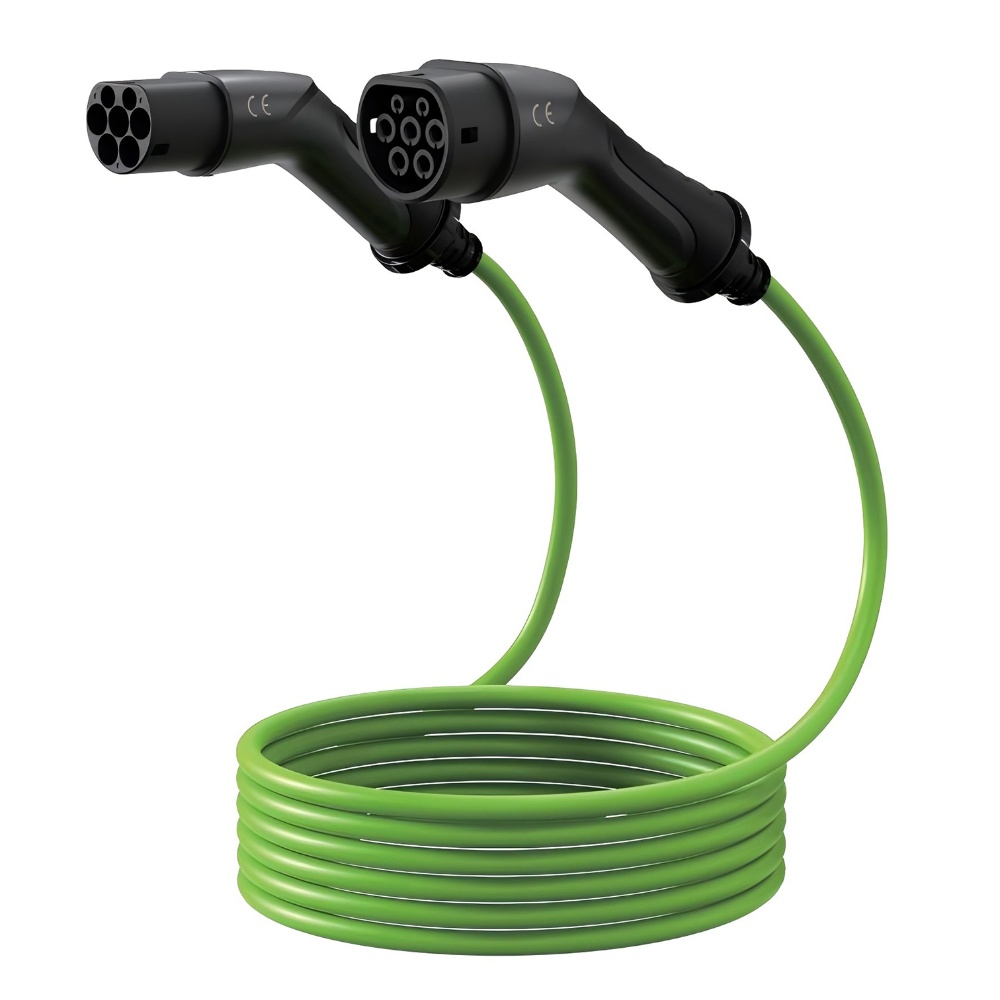

Wire Color(Optional)	Black/Orange/Green/Red/Blue
