Latest Version Portable EV Charger is designed to be adaptable for all vehicle models, ensuring seamless compatibility for various users.With a high output power, this charger can quickly and efficiently charge electric vehicles, saving time and energy for users. Constructed with high-quality materials and designed for reliability, this charger is built to withstand the rigors of frequent use and harsh environmental conditions. Its durability ensures that users can rely on it for years to come, providing peace of mind and reducing the need for frequent replacements.

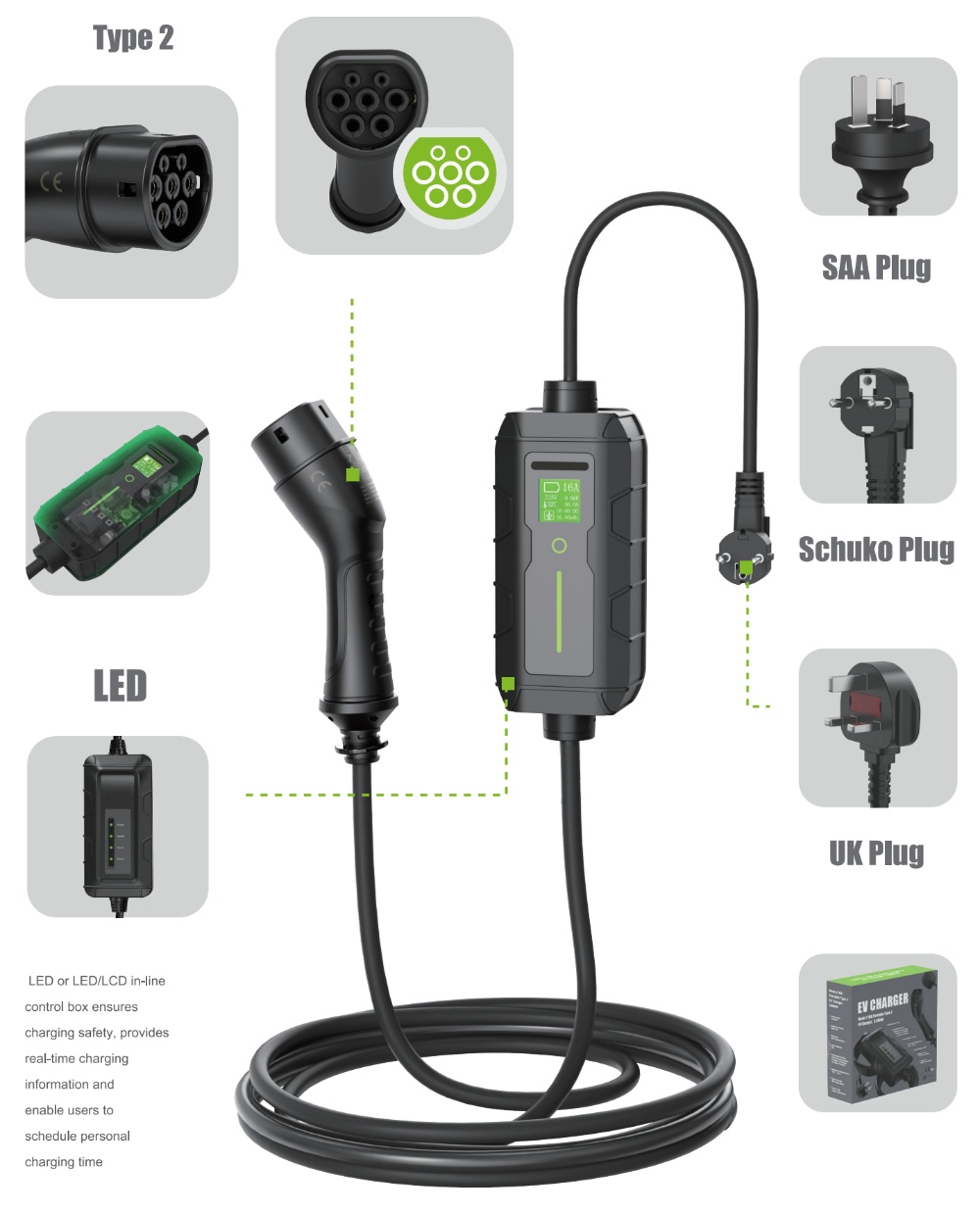

Type 2 16A 3.7KW Portable EV Charger -EU | Type 2 16A/8A 3.7KW Portable EV Charger-France | Type 2 13A 2.99KW Portable EV Charger-UK | Type 2 10A 2.4kW Portable EV Charger-Australia,New Zealand | |||
Model | 13500-1 | 13500-2 | 13500-3 | 13500-4 | 13500-5 | 13500-6 |
Control Box Display | LED | LED+LCD | LCD | LED | LCD | LED |
Plug Type(Power Input | Schuko Plug | Schuko Plug | Schuko Plug | BS 1363 Plug | BS 1363 Plug | SAA Plug |
Connector Type | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 |
Rated Voltage | 230V AC | 230V AC | 230V AC | 230V AC | 230V AC | 240V AC |
Rated Current | 16A AC | 16A AC | 16A/8A AC | 13A AC | 13A AC | 10A AC |
Rated Frequency | 50Hz | 50/60Hz | 50/60Hz | 50Hz | 50/60Hz | 50Hz |
Maximum ChargeCapacity | 3.7KW | 3.7KW | 3.7KW | 2.99KW | 2.99KW | 2.4KW |
EVCable Specification | 3×2.5mm²+1×0.5mm² | 3×2.5mm²+1×0.5mm² | 3×2.5mm²+1×0.5mm² | 3×2.5mm²+1×0.5mm² | 3×2.5mm²+1×0.5mm² | 3×2.5mm²+1×0.5mm² |
EV Cable Length | 4m | 4m | 4m | 4m | 4m | 4m |
Power Cord Specification | 3×2.5mm² | 3×2.5mm² | 3×2.5mm² | 3×1.5mm² | 3×1.5mm² | 3×1.5mm² |
Power Cord Length | 1m | 1m | 1m | 1m | 1m | 1m |
IP Rating | In-Cable box: IP67 AC Charging Connector: IP55(Mated)IP54(Not mated) | |||||
Protection Function | Over-current protection,Over-voltage protection,Under-voltage protection,Leakage protoction,Overheating protection,Ground protection,Relay adhesion Detection. | |||||
Certification | SGS-CE,ROHS.POP,REACH annex17 | CE | CE,UKCA | CE |
