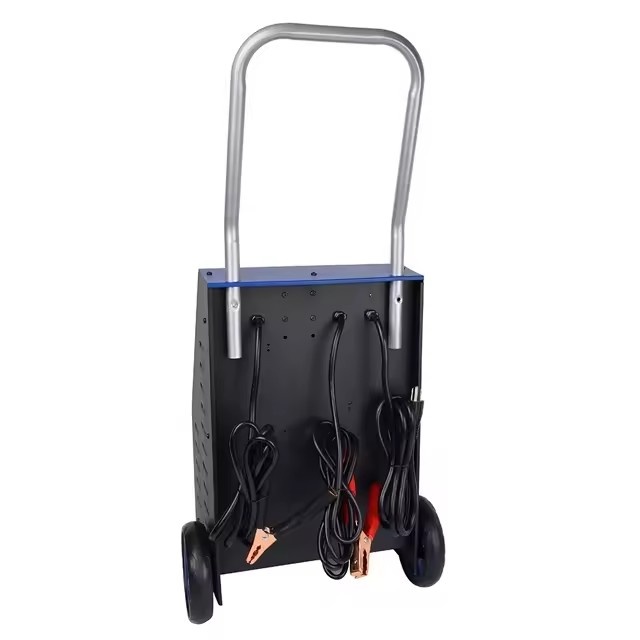

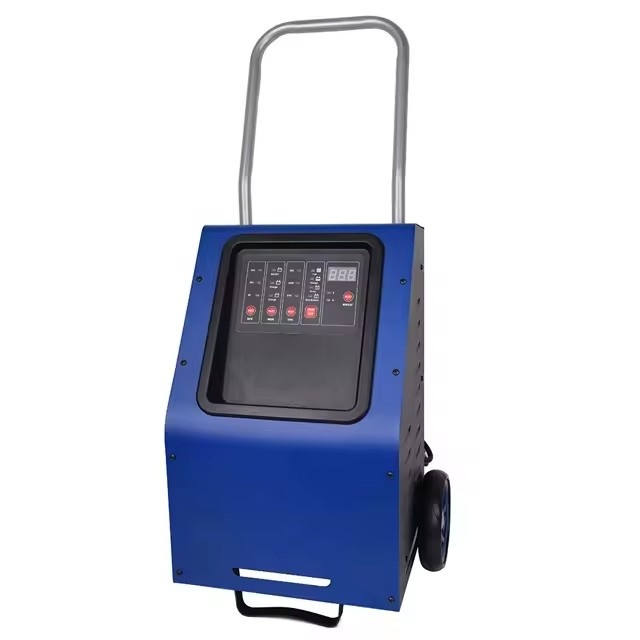

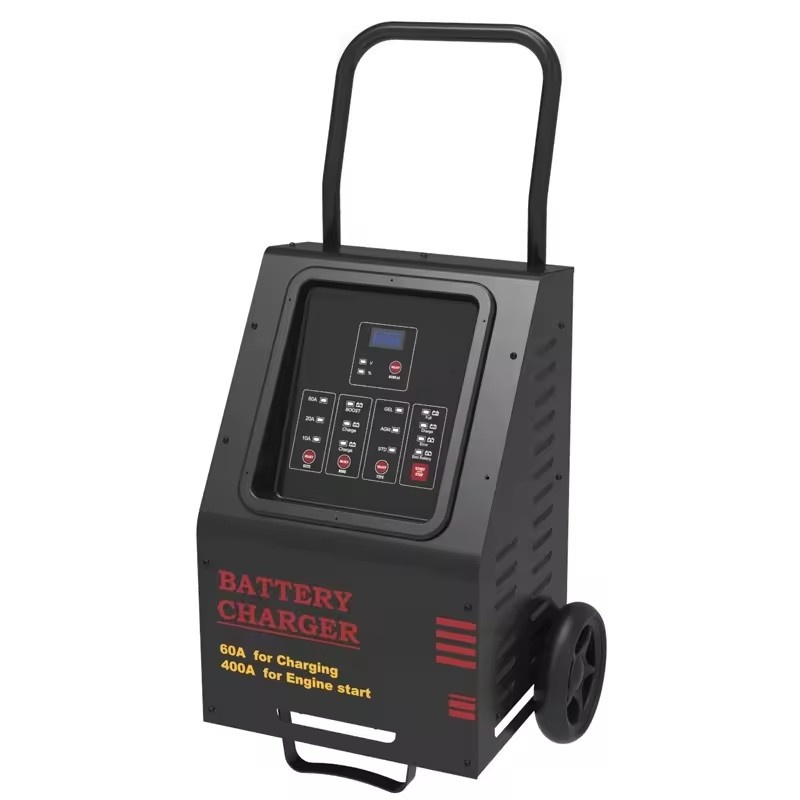

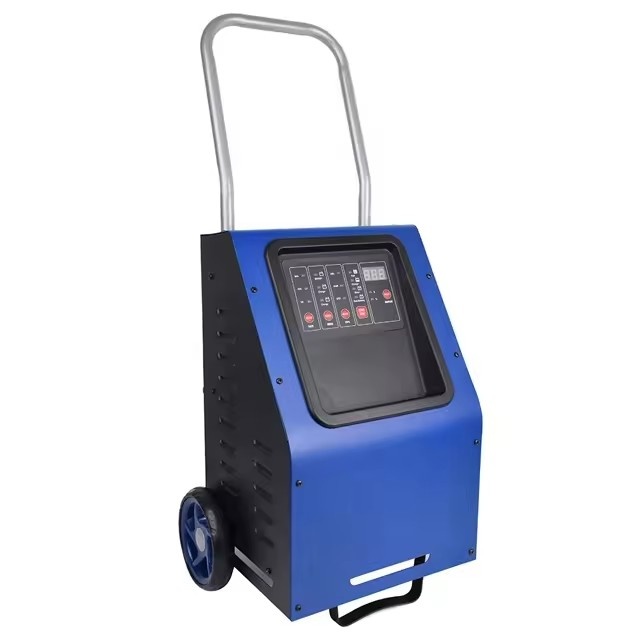

12V/24V,5A/20A/60A/400A Manual Wheel Battery Charger W/Engine Start

13477
  • Fast charge for all 12V and 24V lead-acid batteries(WET, MF, AGM and GEL)

  • Charging ampere-5A,20A,30A,60A

  • Starting ampere: 400A

  • Temperature overload protection

  • With Ammeter for quick readout

  • With Battery/Alternator load tester

  • Includes heavy-duty clamps

  • Fan cooled

  • LED digital display for charging status

Quantity

ltem No.

Description

12V/24V,5A/20A/60A/400A Manual Wheel Battery Charger W/Engine Start is designed for charging a Truck, Boat, RV, SUV or Agricultural Machines.It delivers charging current up to 40A to 6V/12V lead acid batteries, features peak 200 amps of engine starting power to assistant emergency engine cranking. Switchable charging rate for different capacity batteries, LED indicators and Digital display showing charging current and voltage for easy operation.

Features

Housing Material: Metal

Battery Type: 12V/24V STD, GEL, AGM

Rated AC Input Voltage: AC105-125V, 60Hz or AC220-240V, 50Hz

Max Output Voltage: 14.4V±0.3V,28.8V±2%

Charging Current: 5A/20A/60A for 12V, 5A/20A/30A for 24V

Engine Start Current: 400A for 12V

Activated Voltage: 4.2V/17.5V

Size: 300x250x420mm

Weight: 22kgs


Specification
