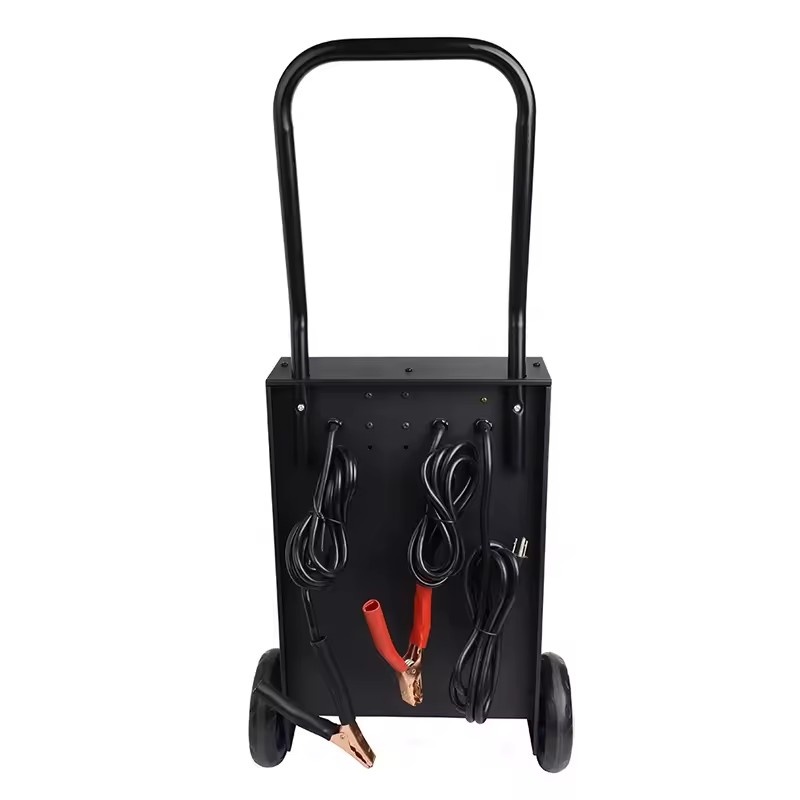

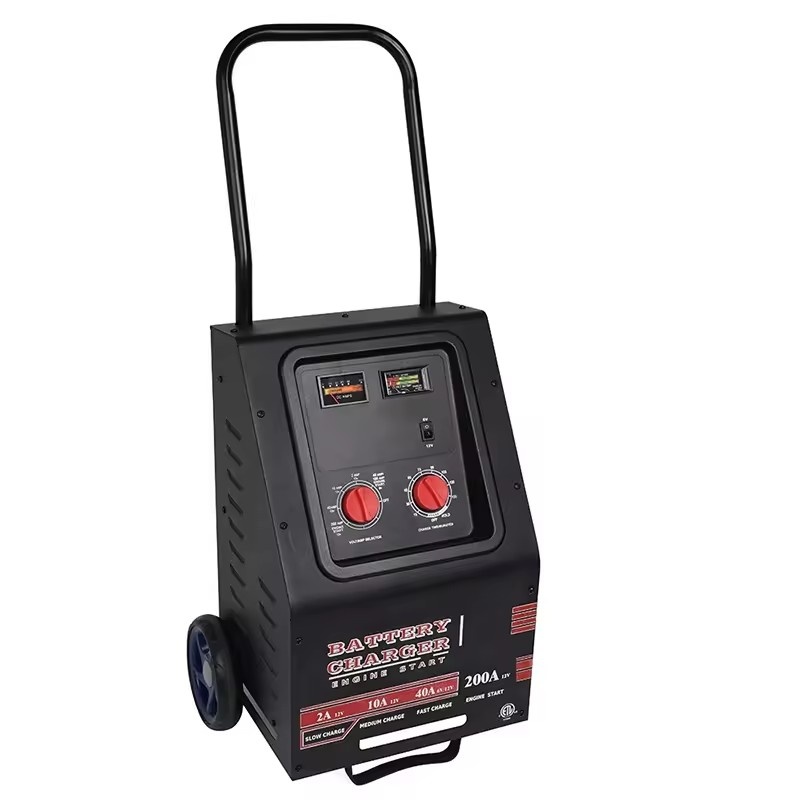

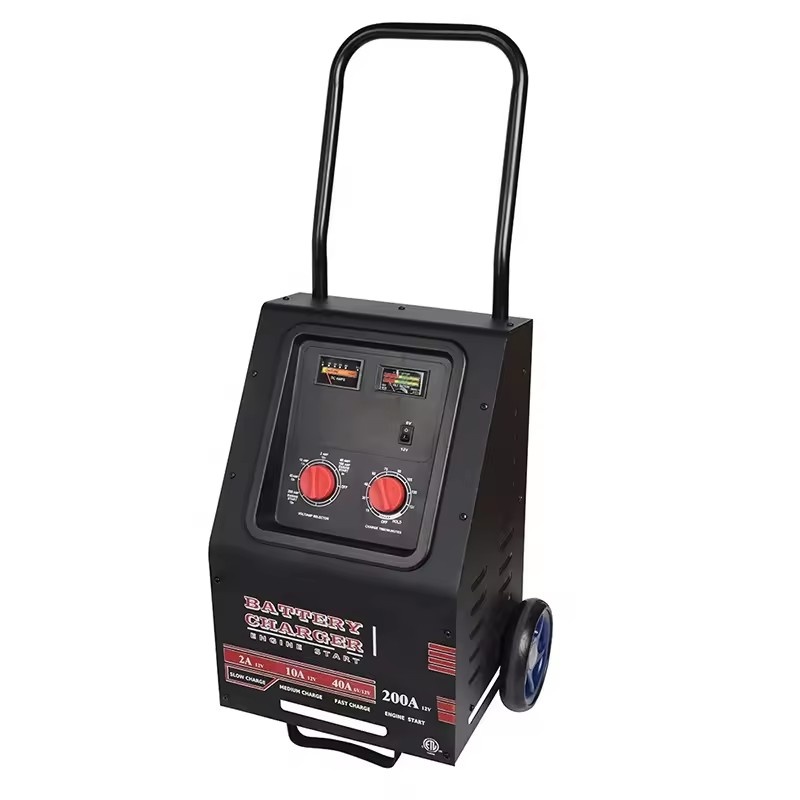

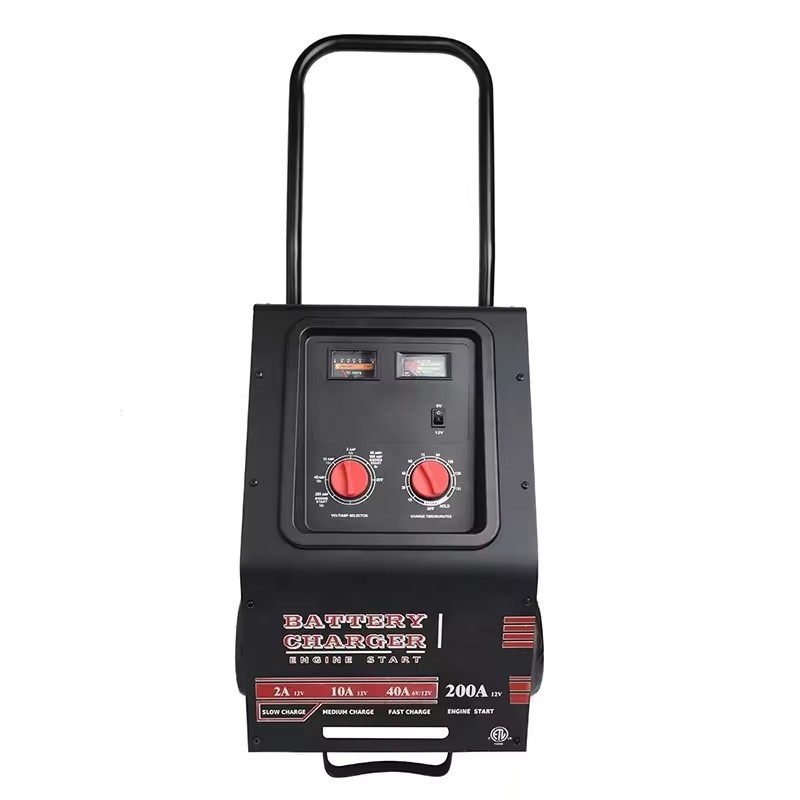

12V 2A/10A/40A/200Amp Manual Wheel Charger W/Engine Start

13476
  • Accommodates both 6 and 12-volt batteries.

  • Heavy-duty transformer.

  • Helps in fleet operations , easy-to-read, color-coded meters.

  • Analyzes electrical and starting system problems. Ideal for charging expended vehicle batteries.

  • Temperature overload protection.

  • Includes heavy-duty clamps.

  • Fan cooled.


Quantity

ltem No.

Description

12V 2A/10A/40A/200Amp Manual Wheel Charger W/Engine Start is designed for charging a Truck, Boat, RV, SUV or Agricultural Machines. It delivers max 60A

charging current for 6V/12V lead acid batteries, provide peak 300 amps to crank 12V engine, provide max 200 amps for 6V engine cranking . Switchable charging rate for different capacity batteries,with a timer setting the proper charging time.


Features

Housing Material: Metal

Battery Type: 12V STD, GEL, AGM

Rated AC Input Voltage: AC105-125V, 60Hz or AC220-240V, 50Hz

Max Output Voltage: 14.4V±0.3V

Charging Current: 2A/10A/40A for 12V

Engine Start Current: 40A/100A for 6V;200A for 12V

Activated Voltage: 3V/7.5V

Size: 300x250x420mm

Weight: 15.5kgs


Specification
