For all 12V/24V Lead-acid batteries; For 12V/24V LiFePO4 batteries.
LCD displays measured voltage with a bar graph to indicate battery charge level.
4 Different Charging Mode.
Normal temperation mode,Low temperation mode,Silent mode, Low temperation and Silent mode.
6-Step fully automatic charging cycle.
Fully protection for reverse polarity, short circuit, overcharge, over-temp, etc.
Quantity
ltem No.

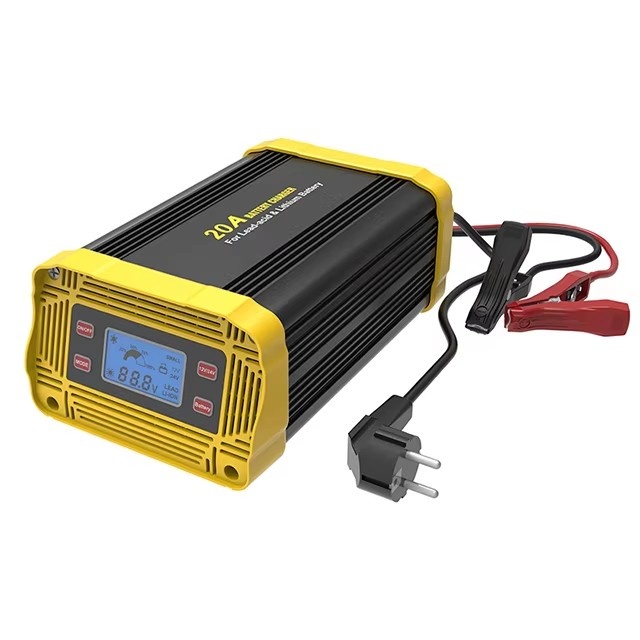

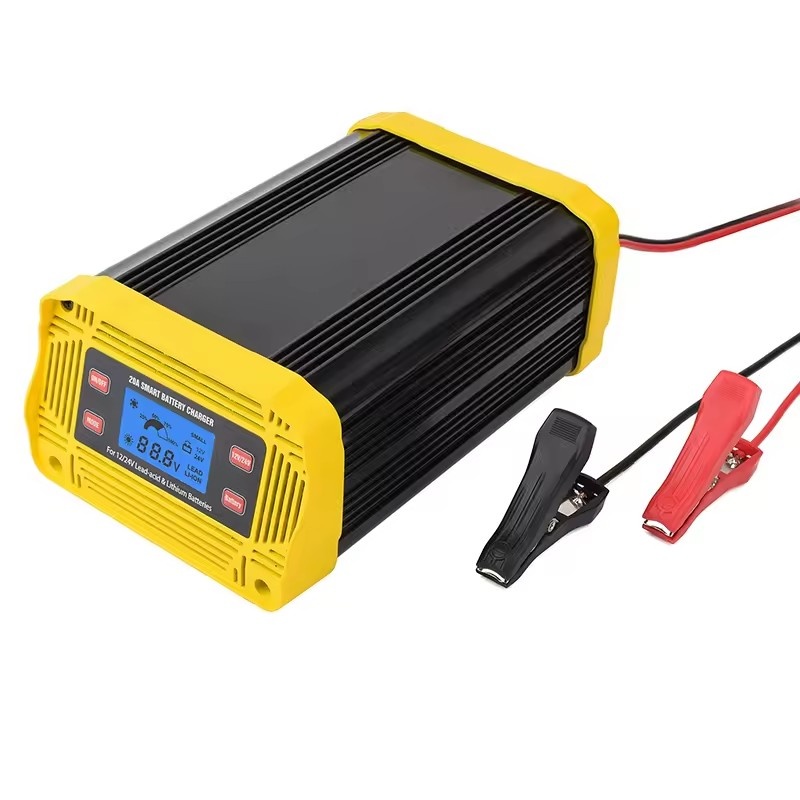

This multi-use 12V/24V Battery Charger for Lead-acid & Lithium Battery can be used for 12V/24V lead-acid and lithium batteries. The automatic six-stage charging protects against battery damage. This battery charger also has full protection features including reverse polarity, short circuit, overcharge, over-temp, etc. This smart battery charger is equipped with an LCD display that clearly shows the charging process, making operation more convenient.

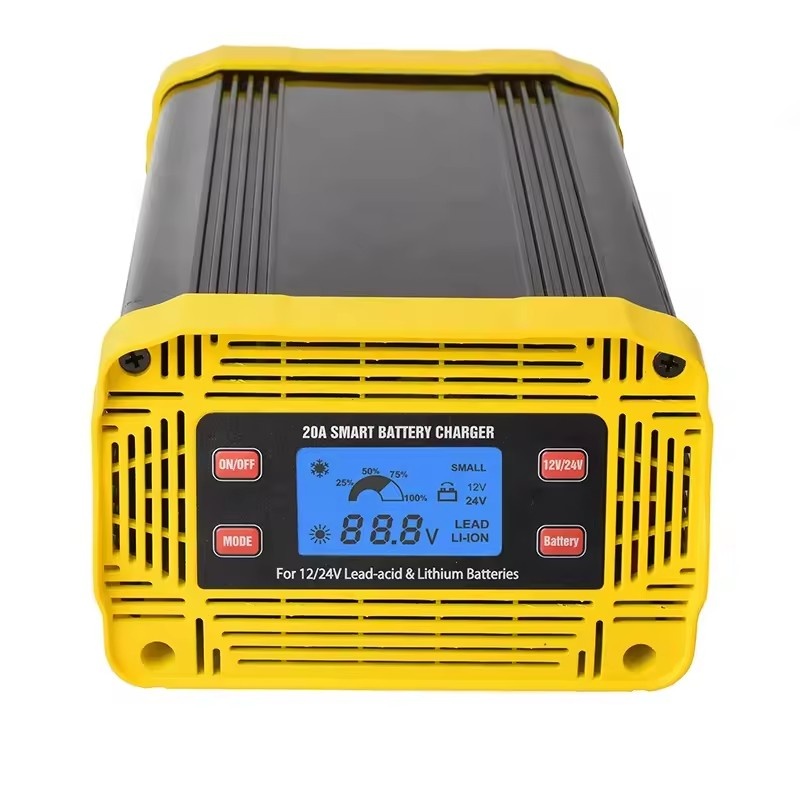

Mode Selection Control Panel Shows:
12V/24V buttons
Charge Rate Selected Button
Housing Design Shows:
Clamp Holder
Rugged Housing Design
Metal Insulated Clamps
On Board Power Cord Storage
Housing Material: ABS
Battery Type: Lead-acid & Lithium Battery
Rated AC Input Voltage: AC105-125V, 60Hz or AC220-240V, 50Hz
Max Output Voltage: 14.4V±0.3 for 12V; 28.8V±2% for 24V
Charging Current: 12V/20A; 24V/10A
Activated Voltage: 8V/19V for 12V, 7.5V/16V for 24V
Size: 245x159x99mm
